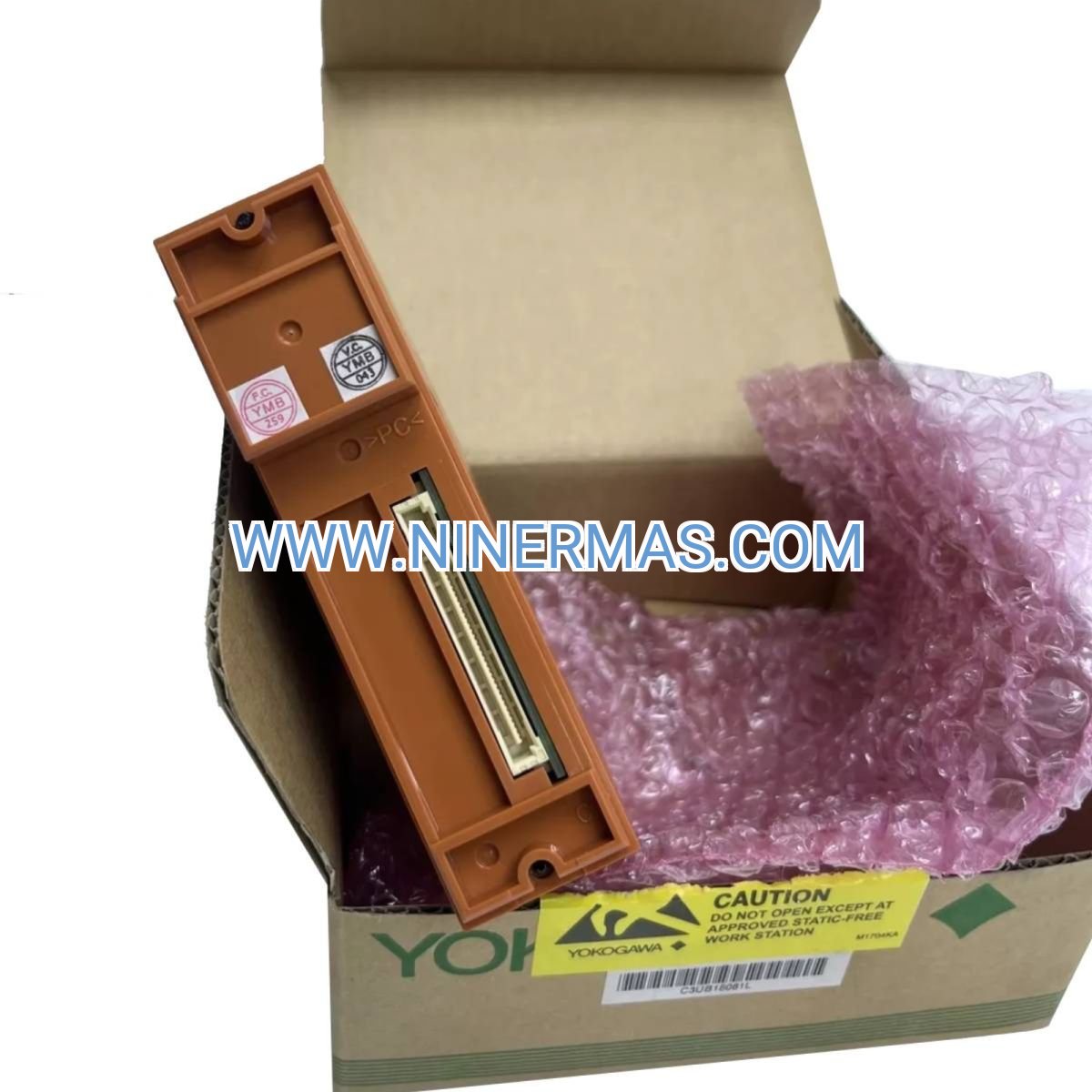

SDV531-L63 Digital Output Module (Industrial-Grade 8-Channel Controller)

The SDV531-L63 represents Yokogawa's advanced solution for distributed digital control in mission-critical industrial environments. This 8-channel digital output module combines 24VDC switching capability with module-level isolation architecture, delivering dependable actuation control for process automation, manufacturing execution systems, and SCADA infrastructure where signal integrity over extended distances is non-negotiable.

Engineered for integration with Yokogawa CENTUM VP and ProSafe-RS platforms, the SDV531-L63 addresses the operational challenges of large-scale facilities requiring reliable remote device control. Whether coordinating valve banks in chemical processing or managing pump stations across distributed water treatment networks, this module provides the electrical isolation and noise immunity essential for maintaining control precision in electrically harsh industrial settings.

With proven performance in oil & gas, power generation, and continuous process industries, the SDV531-L63 delivers the robustness and configurability that automation engineers demand for long-term system reliability and simplified troubleshooting.

Core Capabilities & Technical Advantages

→ Module-Level Isolation Technology
Each output channel benefits from galvanic isolation that eliminates ground loop interference and protects upstream control logic from field-side electrical faults. This architecture reduces nuisance trips and simplifies fault diagnosis by containing issues to individual channels rather than compromising entire I/O racks.

→ Extended-Distance Signal Integrity
Optimized driver circuitry maintains clean switching transitions across cable runs exceeding 100 meters, critical for distributed control topologies in refineries, mining operations, and utility-scale facilities where field devices are geographically dispersed from control rooms.

→ 24VDC Industry-Standard Interface
Direct compatibility with the vast majority of industrial solenoid valves, motor starters, indicator lamps, and relay coils eliminates the need for external signal conditioning, reducing panel complexity and potential failure points.

→ Hot-Swappable Design with Diagnostic LEDs
Field-replaceable module construction with per-channel status indication enables rapid troubleshooting and minimizes mean time to repair (MTTR) during scheduled maintenance or emergency response scenarios.

✓ Seamless DCS Integration
Pre-configured compatibility with Yokogawa's engineering tools accelerates commissioning timelines, with automatic I/O mapping and built-in diagnostics accessible through standard HMI interfaces.

✓ Industrial Environmental Rating
Operates reliably across -20°C to +60°C ambient temperatures with resistance to vibration, humidity, and electromagnetic interference per IEC 61131-2 standards for harsh industrial locations.

Industry Applications & Use Cases

Chemical & Petrochemical Processing
Controls automated valve manifolds, emergency shutdown systems, and batch sequencing equipment where isolation prevents cross-contamination between process zones and enhances safety integrity level (SIL) compliance.

Oil & Gas Production Facilities
Manages wellhead control panels, separator dump valves, and pipeline isolation systems in remote locations where module isolation protects against lightning-induced surges and cathodic protection interference.

Power Generation & Substations
Operates auxiliary cooling systems, fuel handling equipment, and alarm annunciation panels where reliable switching under varying load conditions ensures continuous availability of critical infrastructure.

Water & Wastewater Treatment
Drives chemical dosing pumps, filtration backwash cycles, and distribution network valves across multi-site installations where long cable runs and wet environments demand superior isolation performance.

Food & Beverage Manufacturing
Coordinates CIP (clean-in-place) valve sequences, conveyor interlocks, and packaging line controls in sanitary environments requiring frequent washdown and temperature cycling.

Technical Specifications & Selection Guide

Selection Criteria: Choose the SDV531-L63 when your application requires isolated 24VDC outputs for controlling standard industrial loads over distances exceeding 50 meters, or when electrical noise environments necessitate channel-to-channel isolation. For higher current requirements (>0.5A per channel), consider relay output modules. For safety-rated applications (SIL 2/3), evaluate the SDV541-S33 S2 variant with redundant diagnostics.

Advanced Integration Features

Modbus RTU/TCP Compatibility: Supports standard industrial protocols for third-party system integration beyond native Yokogawa platforms, enabling hybrid DCS/PLC architectures.

Predictive Diagnostics: Built-in load monitoring detects degraded field wiring, impending actuator failures, and abnormal current draw patterns, enabling condition-based maintenance strategies.

Configuration Flexibility: Software-selectable pulse output modes, adjustable slew rates, and programmable fault response behaviors adapt the module to diverse application requirements without hardware modifications.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days; custom-tested or certified units require 2-3 weeks for factory validation and documentation.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship under normal industrial operating conditions. Extended service agreements available for critical infrastructure applications.

Technical Assistance: Access to application engineering support for system design review, I/O configuration optimization, and troubleshooting guidance via email, phone, and remote diagnostics tools.

Documentation Package: Includes installation manual, wiring diagrams, configuration software, and sample ladder logic/function block examples for common control sequences.

Frequently Asked Questions

Q: How does the SDV531-L63 interface with non-Yokogawa control systems?
A: The module supports Modbus RTU/TCP protocols and provides discrete I/O mapping compatible with Allen-Bradley, Siemens, and other major PLC platforms via standard digital I/O cards or communication gateways.

Q: What is the maximum cable distance for reliable 24VDC output operation?
A: With proper wire gauge selection (minimum 18AWG for loads >0.3A), the module maintains specification compliance at distances up to 150 meters. For longer runs, consider using local I/O with fieldbus communication.

Q: Can this module reduce energy consumption compared to relay-based outputs?
A: Yes—solid-state outputs eliminate coil holding current (typically 2-5W per relay), and the module's <5W base consumption represents 60-80% energy savings in applications with frequently cycled outputs.

Q: What installation requirements apply for hazardous area deployment?
A: The SDV531-L63 carries ATEX Zone 2 certification for installation in control rooms adjacent to classified areas. For Zone 1/0 field mounting, use intrinsically safe barrier modules or explosion-proof enclosures per local electrical codes.

Q: Does the module support remote monitoring and diagnostics?
A: Full diagnostic data (channel status, load current, fault flags) is accessible via the DCS HMI or through OPC UA/Modbus interfaces for integration with CMMS, SCADA historians, and predictive maintenance platforms.

Q: How do I select between the SDV531-L63 and SDV531-L23 variants?
A: The L63 suffix indicates module-level isolation optimized for long-distance applications, while the L23 provides channel-to-channel isolation for applications requiring independent ground references per output. Consult factory application notes for detailed comparison.

Get Started with Your Control System Upgrade

Ready to enhance your industrial automation infrastructure with proven Yokogawa I/O technology? Contact our application engineering team for system compatibility verification, custom configuration assistance, or volume pricing for multi-site deployments. We provide technical pre-sales support to ensure the SDV531-L63 meets your specific performance and integration requirements.
