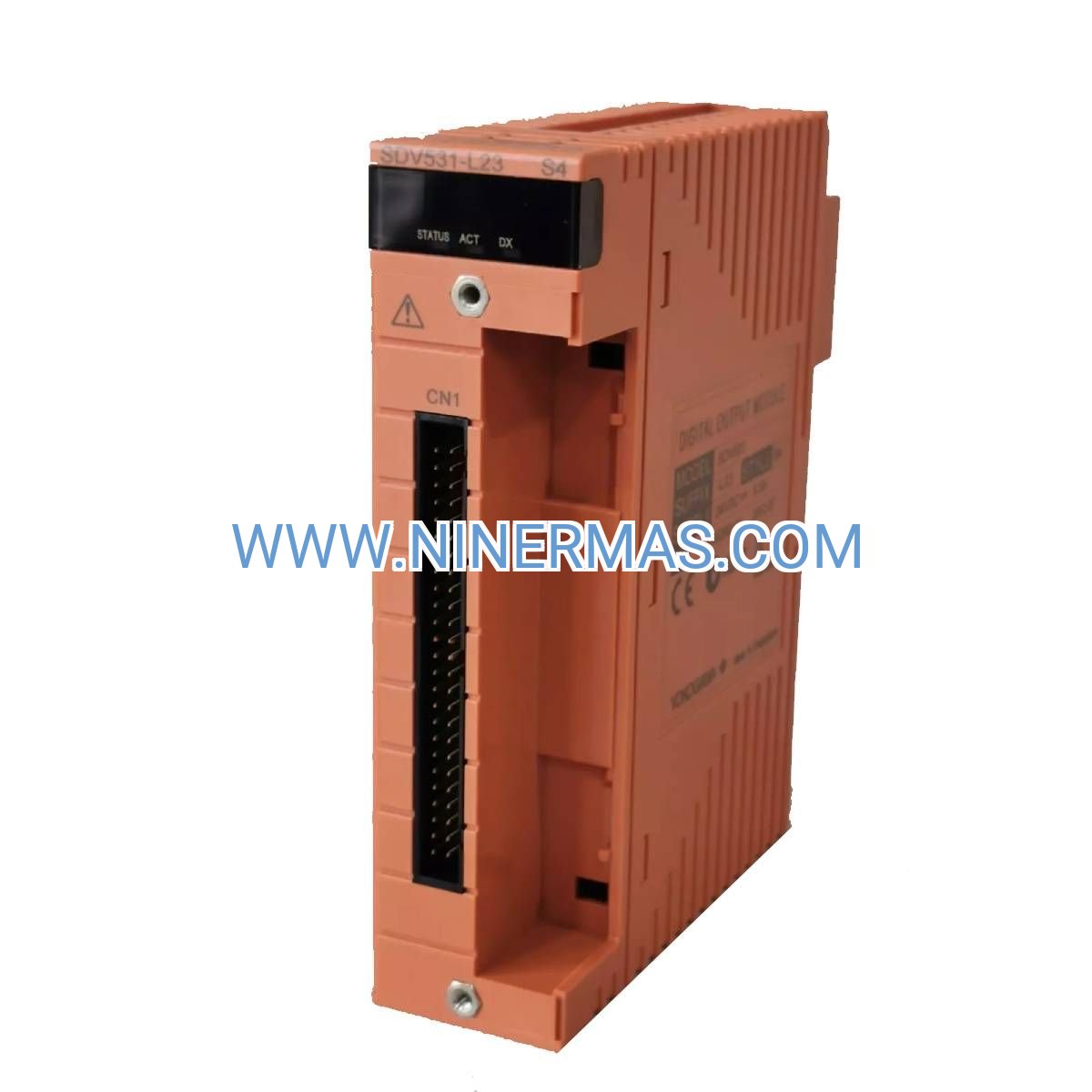

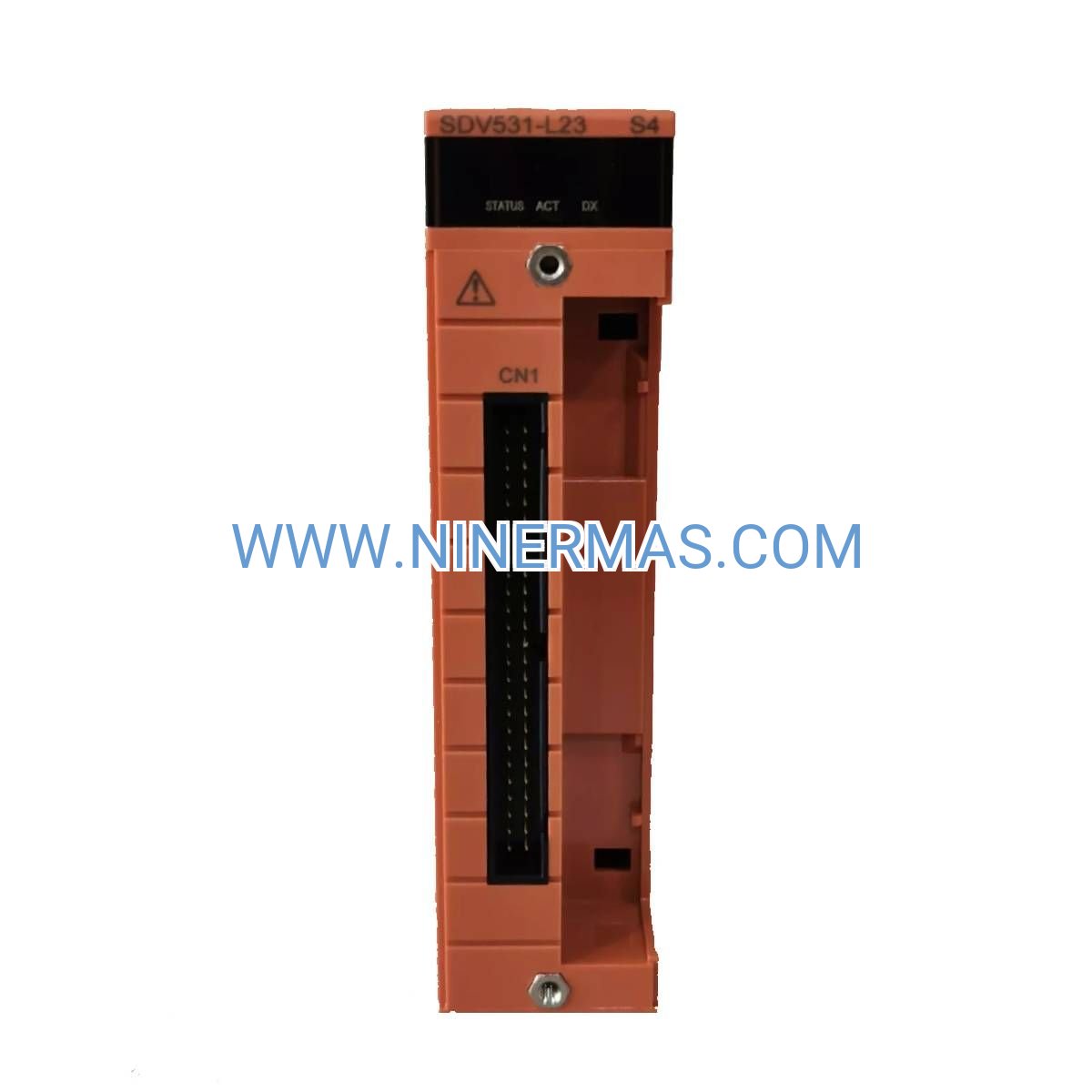

SDV531-L23 Digital Output Module (Industrial-Grade 8-Channel Controller)

The SDV531-L23 is an 8-channel digital output module engineered for distributed control systems requiring high-reliability discrete signal switching. Designed with module-level isolation and 24VDC output capability, this unit ensures stable operation in electrically noisy industrial environments where signal integrity directly impacts process safety and production continuity.

Industrial facilities face persistent challenges with output signal degradation, ground loop interference, and limited diagnostic visibility in legacy relay systems. The SDV531-L23 addresses these pain points through galvanic isolation architecture and integrated fault detection, serving process engineers, automation integrators, and maintenance teams managing critical control infrastructure.

Key differentiators include long-distance transmission support for remote I/O configurations, DIN rail mounting for space-efficient installation, and native compatibility with Yokogawa CENTUM VP platforms—delivering faster commissioning cycles and reduced total cost of ownership compared to multi-vendor integration approaches.

Core Features & Benefits

→ 8 Independent Output Channels
Discrete 24VDC switching for solenoid valves, actuators, and indicator lamps | Reduces cabinet footprint by 40% versus single-channel relay modules

→ Module-Level Isolation Protection
Galvanic separation between field circuits and control logic | Eliminates ground loop faults in multi-cabinet distributed systems

→ Extended Transmission Distance
Supports remote I/O placement up to 500 meters from controller | Enables flexible system architecture in large-scale facilities

→ Built-In Diagnostic Monitoring
Real-time output circuit health status via DCS interface | Reduces unplanned downtime through predictive maintenance alerts

→ Wide Operating Temperature Range
-20°C to +60°C ambient rating | Suitable for non-climate-controlled industrial enclosures

→ IP20 Protection Standard
Dust-resistant enclosure for typical control room environments | Meets IEC 60529 requirements for panel-mounted equipment

Typical Application Scenarios

Chemical Processing Plants
Controls emergency shutdown valves and process isolation actuators in batch reactors. Module isolation prevents voltage transients from propagating across safety-critical circuits during fault conditions.

Water & Wastewater Treatment
Manages pump sequencing, chemical dosing valves, and alarm annunciators in SCADA systems. Long-distance capability supports distributed pump stations without intermediate marshalling cabinets.

Power Generation Facilities
Operates turbine control valves, cooling system dampers, and auxiliary equipment in combined-cycle plants. Diagnostic features enable condition-based maintenance strategies for aging infrastructure.

Food & Beverage Manufacturing
Drives conveyor interlocks, CIP valve manifolds, and packaging line actuators. Compact design maximizes usable space in hygiene-rated control panels.

Oil & Gas Upstream Operations
Switches wellhead control valves and separator level controls in offshore platforms. Wide temperature tolerance accommodates non-insulated equipment shelters.

Technical Parameters & Selection Guide

Selection Criteria: Choose SDV531-L23 when your application requires ≤8 discrete outputs with 24VDC field devices, module isolation is mandatory per electrical design standards, and integration with Yokogawa DCS platforms is specified. For higher channel counts, consider parallel module installation or ADV551 series alternatives.

Extended Functions

CENTUM VP Integration: Plug-and-play configuration with Yokogawa's engineering tools—automatic I/O mapping reduces commissioning time by 60% versus generic third-party modules.

Hot-Swap Capability: Field-replaceable design allows module exchange without system shutdown in redundant configurations, supporting 24/7 continuous process operations.

Customization Options: Available with conformal coating for high-humidity environments or extended temperature variants (-40°C to +70°C) for extreme climate installations—consult factory for MOQ requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days | Custom configurations require 4-6 weeks factory lead time

Warranty: 24-month manufacturer warranty covering material defects and workmanship | Extended service contracts available for critical applications

Technical Support: Direct access to application engineers for system integration assistance, troubleshooting guidance, and replacement part cross-referencing

Documentation Package: Includes installation manual, wiring diagrams, CENTUM configuration files, and dimensional drawings in PDF/CAD formats

Frequently Asked Questions

Q: What communication protocol does the SDV531-L23 digital output module use for DCS integration?
A: The module communicates via Yokogawa's proprietary Vnet/IP fieldbus protocol when installed in CENTUM VP systems. Third-party DCS integration requires appropriate gateway modules.

Q: Can this 8-channel module handle inductive loads like solenoid valves without external suppression?
A: Yes, each output channel includes built-in flyback diode protection for inductive loads up to 0.5A. For higher-current solenoids, use external interposing relays rated for the specific load.

Q: How much energy savings does module isolation provide compared to relay-based output systems?
A: Solid-state outputs consume approximately 85% less holding power than equivalent electromagnetic relays—a typical 8-channel installation reduces panel heat dissipation by 12-15 watts, lowering cooling requirements.

Q: What are the physical installation requirements for DIN rail mounting in control cabinets?
A: Requires standard 35mm DIN rail per IEC 60715, minimum 25mm lateral spacing for heat dissipation, and 150mm clearance above/below for wiring access. Vertical or horizontal orientation supported.

Q: Does the SDV531-L23 support remote monitoring of output status via SCADA systems?
A: Absolutely—each channel's ON/OFF state and fault condition is mapped to the DCS database in real-time, enabling HMI visualization and alarm generation for open-circuit or short-circuit faults.

Q: Is this module compatible with legacy CENTUM CS systems or only newer VP platforms?
A: The SDV531-L23 is designed for CENTUM VP (V5.0 and later). For CS3000 systems, consult the ADV551 series or contact technical support for migration path recommendations.
