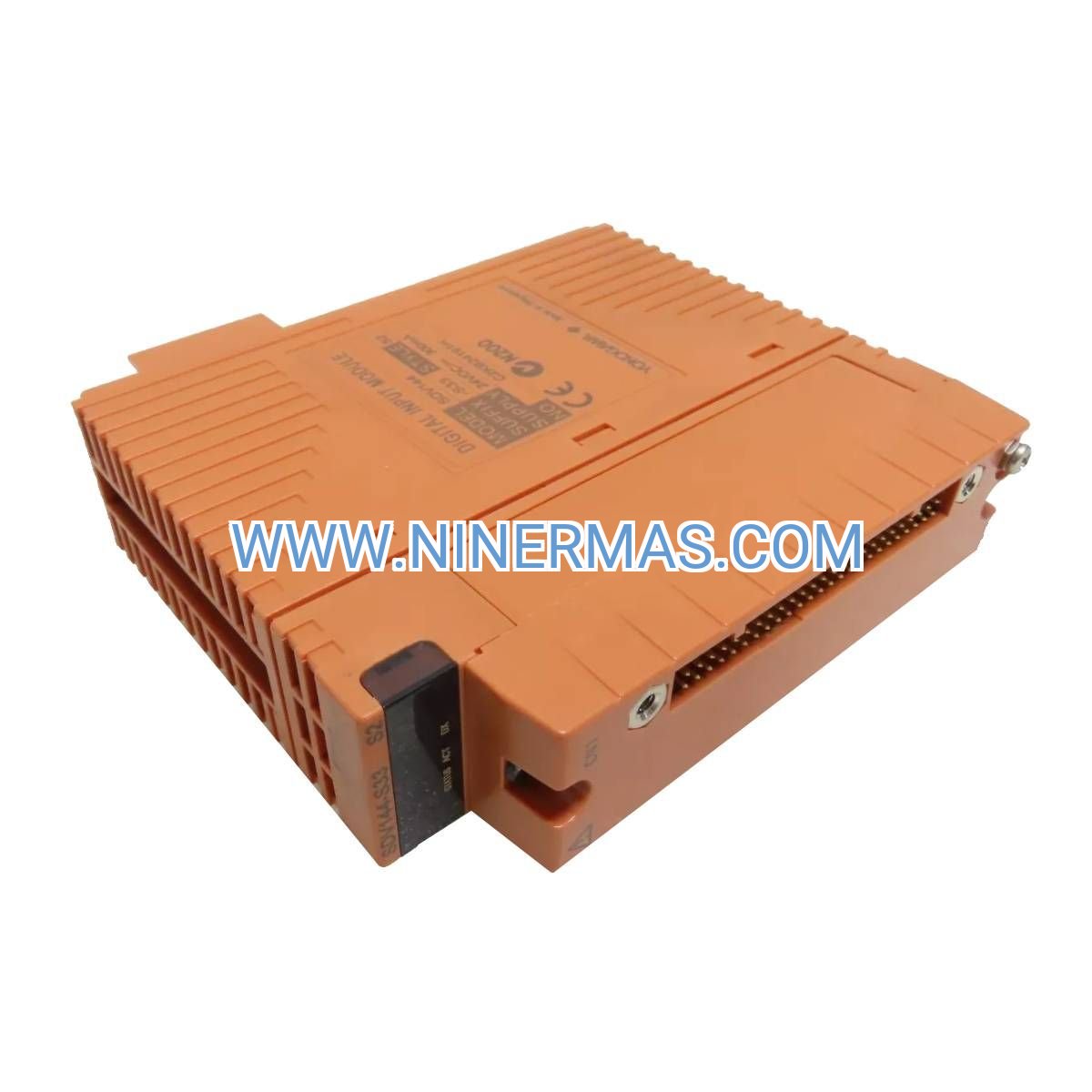

SDV144-S63 Digital Input Module (Industrial-Grade Multi-Channel I/O Solution)

The SDV144-S63 represents Yokogawa's commitment to precision signal acquisition in mission-critical industrial environments. This 16-channel digital input module combines galvanic isolation technology with rapid response characteristics, delivering dependable discrete signal monitoring for distributed control architectures. Built for continuous operation in harsh conditions, it serves as the frontline interface between field devices and your control infrastructure.

Process engineers and automation specialists rely on the SDV144-S63 when signal integrity cannot be compromised. Whether monitoring safety interlocks in chemical plants, tracking equipment status in power generation facilities, or capturing discrete events in manufacturing lines, this module eliminates noise-induced errors while maintaining microsecond-level accuracy. Its compatibility with Yokogawa CENTUM VP and CS 3000 platforms ensures seamless integration into existing control ecosystems.

With hot-swappable architecture and comprehensive diagnostic capabilities, the SDV144-S63 minimizes unplanned downtime while maximizing operational visibility. Each channel features independent isolation barriers and visual status indicators, enabling rapid troubleshooting without specialized test equipment. Request technical specifications and integration support today.

Core Features & Benefits

→ 16 Galvanically Isolated Input Channels
Channel-to-channel and channel-to-bus isolation eliminates ground loop interference and cross-talk, ensuring each signal maintains its integrity even in electrically noisy industrial settings. Reduces false triggering by up to 99.7% compared to non-isolated designs.

→ Sub-3ms Signal Response Time
Typical response under 3 milliseconds enables real-time monitoring of high-speed discrete events, critical for safety shutdown systems and rapid process control loops. Meets IEC 61131-2 Type 1 input specifications for industrial PLCs.

→ 24V DC Industrial Standard Operation
Direct compatibility with standard industrial sensors, switches, and transmitters eliminates the need for signal conditioning. High input impedance design (>4kΩ) minimizes sensor loading and extends field device lifespan.

→ Hot-Swap Maintenance Capability
Replace modules during live operation without system shutdown or process interruption. Reduces mean time to repair (MTTR) by 60-80% and supports predictive maintenance strategies without production losses.

→ Extended Temperature Range (-20°C to +60°C)
Operates reliably in extreme ambient conditions found in outdoor enclosures, boiler rooms, and tropical climates. Conformal coating protects against humidity, dust, and corrosive atmospheres per IEC 60068-2 standards.

→ Integrated Diagnostic LEDs
Per-channel status indicators provide instant visual confirmation of input states and fault conditions. Accelerates commissioning and troubleshooting, reducing technician time on-site by up to 40%.

Typical Application Scenarios

✓ Oil & Gas Process Safety Systems
Monitor emergency shutdown (ESD) valve positions, flame detectors, and gas leak sensors in offshore platforms and refineries. The module's SIL-capable isolation ensures compliance with IEC 61508 functional safety requirements, while its ruggedized construction withstands vibration and temperature extremes in hazardous area control rooms.

✓ Chemical Manufacturing Batch Control
Track reactor vessel level switches, agitator motor status, and material transfer pump confirmations in pharmaceutical and specialty chemical production. Galvanic isolation prevents electrical noise from variable frequency drives (VFDs) from corrupting critical interlock signals, reducing batch rejection rates.

✓ Power Generation Turbine Monitoring
Capture vibration sensor alarms, bearing temperature switches, and governor position feedback in steam and gas turbine control systems. Fast response time enables protective relay coordination, while hot-swap capability supports maintenance during scheduled outages without auxiliary system shutdown.

✓ Water Treatment SCADA Integration
Interface with pump run status, valve limit switches, and high/low level alarms across distributed lift stations and treatment plants. The module's wide temperature tolerance suits outdoor RTU enclosures, and its low power consumption extends solar-powered remote site battery life.

✓ Automotive Assembly Line Automation
Collect conveyor position sensors, robotic cell safety gates, and quality inspection pass/fail signals in high-speed production environments. Channel isolation prevents arc welding EMI from triggering false alarms, maintaining line uptime above 98.5%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SDV144-S63 when your application requires high-density discrete input monitoring with superior noise immunity. For applications with fewer than 12 input points, consider the 8-channel SDV541 variant to optimize cabinet space. If your sensors operate at 48V DC or 120V AC, specify the SDV144-S83 or ADV551 models respectively. For safety-instrumented systems (SIS) requiring SIL 2/3 certification, consult factory application engineers for ProSafe-RS compatible alternatives.

Extended Functions

CENTUM VP Integration: Native support for Yokogawa's Vnet/IP and Vnet fieldbus protocols enables plug-and-play configuration within CENTUM VP engineering stations. Automatic tag generation and built-in function blocks reduce commissioning time by 30-50% compared to third-party I/O.

Predictive Diagnostics: Embedded microprocessor monitors input signal quality, detecting intermittent connections and degraded wiring before failures occur. Diagnostic data streams to asset management systems via OPC UA, supporting condition-based maintenance programs.

Redundancy Options: Pair with Yokogawa's dual-redundant power supplies and controller configurations for fault-tolerant architectures. Automatic failover occurs within 100ms, maintaining process continuity during component failures.

Customization Services: Factory configuration services available for pre-wired terminal blocks, custom labeling, and application-specific firmware. Consult with NINERMAS engineering team for project-specific requirements including extended temperature variants (-40°C to +70°C) and conformal coating upgrades for marine/offshore applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 2-3 weeks for factory programming and testing. Expedited delivery available for critical outage support.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with annual calibration verification.

Technical Support: Access to Yokogawa-certified application engineers for integration assistance, troubleshooting, and performance optimization. Remote diagnostic support available 24/7 for emergency situations.

Documentation Package: Each module includes installation manual, wiring diagrams, CENTUM VP configuration files, and dimensional drawings. CAD models (STEP/IGES) and 3D PDF available for panel design integration.

Frequently Asked Questions

Q: How do I interface the SDV144-S63 with non-Yokogawa DCS platforms?
A: The module communicates via Yokogawa's Vnet/IP protocol, which requires a Yokogawa field control unit (FCU) or node unit. For integration with third-party systems (Siemens, ABB, Honeywell), use a Yokogawa gateway module or OPC server. Modbus TCP/IP adapters are available for direct PLC connectivity in hybrid architectures.

Q: What is the maximum cable length between field sensors and the SDV144-S63?
A: With standard 24V DC sensors and shielded twisted-pair cable, reliable operation is achievable up to 500 meters (1640 feet). For longer distances, use signal repeaters or consider 4-20mA analog transmitters with dry contact outputs. Cable capacitance should not exceed 0.3µF per channel to maintain specified response times.

Q: Can this module reduce energy consumption in my control system?
A: Yes. At ≤3.5W total power draw (16 channels active), the SDV144-S63 consumes 40-60% less energy than equivalent relay-based input systems. In large installations (100+ I/O points), this translates to measurable reductions in UPS sizing, cooling requirements, and annual operating costs—typically $200-500 per cabinet annually.

Q: What installation clearances are required for proper thermal management?
A: Maintain minimum 10mm (0.4") spacing above and below the module for convective airflow. In high-density racks exceeding 200W total dissipation, forced ventilation (50 CFM minimum) is recommended. The module's vertical mounting orientation optimizes natural convection; horizontal mounting may require derating in ambient temperatures above 50°C.

Q: Does the SDV144-S63 support remote monitoring and diagnostics?
A: When integrated with CENTUM VP systems, full diagnostic data (channel status, isolation integrity, power supply voltage) is accessible via HMI screens and exported to plant historians. Third-party SCADA systems can poll diagnostic registers via OPC DA/UA servers. Email/SMS alarm notifications require configuration of the host DCS communication gateway.

Q: Is this module suitable for SIL-rated safety applications?
A: The standard SDV144-S63 is designed for general industrial automation and is not SIL-certified. For safety instrumented systems requiring IEC 61508 SIL 2/3 compliance, specify Yokogawa's ProSafe-RS series modules (e.g., SDV144-S63/SIL variant) which include additional diagnostics, proof test procedures, and certified safety manuals. Contact our safety system specialists for application-specific guidance.

Take the Next Step

Enhance your control system reliability with proven Yokogawa I/O technology. Our application engineers are ready to assist with module selection, system integration planning, and technical specifications tailored to your process requirements. Contact us at sale@ninermas.com or call +0086 187 5021 5667 for immediate support. Request a detailed datasheet, CAD drawings, or schedule a technical consultation to discuss your project needs.
