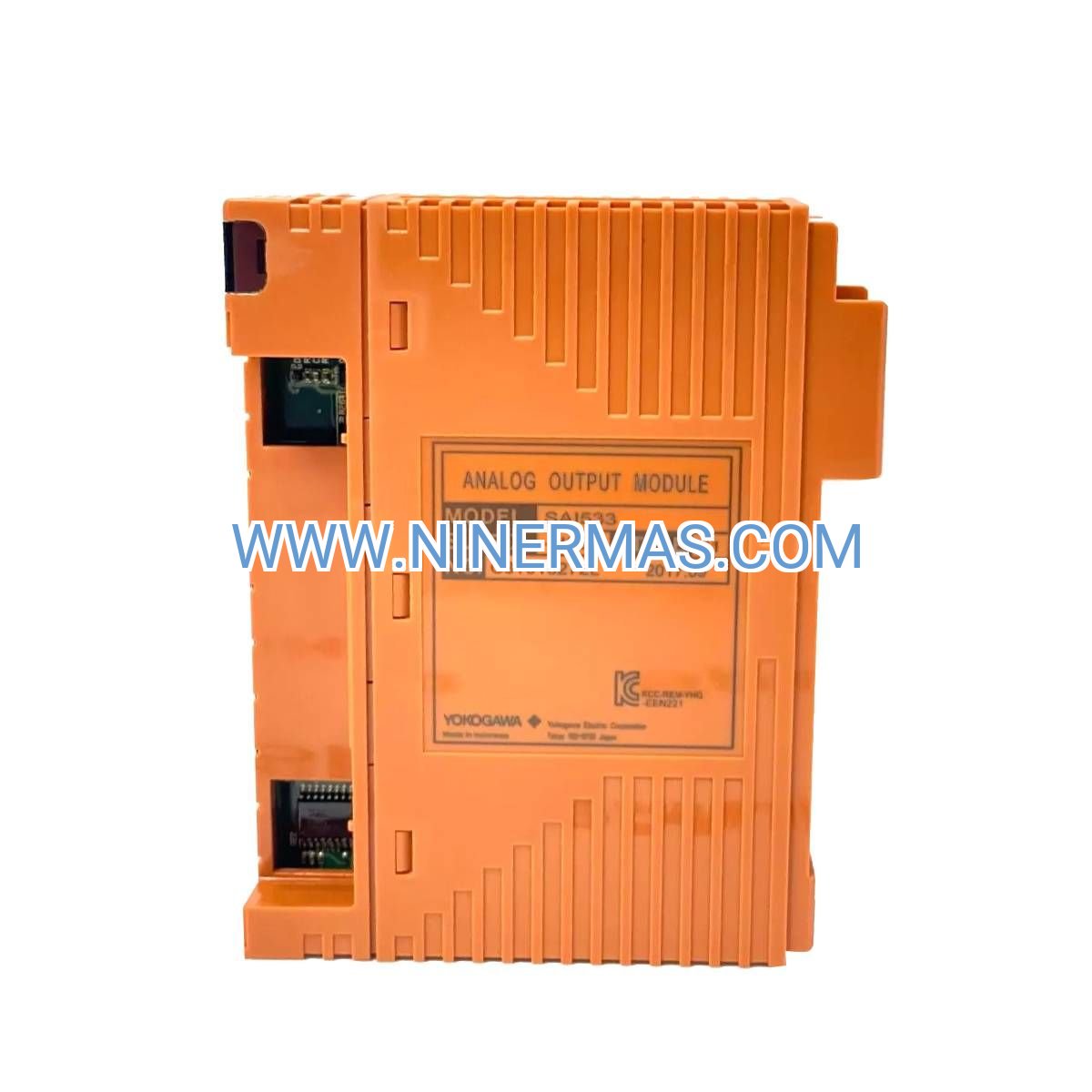

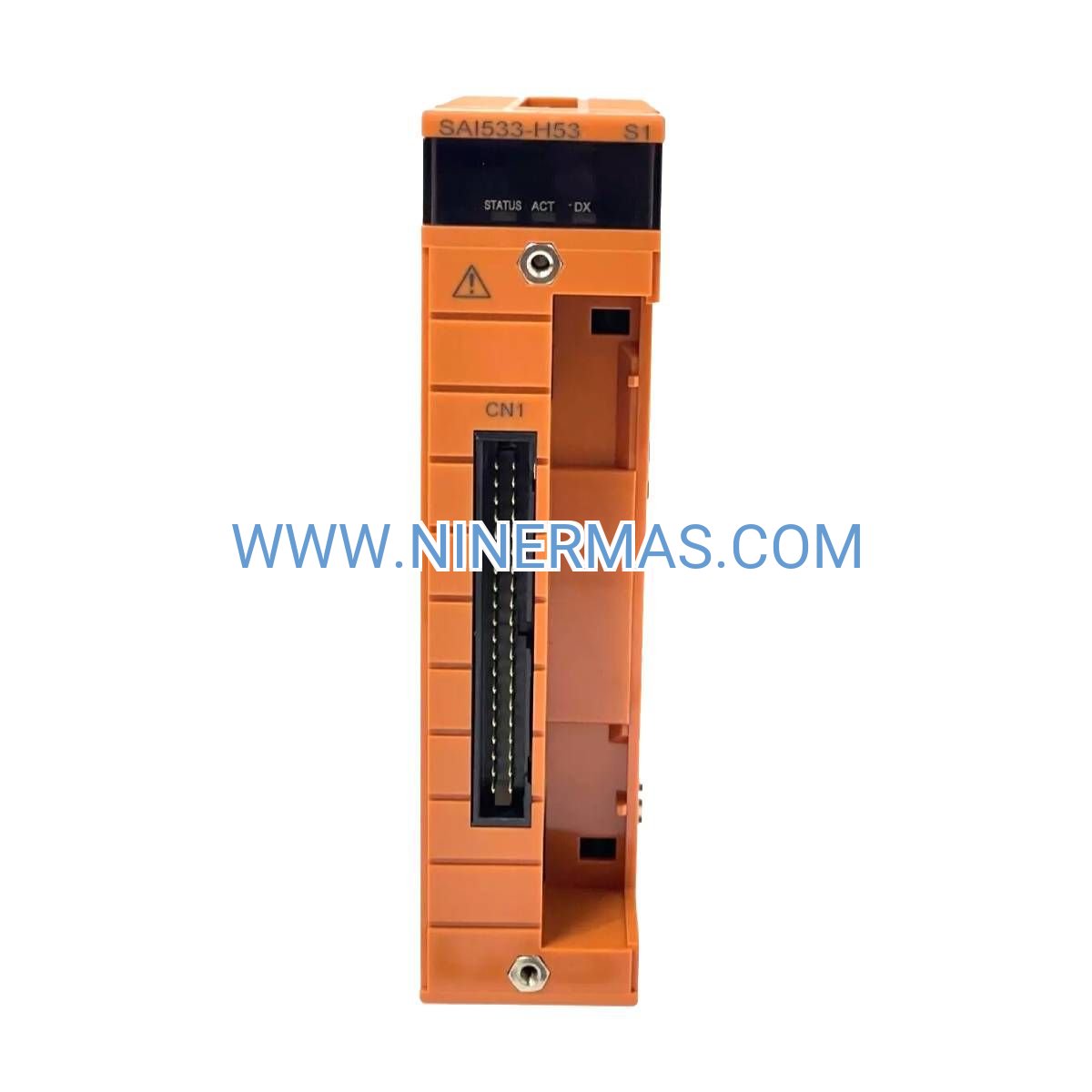

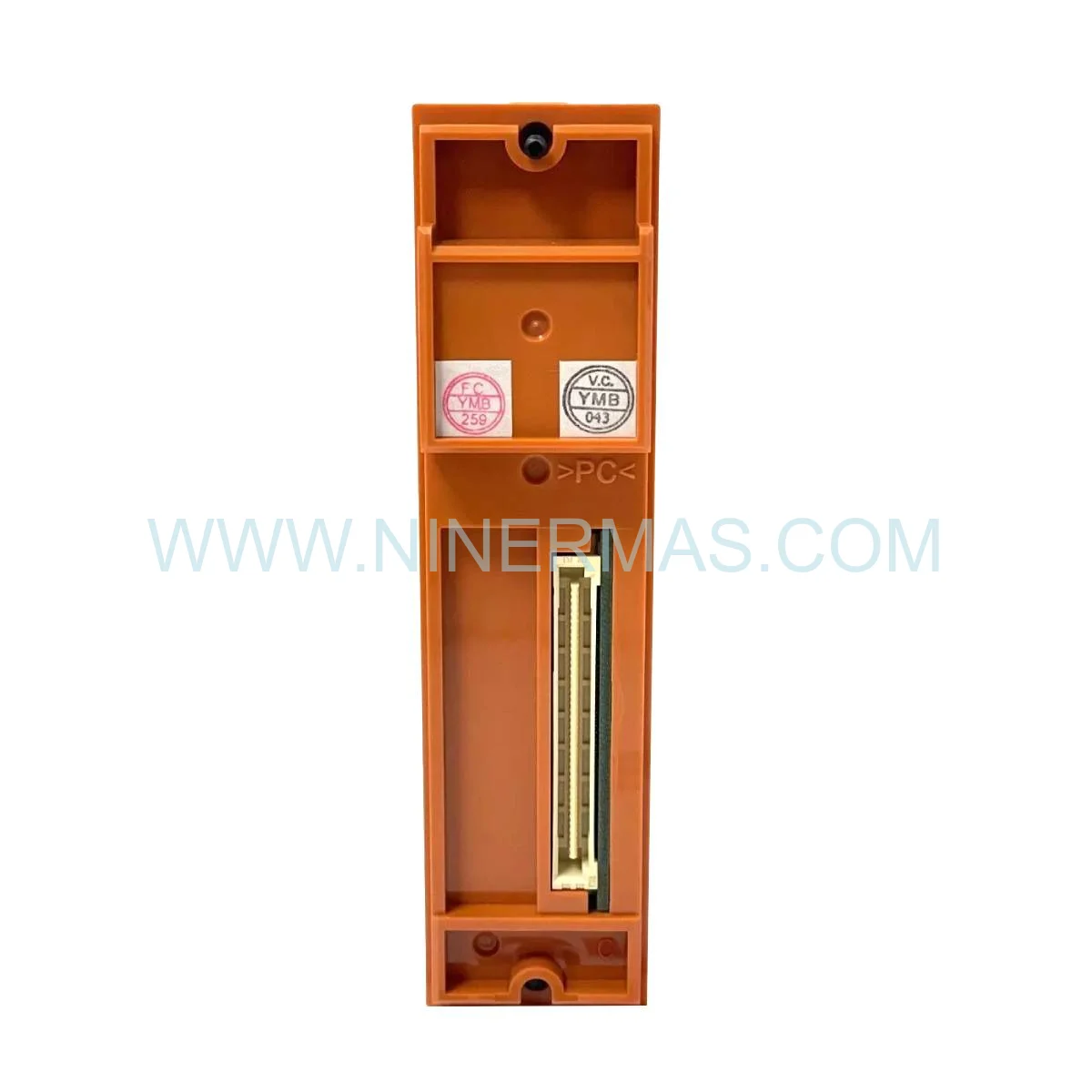

SAI533-H53 S1 Analog Output Module (Industrial-Grade 4-20mA Signal Converter)

The SAI533-H53 S1 represents Yokogawa's commitment to precision process control, delivering eight independent 4-20 mA current loop outputs designed for mission-critical distributed control system (DCS) environments. Engineered with module-level isolation and hot-swappable architecture, this analog output interface bridges the gap between digital control logic and field instrumentation, enabling seamless command signal transmission to control valves, actuators, and variable frequency drives across chemical processing, oil & gas, pharmaceutical manufacturing, and power generation facilities.

Built for environments where downtime translates to significant operational losses, this I/O module addresses the core challenge of maintaining signal integrity in electrically noisy industrial settings. Process engineers and automation specialists rely on the SAI533-H53 S1 to eliminate ground loop interference while providing the diagnostic transparency needed for predictive maintenance strategies. Its compatibility with CENTUM VP and CENTUM CS 3000 platforms ensures straightforward integration into existing Yokogawa control architectures.

Whether you're upgrading legacy control systems or designing greenfield automation projects, the SAI533-H53 S1 delivers the reliability, accuracy, and serviceability that modern process industries demand. With proven performance in harsh industrial conditions and comprehensive technical support from Yokogawa's global service network, this module serves as a foundational component for scalable, future-proof control solutions.

Core Features & Benefits

✓ Eight Independent Output Channels
Maximize cabinet space efficiency with high-density I/O architecture. Each channel operates independently with 12-bit D/A conversion, delivering precise 4-20 mA signals to field devices while reducing overall system footprint by up to 40% compared to single-channel alternatives.

✓ Module-Level Electrical Isolation
Protect control systems from ground potential differences and electrical noise. Isolation barriers prevent fault propagation between channels and the control bus, ensuring one channel failure doesn't compromise entire system operation—critical for maintaining production continuity in 24/7 facilities.

✓ Hot-Swappable Maintenance Design
Replace modules during live operation without process interruption. Field-proven connector design enables technicians to perform maintenance during production runs, eliminating costly scheduled downtime and supporting lean maintenance strategies in continuous process industries.

✓ Built-In Diagnostic Intelligence
Detect open-circuit conditions, over-current faults, and calibration drift before they impact process quality. Real-time diagnostic data integrates with DCS alarm management systems, enabling condition-based maintenance and reducing unplanned outages by up to 30%.

✓ ±0.1% Full-Scale Accuracy
Maintain tight process control with industry-leading signal precision. Low drift characteristics ensure long-term calibration stability, reducing recalibration frequency and supporting stringent quality standards in pharmaceutical and food processing applications.

✓ CENTUM Platform Integration
Seamless compatibility with Yokogawa's CENTUM VP and CS 3000 DCS families. Standardized I/O bus architecture and engineering tool support accelerate commissioning timelines, with typical configuration times under 15 minutes per module.

Typical Application Scenarios

→ Chemical Reactor Temperature Control
Precise 4-20 mA signals modulate steam valve positions in exothermic reaction processes. Module isolation prevents electrical interference from high-power motor drives, while diagnostic capabilities alert operators to valve positioner malfunctions before batch quality is compromised. Result: Improved batch consistency and reduced off-spec product by 18%.

→ Oil & Gas Separator Level Management
Control pneumatic dump valves in three-phase separators with reliable current loop outputs. Hot-swap capability enables module replacement during production without flaring or shutdown, supporting continuous offshore platform operations. Value: Elimination of $50K+ daily production losses during maintenance events.

→ Pharmaceutical Clean Room Pressure Regulation
Drive variable frequency drives controlling HVAC damper actuators to maintain critical differential pressures. ±0.1% accuracy ensures compliance with FDA 21 CFR Part 11 requirements, while diagnostic logging supports audit trail documentation. Benefit: Validated system performance with reduced compliance risk.

→ Power Plant Boiler Feedwater Control
Command high-precision control valves regulating feedwater flow to steam drums. Fast response time (<100 ms) supports cascade control strategies, while module isolation protects against electrical transients from nearby switchgear. Impact: Enhanced boiler efficiency and reduced thermal stress cycling.

→ Water Treatment Chemical Dosing
Modulate metering pump speeds for coagulant and pH adjustment chemical injection. Eight-channel density allows centralized control of multiple dosing points from a single module, simplifying wiring and reducing installation costs by 25%. Outcome: Optimized chemical consumption and improved effluent quality.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SAI533-H53 S1 when your application requires multiple 4-20 mA outputs with electrical isolation in CENTUM DCS environments. For intrinsically safe applications in hazardous areas, consider the SAI143 series with IS barriers. If your process demands combined analog input/output functionality, evaluate the AAI835 series for reduced module count. Verify load resistance compatibility—field devices must operate within 0-600 Ω range for proper signal transmission.

Extended Functions

Advanced Diagnostic Capabilities: Beyond basic open-circuit detection, the module provides detailed channel health metrics accessible through CENTUM engineering tools. Trend historical output current data to identify gradual valve positioner degradation or wiring resistance increases before they cause control loop performance issues.

Redundancy Support: Deploy in redundant I/O configurations for critical control loops requiring fault-tolerant operation. Automatic switchover mechanisms ensure bumpless transfer between primary and backup modules, maintaining process stability during hardware failures.

Calibration Management: Factory calibration data stored in module EEPROM enables automatic configuration upon installation. Field recalibration procedures supported through DCS engineering interface, with calibration certificates available for regulated industries requiring documented traceability.

Custom Scaling Options: Configure non-standard output ranges (e.g., 0-20 mA, 10-50 mA) through software parameterization for specialized field device requirements. Scaling parameters stored in module memory survive power cycles and module replacement operations.

Delivery & Service Assurance

Standard Lead Time: In-stock modules ship within 2-3 business days via express courier. Custom configurations or bulk orders (10+ modules) typically require 4-6 weeks for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring guaranteed replacement inventory.

Technical Support: Access to Yokogawa-certified application engineers for integration assistance, troubleshooting, and optimization guidance. Remote diagnostic support available 24/7 for urgent production issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates for CENTUM engineering tools, and calibration certificate. Comprehensive technical documentation available for download including dimensional drawings, spare parts lists, and maintenance procedures.

Frequently Asked Questions

Q: How does the SAI533-H53 S1 interface with existing CENTUM VP systems?
A: The module connects directly to standard Yokogawa I/O chassis via the backplane bus connector. Configuration is performed through the CENTUM VP engineering workstation using Resource Configurator software. The module auto-identifies upon installation, and channel parameters are assigned through graphical configuration tools—no manual DIP switch settings required. Integration typically takes 10-15 minutes per module.

Q: What is the maximum cable distance between the module and field devices?
A: For 4-20 mA current loops, maximum cable distance depends on wire gauge and load resistance. With 18 AWG wire (10 Ω/1000 ft) and 250 Ω load, distances up to 10,000 feet are achievable while maintaining signal integrity. For installations exceeding 5,000 feet, verify total loop resistance remains below 600 Ω and consider voltage drop calculations to ensure adequate compliance voltage.

Q: Can this module reduce energy consumption compared to older analog output cards?
A: Yes—the SAI533-H53 S1 consumes maximum 5W compared to 8-12W typical of legacy modules. In a system with 50 analog output modules, this translates to 150-350W continuous power savings, reducing UPS sizing requirements and cooling loads in control room environments. Over a 10-year lifecycle, energy cost savings can exceed $500 per module in typical industrial electricity rate scenarios.

Q: What installation requirements must be met for proper module operation?
A: The module requires installation in a Yokogawa-compatible I/O chassis with adequate backplane power capacity (verify 5W availability per slot). Ambient temperature must remain within 0-55°C operational range—ensure control cabinet cooling systems maintain this envelope. Wiring must use shielded twisted-pair cable with shields grounded at the module end only to prevent ground loops. Follow Yokogawa wiring practices documented in installation manual IM 33Y03P10-01E.

Q: Is remote monitoring and diagnostics supported for predictive maintenance programs?
A: Absolutely. All diagnostic data—including channel status, output current values, fault conditions, and calibration drift indicators—are accessible through the CENTUM DCS operator interface and can be exported to plant-wide asset management systems via OPC interfaces. Configure alarm thresholds for proactive notification of degrading performance, enabling condition-based maintenance scheduling rather than time-based preventive maintenance.

Q: How does module isolation protect against electrical noise in industrial environments?
A: Module-level isolation provides galvanic separation between the I/O bus (control side) and field wiring (process side), typically rated at 1500V AC. This barrier blocks common-mode noise from variable frequency drives, welding equipment, and motor starters from coupling into the control system. Each output channel shares common isolation, so while channels aren't isolated from each other, they're collectively protected from field-side electrical disturbances that could otherwise corrupt control signals or damage DCS components.

Take the Next Step

Ready to enhance your process control reliability with proven Yokogawa I/O technology? Contact our automation specialists for application-specific guidance, system integration support, or volume pricing for multi-module projects. Request a detailed technical datasheet, CAD drawings for panel design, or schedule a consultation to discuss your specific DCS modernization requirements.

Get a Quote: Email your project specifications to receive a formal quotation within 24 hours, including module pricing, recommended accessories, and freight options.

Technical Consultation: Schedule a call with our Yokogawa-certified engineers to review your control architecture, discuss redundancy strategies, or troubleshoot existing system challenges.

Request Documentation: Download comprehensive technical manuals, wiring diagrams, and configuration guides to support your engineering and procurement processes.
