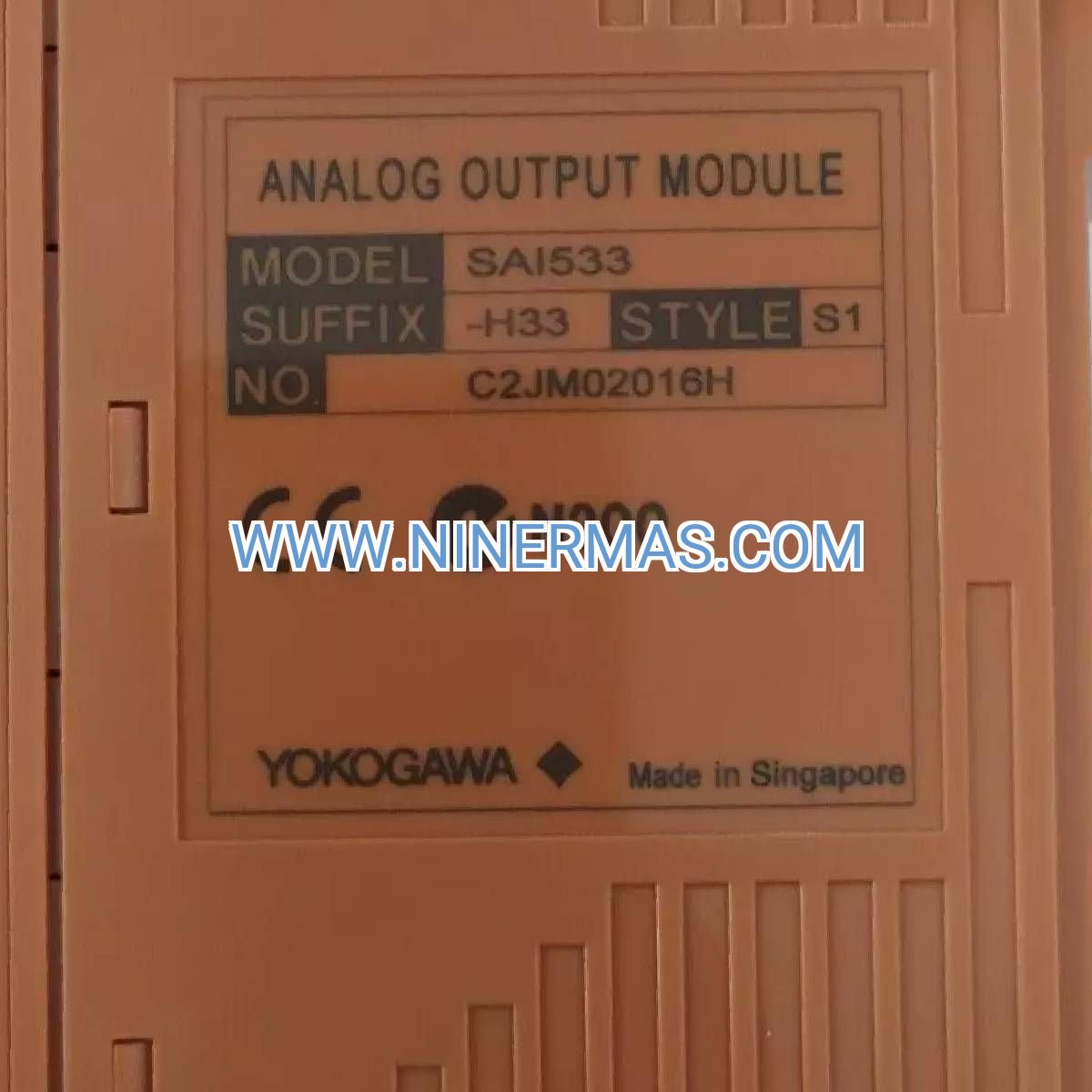

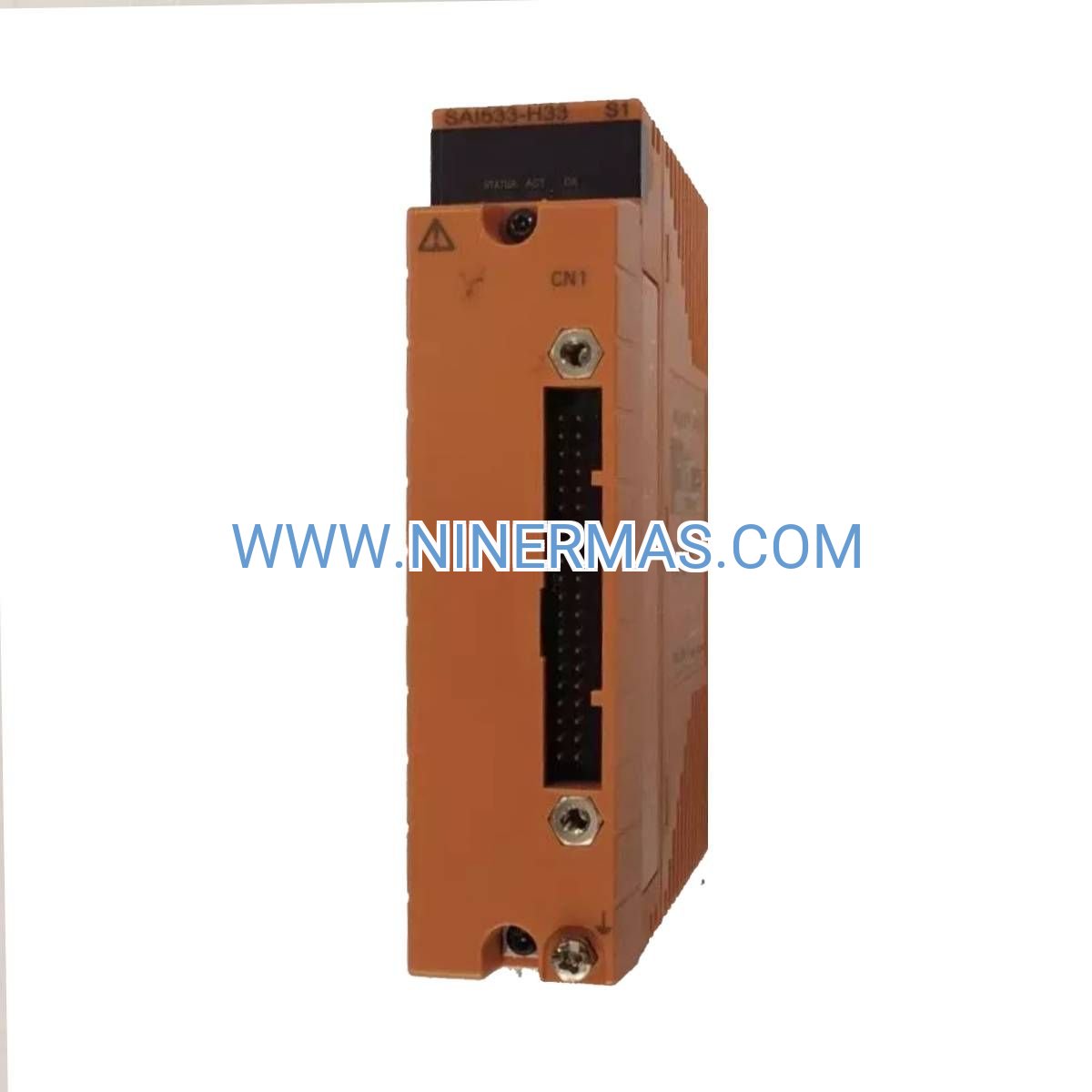

SAI533-H33 S1 Analog Output Module (Industrial-Grade 8-Channel Current Transmitter)

The SAI533-H33 S1 represents Yokogawa's commitment to precision process control, delivering eight independent 4-20mA current output channels engineered for mission-critical distributed control systems. This industrial-grade module transforms digital control signals into accurate analog outputs that drive actuators, valves, variable frequency drives, and process instruments across manufacturing, petrochemical, pharmaceutical, and energy sectors. Designed for seamless integration with CENTUM VP and CENTUM CS 3000 platforms, it combines hot-swappable convenience with robust isolation architecture to ensure uninterrupted operation in demanding industrial environments.

Process engineers and automation specialists rely on the SAI533-H33 S1 when control precision directly impacts product quality, safety compliance, and operational efficiency. Whether regulating reactor temperatures within ±0.5°C tolerances, maintaining precise flow ratios in blending operations, or controlling multi-stage compression systems, this module delivers the accuracy and reliability that critical processes demand. Its channel-to-channel isolation prevents ground loops and signal interference, while 12-bit resolution ensures smooth, stepless control across the entire 4-20mA range.

With proven field reliability exceeding 100,000 hours MTBF and compliance with international safety standards, the SAI533-H33 S1 minimizes maintenance costs while maximizing system uptime. Hot-swap capability allows module replacement during operation, eliminating costly production shutdowns for routine maintenance or upgrades.

Core Features & Technical Advantages

✓ Eight Independent Output Channels
Drive multiple control loops simultaneously with dedicated 4-20mA current sources, each capable of sourcing up to 20mA into 600-ohm loads. Ideal for multi-zone temperature control, parallel valve positioning, or distributed actuator networks.

✓ Superior Accuracy & Resolution
±0.1% full-scale accuracy combined with 12-bit D/A conversion delivers 4096 discrete output steps across the 4-20mA range. This translates to approximately 4μA resolution, enabling precise control of sensitive processes where minor signal variations impact product specifications.

✓ Comprehensive Electrical Isolation
Channel-to-channel and channel-to-backplane isolation up to 1500V DC protects against ground potential differences, electromagnetic interference, and fault propagation. Critical for installations spanning multiple electrical zones or harsh industrial environments with high noise levels.

✓ Hot-Swappable Architecture
Replace modules without powering down the control system or interrupting active control loops. Diagnostic LEDs provide instant visual confirmation of module status, channel health, and communication integrity, reducing troubleshooting time by up to 60%.

✓ Extended Operating Range
Qualified for -10°C to +55°C ambient operation with conformal coating protection against moisture, dust, and corrosive atmospheres. Suitable for installation in non-climate-controlled enclosures, offshore platforms, and industrial field cabinets.

✓ Energy-Efficient Design
Low-power CMOS circuitry reduces heat generation and power consumption compared to legacy analog output modules, contributing to lower cooling requirements and improved cabinet thermal management.

Application Scenarios & Industry Solutions

Chemical Processing & Batch Manufacturing
Control dosing pumps, pneumatic control valves, and reactor heating elements in pharmaceutical synthesis, specialty chemical production, and food processing. The module's accuracy ensures precise ingredient ratios, while isolation prevents cross-contamination between control zones. Typical applications include pH neutralization systems, solvent recovery units, and multi-stage distillation columns.

Oil & Gas Production Facilities
Regulate wellhead chokes, separator level controls, and compressor anti-surge valves in upstream production and midstream processing. The SAI533-H33 S1's robust construction withstands temperature extremes and vibration common in offshore platforms and remote field installations, while hot-swap capability minimizes production interruptions during maintenance.

Power Generation & Utilities
Interface with boiler feedwater controls, turbine governor systems, and emissions control equipment in coal, gas, and combined-cycle power plants. High accuracy supports compliance with environmental regulations requiring precise control of NOx reduction systems and flue gas desulfurization processes.

Water & Wastewater Treatment
Drive chemical feed pumps for coagulation, pH adjustment, and disinfection processes. Control aeration blowers, sludge pumps, and filtration systems in municipal and industrial treatment facilities. The module's isolation protects against electrical faults in wet environments, while its reliability ensures continuous compliance with discharge permits.

Metals & Mining Operations
Position hydraulic actuators in rolling mills, control furnace temperatures in heat treatment processes, and regulate conveyor speeds in material handling systems. The SAI533-H33 S1's industrial-grade construction tolerates the dust, vibration, and electromagnetic interference typical of heavy industrial environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SAI533-H33 S1 when your application requires multiple current output channels with high accuracy and electrical isolation. For voltage output requirements (0-10V, ±10V), consider the SAV series modules. If your system uses FOUNDATION Fieldbus or PROFIBUS communication, verify compatibility with appropriate communication interface modules. For hazardous area installations (Zone 1, Division 1), consult Yokogawa's intrinsically safe I/O options or barrier solutions.

Extended Capabilities & System Integration

→ Redundancy & Fault Tolerance
Deploy in redundant configurations with automatic failover for critical control loops. The module supports online diagnostics and predictive maintenance features when integrated with Yokogawa's Plant Resource Manager (PRM) asset management software.

→ Advanced Diagnostics
Built-in self-test routines continuously monitor D/A converter performance, output circuit integrity, and power supply health. Diagnostic data streams to the DCS for trending and alarm management, enabling condition-based maintenance strategies that reduce unplanned downtime by 40-50%.

→ Calibration & Linearity
Factory-calibrated with NIST-traceable standards, each channel maintains linearity across the full 4-20mA range without field adjustment. Digital calibration coefficients stored in non-volatile memory ensure consistent performance over the module's 15+ year service life.

→ Flexible Wiring Options
Compatible with standard terminal blocks and spring-clamp connectors for tool-free installation. Supports both individual channel wiring and pre-assembled cable harnesses for rapid commissioning of multi-module systems.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock modules ship within 1-3 business days via express courier (DHL, FedEx, UPS). Custom configurations or bulk orders typically require 2-4 weeks for factory preparation and quality verification.

Warranty Coverage: All new SAI533-H33 S1 modules include Yokogawa's standard 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications requiring 3-5 year coverage.

Technical Assistance: Our application engineers provide pre-sales consultation for system design, I/O point allocation, and compatibility verification. Post-sales support includes configuration assistance, troubleshooting guidance, and integration with third-party control systems.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and configuration software utilities. Complete technical specifications, safety data sheets, and compliance certificates available for download.

Frequently Asked Questions

Q: Can the SAI533-H33 S1 interface directly with 24V DC solenoid valves?
A: The module outputs 4-20mA current signals designed for analog control devices. For on/off solenoid valve control, you'll need digital output modules (SDV series) or current-to-pressure (I/P) transducers that convert the 4-20mA signal to pneumatic pressure for valve actuation.

Q: What is the maximum cable length between the module and field devices?
A: With 4-20mA current loop signaling, you can reliably transmit signals up to 1000 meters (3280 feet) using standard 18-22 AWG shielded twisted-pair cable. Actual distance depends on cable resistance, load impedance, and electrical noise environment. For installations exceeding 500 meters, verify total loop resistance remains below 600Ω.

Q: How does the module perform in high-vibration environments like compressor stations?
A: The SAI533-H33 S1 is qualified for industrial vibration levels up to 2G (10-150Hz) per IEC 60068-2-6. For extreme vibration applications (offshore drilling, reciprocating compressors), mount the I/O cabinet on vibration isolators and use strain relief on all cable connections. Conformal coating protects against vibration-induced solder joint fatigue.

Q: Is the module compatible with legacy CENTUM CS 1000 or CENTUM XL systems?
A: The SAI533-H33 S1 is designed for CENTUM VP and CS 3000 platforms using the Vnet/IP communication protocol. For older CENTUM CS or XL systems, consult Yokogawa regarding migration paths or compatible legacy I/O modules (AAI series). System upgrades often provide improved performance and long-term parts availability.

Q: Can I mix analog input and output modules in the same I/O nest?
A: Yes, Yokogawa's modular I/O architecture allows flexible mixing of analog input (SAI143 series), analog output (SAI533 series), digital input (SDI series), and digital output (SDV series) modules within a single I/O nest. The backplane provides isolated power and communication to each module position.

Q: What energy savings can I expect compared to older analog output cards?
A: The SAI533-H33 S1's CMOS design typically consumes 30-40% less power than equivalent relay-based or linear analog output modules from previous generations. For a 100-module system, this translates to approximately 150-200W reduction in cabinet heat load, potentially eliminating the need for additional cooling fans or air conditioning capacity.

Order Your SAI533-H33 S1 Module Today

Ready to enhance your process control system with precision analog output capability? Contact our automation specialists for technical consultation, competitive pricing, and fast global delivery. We maintain stock of genuine Yokogawa I/O modules, terminal blocks, and accessories to support your project timeline.

Request a Quote: Email your system requirements, quantity needed, and delivery location for a detailed proposal within 24 hours.
Technical Support: Speak with our application engineers to verify compatibility, discuss redundancy options, or plan system expansions.
Volume Discounts: Special pricing available for orders of 10+ modules or complete I/O system packages.
