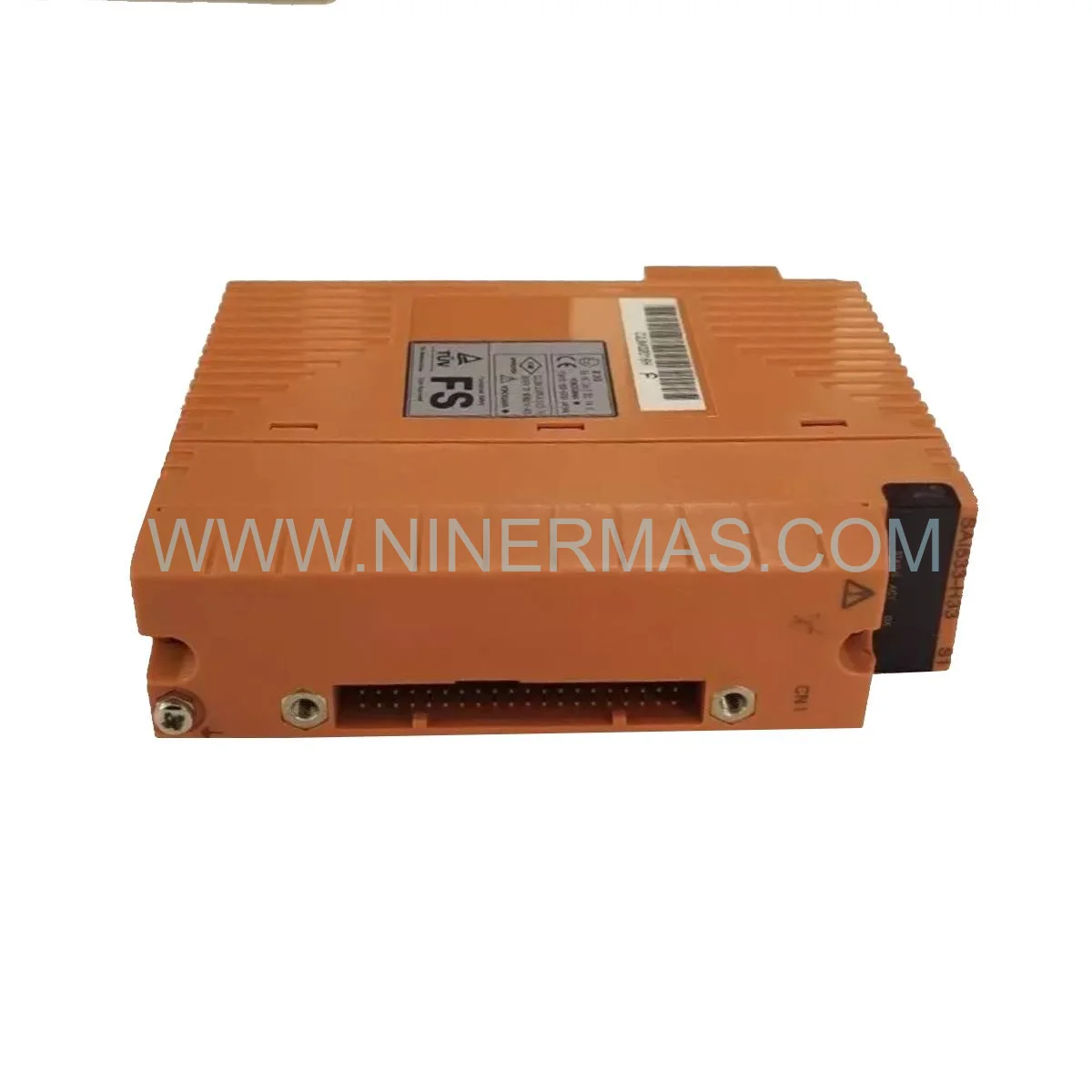

SAI143-H53 S3 Analog Input Module (Industrial-Grade 16-Channel HART Interface)

The SAI143-H53 S3 represents Yokogawa's advanced solution for multi-channel analog signal acquisition in mission-critical process control environments. Engineered specifically for CENTUM VP and ProSafe-RS platforms, this 16-channel input card transforms 4-20 mA current loop signals into high-precision digital values while maintaining full HART communication capabilities for intelligent field device management.

Designed for industries where measurement accuracy directly impacts product quality and operational safety, this module serves as the critical interface between field instrumentation and your distributed control architecture. Whether you're managing complex chemical reactions, monitoring power generation parameters, or ensuring pharmaceutical process compliance, the SAI143-H53 S3 delivers the reliability and diagnostic intelligence modern plants demand.

With galvanic isolation protecting each channel and built-in redundancy support, this I/O card minimizes downtime risk while providing the real-time data visibility essential for optimizing process performance and reducing maintenance costs.

Core Features & Technical Advantages

→ 16 Isolated Analog Inputs
Independent channel isolation eliminates ground loop interference and protects against electrical surges up to 1500V AC, ensuring signal integrity even in electrically noisy industrial environments.

→ Dual-Function HART Communication
Simultaneously processes the 4-20 mA control signal while accessing HART digital data for device configuration, calibration verification, and predictive diagnostics—without interrupting process control.

→ Hot-Swappable Architecture
Replace failed modules during live operation without system shutdown or process interruption, reducing mean time to repair (MTTR) by up to 75% compared to traditional I/O systems.

→ ±0.1% Full-Scale Accuracy
High-resolution 16-bit A/D conversion delivers measurement precision critical for tight process control loops, quality assurance, and regulatory compliance documentation.

✓ Self-Diagnostic Health Monitoring
Automatic detection of open circuits, short circuits, sensor failures, and out-of-range conditions with immediate alarm generation to your HMI or SCADA system.

✓ Redundancy-Ready Design
Seamless integration with dual-redundant controller configurations ensures continuous operation even during controller failover events—essential for high-availability processes.

Industry Applications & Problem-Solving Capabilities

Petrochemical Refining & Gas Processing
Monitor critical parameters across distillation columns, reactor vessels, and separation units. HART diagnostics enable condition-based maintenance of pressure and temperature transmitters, reducing unplanned shutdowns by identifying sensor drift before process upsets occur.

Chemical Batch Manufacturing
Acquire precise temperature profiles from jacketed reactors and monitor pH/conductivity in neutralization processes. Galvanic isolation prevents measurement errors caused by varying ground potentials in multi-building facilities.

Municipal Water & Wastewater Treatment
Interface with distributed field instruments measuring flow rates, chlorine residuals, and turbidity across treatment stages. The module's wide operating temperature range supports outdoor installation in climate-controlled enclosures.

Thermal & Combined-Cycle Power Plants
Process signals from steam pressure transmitters, flue gas analyzers, and turbine vibration sensors. Fast 100ms conversion speed supports responsive control of rapidly changing combustion parameters.

Pharmaceutical & Biotech Production
Ensure 21 CFR Part 11 compliance with validated signal processing for critical quality attributes. Audit trail capabilities through HART communication support regulatory inspections and batch record documentation.

Technical Specifications & Selection Guide

Selection Criteria: Choose the SAI143-H53 S3 when your application requires HART communication for smart transmitter diagnostics. For standard 4-20 mA applications without HART requirements, consider the SAI143-S53 base model. Verify compatibility with your CENTUM VP system version (R6.01 or later recommended) and ensure adequate power budget in your field control unit.

Advanced Integration & IoT Connectivity

The SAI143-H53 S3 connects directly to CENTUM VP field control units via the Enhanced System Bus (ESB), supporting data transfer rates up to 10 Mbps for real-time control applications. Configuration is performed through the System View Engineering workstation using drag-and-drop function blocks, with automatic I/O address mapping and parameter download.

HART data integration enables advanced analytics and predictive maintenance strategies. Export device diagnostics to your plant historian or cloud-based condition monitoring platform to identify sensor degradation trends, optimize calibration schedules, and reduce maintenance costs by 20-30% through condition-based interventions.

The module supports OPC UA connectivity through CENTUM VP's gateway functionality, enabling seamless data exchange with third-party MES, ERP, and business intelligence systems for comprehensive production visibility.

Delivery, Warranty & Technical Support

Lead Time: Standard configuration units ship within 3-5 business days. Custom-configured modules with specific firmware versions available in 7-10 business days.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Assistance: Lifetime technical support including configuration guidance, troubleshooting assistance, and firmware update notifications. Remote diagnostic support available via secure VPN connection.

Documentation Package: Each module ships with installation manual, wiring diagrams, function block library, and HART device description files (DDL/EDD) for integration with asset management software.

Frequently Asked Questions

Q: How do I connect HART devices to the SAI143-H53 S3 module?
A: Wire your 4-20 mA HART transmitters in standard 2-wire configuration to the module's terminal blocks. The module's internal HART multiplexer automatically polls connected devices. Configure HART communication parameters through the CENTUM VP engineering station—no external HART modem required.

Q: What is the maximum cable length between field transmitters and the module?
A: Standard 4-20 mA current loops support cable runs up to 1000 meters (3280 feet) using 18 AWG shielded twisted-pair cable. For HART communication reliability, limit cable capacitance to 65 nF maximum. Longer distances may require HART repeaters or signal boosters.

Q: Can this module reduce energy consumption in my control system?
A: Yes. At 5.5W maximum power consumption, the SAI143-H53 S3 uses 30% less energy than comparable legacy I/O modules. In a typical 500-point system, this translates to approximately 750W reduction in total power draw, lowering cooling requirements and operating costs.

Q: What installation requirements should I consider for optimal performance?
A: Mount the module in a climate-controlled enclosure maintaining 0-55°C ambient temperature. Ensure adequate ventilation (minimum 50mm clearance above/below). Use shielded cables with 360° shield termination at the module end. Separate signal cables from high-voltage power wiring by at least 300mm to minimize EMI.

Q: Does the module support remote monitoring and diagnostics?
A: Absolutely. Through CENTUM VP's web-based HMI and mobile operator interface, you can monitor channel status, view HART device diagnostics, and receive alarm notifications from anywhere with network access. Integration with Yokogawa's Sushi Sensor cloud platform enables predictive analytics and benchmarking against similar installations.

Q: How does this module compare to the standard SAI143-S53 version?
A: The SAI143-H53 S3 adds HART communication capability, enabling access to smart transmitter diagnostics, configuration data, and secondary process variables. If your field devices support HART and you want predictive maintenance capabilities, choose the H53 variant. For basic 4-20 mA signal acquisition without HART requirements, the standard S53 offers identical measurement performance at lower cost.

Take the Next Step

Ready to enhance your process control system with intelligent analog input capabilities? Contact our automation specialists for application-specific configuration guidance, compatibility verification with your existing CENTUM VP installation, and volume pricing for multi-module projects. We offer same-day quotations and can arrange factory acceptance testing for critical applications.

Request a technical datasheet, CAD drawings, or schedule a virtual consultation to discuss your specific I/O requirements.
