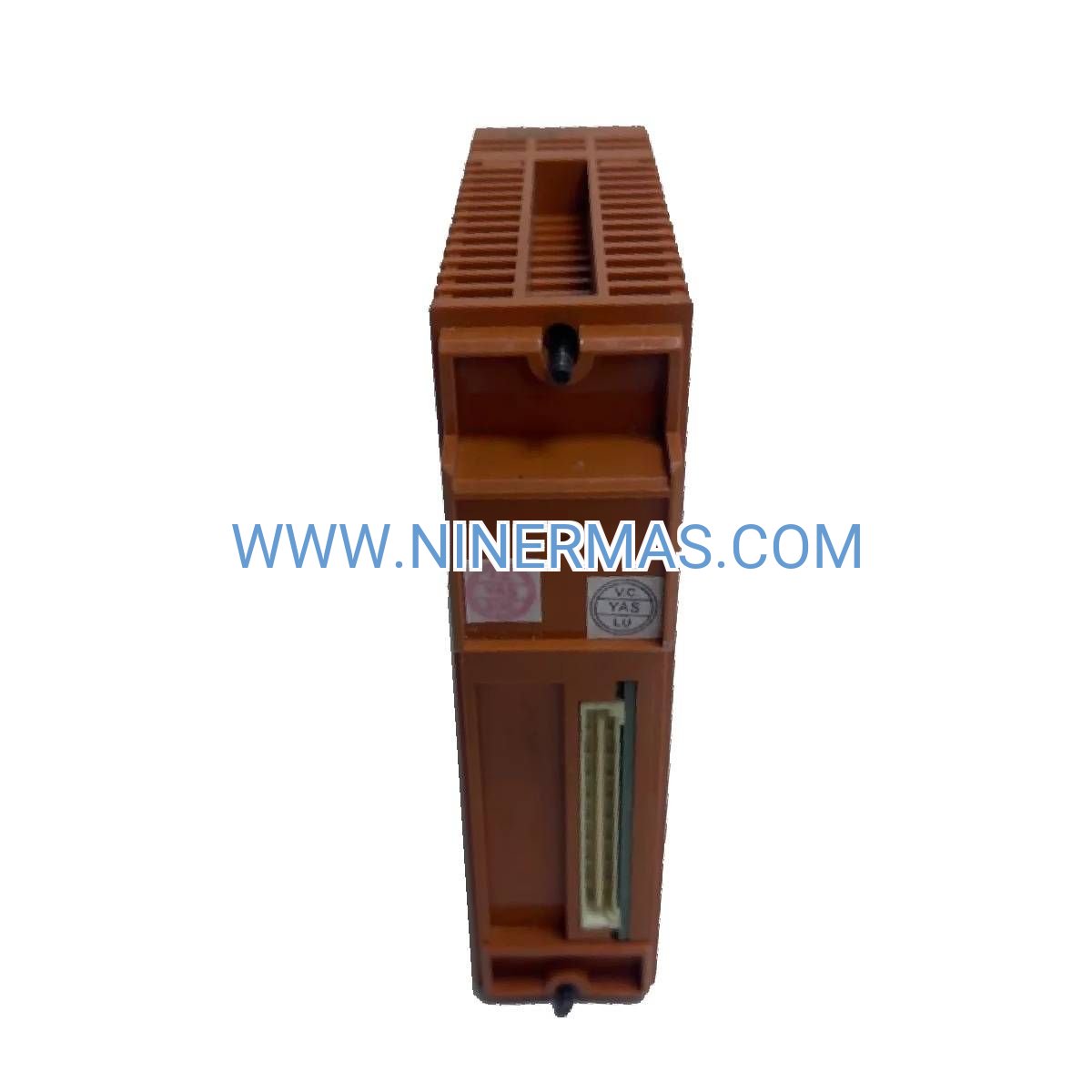

PW502 S1 Power Supply Module – Industrial-Grade 5V DC Regulation for Mission-Critical Control Systems

The PW502 S1 represents a precision-engineered power solution designed for continuous-duty operation in process automation and distributed control environments. Delivering 5 volts DC at up to 10 amperes, this DIN-rail power module serves as the backbone for Yokogawa CENTUM platforms, field control nodes, and I/O subsystems where voltage stability directly impacts system uptime and data integrity.

Built for engineers managing chemical plants, refineries, power stations, and manufacturing facilities, the PW502 S1 addresses the challenge of maintaining clean, regulated power across temperature swings, electrical transients, and 24/7 operational demands. Its universal AC input eliminates the need for voltage-specific inventory, while integrated protection circuits safeguard downstream electronics from fault conditions that could cascade into costly process interruptions.

Whether you're commissioning new CENTUM installations, replacing aging power infrastructure, or designing redundant N+1 architectures, the PW502 S1 combines compact footprint, thermal efficiency, and proven reliability to reduce both installation complexity and long-term maintenance overhead.

Core Capabilities & Technical Advantages

→ Universal Input Voltage Range (100-240V AC)
Operates across global voltage standards without external transformers or manual switching, simplifying multi-site deployments and spare parts management. Automatic frequency detection handles both 50Hz and 60Hz grids seamlessly.

→ Regulated 5V DC Output with ±3% Tolerance
Maintains tight voltage regulation under varying load conditions, protecting microprocessors, logic circuits, and communication interfaces from brownout-induced errors or premature component aging.

→ 10A Continuous Current Capacity
Supports multiple I/O cards, processor modules, and communication gateways from a single power source, reducing cabinet complexity and wiring labor. Peak current handling accommodates inrush during module hot-swap events.

→ Multi-Layer Protection Architecture
Integrated overvoltage, overcurrent, and short-circuit shutdown mechanisms isolate faults before they propagate to connected equipment. Auto-recovery design restores output when fault conditions clear, minimizing manual intervention.

✓ High-Efficiency Switching Topology (>85%)
Reduces heat generation and energy waste compared to linear regulators, lowering cooling requirements and operational costs in densely packed control cabinets.

✓ Industrial Temperature Rating (-10°C to +55°C)
Qualified for non-climate-controlled environments including outdoor enclosures, process skids, and field junction boxes where ambient conditions fluctuate seasonally.

Industry Applications & Use Cases

Oil & Gas Process Control
Powers CENTUM field control units managing separator pressure, compressor anti-surge, and pipeline flow measurement in upstream production facilities. Withstands vibration, humidity, and temperature extremes common in offshore platforms and desert installations.

Chemical Batch Manufacturing
Supplies stable voltage to recipe controllers, analog input modules reading reactor temperatures, and digital outputs driving valve actuators. Ensures precise ingredient dosing and reaction timing where voltage sag could compromise product quality or safety margins.

Power Generation & Utilities
Enables reliable operation of turbine control systems, boiler management interfaces, and emissions monitoring equipment. Supports SIL-rated safety loops when deployed in redundant configurations with automatic failover.

Water Treatment & Distribution
Maintains continuous operation of SCADA remote terminal units, PLC-based pump controllers, and chlorination dosing systems across unmanned lift stations and treatment plants. Low standby power consumption suits solar-backed installations.

Pharmaceutical Clean Room Automation
Meets stringent uptime requirements for environmental monitoring systems, HVAC control loops, and material handling conveyors in GMP-regulated production areas. Compact DIN rail format preserves valuable panel space.

Technical Parameters & Selection Criteria

Sizing Guidance: Calculate total current demand by summing nameplate ratings of all connected modules. For CENTUM CP451 processor (2.5A) + 8× AI cards (0.4A each) + 2× communication modules (0.6A each), total = 2.5 + 3.2 + 1.2 = 6.9A. Select PW502 S1 (10A) for 45% headroom, supporting future expansion without power supply replacement.

Advanced Integration Features

Redundant Power Configurations
Deploy two PW502 S1 units with diode-OR modules to achieve N+1 fault tolerance. If one supply fails, the second automatically assumes full load without system interruption. LED indicators on each unit provide independent status monitoring for predictive maintenance.

CENTUM System Compatibility
Direct plug-and-play integration with Yokogawa field control nodes (FCN/FCU), autonomous field controllers (AFC), and legacy CENTUM CS/V-net systems. Powers CP series processors (CP451, CP461, CP471), ESB bus interfaces, and all standard I/O card families without adapter requirements.

Remote Monitoring Readiness
While the PW502 S1 itself lacks built-in communication, pair with external power monitoring relays to integrate DC voltage and current measurements into SCADA or building management systems. Enables predictive alerts for degraded output or approaching end-of-life conditions.

Harsh Environment Hardening
Conformal coating on PCB assemblies resists moisture, dust, and corrosive gases. Screw-clamp terminals accept 12-22 AWG wire for vibration-resistant connections. No cooling fans eliminate a common failure mode in dusty or high-humidity locations.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders (10+ units) typically require 2-3 weeks. Expedited shipping available for critical outage scenarios.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for projects requiring 5-year asset lifecycle planning.

Technical Assistance: Pre-sales application engineering support includes load calculations, redundancy design review, and compatibility verification with existing infrastructure. Post-sales troubleshooting available via email and phone during business hours (GMT+8).

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings (DXF/PDF), and compliance certificates. Additional resources include integration guides for common CENTUM configurations and thermal derating curves.

Frequently Asked Questions

Can the PW502 S1 replace older PW301 series power supplies in existing CENTUM installations?
Yes, the PW502 S1 offers backward compatibility with PW301 mounting footprints and terminal layouts. Verify that your total load does not exceed 10A, as some PW301 variants were rated for lower current. Consult wiring diagrams to confirm polarity and grounding requirements match your cabinet configuration.

What is the recommended derating for operation above 50°C ambient temperature?
Reduce maximum output current by 2.5% per degree Celsius above 50°C. For example, at 55°C ambient, derate to 10A × (1 - 0.025×5) = 8.75A maximum. Ensure cabinet ventilation or forced cooling if sustained high-temperature operation is expected.

Does this power supply support hot-swap replacement without shutting down the control system?
In redundant N+1 configurations using diode-OR modules, you can replace a failed PW502 S1 while the backup unit maintains system power. For single-supply installations, a controlled shutdown is required. Always follow lockout/tagout procedures and verify backup power before servicing.

How do I calculate the required AC input circuit breaker rating?
At maximum load (50W output) and minimum efficiency (85%), input power = 50W ÷ 0.85 ≈ 59W. At 100V AC (worst case), input current = 59W ÷ 100V = 0.59A. Specify a 2A slow-blow breaker or 3A circuit breaker for adequate margin and inrush tolerance.

Is the PW502 S1 suitable for outdoor installations or non-climate-controlled enclosures?
Yes, provided the enclosure maintains -10°C to +55°C temperature range and prevents direct water ingress. Use NEMA 4X or IP65-rated cabinets with heaters/thermostats for extreme climates. Conformal coating protects against condensation, but avoid sustained exposure to corrosive atmospheres without additional sealing.

What diagnostic indicators are available for troubleshooting power supply faults?
Front-panel LEDs indicate AC input presence (green) and DC output status (green = normal, red = fault, off = no output). Fault conditions include overvoltage shutdown, thermal overload, or short-circuit protection activation. Refer to the troubleshooting flowchart in the installation manual for step-by-step diagnostics.

Secure Your Power Infrastructure Today

Ensure uninterrupted operation of your CENTUM control systems with the PW502 S1 industrial power module. Our technical team is ready to assist with load calculations, redundancy planning, and compatibility verification for your specific application.

Request a formal quotation: Contact our sales engineers with your project requirements, including quantity, delivery timeline, and any custom labeling or testing needs. Volume discounts available for orders of 5+ units.

Need immediate support? Reach out via email or phone for same-day technical consultation on power supply selection, installation best practices, or troubleshooting existing Yokogawa systems.
