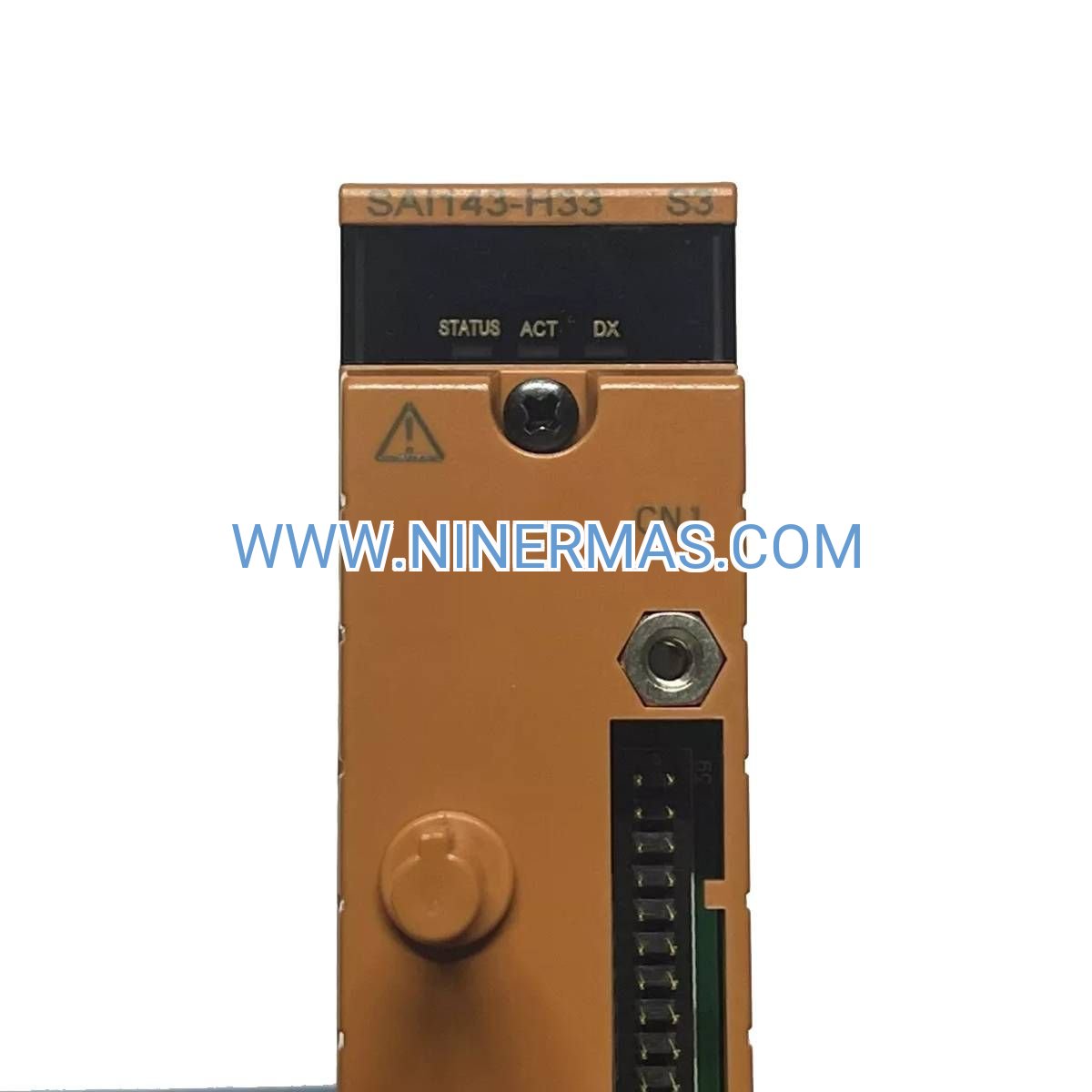

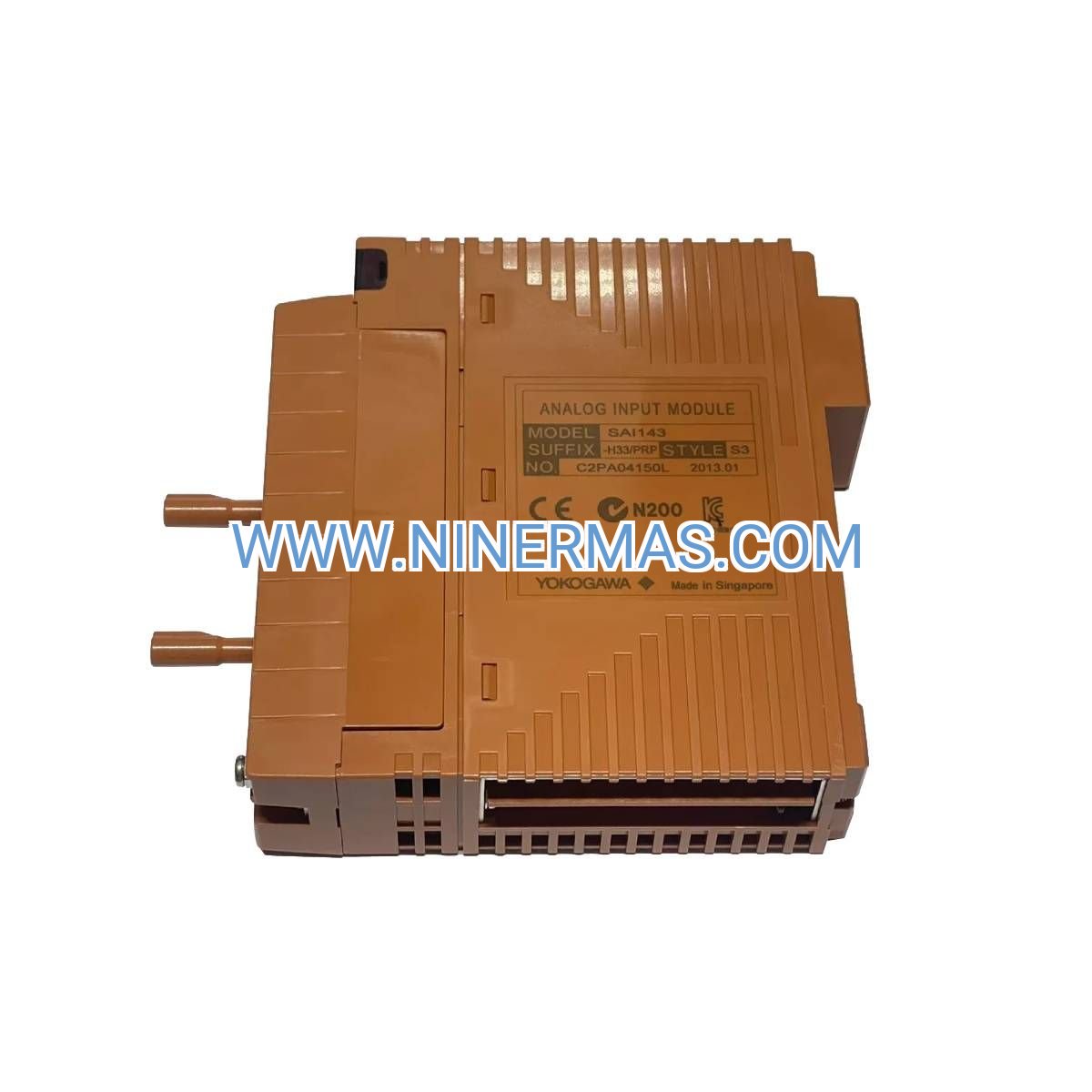

SAI143-H33 Analog Input Module (Industrial-Grade Multi-Channel Signal Processor)

The SAI143-H33 represents Yokogawa's commitment to precision signal acquisition in mission-critical industrial environments. This 16-channel analog input module transforms raw 4-20mA current signals into actionable process data while maintaining HART digital communication transparency. Designed for distributed control systems requiring uncompromising accuracy and uptime, it serves as the critical interface between field instrumentation and your control infrastructure.

Process engineers and automation specialists rely on this module to eliminate signal degradation in electrically noisy environments. Whether you're monitoring reactor temperatures in chemical plants or tracking flow rates across pipeline networks, the SAI143-H33 ensures your control decisions are based on verified, high-fidelity data. Its field-proven architecture reduces commissioning time while providing the diagnostic depth needed for predictive maintenance strategies.

With channel-to-channel isolation and 16-bit resolution, this module delivers measurement integrity that directly impacts product quality, safety compliance, and operational efficiency. The integrated HART capability unlocks advanced device diagnostics without additional wiring—transforming your analog infrastructure into a smart, self-monitoring system.

Core Features & Business Value

→ 16 Isolated Analog Inputs
Each channel features galvanic isolation to eliminate ground loop interference and cross-talk. This architecture protects your DCS from field-side electrical faults while ensuring measurement accuracy remains unaffected by adjacent channel activity—critical for multi-variable process control.

→ HART Protocol Integration
Simultaneous analog and digital communication on the same two-wire loop. Access transmitter configuration, calibration data, and diagnostic alerts without interrupting process measurements. Reduces troubleshooting time by 40% through remote device interrogation.

→ ±0.1% Full-Scale Accuracy
High-precision 16-bit A/D conversion maintains signal integrity from sensor to controller. This accuracy level supports tight process control tolerances, reducing product variance and minimizing raw material waste in batch operations.

→ Hot-Swappable Architecture
Replace failed modules during live operation without system shutdown or process interruption. Eliminates costly production stops and supports 24/7 continuous manufacturing schedules with minimal maintenance windows.

→ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme ambient conditions—from outdoor installations in arctic climates to high-temperature control rooms near furnaces. Reduces the need for climate-controlled enclosures, lowering installation costs.

✓ Low Power Consumption Design
Minimizes heat generation in densely packed control cabinets while reducing energy costs. Supports sustainability initiatives and extends component lifespan through reduced thermal stress.

Application Scenarios

Chemical & Petrochemical Processing
Monitor reactor pressure, distillation column temperatures, and flow rates across multi-stage processes. The module's isolation prevents electrical noise from variable frequency drives and high-voltage equipment from corrupting critical safety measurements. HART diagnostics identify sensor drift before it impacts batch quality.

Oil & Gas Production Facilities
Interface with wellhead pressure transmitters, separator level sensors, and pipeline flow meters in hazardous area applications. The rugged design withstands vibration and temperature extremes common in offshore platforms and remote gathering stations. Reduces field visits through remote HART configuration.

Power Generation & Utilities
Acquire boiler drum level, steam pressure, and emissions monitoring signals with the accuracy required for regulatory compliance. Channel isolation protects control systems from electrical transients during generator startup and grid synchronization events.

Water & Wastewater Treatment
Connect to pH analyzers, dissolved oxygen sensors, and turbidity meters for real-time process optimization. The module's diagnostic capabilities provide early warning of sensor fouling and calibration drift—preventing treatment failures and regulatory violations.

Pharmaceutical Manufacturing
Ensure GMP compliance through validated signal acquisition for critical process parameters. The module's documented accuracy and stability support FDA 21 CFR Part 11 requirements for electronic records in batch production environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SAI143-H33 when your application requires simultaneous monitoring of multiple 4-20mA transmitters with HART communication needs. For applications without HART requirements, consider standard analog input modules. If you need voltage input capability (0-10V, 1-5V), evaluate alternative Yokogawa AI modules with universal input configurations.

Extended Functions

Advanced Diagnostics & Predictive Maintenance
HART protocol access enables continuous monitoring of transmitter health metrics including sensor temperature, supply voltage, and internal diagnostics. Configure alarm thresholds for out-of-range conditions and receive early warnings before sensor failures impact production.

Distributed I/O Architecture
Deploy modules in remote I/O stations near field devices to minimize wiring runs and reduce installation costs. Fiber optic or Ethernet communication back to the main controller eliminates signal degradation over long distances.

Customization Options
Yokogawa offers application-specific configurations including intrinsically safe (IS) barriers for hazardous area installations, extended temperature variants for extreme environments, and conformal coating for corrosive atmospheres. Contact our engineering team to discuss custom requirements.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 2-4 weeks. Custom configurations or large quantity orders may require 6-8 weeks. Express shipping available for critical replacements.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Access to Yokogawa-certified engineers for configuration assistance, troubleshooting, and integration guidance. Phone and email support available during business hours with emergency hotline for critical issues.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software, and calibration certificates. HART device description files (DDFs) provided for integration with asset management systems.

Frequently Asked Questions

How do I connect HART devices to the SAI143-H33 module?
Standard two-wire 4-20mA wiring supports both analog signal transmission and HART digital communication simultaneously. Connect your HART transmitter's positive terminal to the module's input channel positive, and negative to the channel negative. Use a HART modem or compatible DCS configuration tool to access digital parameters.

What is the maximum cable length for 4-20mA inputs?
The module supports cable runs up to 1000 meters (3280 feet) with standard 18 AWG shielded twisted pair cable. Longer distances may require signal conditioning or the use of 24V loop-powered transmitters to compensate for voltage drop.

Can this module reduce energy consumption in my control system?
Yes. The low-power design consumes approximately 30% less energy than previous-generation modules. In a typical 100-module installation, this translates to 500W reduction in heat load—decreasing cooling requirements and lowering operational costs by $400-600 annually.

What are the installation requirements for this analog input module?
The SAI143-H33 mounts on standard 35mm DIN rail or installs in Yokogawa chassis slots. Ensure adequate ventilation (minimum 50mm clearance above and below) and avoid mounting near high-voltage switching devices. Grounding must follow Yokogawa installation standards to maintain isolation effectiveness.

Does the module support remote monitoring and diagnostics?
Yes. When integrated with Yokogawa's CENTUM VP or compatible DCS platforms, you can access real-time channel status, HART device diagnostics, and historical trend data remotely. Configure email or SMS alerts for out-of-range conditions or communication failures.

How does channel isolation improve measurement reliability?
Galvanic isolation prevents electrical noise from one input channel from affecting adjacent channels. This is critical in applications where high-power equipment (motors, VFDs) operates near sensitive measurement circuits. Isolation also protects your DCS from field-side ground faults and lightning-induced surges.

Request Technical Consultation

Our industrial automation specialists are ready to assist with module selection, system integration planning, and application-specific configuration. Contact us for detailed specifications, compatibility verification, or to request a formal quotation for your project.
