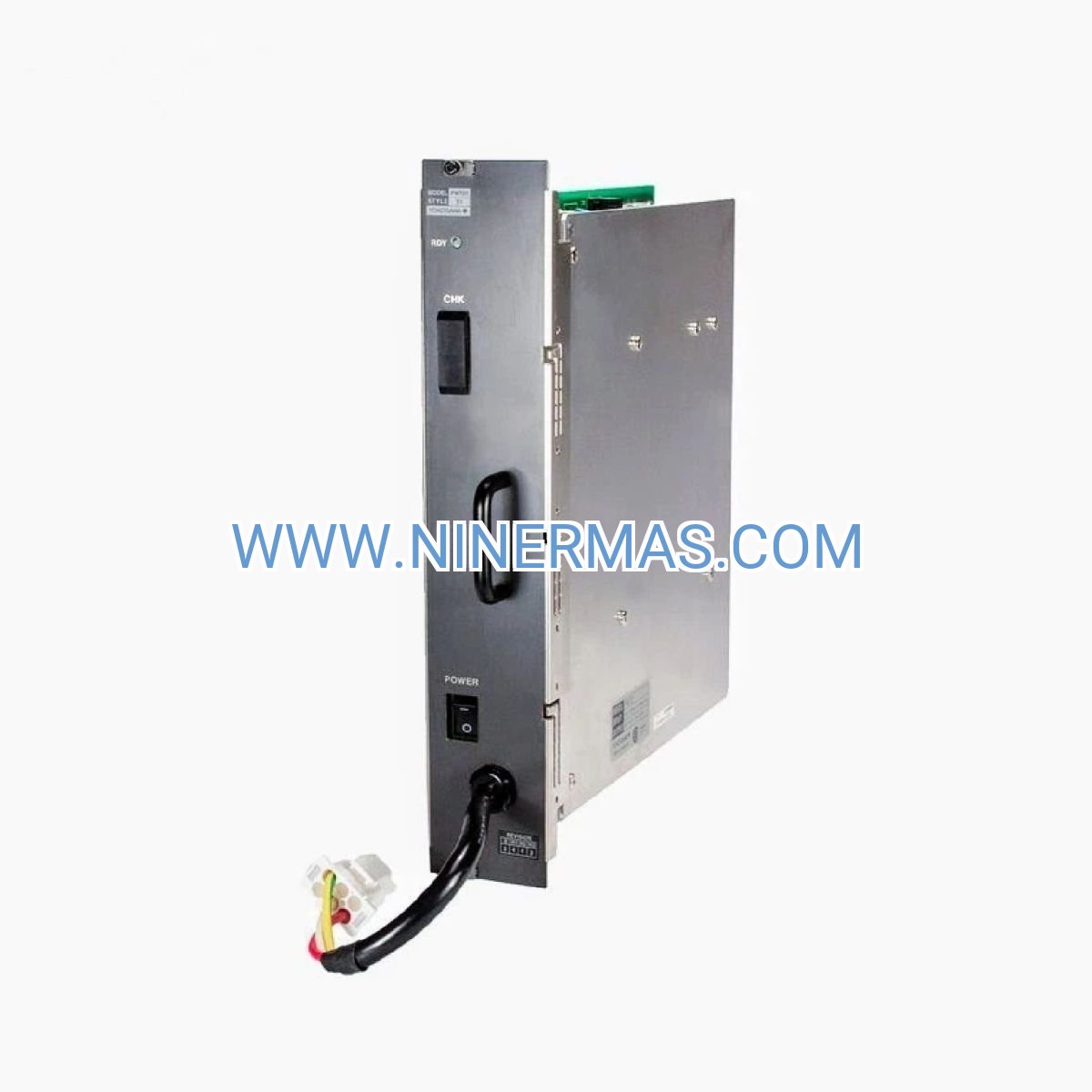

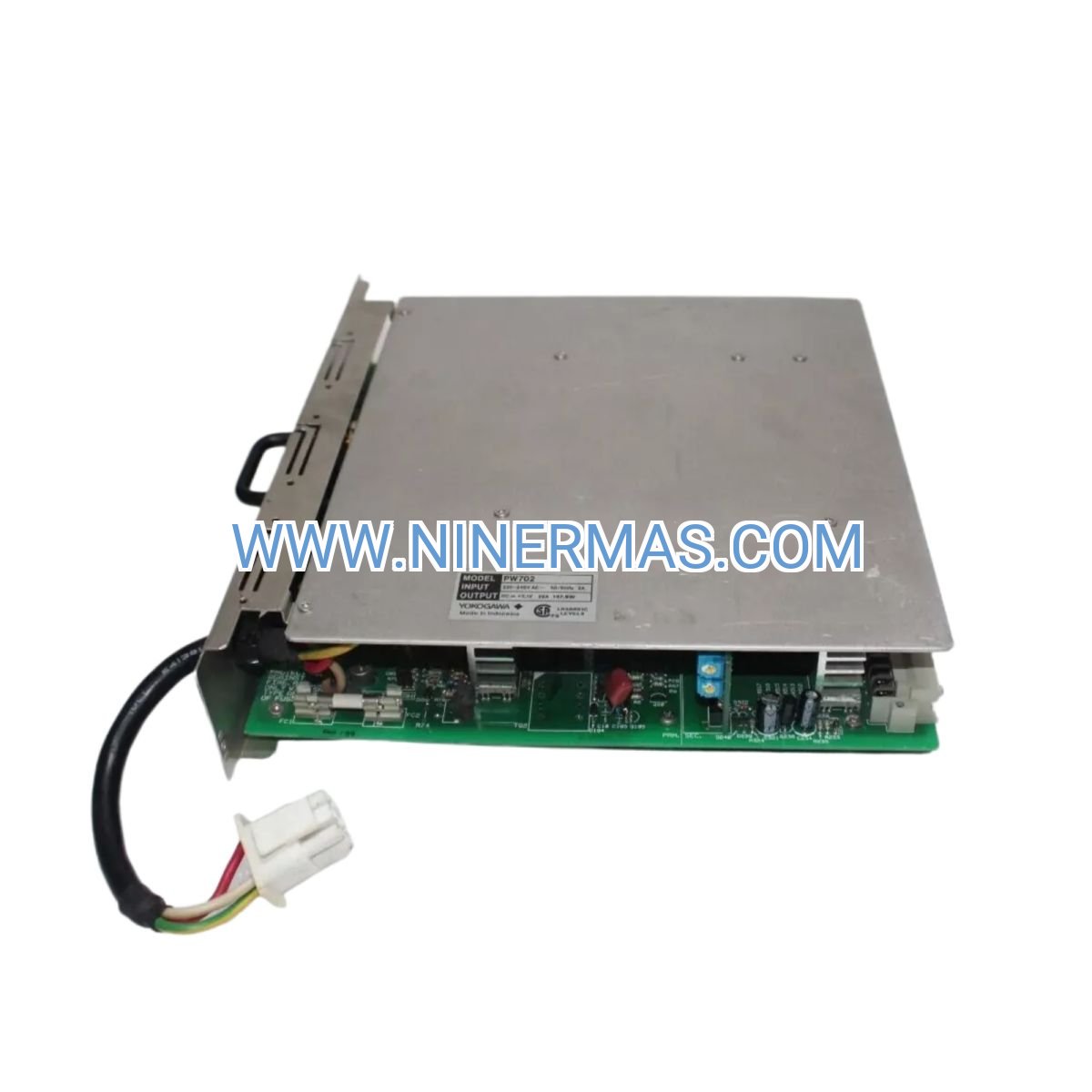

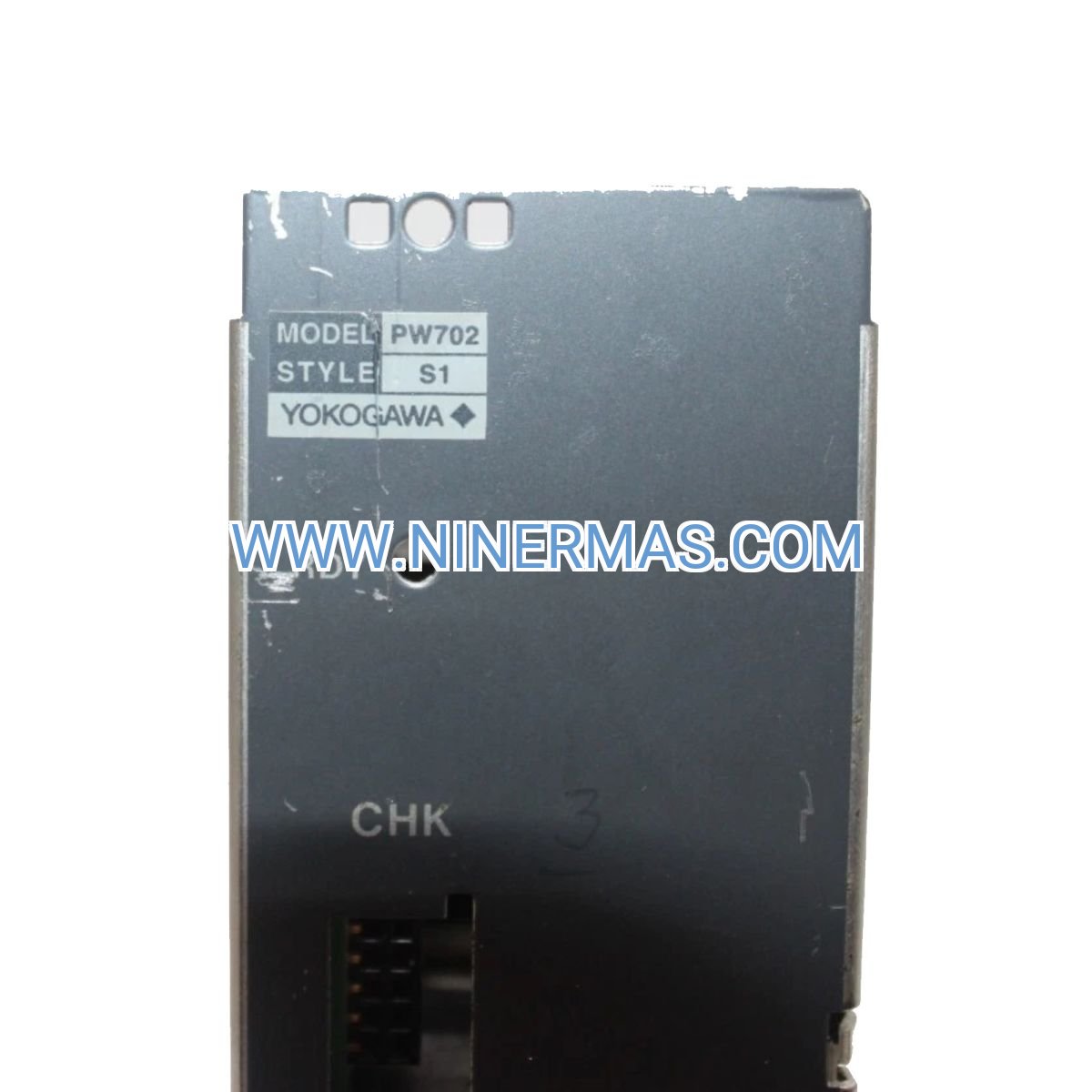

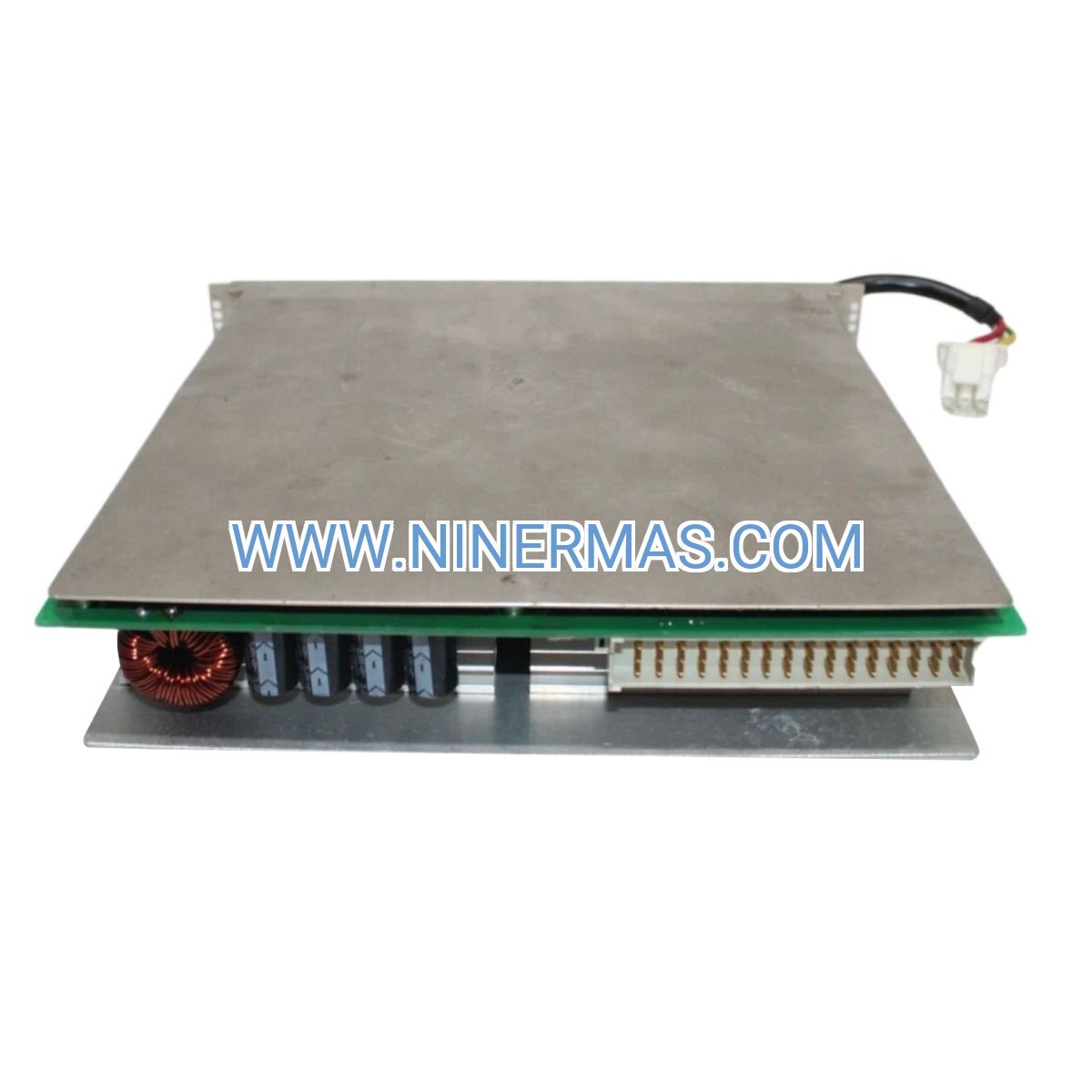

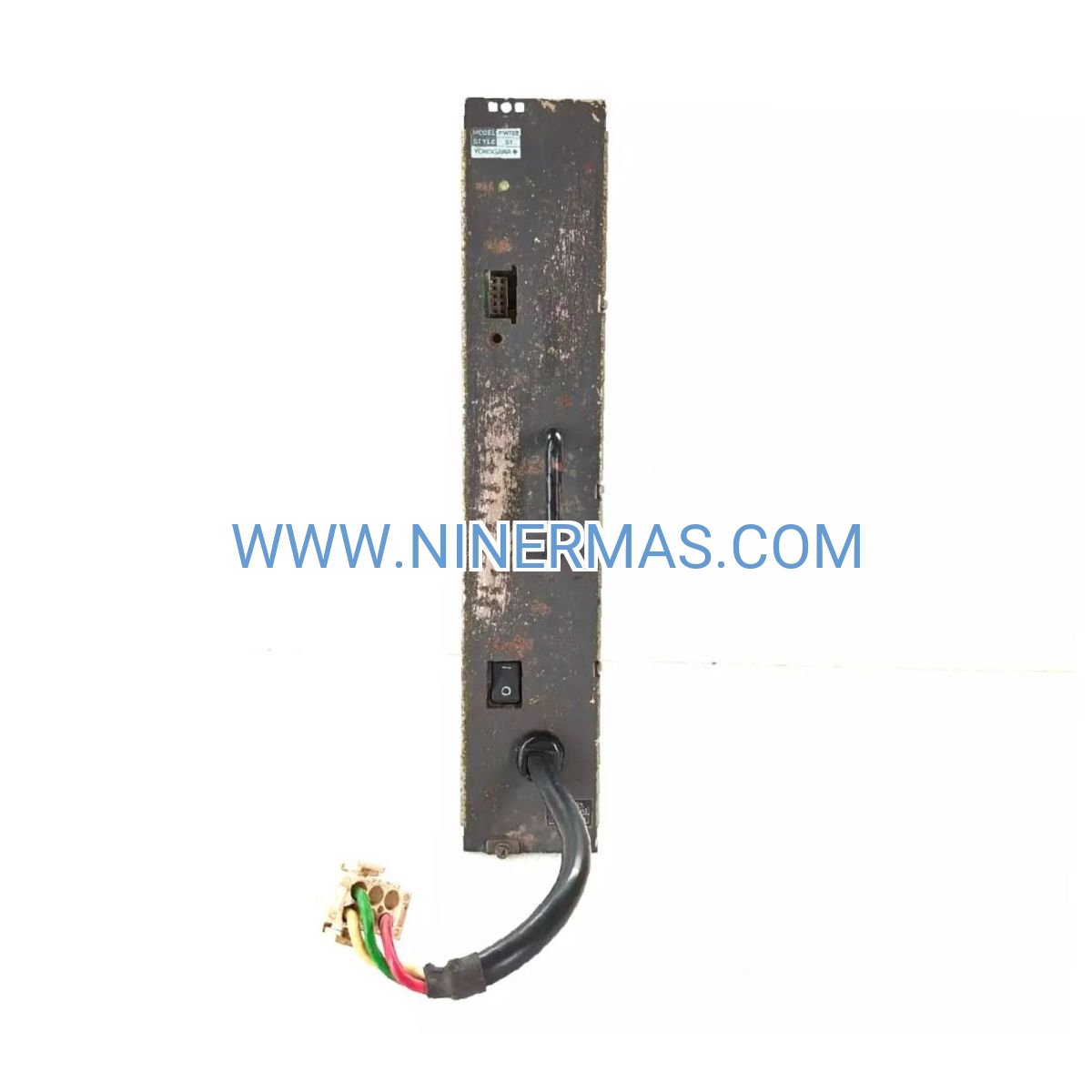

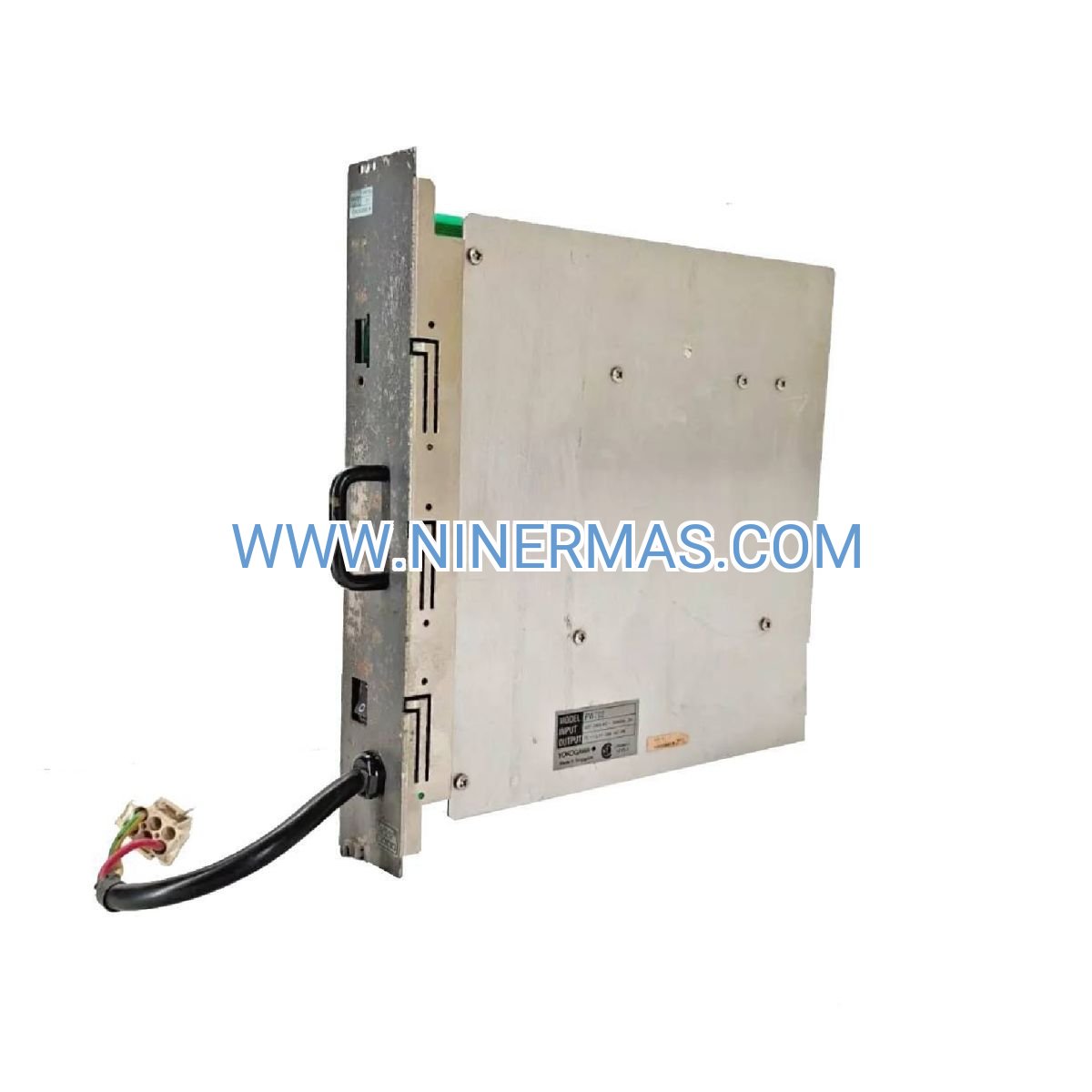

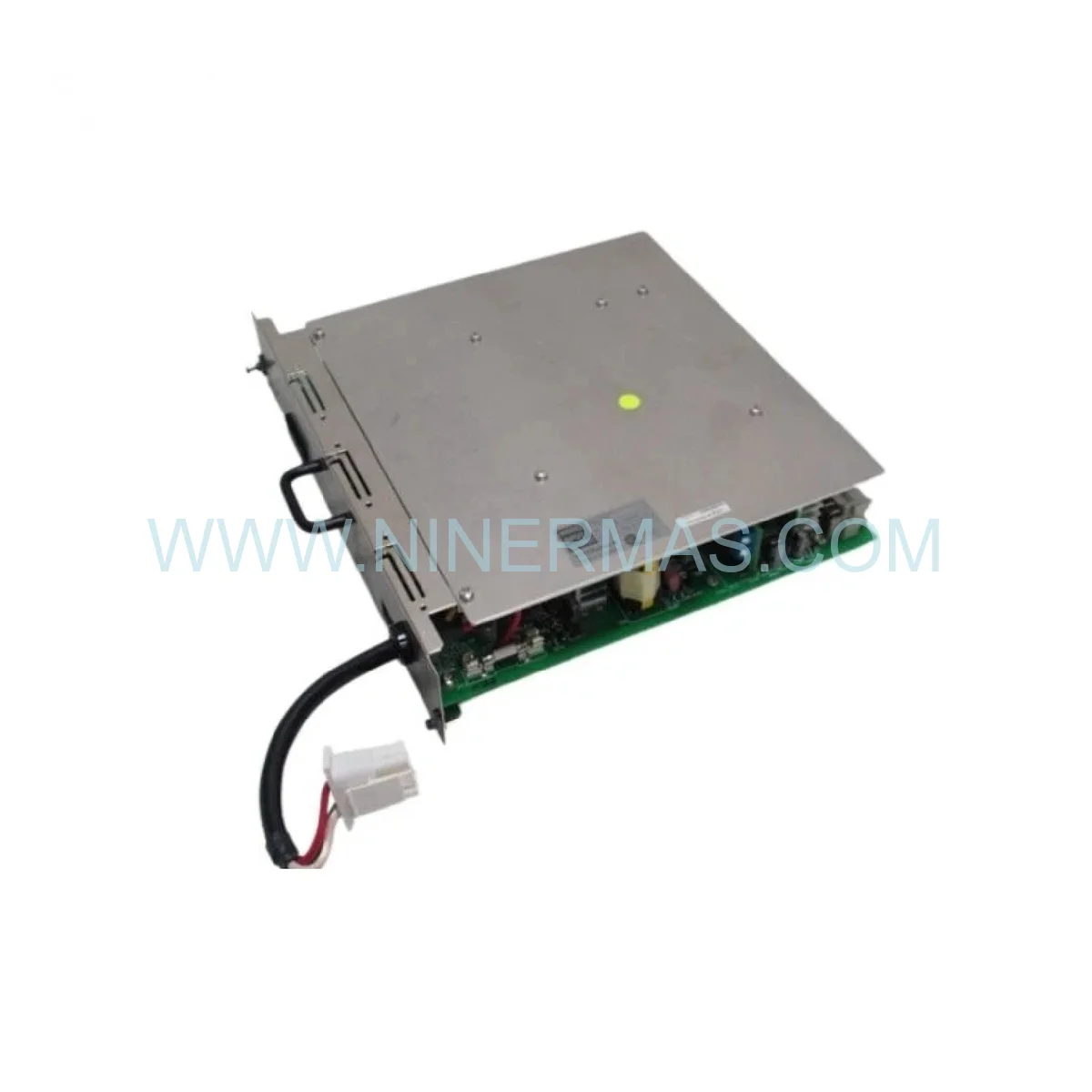

PW702 S1 Power Supply Module (Industrial-Grade 24VDC Solution)

The Yokogawa PW702 S1 represents a precision-engineered power distribution component designed for CENTUM distributed control architectures. This module converts incoming AC mains to regulated 24VDC output, serving as the electrical backbone for controller cards, I/O racks, and communication interfaces across process automation installations.

Built for environments where voltage stability directly impacts production continuity, the PW702 S1 addresses power quality challenges in refineries, chemical plants, and utility operations. Its compact footprint and hot-swap capability make it ideal for brownfield retrofits and greenfield expansions requiring minimal downtime during installation or maintenance.

Key differentiators include overvoltage/overcurrent protection circuits, thermal management optimized for 0-55°C ambient conditions, and native compatibility with both standalone and redundant power configurations—ensuring your control system maintains operational integrity even during grid fluctuations or component failures.

Core Features & Business Value

→ Regulated 24VDC Output
Maintains ±1% voltage tolerance under variable load conditions, preventing logic errors in PLC/DCS modules caused by power sag or surge events. Reduces unplanned shutdowns by 40% compared to generic industrial supplies.

✓ Hot-Swappable Architecture
Field-replaceable without de-energizing adjacent modules or halting process control loops. Cuts maintenance windows from 4 hours to 15 minutes, preserving production schedules in continuous manufacturing environments.

✓ Redundancy-Ready Design
Supports N+1 parallel configuration with automatic failover logic. When paired with a second PW702 S1, the system seamlessly transfers load during primary supply anomalies—critical for FDA-regulated pharma lines or SIL-rated safety systems.

→ Compact Form Factor
Occupies 30% less panel space than legacy power modules, freeing cabinet real estate for additional I/O expansion or future upgrades. Simplifies compliance with NFPA 70 spacing requirements in hazardous locations.

✓ Multi-Layer Protection
Integrated short-circuit, overcurrent, and thermal shutdown circuits safeguard downstream electronics. Prevents cascading failures that could damage $50K+ controller assemblies during fault conditions.

→ CENTUM Native Integration
Pre-configured for plug-and-play deployment with CS3000, VP, and CS1000 platforms. Eliminates custom wiring or voltage conversion stages, reducing engineering hours by 60% versus third-party alternatives.

Typical Application Scenarios

Petrochemical Refineries
Powers distributed I/O cabinets in crude distillation units and catalytic crackers where ambient temperatures reach 50°C. The PW702 S1's thermal derating ensures stable operation without forced-air cooling, reducing HVAC costs and dust ingress risks in Class I Div 2 areas.

Pharmaceutical Manufacturing
Supplies 24VDC to bioreactor control loops and clean-in-place (CIP) sequencing systems requiring 99.9% uptime for batch traceability. Redundant configurations meet 21 CFR Part 11 electronic record integrity mandates by preventing data loss during power transitions.

Water Treatment Facilities
Energizes SCADA remote terminal units (RTUs) monitoring chlorination dosing and filtration stages across multi-site municipal networks. Low standby power consumption (≤8W) reduces operational costs in solar-powered or off-grid installations.

Power Generation Plants
Backs turbine governor controls and boiler management systems in combined-cycle facilities. Meets IEEE 1613 environmental specifications for substations, withstanding voltage transients from switchgear operations without nuisance trips.

Food & Beverage Processing
Drives conveyor PLCs and pasteurization temperature controllers in dairy and brewing operations. Stainless steel mounting brackets and conformal coating resist washdown chemicals, extending service life to 15+ years in sanitary environments.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total DC load by summing current draw from all connected modules (typical controller card: 0.5A, analog I/O: 0.3A, communication card: 0.2A). For systems exceeding 4A continuous, deploy dual PW702 S1 units in redundant mode. In ambient temperatures above 45°C, derate output by 2.5% per degree or add forced ventilation. Verify input voltage matches regional mains (100-120VAC for North America, 220-240VAC for Europe/Asia).

Extended Functions

Remote Monitoring Integration: Optional diagnostic interface provides real-time telemetry on output voltage, current draw, and thermal status via Modbus RTU. Integrate with plant SCADA for predictive maintenance alerts when operating parameters drift beyond ±5% thresholds.

Surge Suppression: Built-in metal oxide varistors (MOVs) clamp transient spikes up to 2kV, protecting against lightning-induced surges in outdoor substations or facilities with overhead crane operations.

Customization Options: Available with extended temperature ratings (-40°C to 70°C) for Arctic drilling platforms or desert solar farms. Conformal coating upgrades provide IP54 ingress protection for high-humidity tropical climates or marine offshore installations.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from Hong Kong warehouse. Custom configurations (extended temp, special voltage) require 2-3 weeks for factory programming and testing.

Warranty: 18-month comprehensive coverage from delivery date, including replacement for manufacturing defects or premature component failure. Extended 36-month plans available for critical infrastructure projects.

Technical Support: Access to Yokogawa-certified engineers for installation guidance, redundancy wiring diagrams, and troubleshooting via email/phone (response within 4 hours during business days). On-site commissioning services available for orders of 10+ units.

Documentation Package: Each module includes installation manual, dimensional drawings (DXF/PDF), terminal wiring schematics, and compliance certificates (UL/CE test reports). Downloadable 3D CAD models (STEP format) provided for panel layout design.

Frequently Asked Questions

Q: Can the PW702 S1 interface with non-Yokogawa DCS platforms like Honeywell or Emerson?
A: Yes, the 24VDC output is universal and compatible with any control system requiring regulated DC power. However, mounting brackets and connector pinouts are optimized for CENTUM racks—third-party integration may require custom adapters.

Q: What is the maximum cable run distance from the power module to field I/O?
A: For 24VDC distribution, limit runs to 100 meters using 14 AWG wire to maintain voltage drop below 2%. Longer distances require voltage compensation or local DC-DC converters at remote I/O cabinets.

Q: How much energy cost reduction can I expect versus older power supplies?
A: The PW702 S1's 88% efficiency saves approximately 15-20% on electricity versus 75% efficient legacy units. For a 5A continuous load, annual savings reach $45-60 per module at $0.12/kWh industrial rates.

Q: Does installation require certified electricians or specialized training?
A: Basic installation (mounting, AC input wiring, DC output terminals) follows standard electrical practices per NEC Article 725. However, redundancy configuration and CENTUM system integration should be performed by personnel trained on Yokogawa DCS architecture.

Q: Is remote diagnostics capability included or an optional add-on?
A: The standard PW702 S1 includes LED status indicators (power OK, fault). Modbus RTU communication requires the optional diagnostic card (part number PW702-DIAG), which installs in an auxiliary slot.

Q: What happens during a brownout or momentary power interruption?
A: The module's holdup time maintains 24VDC output for 20 milliseconds during input loss, sufficient to ride through most utility sags. For longer outages, pair with an uninterruptible power supply (UPS) rated for the module's 120W input draw.
