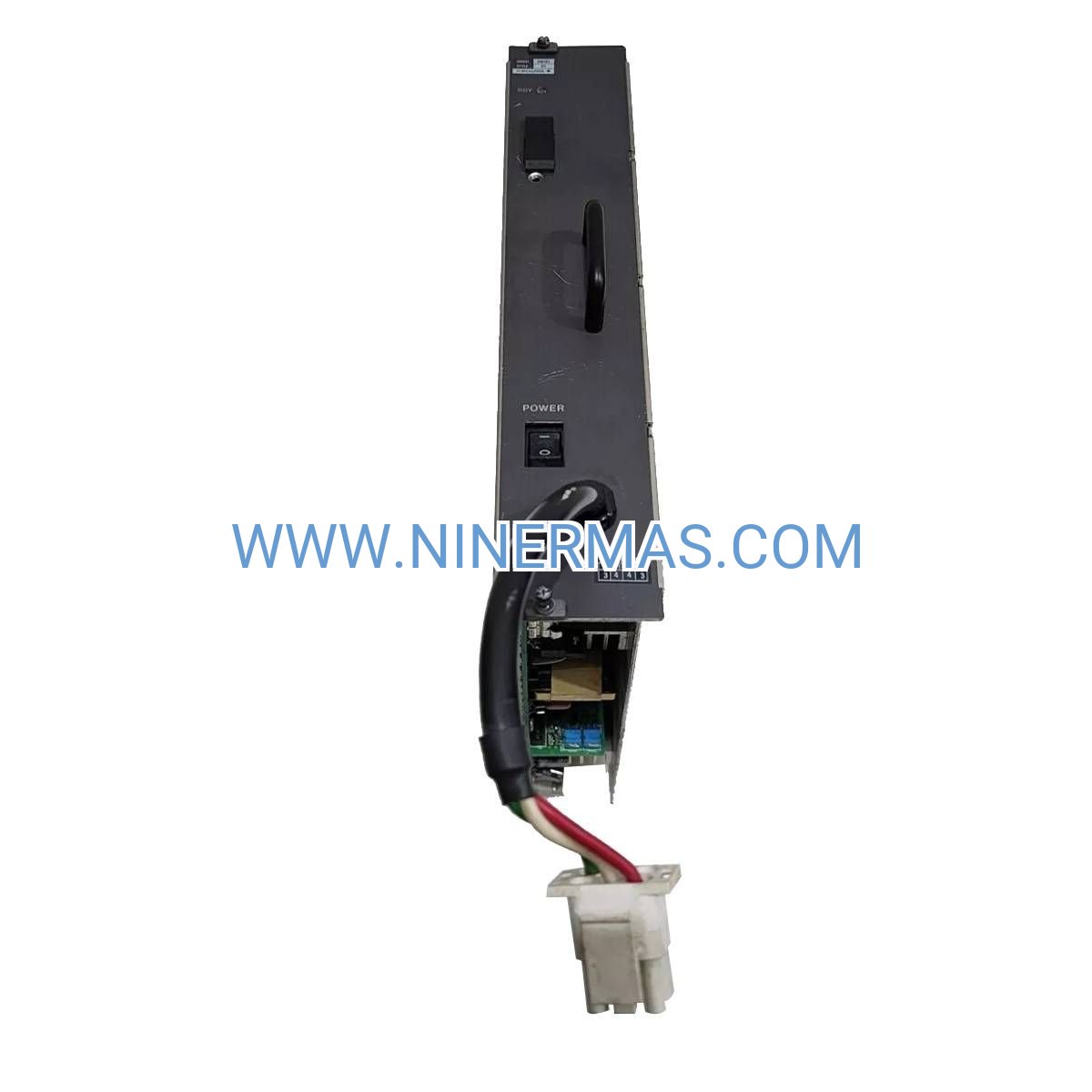

PW301 S4 Power Supply Module (Industrial-Grade AC/DC Converter)

The PW301 S4 represents Yokogawa's commitment to power reliability in mission-critical distributed control environments. This compact AC/DC converter transforms standard 100-120V mains power into precision-regulated 5.1V DC output, specifically engineered to sustain continuous operation of CENTUM VP control processors, I/O cards, and communication modules across 24/7 industrial facilities.

Designed for process industries where unplanned downtime translates to significant production losses, this module addresses three fundamental challenges: voltage fluctuation tolerance, rapid fault recovery, and maintenance accessibility. Its hot-swappable architecture allows technicians to service power systems without halting active control loops, while built-in protection circuits isolate electrical faults before they propagate to downstream logic cards.

Whether you're upgrading legacy CENTUM CS 3000 installations or designing greenfield automation projects, the PW301 S4 delivers the power density and reliability required for pharmaceutical batch control, petrochemical safety systems, and utility-scale energy management platforms.

Core Features & Industrial Advantages

✓ Precision Voltage Regulation: Maintains 5.1V DC output within ±1% tolerance across full load range, preventing microprocessor reset events caused by voltage sag during motor start transients or grid disturbances.

✓ 20-Ampere Continuous Capacity: Supports up to 40 I/O cards or 8 processor modules per unit, enabling consolidated power distribution in compact control cabinets with reduced wiring complexity.

✓ Multi-Layer Fault Protection: Integrates overcurrent shutdown (trip at 22A), overvoltage clamp (6.5V max), and thermal cutoff (85°C junction temp) to safeguard expensive control hardware from electrical damage.

→ Hot-Swap Serviceability: Front-accessible design with captive screws and keyed connectors allows replacement in under 90 seconds without powering down adjacent modules—critical for maintaining SIL-rated safety loops.

→ Parallel Redundancy Support: Automatic current sharing when paired with a second PW301 S4 enables N+1 configurations, where system operation continues uninterrupted even during single-module failure or scheduled maintenance.

→ Wide Environmental Range: Operates reliably from 0°C to 55°C ambient with passive convection cooling, eliminating fan-related failures in dusty or corrosive atmospheres common to mining and chemical processing.

Application Scenarios Across Process Industries

Refinery Distillation Control: Powers distributed field control units managing column temperature cascades and reflux ratio adjustments, where millisecond-level loop response prevents product quality deviations and flare events.

Pharmaceutical Clean Room Automation: Sustains environmental monitoring systems (temperature, humidity, differential pressure) with the electrical stability required for FDA 21 CFR Part 11 compliance and batch record integrity.

Combined-Cycle Power Plants: Drives turbine sequencing logic and boiler combustion controls, where power supply failure could trigger emergency shutdowns costing $50,000+ per hour in lost generation capacity.

Water Treatment SCADA Networks: Supports remote telemetry units across multi-site municipal systems, providing the voltage stability needed for accurate analog signal conditioning in 4-20mA sensor circuits.

Food Processing Batch Systems: Ensures uninterrupted operation of recipe management and CIP (clean-in-place) sequencing, where mid-batch power loss results in product waste and extended sanitation cycles.

Technical Parameters & Selection Criteria

Selection Guidelines: Calculate total DC current draw by summing all connected modules (typical processor card: 1.2A; analog I/O card: 0.8A; digital I/O card: 0.5A). Add 20% safety margin and verify result stays below 20A. For systems requiring >16A, implement dual-module redundancy to prevent single-point-of-failure conditions.

Extended Capabilities for Modern Control Systems

Remote Monitoring Integration: Front-panel status LEDs (green=normal, red=fault) can be wired to CENTUM VP alarm inputs for centralized power system health monitoring via HMI graphics.

Seismic Qualification: Tested to IEEE 693 standards for high-seismic zones, making it suitable for nuclear auxiliary systems and critical infrastructure installations in earthquake-prone regions.

Conformal Coating Option: Factory-applied acrylic coating (specify at order) protects against humidity, salt spray, and chemical vapors in offshore platforms or coastal facilities.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh orders with full traceability documentation.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship, with advance replacement available for critical spares programs.

Technical Support: Access to application engineers for load calculations, redundancy design reviews, and troubleshooting assistance via email/phone during business hours (GMT+8).

Documentation Package: Includes installation manual, dimensional drawings (DXF/PDF), terminal wiring diagrams, and RoHS/REACH compliance certificates.

Frequently Asked Questions

Q: Can the PW301 S4 replace older PW301 models in existing CENTUM CS 3000 systems?
A: Yes—the S4 revision maintains pin-compatible backplane connections with earlier versions. Verify your card rack supports the updated form factor (check slot depth ≥220mm) before ordering.

Q: What is the maximum cable length between the power module and the farthest I/O card?
A: Yokogawa specifies 10 meters maximum for 5V DC distribution to maintain voltage drop below 0.1V. For longer runs, use intermediate power injection points or upgrade to 24V DC I/O systems.

Q: How much energy cost reduction can I expect compared to linear power supplies?
A: Switching topology delivers 85%+ efficiency versus 50-60% for linear designs. A fully loaded PW301 S4 (100W output) consumes ~118W input, saving approximately 70W per module compared to equivalent linear units—translating to $50-80/year per module at typical industrial electricity rates.

Q: Does this module require calibration or periodic maintenance?
A: No field calibration needed—output voltage is factory-trimmed and stable over the product lifetime. Recommended maintenance is limited to annual visual inspection for dust accumulation and connector tightness verification.

Q: Can I monitor power supply status remotely through the DCS network?
A: The PW301 S4 provides discrete fault outputs that can be wired to digital input modules. For advanced diagnostics (output current, temperature), consider the SPW481 series with integrated FOUNDATION Fieldbus connectivity.

Q: What installation clearances are required for proper thermal management?
A: Maintain 50mm minimum spacing above and below the module for convection airflow. In vertically-mounted racks, position power supplies at the bottom to prevent heat rise from affecting temperature-sensitive processor cards.

Ready to Enhance Your DCS Power Infrastructure?

Contact our industrial automation specialists to discuss your CENTUM VP power requirements, request detailed load calculations, or place an order for the PW301 S4. We provide same-day quotations, technical datasheets, and compatibility verification for your specific system configuration.
