PW484-51 Power Supply Module (Industrial-Grade 24VDC Distribution)

The PW484-51 is a precision-engineered 24-volt DC power distribution module designed exclusively for Yokogawa CENTUM distributed control architectures. This industrial power supply ensures continuous, regulated voltage delivery to Field Control Units, FIO communication nodes, and ESB bus repeater infrastructure across process automation installations.

Built for mission-critical environments where power interruption translates to production loss, the PW484-51 addresses the fundamental challenge of maintaining stable voltage under fluctuating load conditions and harsh industrial conditions. Process engineers and automation integrators rely on this module to power the nerve center of refinery control systems, chemical batch operations, and pharmaceutical manufacturing lines.

With hot-swap capability and redundant configuration support, the PW484-51 eliminates single points of failure in your control power architecture. Operators gain peace of mind knowing backup power transitions occur seamlessly without disrupting active control loops or field communications.

Core Features & Benefits

→ Regulated 24VDC Output
Maintains ±2% voltage stability across 0-100% load transitions, protecting sensitive microprocessor-based control hardware from brownout-induced faults and ensuring consistent I/O signal integrity.

→ Hot-Swappable Architecture
Replace failed modules during live operation without system shutdown—critical for continuous process industries where planned downtime windows occur quarterly or annually, reducing maintenance-related production losses by 40-60%.

→ Redundant Power Pairing
Deploy dual PW484-51 modules in N+1 configuration for automatic failover protection; if primary supply degrades, secondary unit assumes full load within 20 milliseconds, preventing controller resets and data loss.

✓ Compact DIN Rail Design
Occupies minimal cabinet real estate (standard 35mm rail mount) while delivering 50W continuous output, allowing dense power distribution in space-constrained control enclosures typical of offshore platforms and mobile skid systems.

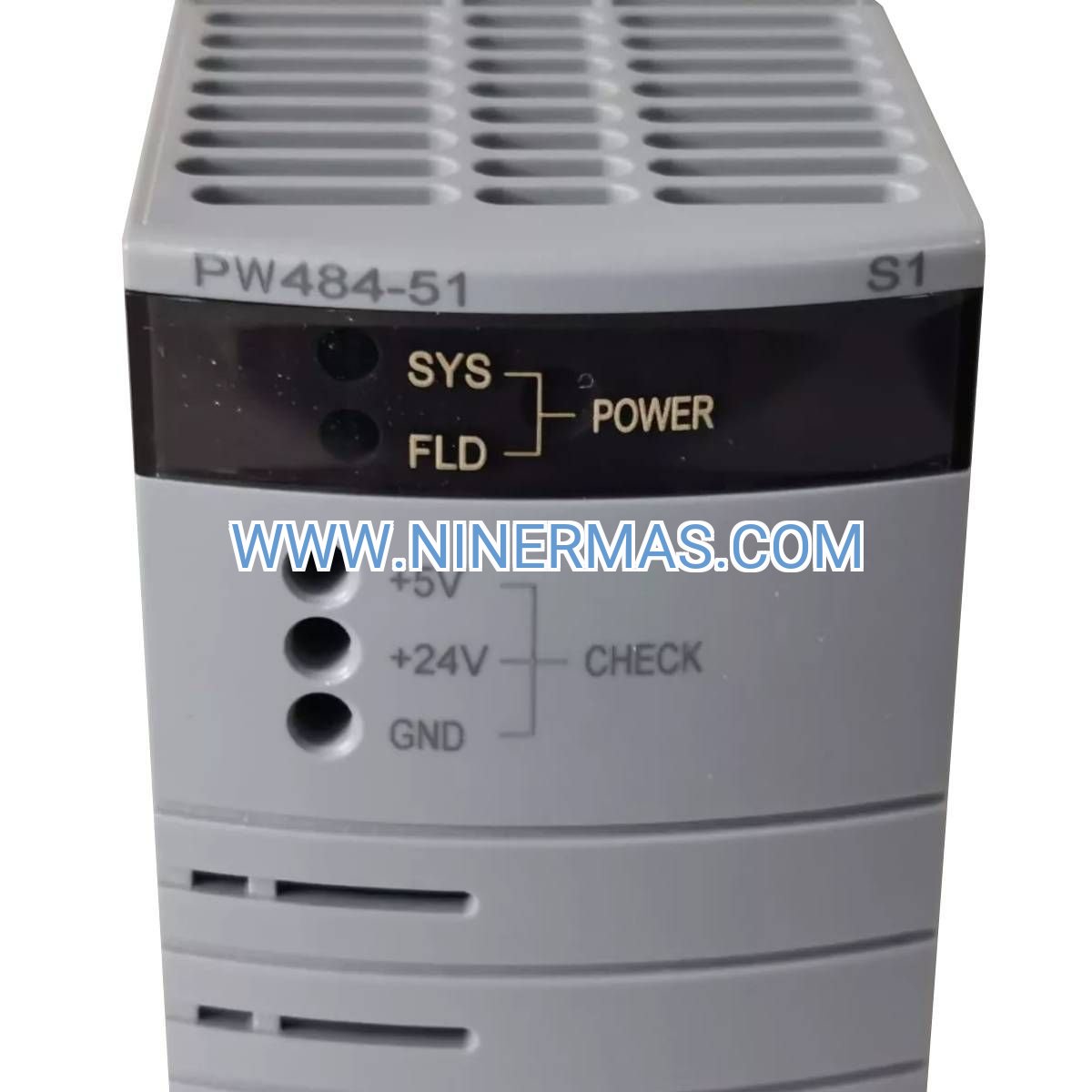

✓ Diagnostic LED Indicators
Three-color status display provides instant visual confirmation of output voltage health, overload conditions, and AC input status—technicians diagnose 80% of power issues without multimeter testing, accelerating troubleshooting during emergency callouts.

✓ Wide Operating Temperature Range
Functions reliably from -20°C to +60°C ambient, suitable for non-climate-controlled electrical rooms in desert refineries, arctic gas processing facilities, and tropical pulp mills where HVAC failures occur seasonally.

Typical Application Scenarios

Oil & Gas Refining
Powers distributed I/O networks controlling distillation column temperature cascades, compressor anti-surge systems, and flare gas recovery units. The PW484-51's vibration tolerance withstands pump-induced mechanical stress in analyzer shelters located 200+ meters from central control rooms.

Chemical Batch Processing
Supplies stable voltage to recipe management controllers executing multi-step polymerization sequences where voltage sag during reactor agitator startup could corrupt batch parameters, resulting in off-spec product and $50K-$200K material waste per incident.

Power Generation Facilities
Energizes boiler combustion control FCUs and turbine protection systems where power supply failure triggers emergency shutdowns—redundant PW484-51 pairs ensure 99.97% uptime alignment with grid reliability requirements and regulatory compliance mandates.

Pharmaceutical Manufacturing
Maintains FDA 21 CFR Part 11 compliant power delivery to clean room environmental monitoring systems and fermentation bioreactor controls, where audit trails demand documented power quality metrics and uninterrupted data logging.

Water Treatment Plants
Drives SCADA remote terminal units managing clarifier chemical dosing and UV disinfection sequencing across municipal facilities serving 100K+ residents, where power anomalies could compromise public health safety margins.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total current draw of connected FCU/FIO modules (typically 0.8-1.5A per node). For systems with 3+ nodes or future expansion plans, deploy redundant PW484-51 pairs. In high-vibration environments (compressor rooms, pump skids), verify mounting hardware includes lock washers and thread-locking compound to prevent terminal loosening.

Extended Functions

Predictive Maintenance Integration: Output voltage analog signal (optional accessory) connects to CENTUM analog input cards for continuous power quality trending—detect capacitor aging 6-12 months before failure through gradual voltage droop patterns.

Remote Monitoring Capability: Pair with Yokogawa STARDOM network controllers to transmit power status via Modbus TCP to plant-wide asset management systems, enabling centralized UPS coordination and automatic work order generation when voltage anomalies exceed ±3% thresholds.

Customization Options: Extended temperature variants (-40°C to +70°C) available for extreme climate installations; conformal coating applied for high-humidity tropical or corrosive chemical vapor environments; custom output voltages (12VDC, 48VDC) manufactured for specialized OEM equipment integration.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days via DHL/FedEx Express. Custom configurations (extended temp, special voltage) require 4-6 weeks factory lead time from Yokogawa Japan manufacturing facility.

Warranty Coverage: 24-month manufacturer defect warranty from shipment date. Covers component failures under normal operating conditions (excludes lightning damage, overvoltage events, or improper installation). Advance replacement available for critical applications with 24-hour emergency shipping.

Technical Support: Access to Yokogawa-certified application engineers for sizing calculations, redundancy design review, and troubleshooting assistance. Phone/email support available 8AM-6PM CST Monday-Friday, with emergency after-hours hotline for production-down scenarios.

Documentation Package: Includes installation manual with wiring diagrams, dimensional drawings (DXF/PDF), compliance certificates (UL/CE), and CENTUM system integration notes. Editable CAD symbols provided for P&ID and electrical schematic development.

Frequently Asked Questions

Q: How do I connect the PW484-51 to existing CENTUM FCU power terminals?
A: The module uses screw-clamp terminals accepting 14-22 AWG wire. Connect +24V output to FCU terminal block positive rail, 0V to common ground bus. Maintain wire runs under 50 meters to minimize voltage drop; use 16 AWG minimum for distances exceeding 30 meters. Torque terminals to 0.5-0.6 Nm per installation manual specifications.

Q: What is the maximum combined load capacity when using redundant PW484-51 modules?
A: Each module supplies 2.1A continuous. In N+1 redundant configuration, size total load to 2.1A maximum so either module can carry full load during failover. For loads exceeding 2.1A, deploy additional redundant pairs or upgrade to higher-capacity PW702 series (5A output). Never parallel outputs without current-sharing diodes.

Q: Does the PW484-51 improve energy efficiency compared to older PW401 models?
A: Yes—the PW484-51 achieves 85%+ efficiency versus 72-78% for legacy PW401 units. In a typical 10-module installation running 24/7, this translates to 450-600 kWh annual energy savings ($45-$90 at $0.10/kWh industrial rates) and 35% reduction in heat dissipation, lowering cabinet cooling requirements.

Q: What are the physical installation requirements for DIN rail mounting?
A: Requires standard 35mm top-hat rail (EN 50022) with minimum 120mm vertical clearance and 30mm side clearance for ventilation. Allow 50mm rear clearance for wiring access. Mount in vertical orientation with terminals facing downward to prevent dust accumulation. Maximum ambient temperature derate curve: 100% load to 50°C, 80% load to 60°C.

Q: Can the PW484-51 integrate with remote monitoring and SCADA systems?
A: The module provides dry-contact alarm outputs (normally open/closed configurable) for AC fail and DC low-voltage conditions. These signals connect directly to CENTUM digital input cards or third-party PLCs. For analog voltage monitoring, add optional VM484 voltage monitor accessory transmitting 4-20mA signal proportional to output voltage.

Q: How does the hot-swap feature work during live module replacement?
A: In redundant configurations, both modules share load via internal ORing diodes. To replace a module: (1) Verify redundant unit is active via green LED, (2) Release DIN rail clip on failed module, (3) Slide module out—load automatically transfers to remaining unit, (4) Insert new module and secure clip—it auto-synchronizes within 2 seconds. No configuration or parameter setting required.

Take the Next Step

Ensure uninterrupted power delivery to your CENTUM control infrastructure. Contact our automation specialists for application-specific sizing, redundancy design consultation, or volume pricing on multi-module deployments. Request a detailed integration guide tailored to your system architecture, or place your order now for 3-5 day express delivery.
