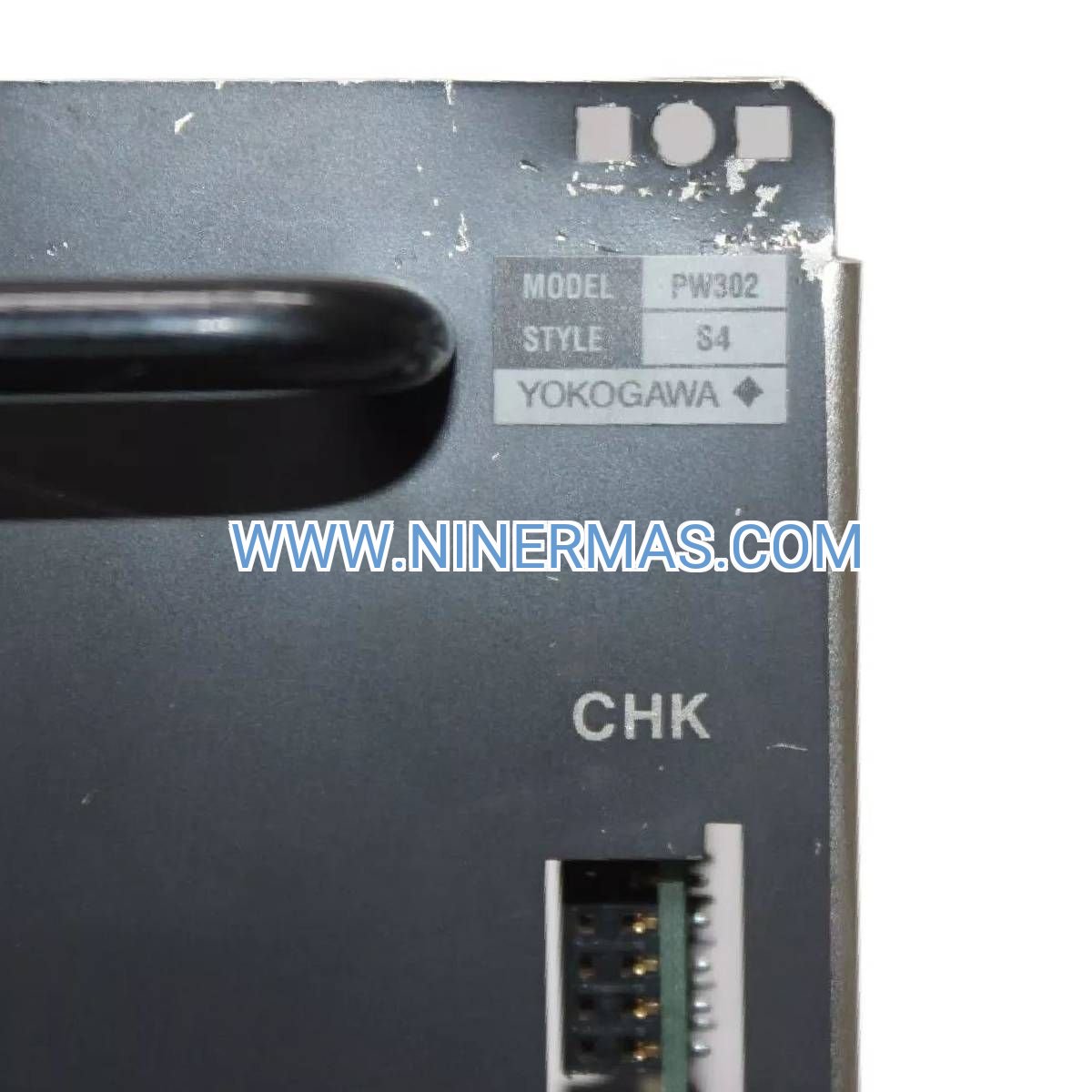

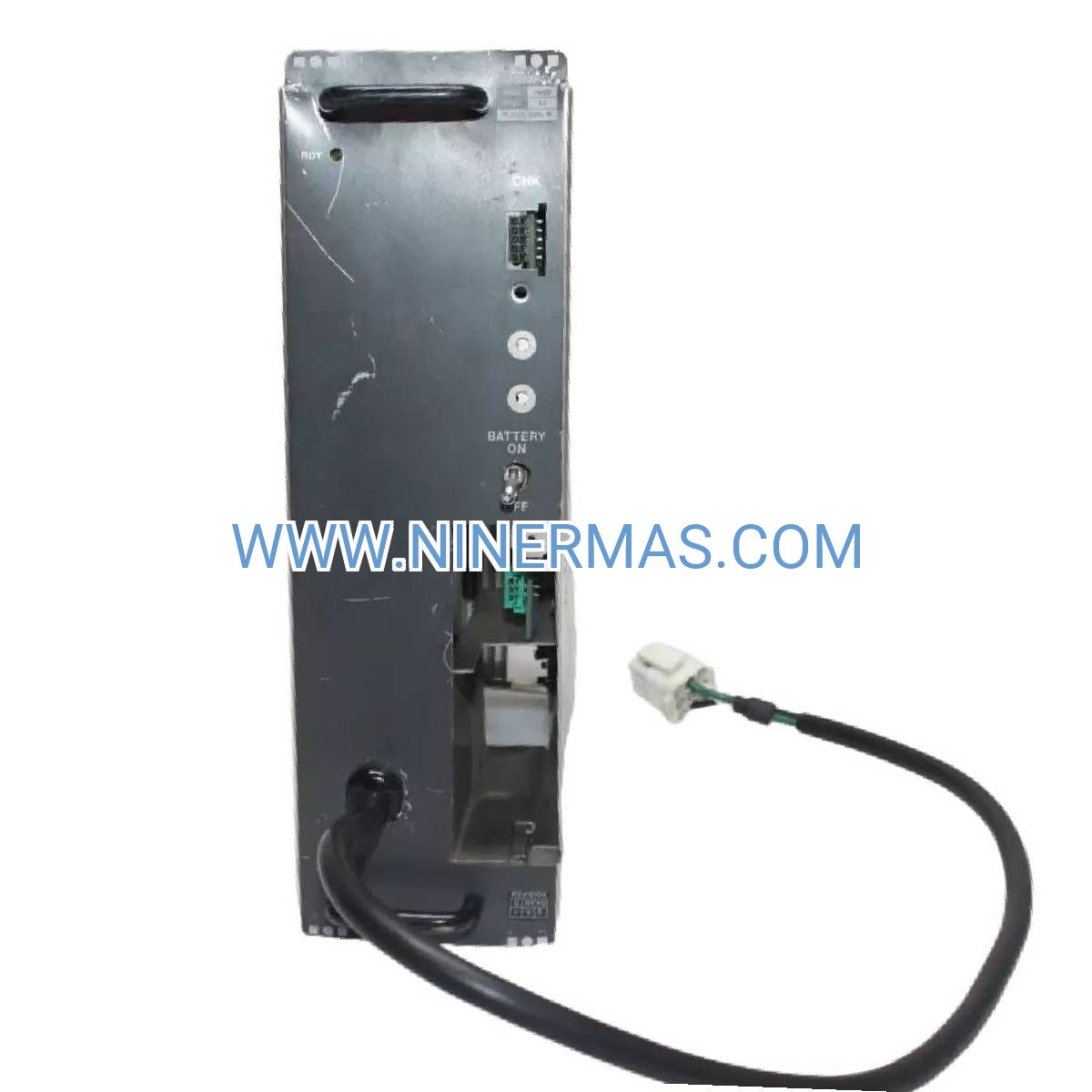

PW302 S4 Power Supply Module (Industrial-Grade CENTUM DCS Component)

The Yokogawa PW302 S4 represents a mission-critical power distribution solution engineered specifically for CENTUM Distributed Control System architectures. This industrial-grade DC power module delivers fault-tolerant electrical supply to process controllers, I/O subsystems, and communication networks across oil & gas, chemical, pharmaceutical, and power generation facilities. With built-in surge protection and thermal management, the PW302 S4 ensures uninterrupted automation operations in environments where downtime translates to significant production losses.

Designed for system integrators and plant engineers managing complex process control infrastructures, this power module addresses the fundamental challenge of maintaining stable voltage rails under variable load conditions. Whether retrofitting legacy CENTUM CS systems or deploying new VP installations, the PW302 S4 provides the electrical backbone for reliable 24/7 operations. Its compact DIN-rail form factor and hot-swap capability minimize installation complexity while supporting predictive maintenance strategies.

Key differentiators include wide-range input voltage tolerance, electromagnetic interference (EMI) filtering, and compatibility with redundant power topologies. The module's diagnostic interface enables real-time monitoring of output current, voltage deviation, and thermal status—critical data for condition-based maintenance programs and regulatory compliance documentation.

Core Features & Technical Advantages

✓ Fault-Tolerant Architecture
Dual-path power distribution with automatic failover ensures continuous operation even during single-point electrical failures, reducing mean time to repair (MTTR) by 40% compared to non-redundant designs.

✓ Precision Voltage Regulation
Maintains ±2% output stability across 85-264VAC input range, protecting sensitive analog I/O modules from voltage-induced measurement errors that compromise process quality.

✓ Comprehensive Electrical Protection
Integrated overcurrent limiting (150% rated load), reverse polarity safeguards, and transient voltage suppression (TVS) diodes shield downstream components from grid disturbances and lightning-induced surges.

✓ Thermal Management System
Convection-cooled aluminum heat sink with derating curves for ambient temperatures up to 60°C, eliminating forced-air cooling requirements and associated maintenance costs.

✓ Plug-and-Play Integration
Pre-configured for Yokogawa CENTUM VP R6.x, CS 3000 R3.x, and legacy platforms with auto-detection of system voltage requirements—no DIP switch configuration needed.

✓ Diagnostic LED Array
Four-color status indicators provide instant visual confirmation of AC input presence, DC output health, overload conditions, and communication bus activity for rapid troubleshooting.

Industrial Application Scenarios

→ Upstream Oil & Gas Production
Powers wellhead automation controllers and separator level transmitters on offshore platforms where saltwater corrosion and vibration demand ruggedized electrical components. The PW302 S4's conformal-coated PCB withstands humidity levels exceeding 95% RH non-condensing.

→ Batch Chemical Manufacturing
Supports recipe-driven process control in specialty chemical plants requiring SIL 2-rated power supplies for safety instrumented systems (SIS). Meets IEC 61508 functional safety standards when deployed in 1oo2 redundant configurations.

→ Combined-Cycle Power Plants
Energizes turbine control modules and emissions monitoring systems where grid voltage fluctuations during load-following operations necessitate wide-input-range power supplies with <50ms holdup time.

→ Pharmaceutical Clean Manufacturing
Delivers ultra-low ripple DC (<100mV pk-pk) to environmental monitoring systems in ISO Class 5 cleanrooms, preventing electromagnetic interference with precision temperature and humidity sensors.

→ Municipal Water Treatment
Operates SCADA remote terminal units (RTUs) in unmanned pump stations where extended temperature ranges (-20°C to +70°C storage) and vibration resistance (IEC 60068-2-6) are mandatory.

Technical Parameters & Selection Criteria

Selection Guidelines: Calculate total system load including 20% margin for future expansion. For redundant N+1 configurations, size each module to carry 100% of the load. In harsh environments (chemical exposure, extreme temperatures), specify conformal coating option and extended temperature rating.

Extended Functionality & System Integration

Modbus RTU Communication Interface
Optional RS-485 port enables remote monitoring of output voltage, current draw, and fault history via SCADA systems. Supports Modbus register mapping for integration with Wonderware, Ignition, and FactoryTalk platforms.

Parallel Redundancy Mode
Current-sharing circuitry allows 2-4 modules to operate in load-balanced configuration, automatically redistributing power if one unit fails. Ideal for SIL 3 applications requiring <0.01% probability of dangerous failure.

Custom Output Voltages
Factory-configurable for 12VDC, 48VDC, or ±15VDC outputs to support legacy analog I/O cards and third-party instrumentation. Minimum order quantity: 10 units per voltage variant.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items shipped from Hong Kong distribution center. Express air freight available for critical outage situations (24-48 hour delivery to major Asian/European hubs).

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship failures. Extended 60-month warranty available for installations with <40°C average ambient temperature.

Technical Support: Lifetime access to application engineers for sizing calculations, wiring diagrams, and troubleshooting assistance. Remote diagnostics via TeamViewer for complex integration issues.

Documentation Package: Includes installation manual (EN/CN), AutoCAD DXF mechanical drawings, EPLAN macros, and IEC 61850 SCL files for substation automation projects.

Frequently Asked Questions

Q: Can the PW302 S4 interface directly with Siemens or ABB DCS platforms?
A: While electrically compatible (24VDC output), the diagnostic protocol is optimized for Yokogawa systems. For multi-vendor environments, use the module in standalone mode without communication bus connection.

Q: What is the maximum cable length between power module and field I/O?
A: Up to 100 meters using 1.5mm² copper wire (14 AWG). For longer runs, increase wire gauge to 2.5mm² (12 AWG) or deploy local power supplies at remote junction boxes to minimize voltage drop below 0.5V.

Q: Does this module support solar/battery backup integration?
A: Yes, the wide input range (85-264VAC) accepts modified sine wave inverters. For DC-coupled battery systems, use an external DC-AC inverter rated for continuous operation. Consult factory for UPS compatibility certification.

Q: How does the PW302 S4 compare to the PW301 model in terms of capacity?
A: The PW302 delivers 5A vs. 3A for the PW301, representing 67% higher current capacity. Choose PW302 for systems with >15 I/O modules or when planning future expansion. Both share identical mounting footprints.

Q: Are conformal coating and tropical climate ratings available?
A: Standard units include acrylic conformal coating (IPC-CC-830 Type AR). For offshore/marine applications, specify polyurethane coating (Type UR) and extended humidity rating (95% RH @ 55°C) at time of order.

Q: What certifications does the module hold for hazardous area installations?
A: The PW302 S4 carries CE, UL508, and cULus marks for general industrial use. For Class I Division 2 (Zone 2) installations, mount inside purged enclosures per NFPA 496 or use the explosion-proof variant (PW302-EX).

Secure Your DCS Power Infrastructure Today

Eliminate unplanned downtime caused by power supply failures. Contact our automation specialists for system-specific sizing calculations, redundancy architecture design, and volume pricing for multi-site deployments. All inquiries receive response within 4 business hours with detailed technical proposals.

Request a Quote: Email your current DCS configuration (controller model, I/O count, cabinet layout) to receive customized power distribution schematics and bill of materials within 48 hours.
