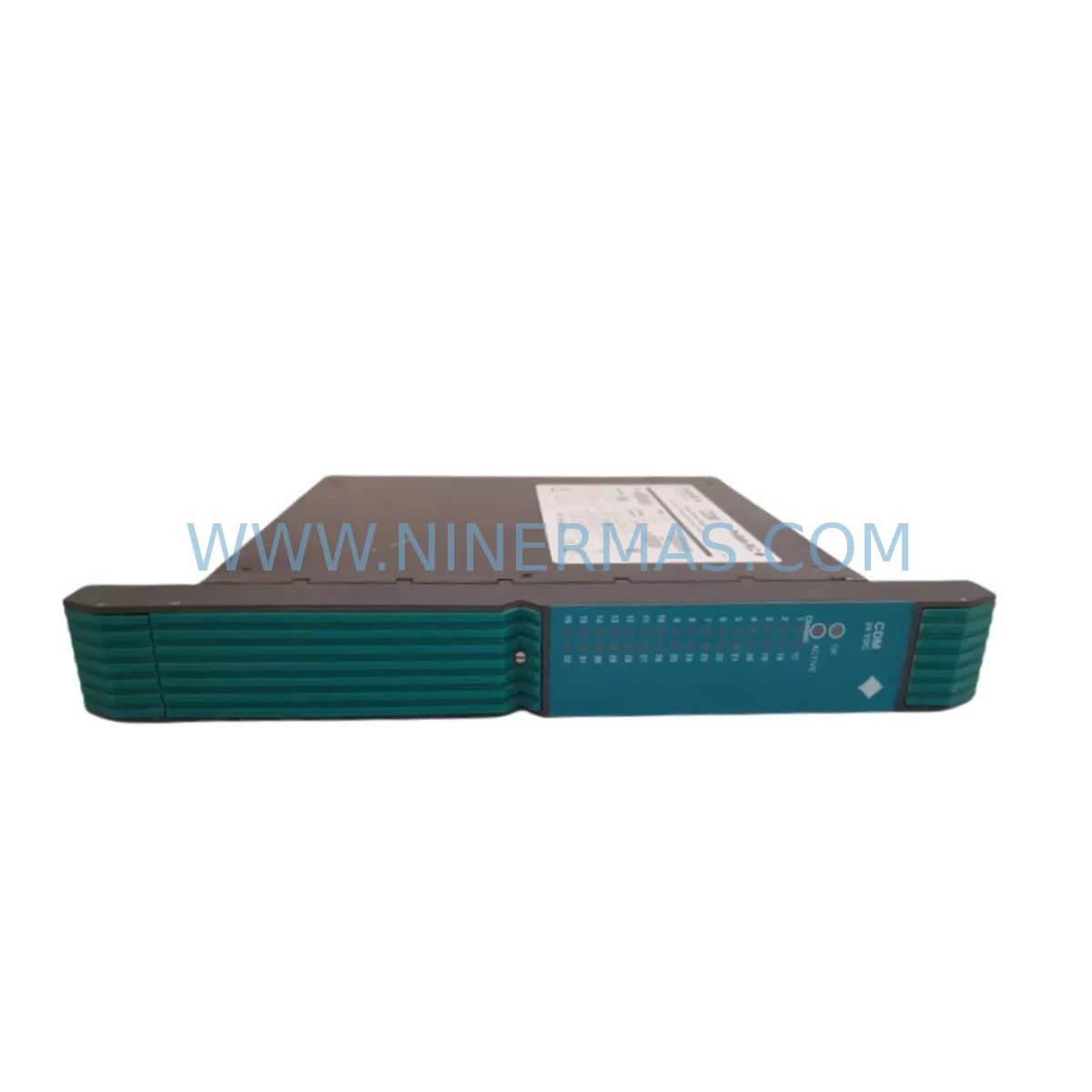

Yokogawa PSCDM024DCBAN Retrofit Power Supply CENTUM VP

Yokogawa PSCDM024DCBAN Retrofit Power Supply for CENTUM VP Legacy Systems

The Yokogawa PSCDM024DCBAN is a DC power supply module designed for use within the CENTUM VP distributed control system platform. As legacy CENTUM VP installations age and original spare parts reach end-of-life, the PSCDM024DCBAN has become a critical retrofit component for engineers tasked with sustaining plant operations without committing to a full DCS migration. This module delivers stable 24 VDC bus power to field control stations, I/O cards, and communication modules within the CENTUM VP architecture, making it a foundational element in any power continuity or system restoration plan.

For facilities operating CENTUM VP field control units such as the FCS0303 or FCU05D, maintaining a reliable power supply chain is non-negotiable. The PSCDM024DCBAN slots into the standard CENTUM VP power supply bay and interfaces directly with the system backplane, eliminating the need for custom wiring adapters or bus conversion hardware. Engineers replacing a failed or degraded power module should verify the input voltage range, confirm the output current rating against the installed I/O load, and check that the backplane connector pinout matches the existing installation before powering up.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a CENTUM VP power supply requires a structured approach that accounts for the interdependencies between the power module and the broader control architecture. The PSCDM024DCBAN typically powers a rack that may house a combination of analog input modules such as the AAI141-S, digital output modules such as the ADO55B, and communication interface cards connecting to the Vnet/IP network backbone. Before removing the existing power supply, engineers should document the current draw of all installed modules in the affected field control station to confirm the PSCDM024DCBAN’s rated output is sufficient for the combined load.

In installations where the CENTUM VP system communicates with a SCADA layer or historian via an OPC server, the power interruption window must be coordinated with the control room to avoid false alarms or data gaps. If the field control station also hosts a communication module such as the ACM12 or a gateway interfacing with a Modbus RTU network, those links should be gracefully suspended before the power module is swapped. The backplane connector on the PSCDM024DCBAN is keyed to the CENTUM VP chassis, but engineers should still inspect the connector pins for corrosion or mechanical damage before seating the replacement module.

For sites that have expanded their I/O count over the years by adding remote I/O nodes connected via ER Bus, the power budget calculation must include the bus termination resistors and any signal isolators installed between the field wiring and the I/O terminals. Signal isolators from the CENTUM VP accessory range are commonly found in hazardous area installations and draw a small but non-trivial amount of power from the 24 VDC bus. Similarly, if the control cabinet houses an HMI panel running CENTUM VP’s HIS (Human Interface Station) software, the HMI’s power supply is typically separate, but the communication link between the HIS and the FCS must remain stable during the module swap to avoid operator display freezes.

Where the existing installation includes a redundant power supply configuration using a second PSCDM024DCBAN or an equivalent module in a hot-standby arrangement, the retrofit can be performed with zero process interruption by switching load to the standby unit before removing the primary. This approach is strongly recommended for continuous process industries such as refining, petrochemicals, and power generation, where even a brief control interruption carries significant safety and production risk. After installing the replacement module, engineers should confirm that the redundancy switchover logic is functioning correctly by performing a manual transfer test before returning the system to automatic mode.

Programming compatibility is another key consideration. The PSCDM024DCBAN does not store any control logic itself, but its correct operation is a prerequisite for the FCS processor — such as the CP345 or CP451 — to execute the function blocks defined in the CENTUM VP engineering environment. If the FCS fails to restart cleanly after the power module replacement, engineers should check the module address settings on the backplane, verify that the system configuration in the CENTUM VP builder matches the physical hardware layout, and review the alarm log for any hardware fault codes generated during the restart sequence.

Downtime Control During System Migration

Minimising downtime during a CENTUM VP power supply replacement begins with preparation. A complete pre-outage checklist should include: confirming the replacement PSCDM024DCBAN has passed pre-shipment functional testing, downloading and saving the current FCS program to a backup medium, capturing a screenshot or export of all active HMI faceplates, and notifying all stakeholders of the planned maintenance window. For plants operating under a permit-to-work system, the isolation certificate for the affected field control station should be obtained before any hardware is touched.

During the swap itself, the sequence matters. Power down the FCS in a controlled manner using the CENTUM VP shutdown procedure rather than cutting power abruptly, as an abrupt power loss can corrupt the module’s non-volatile memory in adjacent I/O cards. Once the PSCDM024DCBAN is seated and secured, restore power and allow the FCS to complete its self-diagnostic cycle before re-enabling field outputs. Monitor the Vnet/IP communication status from the engineering workstation to confirm that all nodes have re-established their links before handing control back to the operators.

For sites where a full cold-swap is unavoidable, the target downtime for a PSCDM024DCBAN replacement in a well-prepared environment is typically under 30 minutes. Having a pre-tested spare module on-site, a trained technician familiar with the CENTUM VP hardware, and a clear rollback plan in case the replacement module does not initialise correctly are the three factors that most reliably keep actual downtime within that target. All replacement modules supplied by NINERMAS are tested for output voltage stability and load regulation before shipment, reducing the risk of a second unplanned outage caused by a defective spare.

Retrofit Support FAQ

Q: Is the PSCDM024DCBAN a direct drop-in replacement for the original Yokogawa power supply in my CENTUM VP system?
A: In most CENTUM VP installations, yes. The PSCDM024DCBAN is designed to fit the standard power supply bay in CENTUM VP field control stations. However, you should confirm the chassis model, backplane connector version, and output current requirements against your as-built documentation before installation.

Q: What commissioning steps are required after installing the PSCDM024DCBAN?
A: After seating the module, power up the FCS and allow it to complete its self-diagnostic sequence. Verify output voltage at the backplane test points, confirm all I/O modules have initialised correctly in the CENTUM VP system status display, and perform a communication link check on the Vnet/IP network. If the system is in a redundant power configuration, test the automatic switchover function before returning to normal operation.

Q: Does the replacement module come with a warranty, and has it been tested before shipment?
A: Yes. Every PSCDM024DCBAN supplied by NINERMAS carries a 12-month warranty from the date of shipment and undergoes pre-shipment functional testing to verify output voltage, load regulation, and connector integrity. A test report is available on request.

Q: What is the typical lead time and stock availability for the PSCDM024DCBAN?
A: NINERMAS maintains stock of the PSCDM024DCBAN to support urgent retrofit and breakdown replacement requirements. Lead times vary by quantity and destination. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for a current availability and pricing quote.
