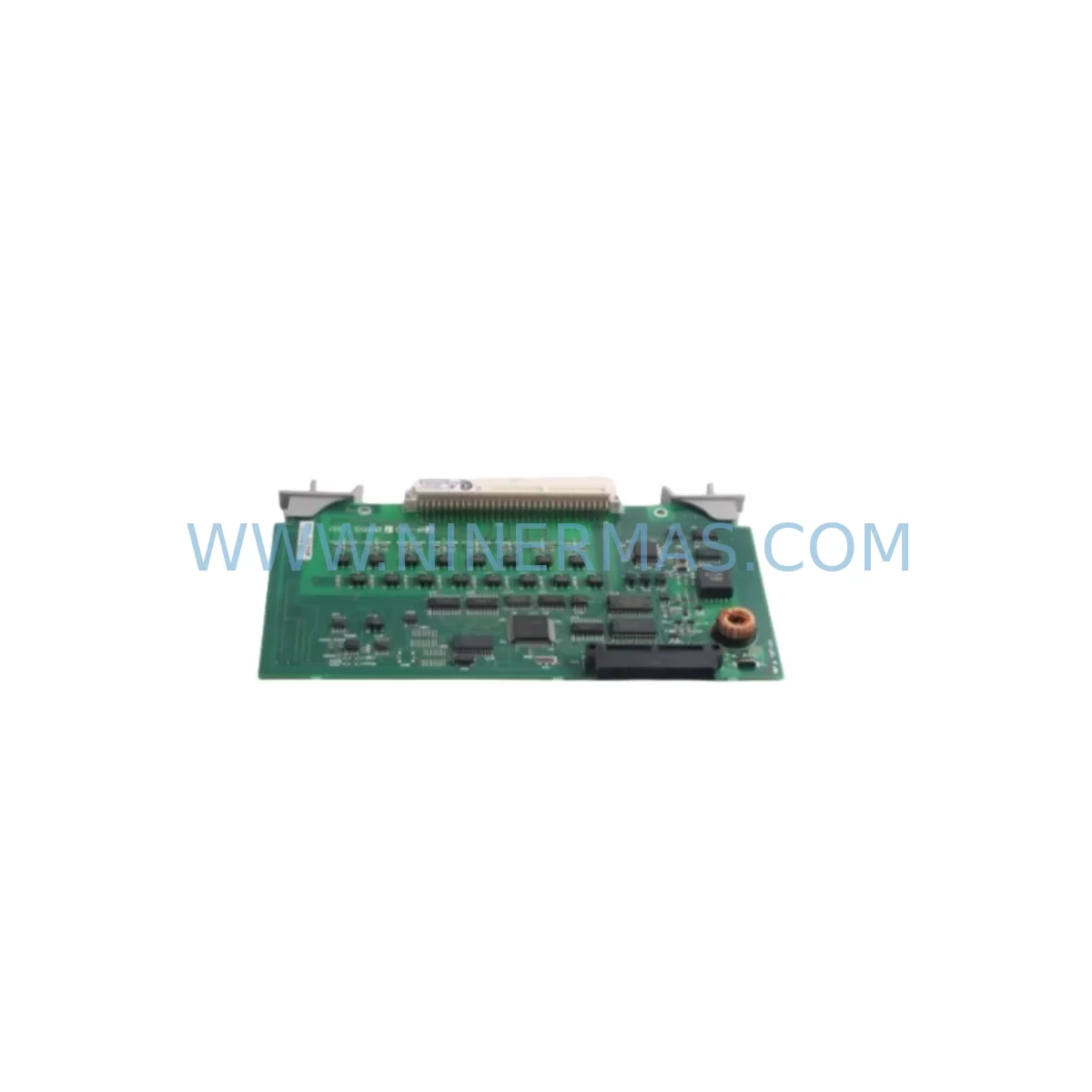

Yokogawa ARM55W-000 S1 Service-Ready Spare Part

Yokogawa ARM55W-000 S1 Service-Ready Spare Part for Industrial Maintenance

The Yokogawa ARM55W-000 S1 is a ruggedized DCS (Distributed Control System) control module engineered for continuous operation in harsh industrial environments. Designed for use within the Yokogawa CENTUM VP and CENTUM CS 3000 DCS platforms, this module plays a critical role in process automation across oil & gas, petrochemical, power generation, and chemical manufacturing facilities. When a control module fails or degrades, the consequences can include unplanned shutdowns, production loss, and safety incidents. Maintaining a verified, tested spare of the ARM55W-000 S1 in your site inventory is a fundamental element of any proactive maintenance strategy.

At NINERMAS, every ARM55W-000 S1 unit is subject to pre-shipment functional testing and electrical verification before dispatch. Each unit ships with a 12-month warranty and full documentation support, ensuring your maintenance team can proceed with confidence during emergency replacements or scheduled turnarounds.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The ARM55W-000 S1 does not operate in isolation. Within a CENTUM VP or CS 3000 control cabinet, it interfaces with a range of interconnected components whose condition directly affects system reliability. Maintenance engineers performing a module swap or annual inspection should simultaneously evaluate the following associated components to prevent cascading failures and reduce repeat downtime events.

The Yokogawa PW481 or PW482 power supply module provides regulated 24 VDC to the backplane bus. A degraded power supply can cause intermittent resets or corrupt module initialization — always verify output voltage stability before and after replacing the ARM55W-000 S1. The EB401 or EB501 ESB bus coupler manages communication between the field control station and the I/O subsystem; a faulty coupler can mimic control module failure symptoms and should be tested in parallel.

On the I/O side, AAI141 and AAI143 analog input modules are commonly co-located in the same FCS cabinet as the ARM55W-000 S1. These modules handle 4–20 mA process signals from field transmitters and should be inspected for channel drift, blown fuses, or terminal block corrosion during any control module replacement event. Similarly, ADV151 and ADV161 digital output modules driving solenoid valves and motor starters should be verified for contact integrity and correct output state after the control module is restored.

Communication integrity is equally important. The ACM12 Vnet/IP communication module (in CENTUM VP systems) or the SB401 ESB interface card (in CS 3000 systems) should be checked for link status and error counters following any module replacement. Loose fiber connections or degraded RJ-45 terminations on the Vnet/IP ring can cause the newly installed ARM55W-000 S1 to fail its network handshake during startup.

For facilities running legacy CS 3000 systems, the CP451 or CP461 field control processor is the upstream controller that the ARM55W-000 S1 reports to. If the CP unit is approaching end-of-life, a control module replacement alone may not resolve recurring faults — a coordinated spare strategy covering both the CP and associated I/O modules is recommended. Relay output modules such as the ADV551 and terminal assemblies including TB series marshalling panels should also be included in the annual inspection checklist for any cabinet housing the ARM55W-000 S1.

Finally, for sites with HMI integration, ensure that the Yokogawa FAST/TOOLS or CENTUM VP HIS (Human Interface Station) correctly reflects the restored module status after replacement. A mismatch between the physical module state and the HMI display can lead to operator confusion and delayed fault response during the next incident.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the ARM55W-000 S1 is the root cause of the fault by reviewing the FCS alarm log, checking the module LED status indicators, and running a diagnostic from the CENTUM VP Engineering Environment or CS 3000 System View. Document the current module configuration and tag assignments before removal.

Step 2 — Safe isolation: In non-redundant configurations, coordinate with the control room to place affected control loops in manual mode before removing the module. In redundant (dual-redundant FCS) configurations, verify that the standby module has assumed control before hot-swapping the faulty unit.

Step 3 — Physical replacement: Remove the faulty ARM55W-000 S1 from the backplane slot. Inspect the backplane connector for bent pins or contamination. Insert the replacement module and confirm the slot latch is fully engaged. The module will perform a self-test sequence upon power-up — allow 60–90 seconds for initialization.

Step 4 — Configuration restore: Download the saved module configuration from the Engineering Environment to the replacement unit. Verify all I/O channel assignments, scaling parameters, and alarm setpoints are correctly restored. Confirm Vnet/IP or ESB communication link status is green.

Step 5 — Return to automatic: Gradually return control loops to automatic mode, monitoring process variables for stability. Update the maintenance log with the replacement date, new module serial number, and any observations noted during the procedure.

Using a pre-tested, original ARM55W-000 S1 spare from NINERMAS eliminates the configuration uncertainty associated with refurbished or counterfeit modules, reducing total replacement time and minimizing the risk of repeat failures within the warranty period.

Spare Parts Support FAQ

Q1: Is the ARM55W-000 S1 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The ARM55W-000 S1 is primarily designed for CENTUM CS 3000 field control stations. Compatibility with CENTUM VP depends on the specific FCS hardware revision and firmware version. NINERMAS recommends providing your FCS model number and software revision when ordering to confirm cross-compatibility. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the ARM55W-000 S1?
Each unit undergoes power-on functional testing, communication interface verification, and visual inspection for physical damage or component degradation before dispatch. Test records are available upon request. All units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order number, failure description, and photographic evidence. Replacement or repair will be arranged within 5 business days of claim approval.

Q4: Can NINERMAS support long-term supply commitments for the ARM55W-000 S1?
Yes. NINERMAS offers long-term spare parts supply programs for facilities managing aging CENTUM CS 3000 or CENTUM VP installations. These programs include reserved stock allocation, fixed lead-time commitments, and annual procurement planning support. Contact our sales team to discuss volume requirements and multi-year supply agreements tailored to your maintenance schedule.
