YOKOGAWA AAI141-H03 S1 Service-Ready Spare Part

YOKOGAWA AAI141-H03 S1 Service-Ready Spare Part for Industrial Maintenance

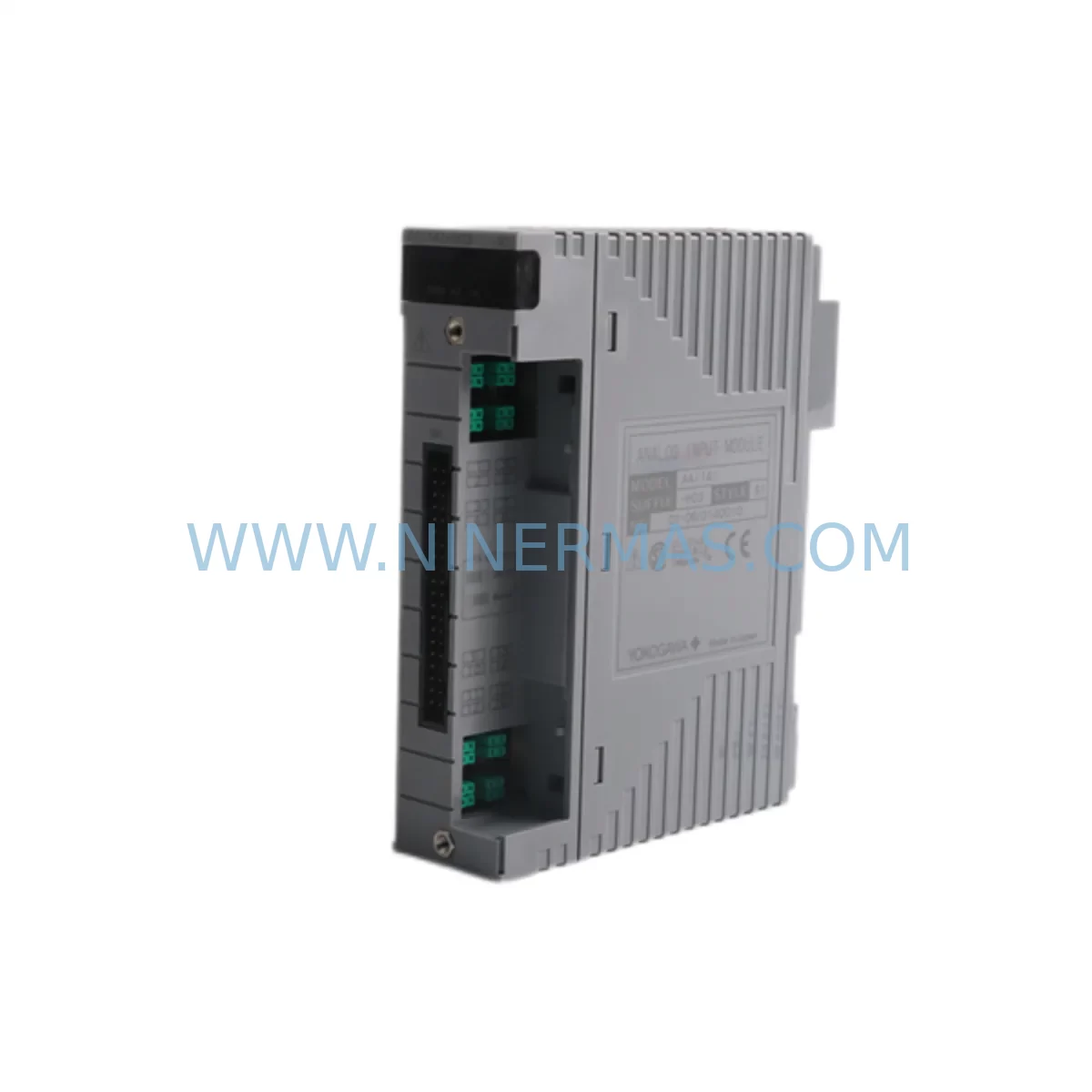

The YOKOGAWA AAI141-H03 S1 is a ruggedized analog input module engineered for demanding industrial environments, widely deployed in YOKOGAWA CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). As a critical field I/O component, this module handles multi-channel 4–20 mA analog signal acquisition from transmitters, sensors, and field instruments across process industries including oil & gas, petrochemical, power generation, and water treatment. When this module fails or degrades, the consequences are immediate: loss of process visibility, unplanned shutdown, and costly production downtime. Maintaining a verified, service-ready AAI141-H03 S1 in your spare parts inventory is a fundamental risk-control measure for any facility running YOKOGAWA DCS infrastructure.

NINERMAS supplies the AAI141-H03 S1 as an original, tested spare part with a 12-month warranty, backed by pre-shipment functional verification and long-term sourcing capability. Every unit is inspected before dispatch to ensure it meets YOKOGAWA’s original electrical and mechanical specifications, giving maintenance engineers and procurement teams confidence in both quality and delivery reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the AAI141-H03 S1 is rarely an isolated task. In a YOKOGAWA CENTUM VP or CS 3000 control system, the analog input module sits at the intersection of field instrumentation, I/O bus communication, and controller logic. A thorough maintenance plan requires evaluating the surrounding components in the same I/O nest and control loop before and after replacement.

Begin with the I/O nest and backplane: inspect the nest connector pins for corrosion or mechanical damage, as a degraded backplane can cause intermittent faults even after a new module is installed. Check the power supply module (such as the YOKOGAWA PW481 or PW482 series) feeding the I/O nest — voltage ripple or under-voltage conditions are a common root cause of analog module failures and will damage a replacement unit if not corrected first.

Examine the field terminal assembly (FTA) or marshalling cabinet wiring connected to the AAI141-H03 S1. Loose terminals, corroded field wiring, or incorrect shielding on 4–20 mA signal cables will introduce noise and measurement error. If the facility uses signal isolators or signal conditioners between field transmitters and the DCS input, verify these are functioning within specification — a failed isolator can mimic an analog input module fault.

Review the ESB bus coupler or V-net communication module in the same node. Communication errors at the bus level can cause the controller to report false analog input failures. Similarly, inspect the node interface unit (NIU) or field control station (FCS) processor module for firmware compatibility with the replacement AAI141-H03 S1, particularly if the DCS software version has been updated since the original module was installed.

For facilities running HART-enabled transmitters on the analog input channels, confirm that the HART communication function of the replacement module is enabled and configured correctly in the CENTUM VP engineering environment. Check associated HART multiplexers or asset management software connections if HART pass-through is used for predictive maintenance data collection.

During annual shutdowns or planned maintenance windows, it is best practice to also inspect relay output modules (such as the AAR181 series) and analog output modules (such as the AAO141 series) in the same I/O nest, as these components share the same power rail and bus infrastructure. Replacing the AAI141-H03 S1 while leaving aging output modules in service increases the risk of a secondary failure shortly after restart. Procurement engineers should consider stocking the AAI141-H03 S1 alongside compatible digital input modules (ADV141 series) and digital output modules (ADV551 series) to cover the most common CENTUM VP I/O failure modes in a single spare parts order.

Finally, if the control system includes a YOKOGAWA STARDOM FCN/FCJ remote I/O node or a ProSafe-RS safety controller in the same facility, coordinate spare parts procurement across both platforms to avoid single-source dependency and ensure site-wide maintenance readiness.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement AAI141-H03 S1 part number, suffix (-H03 S1), and firmware label match the installed unit. Cross-reference the CENTUM VP hardware configuration in the engineering workstation (EWS) to verify slot assignment and channel configuration before removing the faulty module.

Step 2 — Safe isolation: Place the affected I/O channels in manual mode at the operator station (HIS) to prevent process upsets during the swap. If the module supports hot-swap in your DCS configuration, confirm this with the system documentation before proceeding without a full shutdown.

Step 3 — Physical replacement: Remove the faulty module from the I/O nest, inspect the backplane connector, and seat the replacement AAI141-H03 S1 firmly. Reconnect the field terminal assembly and verify cable shielding and grounding integrity.

Step 4 — System recognition and configuration download: After insertion, the CENTUM VP system should automatically recognize the new module. If not, use the EWS to perform a hardware download to the affected FCS node. Verify that all 16 analog input channels report correct process values within expected engineering unit ranges.

Step 5 — Loop check and return to service: Perform a live loop check on each channel using a calibrated 4–20 mA signal source. Confirm alarm setpoints, range limits, and HART device tags are correctly restored. Return channels to automatic control mode and document the replacement in the maintenance management system (CMMS).

This workflow minimizes downtime, maintains system compatibility, and ensures the replacement module is fully validated before returning the process to normal operation — reducing the risk of a repeat failure or a secondary incident caused by an incomplete commissioning check.

Spare Parts Support FAQ

Q1: Is the AAI141-H03 S1 supplied by NINERMAS an original YOKOGAWA part?
Yes. NINERMAS supplies original YOKOGAWA AAI141-H03 S1 modules sourced through established industrial channels. Each unit undergoes pre-shipment functional testing and is covered by a 12-month warranty from the date of delivery. We do not supply counterfeit, refurbished-without-disclosure, or non-original components.

Q2: How do I confirm compatibility with my installed CENTUM VP or CS 3000 system version?
Provide your DCS system version (e.g., CENTUM VP R5.04), the FCS model, and the existing module’s label information (including suffix codes) when placing your inquiry. NINERMAS technical support will cross-reference compatibility and confirm whether the AAI141-H03 S1 is a direct drop-in replacement or requires a firmware/configuration update at the EWS before installation.

Q3: What is the lead time and can NINERMAS support long-term or repeat supply?
Standard lead time for the AAI141-H03 S1 is typically 3–7 business days for in-stock units, with expedited options available for emergency shutdowns. NINERMAS supports long-term supply agreements for facilities that require scheduled annual restocking or multi-site procurement programs. Contact sale@ninermas.com to discuss volume pricing and supply continuity arrangements.

Q4: What documentation is provided with the shipment?
Each AAI141-H03 S1 shipment includes a packing list, test record, and warranty certificate. Commercial invoice and certificate of origin (Japan) are available upon request for customs clearance. If your facility requires additional QC documentation or third-party inspection, please advise at the time of order placement.
