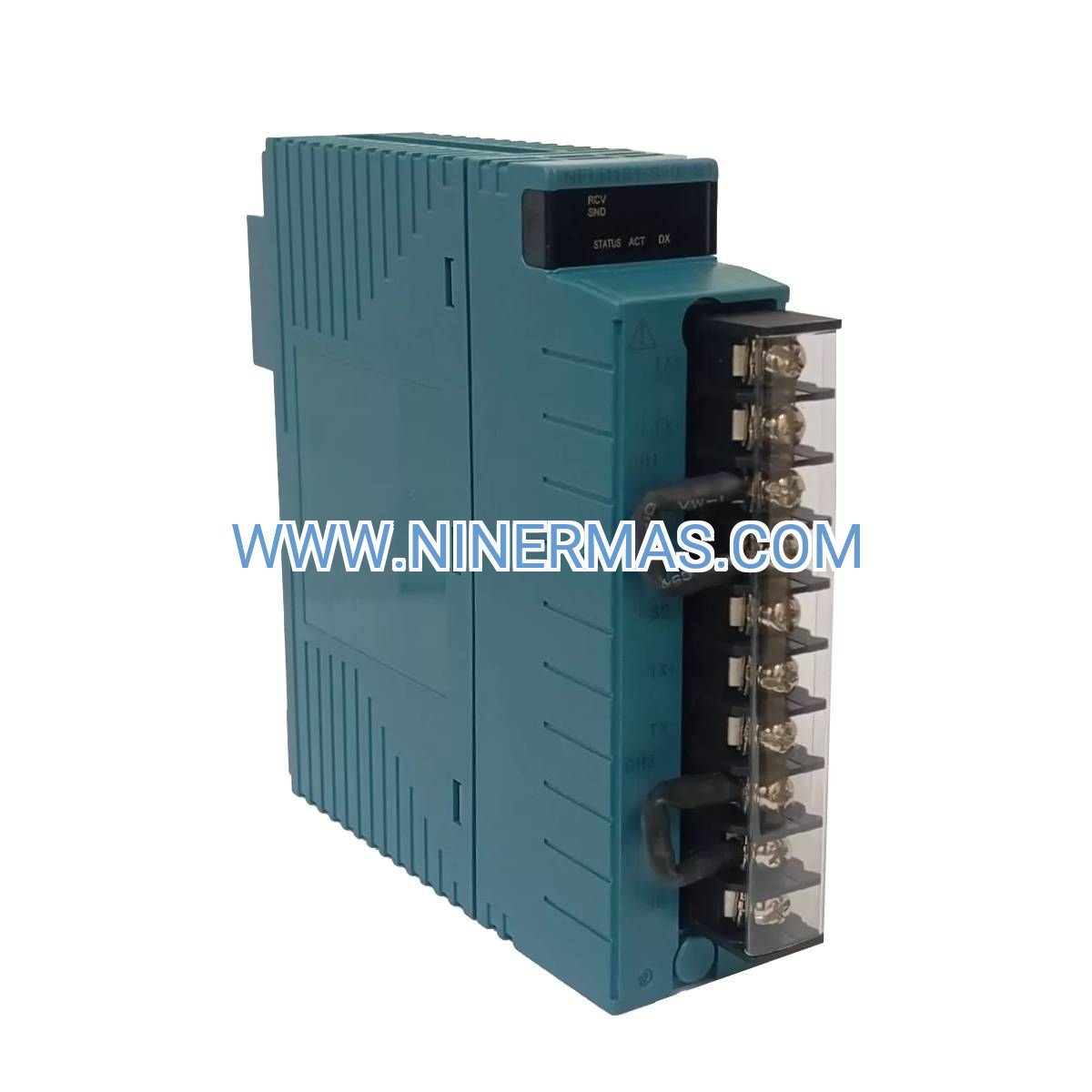

NFDV551-P60 Digital Output Module (Industrial-Grade 32-Point Transistor Switching)

The NFDV551-P60 is a high-density digital output module engineered for mission-critical process control applications within Yokogawa CENTUM VP and CS 3000 distributed control systems. This 32-channel transistor output card delivers precise on/off switching for solenoid valves, motor contactors, alarm annunciators, and safety interlocks across oil & gas, chemical processing, power generation, and water treatment facilities.

Designed for engineers managing complex automation architectures, this module solves the challenge of cabinet space optimization while maintaining individual channel diagnostics and fail-safe operation. Its hot-swappable design enables maintenance without process interruption, reducing unplanned downtime by up to 60% compared to legacy fixed-installation modules.

Key differentiators include channel-to-channel isolation for noise immunity, configurable sink/source outputs for universal actuator compatibility, and sub-10ms response times that meet the demands of fast-acting safety systems. The module integrates seamlessly via Vnet/IP fieldbus, auto-configuring upon installation to accelerate commissioning timelines.

Core Features & Benefits

✓ High-Density Architecture
32 discrete outputs in a single module footprint reduce panel space requirements by 40% versus 16-channel alternatives, lowering installation costs and simplifying wiring infrastructure.

✓ Robust Electrical Protection
Built-in surge suppression and reverse-polarity safeguards extend operational life in electrically harsh environments, with channel-to-system isolation preventing ground loop interference.

✓ Hot-Swap Serviceability
Field-replaceable design with removable terminal blocks allows online module replacement during scheduled maintenance windows, eliminating costly process shutdowns.

✓ Diagnostic Intelligence
Per-channel fault detection with open-circuit and short-circuit alarms enables predictive maintenance strategies, reducing mean time to repair (MTTR) by 35%.

✓ Universal Output Configuration
Software-selectable sink or source operation accommodates diverse actuator types without hardware modifications, simplifying spare parts inventory management.

✓ Safety-Rated Performance
Deterministic response times under 10ms and fail-safe output states support SIL 2 safety instrumented systems (SIS) when configured per IEC 61511 guidelines.

Application Scenarios

→ Petrochemical Valve Manifolds
Controls high-density solenoid valve banks in distillation column reflux systems, where space constraints demand compact I/O solutions. Addresses the challenge of coordinating 20+ valve sequences within millisecond timing windows.

→ Water Treatment Pump Stations
Direct starter control for submersible pumps and chemical dosing systems, eliminating intermediate relay panels. Delivers cost savings of $1,200+ per control loop through simplified wiring.

→ Power Plant Alarm Annunciation
Drives visual and audible alarm devices across turbine control panels, with individual channel diagnostics ensuring 99.9% alarm system availability during critical events.

→ Pharmaceutical Batch Sequencing
Executes precise ingredient addition sequences in reactor vessels, where output state verification prevents costly batch rejections due to valve position errors.

→ Emergency Shutdown Systems
Implements final element control in ESD logic, with proven fail-safe operation and diagnostic coverage exceeding 95% for safety integrity level calculations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the NFDV551-P60 when your application requires more than 16 discrete outputs within a single control loop, actuator loads remain below 0.5A per point, and system architecture supports Vnet/IP networking. For higher current loads (up to 2A), consider the ADV551-P63 variant. Applications requiring relay isolation should specify the relay-output NFDV561 series instead.

Extended Functions

IoT Integration: Module status data streams to Yokogawa's Sushi Sensor cloud platform via OpreX gateways, enabling remote diagnostics and predictive analytics for enterprise asset management systems.

Advanced Diagnostics: Built-in self-test routines execute during system startup, verifying output driver integrity and isolation resistance. Diagnostic data logs to the DCS historian for compliance documentation.

Customization Options: Factory configuration services available for pre-programmed output states, custom terminal labeling, and extended temperature range variants (-40°C to +70°C) for extreme climate installations.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 4-6 weeks for factory programming and testing.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available through Yokogawa VigilantPlant service agreements.

Technical Support: Access to certified Yokogawa application engineers for integration assistance, configuration file development, and troubleshooting via phone, email, and remote desktop support.

Documentation Package: Includes installation manual, wiring diagrams, configuration software, and IEC 61508 functional safety data for SIL calculations. CAD drawings and 3D STEP files available for panel design.

Frequently Asked Questions

Q: What communication protocol does the NFDV551-P60 use for DCS integration?
A: The module communicates via Yokogawa's proprietary Vnet/IP fieldbus, which provides deterministic scan times of 10-100ms depending on system configuration. It auto-discovers upon connection to the I/O bus and requires no manual addressing.

Q: Can this module handle inductive loads like solenoid valves without external suppression?
A: Yes, each output channel includes integrated flyback diode protection for inductive load switching. For loads exceeding 50mH inductance, external RC snubbers are recommended to extend contact life.

Q: What energy savings can be achieved compared to relay-based output modules?
A: Transistor outputs consume approximately 0.2W per active channel versus 2-3W for electromechanical relays. In a fully populated 32-channel module operating continuously, this translates to 60-90W power reduction and 520-780 kWh annual energy savings.

Q: Are there specific installation requirements for mounting orientation or ventilation clearance?
A: The module requires minimum 50mm top/bottom clearance for convection cooling. Horizontal mounting is standard; vertical orientation is acceptable if ambient temperature remains below 50°C. Forced-air cooling is not required for rated specifications.

Q: Does the module support remote monitoring of output status and diagnostics?
A: Full output state readback and diagnostic flags (open-circuit, short-circuit, over-temperature) are accessible via the DCS HMI and can be mapped to SCADA systems through OPC UA or Modbus TCP gateways for enterprise-level monitoring.

Q: What is the maximum cable length between the module and field devices?
A: For 24V DC loads, maximum recommended cable run is 100 meters using 18 AWG (1.0mm²) wire. Longer distances require voltage drop calculations and may necessitate local power injection to maintain minimum 18V at the actuator.

Take the Next Step

Ready to optimize your DCS I/O architecture? Contact our automation specialists for application-specific configuration guidance, volume pricing, and integration support. Request a detailed datasheet or schedule a technical consultation to discuss your project requirements.
