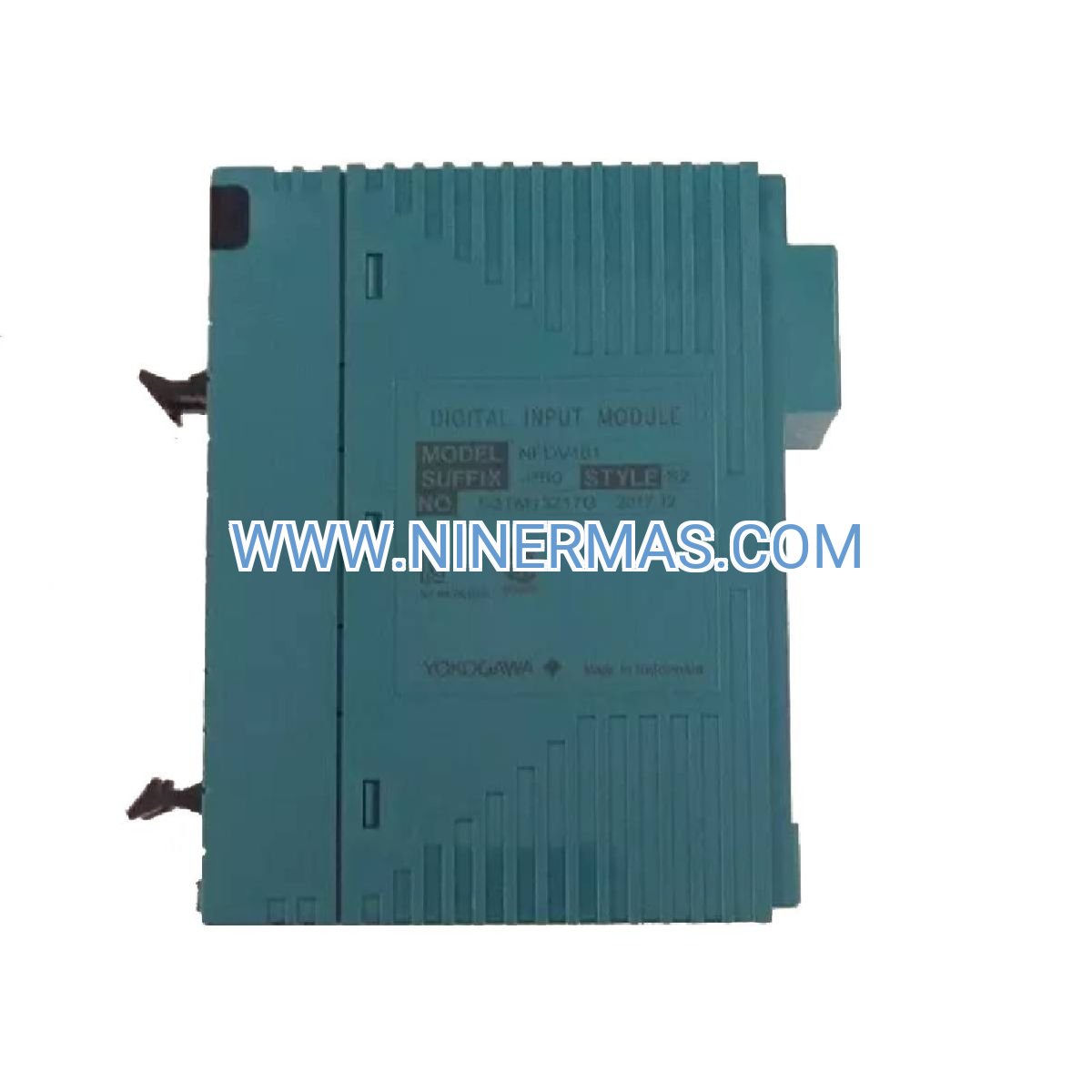

NFDV161-P00 S2 High-Density Digital Input Module (Industrial-Grade 64-Channel Solution)

The NFDV161-P00 S2 represents a professional-grade digital input interface designed for mission-critical industrial automation environments. Engineered with 64 isolated input channels, this module serves as the essential bridge between field instrumentation and distributed control systems, delivering reliable signal acquisition with comprehensive electrical isolation. Built to Yokogawa's exacting standards, it integrates seamlessly into CENTUM VP, ProSafe-RS, and STARDOM control platforms.

Industrial facilities face mounting pressure to maximize I/O density while maintaining signal integrity across electrically noisy environments. This module addresses both challenges through high-channel-count architecture and robust isolation design, enabling system integrators to reduce cabinet footprint by up to 40% compared to traditional 16-channel solutions while eliminating ground loop interference that compromises data accuracy.

Target users include process automation engineers, DCS integrators, and plant maintenance teams managing complex control networks in chemical processing, oil & gas production, power generation, and pharmaceutical manufacturing. The module's hot-swappable design and comprehensive LED diagnostics minimize downtime during maintenance cycles, while its proven compatibility across Yokogawa's product ecosystem ensures long-term investment protection.

Core Capabilities & Technical Advantages

→ 64 Galvanically Isolated Input Channels
Each input features channel-to-channel and channel-to-bus isolation, preventing electrical faults from propagating across the system. This architecture protects sensitive control logic from field-side voltage transients and ground potential differences common in large-scale industrial installations.

→ 24VDC Nominal Input Specification
Optimized for standard industrial sensor interfaces including proximity switches, photoelectric sensors, and safety relay contacts. Wide voltage tolerance accommodates real-world signal variations without false triggering or missed events.

→ Sub-Millisecond Response Time
Fast signal acquisition enables real-time monitoring of high-speed processes and emergency shutdown sequences. Critical for applications requiring immediate response to limit switch activations or safety interlock conditions.

→ Extended Temperature Range (-20°C to +60°C)
Qualified for operation in harsh industrial environments including outdoor enclosures, non-climate-controlled facilities, and high-ambient-temperature process areas. Reduces need for expensive environmental control systems.

✓ Native Yokogawa DCS Integration
Pre-configured communication protocols and I/O mapping tools accelerate commissioning timelines by 30-50% compared to third-party modules. Eliminates custom driver development and reduces engineering validation requirements.

✓ Hot-Swap Capability with Online Diagnostics
Replace failed modules without system shutdown, maintaining production continuity during maintenance activities. Multi-color LED indicators provide instant visual confirmation of channel status, power supply health, and communication integrity.

Industrial Application Scenarios

Chemical Process Control & Batch Manufacturing
Monitor valve position feedback, level switch states, and reactor safety interlocks across multi-stage production sequences. The module's high channel density consolidates hundreds of discrete signals into compact I/O racks, reducing wiring labor costs by 35-45% while improving cabinet organization and troubleshooting efficiency.

Oil & Gas Production Facilities
Acquire signals from wellhead sensors, pipeline monitoring systems, and emergency shutdown devices in hazardous area classifications. Galvanic isolation prevents ground loops in distributed installations spanning multiple buildings or outdoor equipment pads, ensuring reliable operation in electrically challenging environments.

Power Generation & Substation Automation
Interface with circuit breaker auxiliary contacts, transformer protection relays, and turbine monitoring systems. Fast response time supports protective relay coordination and sequence-of-events recording for post-incident analysis and regulatory compliance documentation.

Water & Wastewater Treatment Plants
Collect status information from pump motor starters, filter backwash cycles, and chemical feed system interlocks. The module's robust construction withstands high-humidity environments and temperature fluctuations typical of outdoor treatment facilities.

Pharmaceutical Manufacturing & Clean Room Systems
Monitor critical process parameters including filter integrity, sterilization cycle completion, and environmental control system status. Supports 21 CFR Part 11 compliance through integration with validated Yokogawa DCS platforms offering comprehensive audit trail capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires maximum I/O density in space-constrained cabinets, when field devices operate on standard 24VDC logic levels, or when electrical isolation is mandatory due to ground potential differences or hazardous area classifications. For applications with mixed voltage requirements (120VAC/240VAC), consider Yokogawa's universal input modules. For safety-rated applications (SIL 2/3), specify ProSafe-RS compatible variants with certified redundancy.

Extended Functions & System Integration

SCADA & HMI Connectivity: Seamless data exchange with Yokogawa's FAST/TOOLS SCADA platform enables centralized monitoring across geographically distributed facilities. OPC UA server functionality supports integration with third-party MES and ERP systems for production data aggregation and business intelligence analytics.

Predictive Maintenance Capabilities: Built-in diagnostics monitor module health parameters including power supply voltage, internal temperature, and communication integrity. Trend analysis of diagnostic data enables condition-based maintenance scheduling, reducing unplanned downtime by identifying degradation patterns before catastrophic failure.

Cybersecurity Features: When deployed within Yokogawa's secure DCS architecture, the module benefits from network segmentation, encrypted communications, and role-based access controls compliant with IEC 62443 industrial cybersecurity standards. Firmware authentication prevents unauthorized code modifications.

Customization Options: Factory configuration services available for pre-wired terminal blocks, custom cable assemblies, and application-specific I/O mapping. Reduces field installation time and minimizes wiring errors during commissioning.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier service. All modules undergo factory testing and include calibration certificates traceable to international standards.

Custom Configuration: 10-15 business days for pre-configured modules with customer-specific terminal labeling, cable assemblies, or firmware versions. Engineering support included for I/O list validation and configuration file generation.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 5-year coverage with advance replacement service.

Technical Support: Lifetime access to Yokogawa's global technical support network, including 24/7 emergency hotline for production-critical issues. Regional application engineers available for on-site commissioning assistance and troubleshooting support.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample ladder logic/function block examples. CAD drawings and 3D STEP models available for cabinet design integration.

Frequently Asked Questions

Q: How does this module interface with existing Yokogawa CENTUM VP systems?
A: The NFDV161-P00 S2 connects directly to Yokogawa's field control units (FCUs) via the proprietary V-net communication bus. Configuration is performed through the CENTUM VP engineering workstation using standard I/O definition tools. No custom drivers or middleware required—the module appears as a native I/O resource within the system hierarchy.

Q: What is the maximum cable distance between field devices and the input module?
A: For 24VDC signals, recommended maximum cable length is 300 meters using shielded twisted-pair cable (0.75 mm² minimum conductor size). Longer distances may require signal repeaters or consideration of 4-20mA analog input modules for better noise immunity. Always follow local electrical codes for hazardous area wiring practices.

Q: Can this module reduce energy consumption compared to older I/O systems?
A: Yes. The NFDV161-P00 S2 consumes less than 8W compared to 12-15W typical of legacy 32-channel modules, delivering approximately 35% power reduction per channel. In large systems with 500+ I/O points, this translates to measurable reductions in UPS sizing requirements and cooling loads.

Q: What installation requirements should I plan for during cabinet design?
A: Allocate 25mm width per module on standard 35mm DIN rail. Maintain 50mm clearance above and below for airflow and cable routing. Terminal blocks accept 14-22 AWG wire (0.5-2.5 mm²). For high-vibration environments, use DIN rail end stops and supplemental mounting brackets. Ambient temperature should not exceed 60°C—consider forced ventilation for enclosed cabinets in hot climates.

Q: Does the module support remote monitoring and diagnostics?
A: When integrated with Yokogawa's Exaquantum plant information management system or FAST/TOOLS SCADA, all diagnostic parameters are accessible remotely via secure web interfaces or mobile applications. Real-time alerts can be configured for power supply anomalies, communication failures, or individual channel faults, enabling proactive maintenance from central control rooms.

Q: Is this module suitable for safety instrumented systems (SIS)?
A: The standard NFDV161-P00 S2 is designed for basic process control applications. For safety-rated applications requiring SIL 2 or SIL 3 certification, specify Yokogawa's ProSafe-RS compatible modules with certified redundancy and diagnostic coverage. Our application engineers can assist with safety requirement analysis and appropriate module selection.

Ready to Optimize Your I/O Architecture?

Contact our industrial automation specialists for application-specific guidance, system integration support, or volume pricing. We provide complimentary I/O density analysis and cabinet layout optimization to maximize your control system investment.

Request a technical consultation: Share your I/O requirements, and receive a customized solution proposal within 24 hours including module selection, wiring diagrams, and budget estimates.
