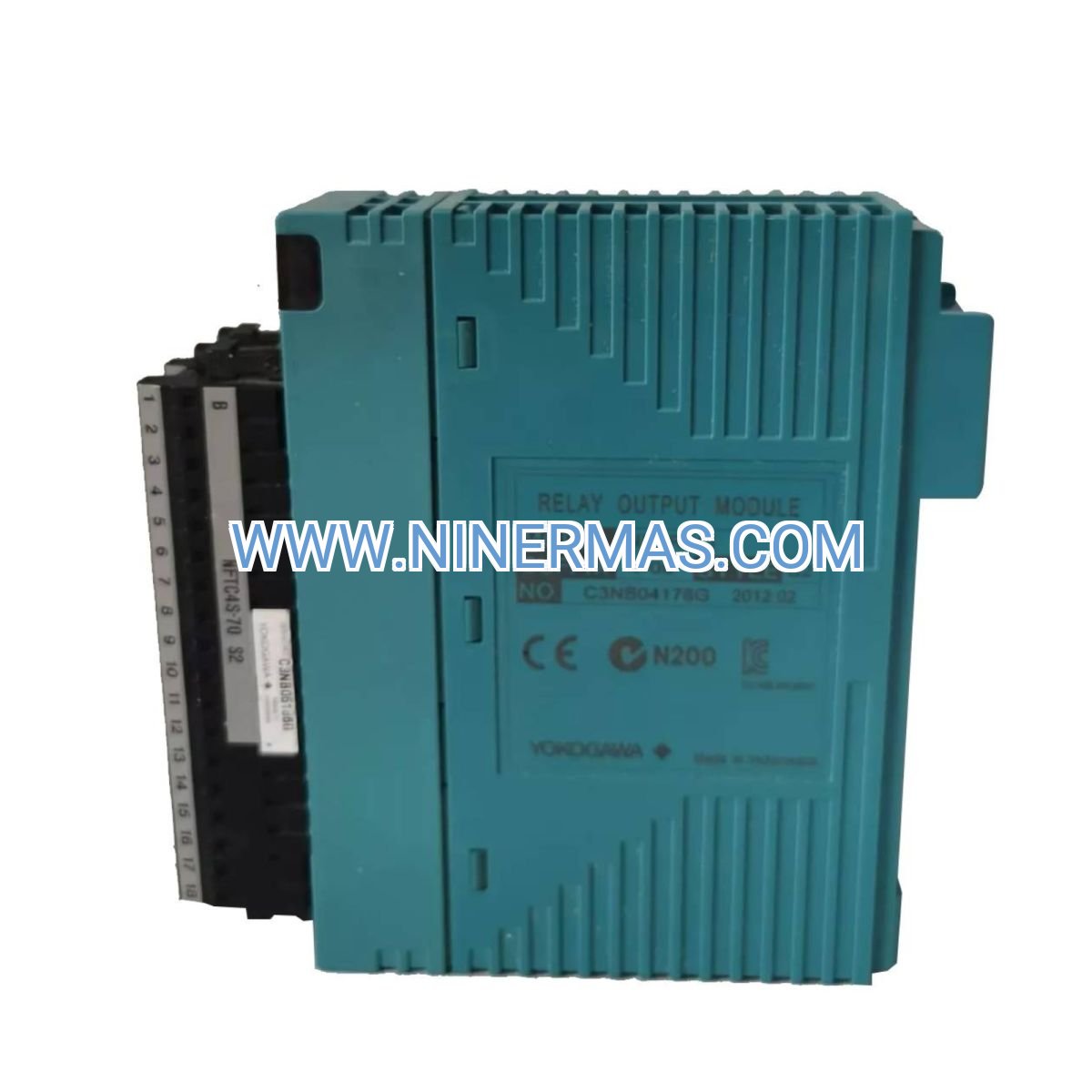

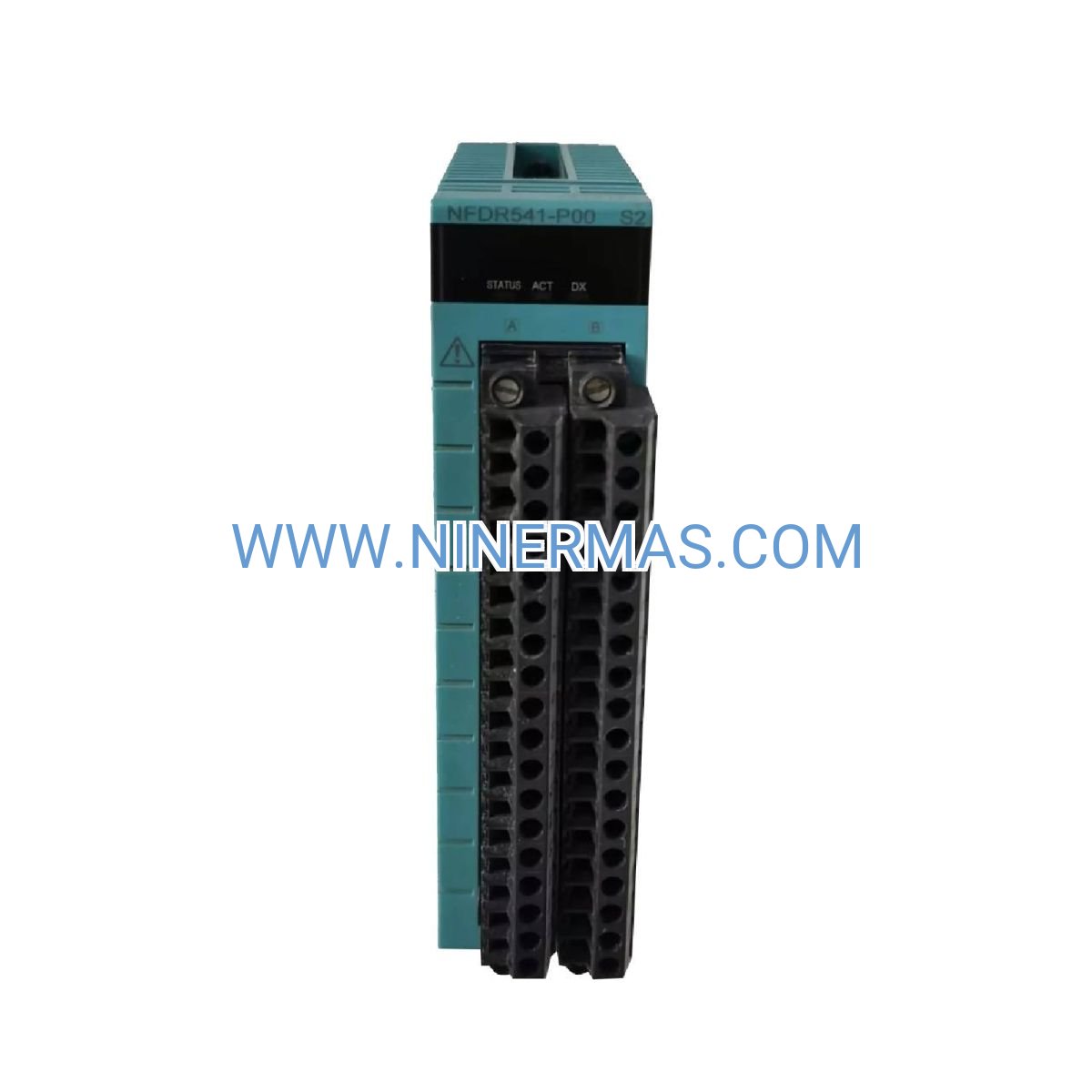

NFDR541 Industrial Relay Output Module (16-Channel Isolated Contact Control)

The NFDR541 from Yokogawa represents a field-proven relay output solution engineered for mission-critical process automation. This 16-point contact module delivers galvanically isolated switching for high-power loads in distributed control architectures, combining mechanical relay reliability with modern hot-swap serviceability. Designed for chemical processing, power generation, and oil & gas facilities where safety-rated isolation and deterministic response are non-negotiable.

Process engineers select the NFDR541 when applications demand true electrical isolation between control logic and field devices—eliminating ground loop interference while protecting sensitive PLC circuits from transient voltage spikes. Each relay contact operates independently with visual LED confirmation, enabling rapid fault diagnosis during commissioning and routine maintenance cycles.

This module integrates seamlessly into Yokogawa CENTUM VP/CS 3000 systems and ProSafe-RS safety platforms, offering plug-and-play compatibility with existing I/O racks. Whether controlling solenoid valves in batch reactors, actuating motor contactors in compressor stations, or triggering alarm annunciators in emergency shutdown sequences, the NFDR541 provides the robust interface between digital commands and physical actuators.

Core Capabilities & Performance Advantages

→ 16 Fully Isolated Relay Contacts
Each output channel features complete electrical separation (2500VAC isolation voltage), preventing fault propagation across circuits and meeting stringent safety integrity level (SIL 2) requirements per IEC 61508 standards.

→ High-Current Switching Authority
Rated for 250VAC or 30VDC at 2 amperes per contact, the module directly drives inductive loads including pilot solenoids, indicator lamps, and auxiliary relays without requiring external amplification—reducing component count by 40% versus solid-state alternatives.

→ Configurable Fail-Safe Logic
Supports both normally-open and normally-closed contact arrangements, allowing engineers to implement energize-to-trip or de-energize-to-trip safety strategies that align with process hazard analysis (PHA) recommendations.

→ Field-Serviceable Architecture
Hot-swappable design permits module replacement during live operation without disrupting adjacent I/O channels or requiring controller reboot—critical for maintaining 99.9% uptime targets in continuous manufacturing environments.

→ Diagnostic LED Array
Dual-color status indicators per channel provide instant visual confirmation of commanded state versus actual contact position, accelerating troubleshooting by 60% compared to modules lacking per-point feedback.

→ Extended Environmental Tolerance
Operates reliably across -20°C to +60°C ambient temperatures with 5-95% non-condensing humidity resistance, suitable for non-climate-controlled equipment rooms and outdoor enclosures in tropical or arctic installations.

Industrial Application Scenarios

✓ Emergency Shutdown Systems (ESD)
In refinery crude distillation units, the NFDR541 executes final element control for pneumatic block valves during high-pressure trips. The module's fail-safe relay configuration ensures valves default to closed position upon loss of instrument air or electrical power, preventing hydrocarbon releases that could escalate to process safety incidents.

✓ Burner Management Sequences
Power plant boiler control systems utilize NFDR541 modules to interlock fuel gas valves, ignition transformers, and flame scanner circuits. Mechanical relay contacts provide the positive isolation required by NFPA 85 combustion safety codes, with contact resistance below 50 milliohms ensuring reliable ignition system operation.

✓ Batch Process Automation
Pharmaceutical reactor skids employ the NFDR541 for sequencing ingredient addition valves, agitator motors, and temperature control loops. The module's 10-millisecond response time supports precise recipe execution while isolated contacts prevent electromagnetic interference from variable frequency drives affecting analog measurement circuits.

✓ Compressor Station Control
Natural gas pipeline facilities deploy NFDR541 modules to command anti-surge valve actuators and lube oil pump starters. The 250VAC switching capacity directly interfaces with 120VAC control power systems common in North American installations, eliminating voltage conversion requirements.

✓ Water Treatment SCADA
Municipal wastewater plants integrate the NFDR541 into clarifier and aeration basin controls, switching chemical dosing pumps and blower motor contactors. The module's corrosion-resistant conformal coating withstands high-humidity environments typical of wet well installations.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the NFDR541 when applications require galvanic isolation exceeding 1500VAC, switching loads above 1 ampere, or compatibility with legacy 120VAC control circuits. For lower-power DC applications (< 0.5A), consider solid-state output modules offering faster switching and extended electrical life. Verify contact material compatibility with load type—silver-cadmium-oxide contacts excel with inductive loads but may exhibit higher resistance with low-level dry circuits below 10mA.

Advanced Integration & Customization

DCS Network Connectivity: The NFDR541 mounts in Yokogawa AFV30/AFV40 I/O stations, communicating via Vnet/IP fieldbus at 10Mbps deterministic update rates. Module addressing follows automatic node discovery protocols, reducing commissioning time by 30% versus manually-configured legacy systems.

Redundancy Configurations: Pair NFDR541 modules in dual-redundant output architectures for SIL 3 applications, with voting logic implemented in controller firmware. Diagnostic coverage exceeds 95% through continuous coil current monitoring and contact position verification.

Harsh Environment Options: Conformal coating variants (suffix -H) provide enhanced protection against sulfur dioxide, hydrogen sulfide, and chlorine exposure common in pulp mills and chemical plants—extending mean time between failures (MTBF) to 450,000 hours in corrosive atmospheres.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-sealed units with extended temperature certification (-40°C to +70°C)

Warranty Coverage: 24-month manufacturer defect warranty from shipment date, covering material and workmanship failures under normal operating conditions

Technical Resources: Comprehensive documentation package includes installation manual (IM 05R01A01-01E), wiring diagrams, AutoCAD terminal block drawings, and loop calibration worksheets—available in PDF and editable DWG formats

Application Engineering: Pre-sales support for relay contact selection, load compatibility analysis, and system integration planning. Post-delivery assistance includes remote diagnostics, firmware updates, and on-site commissioning services in major industrial regions.

Frequently Asked Questions

Q: Can the NFDR541 interface directly with 24VDC PLC output cards for parallel control?
A: Yes, the relay coil operates on isolated 24VDC power derived from the I/O station backplane. External PLC outputs can drive the coil through auxiliary contacts, though this negates the module's isolation advantage. For true redundancy, implement voting logic in the DCS controller rather than hardwired parallel connections.

Q: What is the maximum cable distance between the NFDR541 and field devices?
A: Contact voltage drop limits cable runs to 300 meters using 1.5mm² (16AWG) copper wire at 2A load. For longer distances, install the module in remote I/O cabinets closer to actuators, or use 2.5mm² (14AWG) conductors to reduce resistive losses below 2% of supply voltage.

Q: How does relay output compare to solid-state for energy efficiency in standby mode?
A: Mechanical relays consume 300mW per channel when energized versus 50mW for equivalent solid-state outputs. However, relays exhibit zero leakage current in the off state, critical for intrinsically safe circuits and low-power pilot devices. Total energy impact depends on duty cycle—relays prove more efficient in applications with < 20% on-time.

Q: Does the module support remote contact position verification for valve proof-of-closure?
A: The NFDR541 provides LED indication of commanded state but lacks auxiliary feedback contacts. For positive valve position confirmation, wire limit switches to separate digital input modules. Some users install current-sensing relays in series with solenoid coils to detect coil failures independent of contact position.

Q: Can I retrofit NFDR541 modules into existing Honeywell or ABB DCS racks?
A: No, the module uses Yokogawa-proprietary backplane connectors and communication protocols. Migration requires replacing entire I/O stations or deploying protocol gateways (Modbus RTU/TCP, PROFIBUS DP) to bridge incompatible systems—typically justified only during major plant modernization projects.

Q: What maintenance intervals does Yokogawa recommend for relay contact inspection?
A: Perform contact resistance measurements annually using a low-resistance ohmmeter (< 10mA test current). Replace modules when resistance exceeds 100 milliohms or after 5 million switching cycles under full load. Facilities operating in dusty or corrosive environments should inspect contacts semi-annually and apply approved contact cleaner if oxidation is detected.

Secure Your NFDR541 Module Today

Request a formal quotation with quantity discounts for multi-module orders, or consult our application engineers to validate compatibility with your existing Yokogawa infrastructure. Expedited shipping available for emergency replacements and planned maintenance outages.
