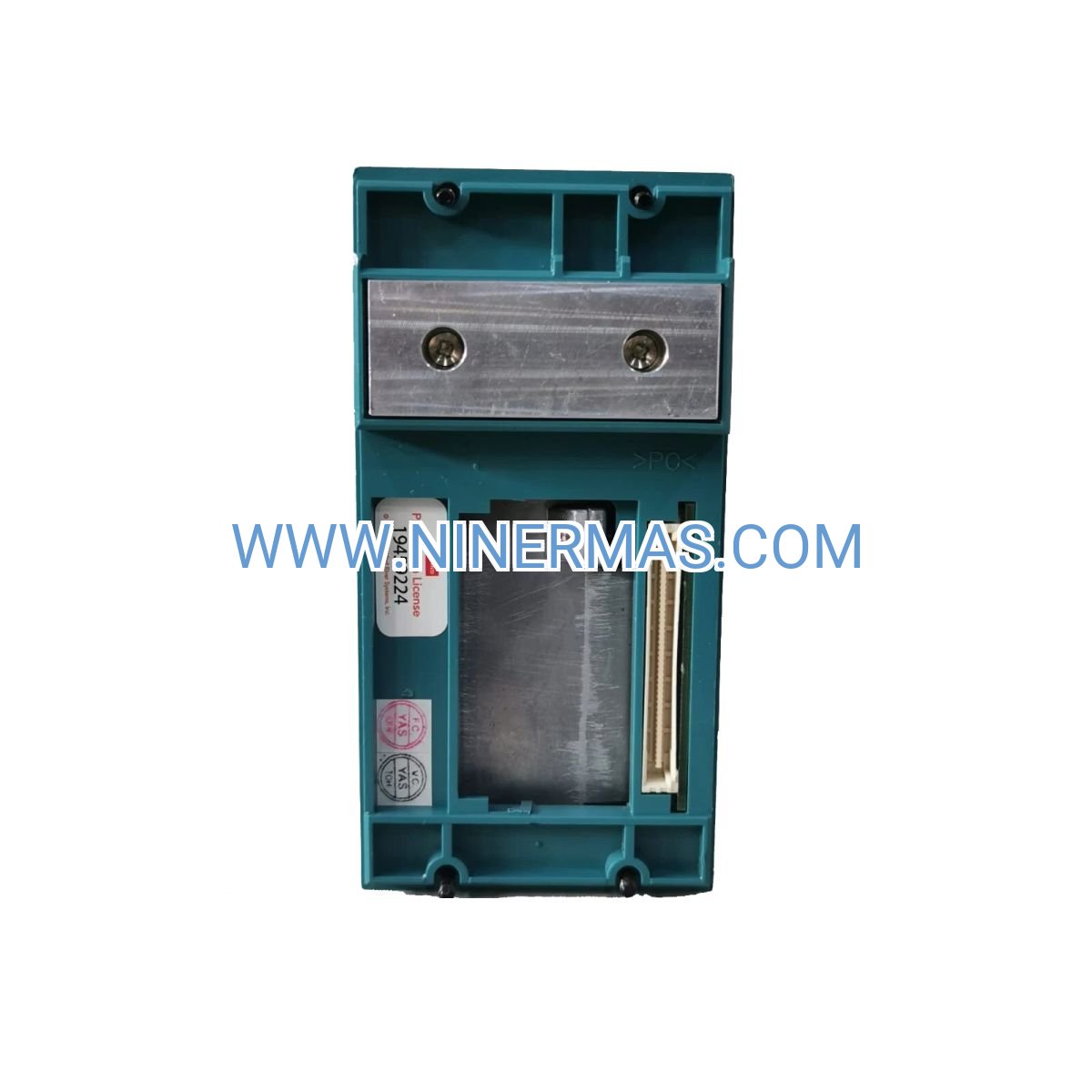

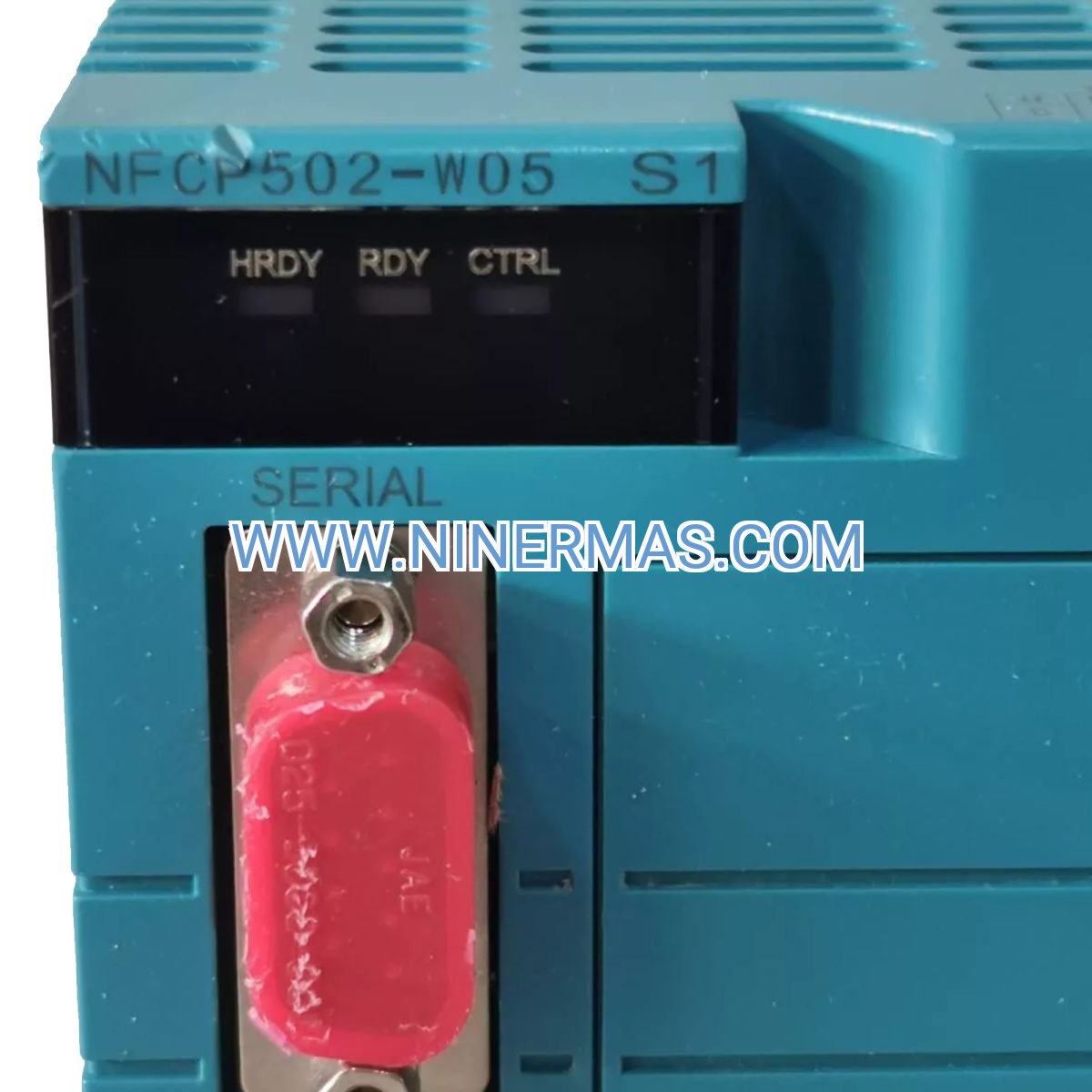

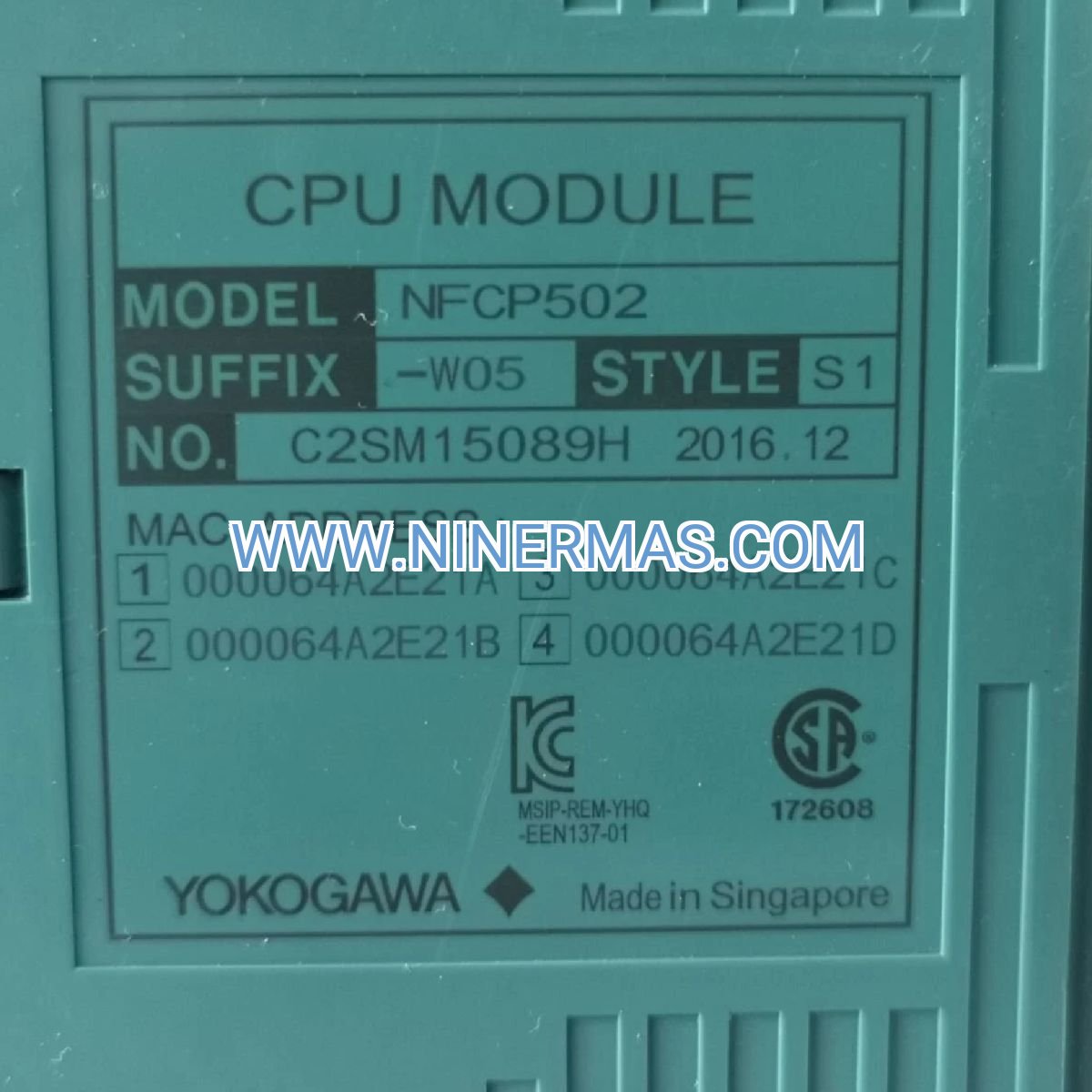

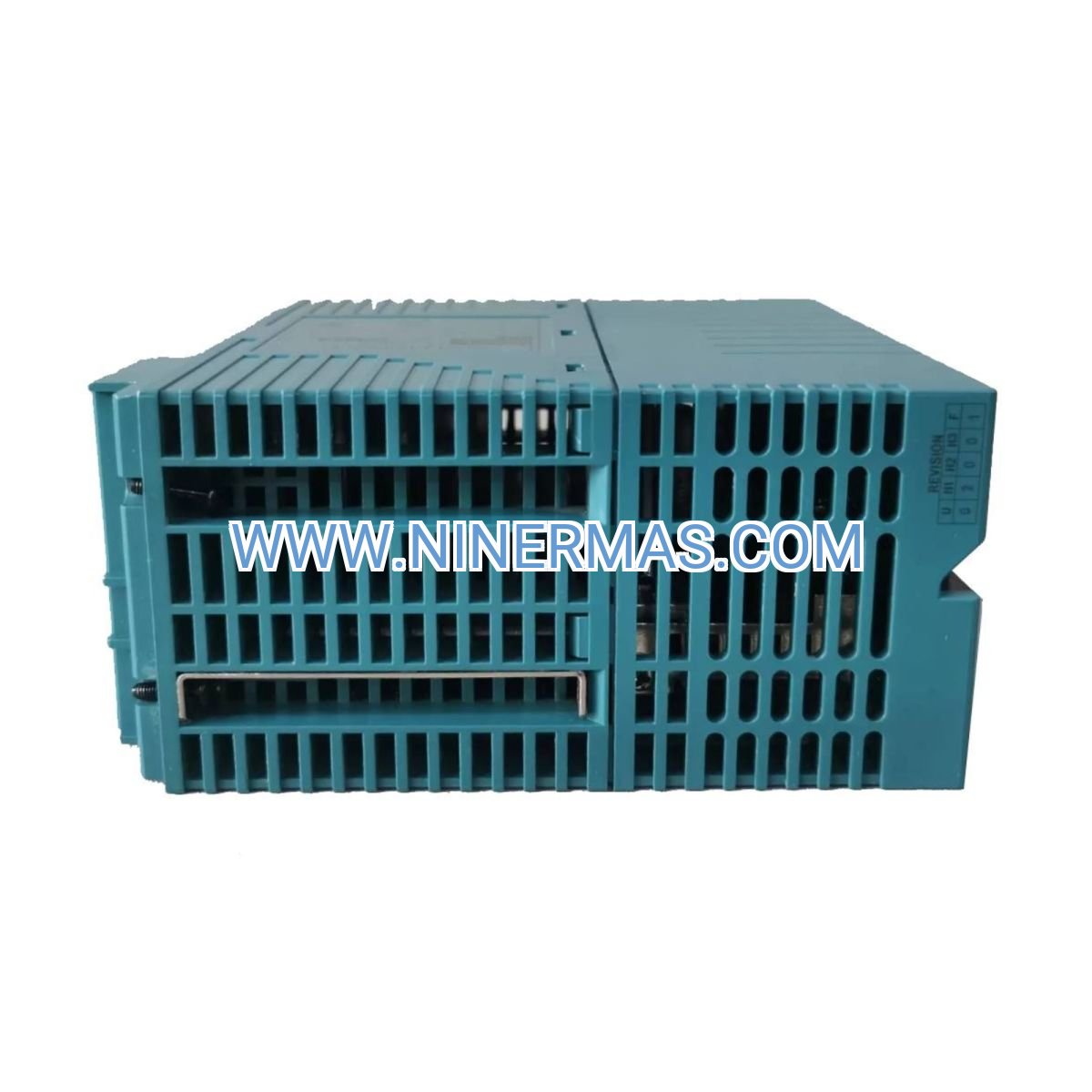

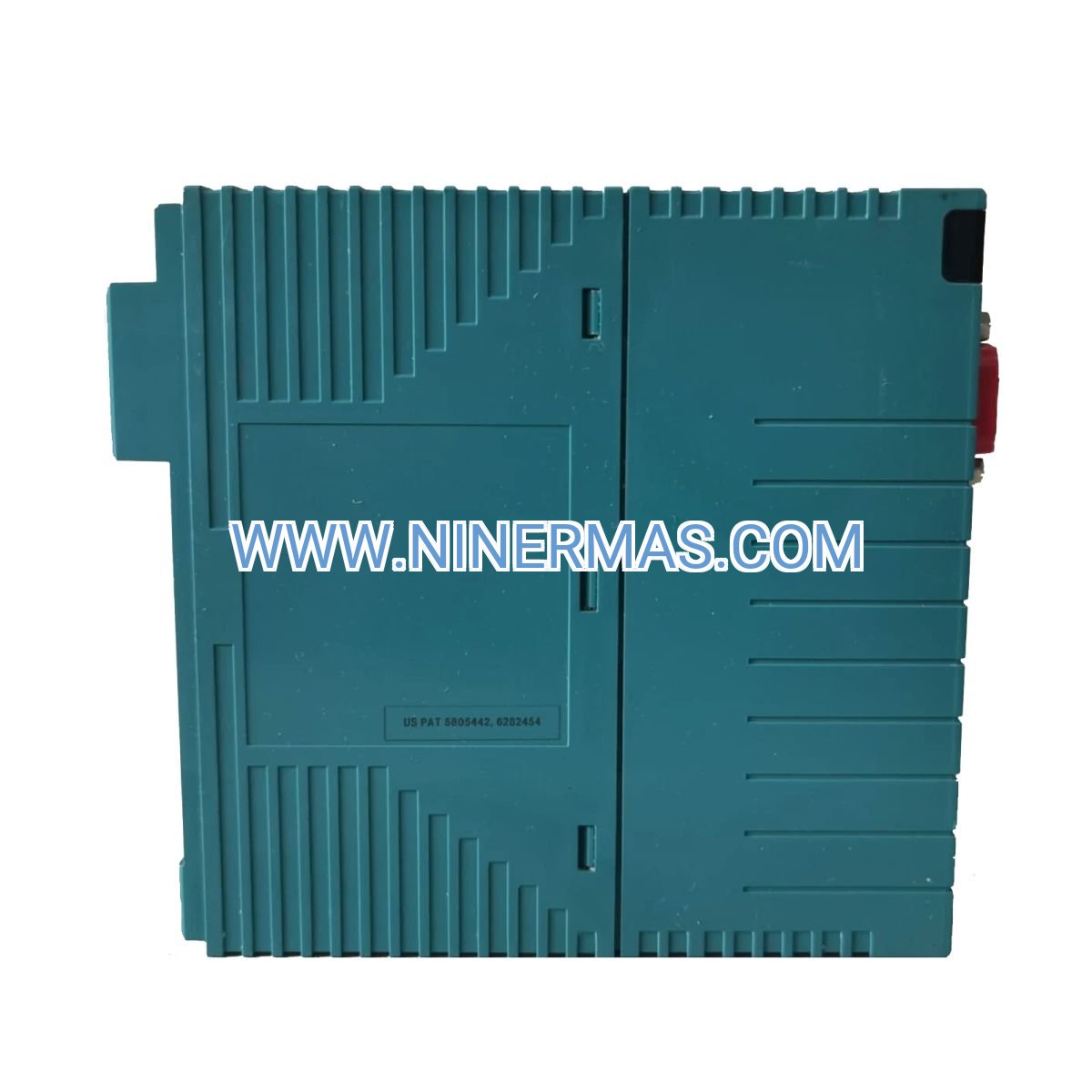

NFCP502-W05 Quad-Port Ethernet CPU Module (Industrial-Grade FCN Controller)

The NFCP502-W05 is Yokogawa's flagship field control network CPU module engineered for demanding industrial environments requiring multi-network architecture. Built around an Intel Atom quad-core processor, this controller delivers deterministic performance across four independent Gigabit Ethernet interfaces—enabling network segmentation, redundant topologies, and simultaneous connectivity to control systems, safety networks, and enterprise infrastructure without external switching hardware.

Designed for process industries where uptime is non-negotiable, the NFCP502-W05 addresses critical challenges: eliminating single points of network failure, reducing latency in time-critical control loops, and maintaining cybersecurity boundaries between operational technology and IT systems. Target users include automation engineers deploying CENTUM VP DCS platforms, system integrators building SIL-rated safety systems, and plant managers modernizing legacy FCN-100 installations.

Key differentiators include native support for time-sensitive networking (TSN) protocols, hardware-accelerated encryption that preserves microsecond-level scan cycle precision, and hot-swappable redundancy when paired with compatible modules. With certifications spanning ATEX Zone 2, IECEx, and SIL 2 functional safety standards, this CPU module meets global compliance requirements for hazardous area deployments.

Core Capabilities & Technical Advantages

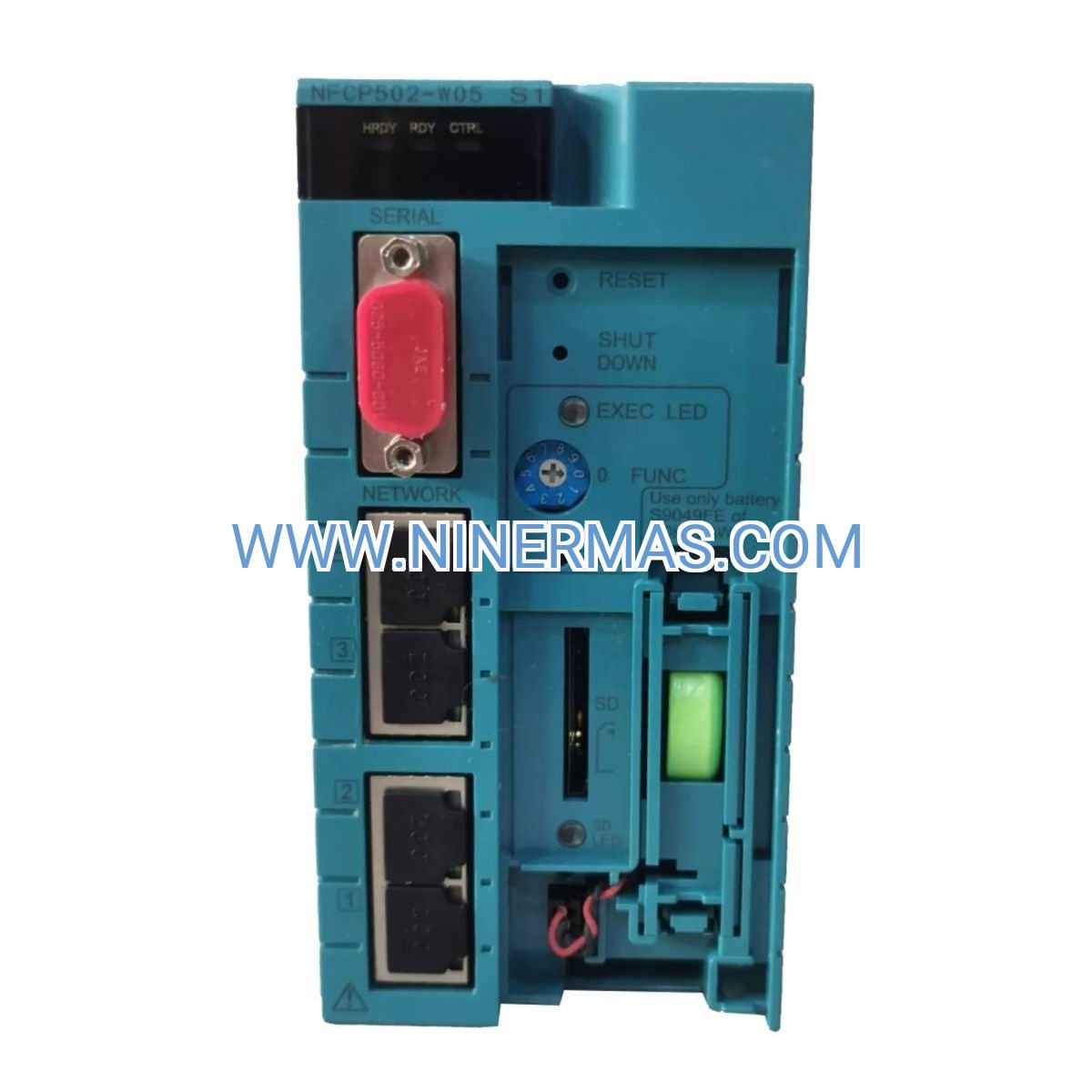

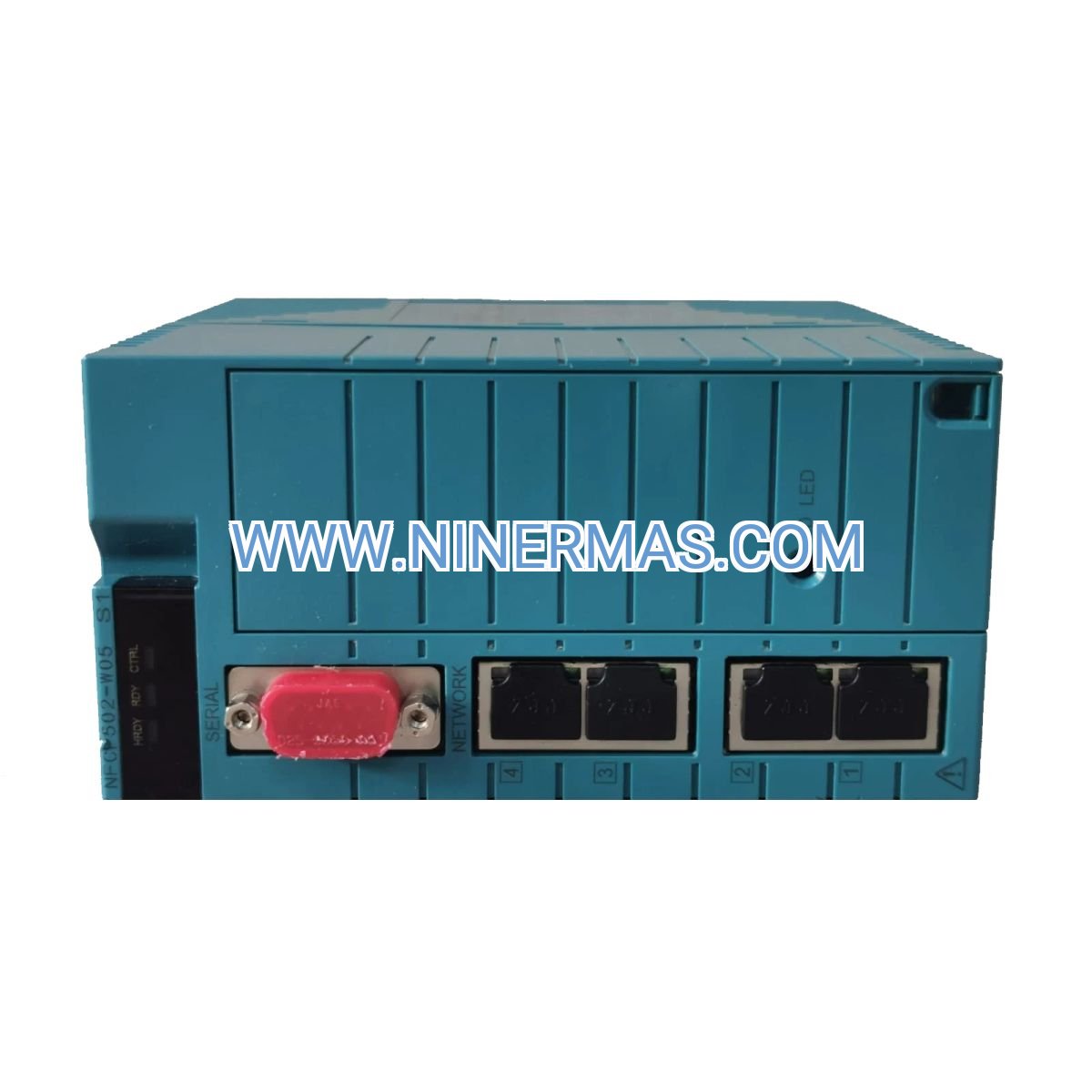

→ Multi-Network Architecture: Four 10/100/1000 Mbps Ethernet ports with auto-negotiation eliminate the need for external switches in distributed installations. Segregate safety-instrumented systems, process control networks, and historian connections while maintaining deterministic communication—critical for applications requiring coordinated motion control or batch processing synchronization.

✓ Real-Time Processing Power: Intel Atom quad-core architecture running VxWorks RTOS delivers configurable scan cycles from 10 milliseconds to 10 seconds with microsecond precision. Supports up to 4,096 I/O points per module, enabling consolidation of multiple legacy controllers into a single high-density platform that reduces cabinet space and wiring complexity.

• Enhanced Cybersecurity: Hardware-accelerated encryption protects sensitive process data across all Ethernet interfaces without introducing latency penalties. Dedicated maintenance ports enable zero-downtime firmware updates through redundant pathways, while VLAN tagging and port-level access controls enforce strict network segmentation policies.

1. Protocol Versatility: Native support for Modbus TCP/IP, OPC UA, FOUNDATION Fieldbus HSE, and PROFINET ensures seamless integration with multi-vendor ecosystems. Backward-compatible firmware modes facilitate migration from legacy FCN-RTU systems without requiring wholesale infrastructure replacement.

2. Extreme Environment Resilience: Operates reliably across -20°C to +60°C temperature ranges with conformal coating protection against humidity, dust, and corrosive atmospheres. 25W typical power consumption reduces cooling requirements in remote installations where HVAC infrastructure is limited.

3. Safety System Integration: SIL 2 capability supports safety-instrumented functions when integrated with Yokogawa's ProSafe-RS platform. Dual-channel redundancy configurations achieve 99.99% availability targets for critical control loops in pharmaceutical manufacturing, petrochemical processing, and power generation applications.

Industry-Specific Deployment Scenarios

Upstream Oil & Gas Production:
In remote wellhead installations, the NFCP502-W05's quad-port design eliminates external network switches—a common failure point in harsh offshore environments. Deploy dedicated Ethernet connections for: (1) real-time SCADA telemetry, (2) safety shutdown systems, (3) predictive maintenance analytics, and (4) secure remote access for engineering workstations. This architecture reduces mean time to repair (MTTR) by 40% compared to single-network topologies.

Chemical Batch Processing:
Manage complex recipe execution across multiple reaction vessels while maintaining FDA 21 CFR Part 11 compliance. Separate Ethernet ports handle: process control (deterministic 50ms scan cycles), batch historian logging (non-real-time data aggregation), and MES integration (production scheduling). Network isolation prevents batch report generation from impacting critical interlock response times.

Combined-Cycle Power Plants:
Coordinate turbine control, emissions monitoring, and grid synchronization across isolated network segments. Port 1 connects to primary DCS for combustion control, Port 2 interfaces with emissions compliance systems (CEMS), Port 3 links to plant information systems for regulatory reporting, and Port 4 provides redundant failover connectivity—ensuring continuous operation during network maintenance windows.

Municipal Water Treatment:
Manage geographically distributed pump stations, filtration systems, and chemical dosing equipment across fiber-optic ring topologies. Each Ethernet port serves different treatment zones (intake, clarification, disinfection, distribution) while centralized supervisory control maintains system-wide optimization. Reduces infrastructure costs by 30% compared to deploying separate controllers per zone.

Pharmaceutical Manufacturing:
Implement validated systems for aseptic processing with full audit trail capabilities. Dedicated network ports for: (1) validated control network (no configuration changes post-validation), (2) non-validated utility systems, (3) electronic batch records, and (4) isolated qualification/testing network. Simplifies regulatory inspections by demonstrating clear separation between GMP-critical and non-GMP systems.

Technical Specifications & Selection Criteria

Selection Criteria: Choose NFCP502-W05 over dual-port NFCP501-W05 when: (1) implementing redundant network topologies, (2) segregating safety and control networks, (3) connecting to multiple SCADA systems simultaneously, or (4) future-proofing for IIoT integration. For applications with <1,500 I/O points and single-network requirements, the NFCP501-W05 offers cost optimization.

Advanced Integration Features

Industrial IoT Connectivity: Embedded OPC UA server with pub/sub architecture enables direct cloud connectivity to AWS IoT Core, Azure IoT Hub, or on-premises historians. Configurable data sampling rates (1s to 1hr) optimize bandwidth usage in cellular/satellite communication scenarios.

Predictive Maintenance: Built-in diagnostics monitor CPU temperature, memory utilization, network packet loss, and I/O module health. SNMP traps and syslog integration provide early warning of degrading components—reducing unplanned downtime by up to 35% based on field deployment data.

Customization Options: CFast expansion slot supports application-specific firmware extensions, custom protocol drivers, or local data logging (up to 64GB). Yokogawa's SDK enables development of proprietary control algorithms while maintaining IEC 61131-3 compliance for standard logic.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Includes factory-sealed packaging, calibration certificates, and English/Chinese documentation.

Custom Configuration: 10-15 business days for pre-loaded firmware, custom I/O mapping, or integrated redundancy pairs. Includes factory acceptance testing (FAT) documentation and configuration backup files.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, firmware issues, and hardware failures. Extended 36-month plans available for critical infrastructure deployments.

Technical Support: Lifetime access to application engineers (English/Mandarin) via email/phone. Includes configuration assistance, troubleshooting guides, firmware update notifications, and obsolescence management alerts.

Documentation Package: User manual (500+ pages), quick-start guide, CAD drawings (STEP/DWG formats), wiring diagrams, Modbus register maps, OPC UA information model, and sample ladder logic programs.

Frequently Asked Questions

Q1: How does the NFCP502-W05 integrate with existing CENTUM VP systems?
A: Direct plug-and-play compatibility via Vnet/IP protocol. The module auto-discovers on the control network and appears in the System View within 30 seconds. Configuration import from legacy FCN-100 controllers is supported through the Migration Wizard tool, preserving tag names, I/O assignments, and control logic.

Q2: What is the maximum cable distance between the CPU module and remote I/O racks?
A: Using standard Cat6 Ethernet cabling: 100 meters per segment. Extended distances up to 2km achievable with fiber-optic media converters (multimode) or 40km with single-mode fiber. For Modbus TCP remote I/O, practical limits are 10km over fiber with <10ms latency.

Q3: Can this module achieve SIL 3 safety ratings for emergency shutdown systems?
A: The NFCP502-W05 is SIL 2 certified as a single module. SIL 3 applications require redundant 1oo2 (one-out-of-two) configurations using two NFCP502-W05 modules with ProSafe-RS safety manager. This architecture is pre-certified and documented in TÜV assessment reports.

Q4: What cybersecurity features protect against industrial network attacks?
A: Multi-layer protection includes: (1) port-level MAC address filtering, (2) VLAN tagging with 802.1Q support, (3) TLS 1.3 encryption for OPC UA connections, (4) role-based access control (RBAC) with 16 user privilege levels, (5) audit logging of all configuration changes, and (6) firmware signature verification preventing unauthorized code execution.

Q5: How much energy savings can be achieved compared to legacy PLC systems?
A: Field measurements show 40-60% reduction in power consumption versus equivalent Allen-Bradley ControlLogix or Siemens S7-400 systems. A typical 2,000-point system consumes 25W (NFCP502-W05) versus 65W (legacy PLC + communication modules). Annual energy cost savings: approximately $45 per module at $0.12/kWh industrial rates.

Q6: Is hot-swapping supported for maintenance without process shutdown?
A: Yes, when deployed in redundant pairs (primary/backup configuration). The standby module maintains synchronized state and assumes control within 50ms of primary failure. Physical replacement of the failed module occurs while the backup handles all control functions—zero process interruption.

Start Your Integration Today

Ready to modernize your distributed control architecture? Contact our automation specialists for application-specific configuration guidance, network topology design, or migration planning from legacy systems. We provide complimentary pre-sales engineering support including I/O point calculations, network bandwidth analysis, and ROI assessments.

Request a quote: Include your I/O count, network requirements, and delivery timeline for customized pricing. Volume discounts available for orders of 5+ modules.
