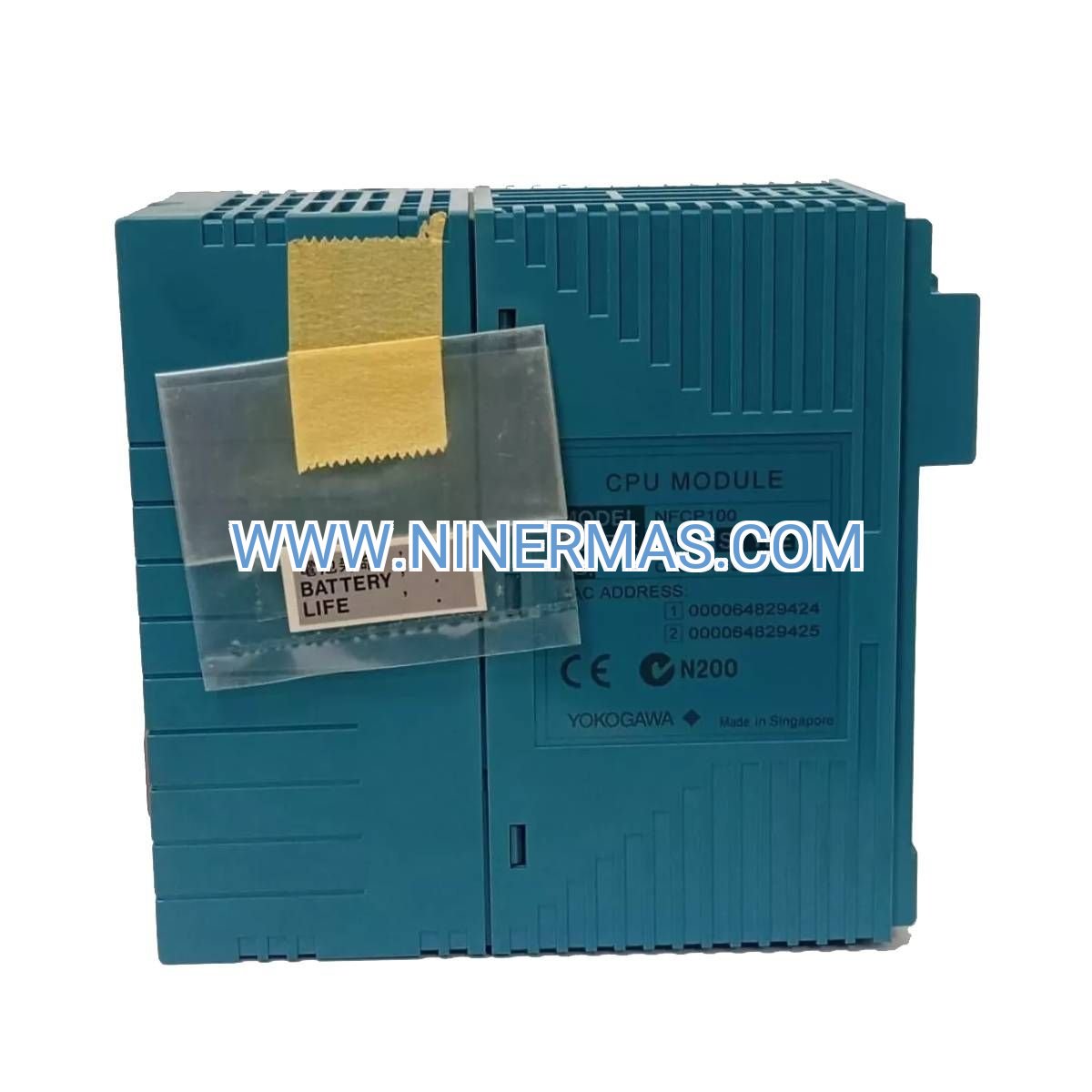

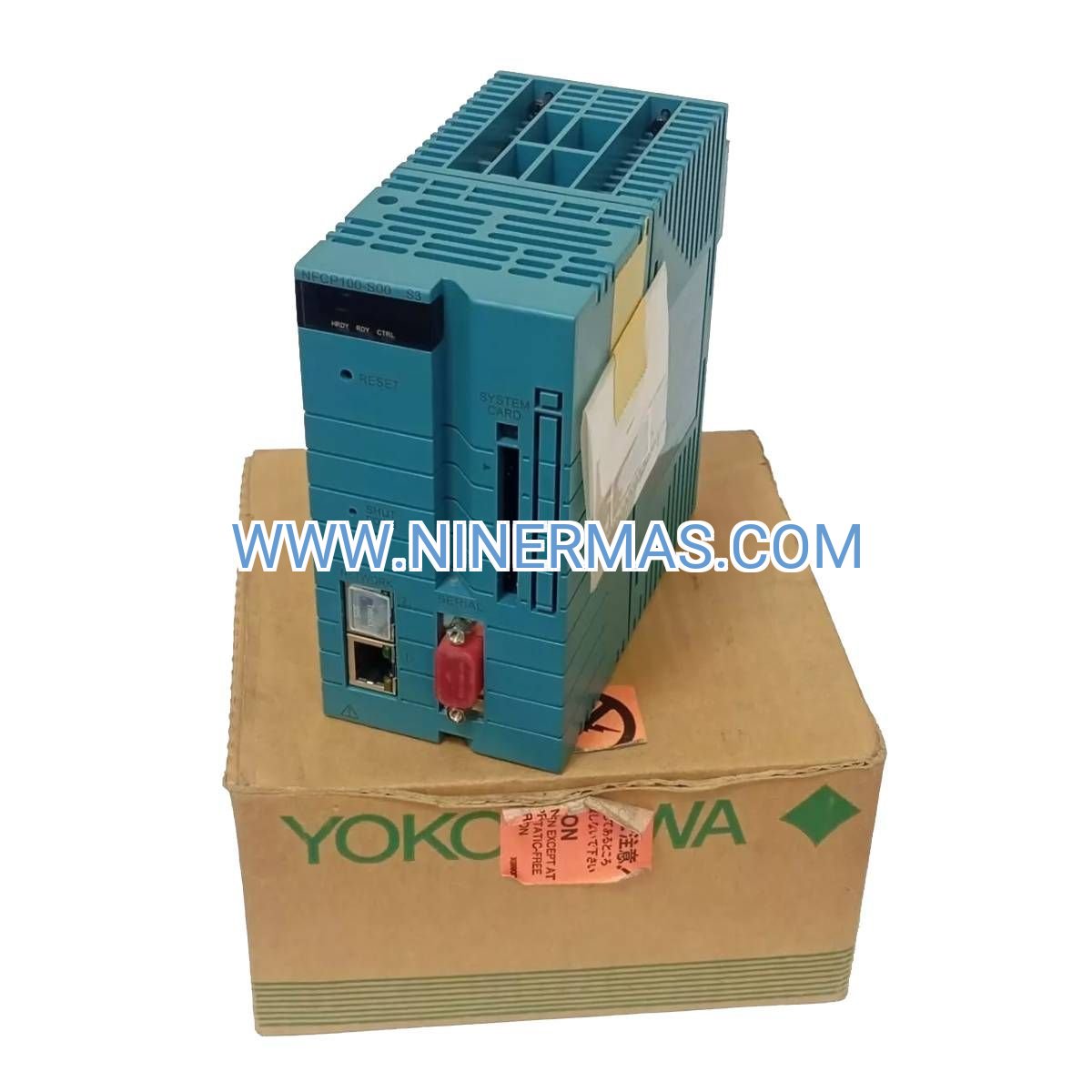

NFCP100-S00 FCN Controller Module (Industrial-Grade Autonomous CPU)

The Yokogawa NFCP100-S00 represents a cornerstone solution in distributed process control, delivering deterministic performance for mission-critical automation tasks. As part of the STARDOM FCN-100 family, this autonomous controller module combines robust hardware architecture with flexible programming environments, enabling seamless integration across hybrid control systems—from legacy PLCs to modern IIoT infrastructures.

Engineered for industries where downtime translates to significant operational losses, the NFCP100-S00 addresses three fundamental challenges: real-time responsiveness in millisecond-level control loops, scalability to accommodate evolving I/O requirements, and interoperability with heterogeneous communication protocols. Target users include process engineers managing continuous operations, system integrators designing multi-vendor environments, and maintenance teams requiring diagnostic transparency.

What sets this controller apart is its dual-layer redundancy architecture, IEC 61131-3 compliant programming suite, and native support for both fieldbus and Ethernet-based protocols—eliminating the need for costly gateways while reducing system complexity by up to 35%.

Core Features & Benefits

✓ High-Speed Processing Core
32-bit RISC processor executes control logic with scan cycles under 10ms, ensuring precise regulation of temperature, pressure, and flow variables even in fast-changing process conditions. Reduces process variability and improves product quality consistency.

✓ Modular I/O Expansion Framework
Supports up to 256 I/O points via hot-swappable modules on the STARDOM bus, allowing incremental capacity growth without system shutdown. Protects capital investment and adapts to production line expansions.

✓ Multi-Protocol Communication Stack
Native Modbus TCP/RTU, OPC UA server functionality, and Ethernet/IP compatibility enable direct integration with SCADA systems, HMIs, and enterprise MES platforms. Eliminates protocol conversion overhead and accelerates data exchange.

→ Redundant Power & CPU Configurations
Hot-standby CPU pairing with bumpless transfer ensures uninterrupted operation during maintenance or component failure. Achieves 99.9% uptime in critical applications such as petrochemical batch processing.

→ Extended Environmental Tolerance
Operates reliably in -20°C to +60°C ambient conditions with conformal coating protection against humidity, dust, and corrosive atmospheres. Ideal for outdoor installations and harsh industrial zones.

→ Web-Based Configuration Interface
Embedded HTTP server allows remote parameter tuning, real-time diagnostics, and firmware updates via standard browsers—no proprietary software required. Cuts commissioning time by 40% and simplifies troubleshooting.

Application Scenarios

Oil & Gas Midstream Operations
In pipeline compression stations, the NFCP100-S00 orchestrates multi-stage compressor sequencing, monitors vibration sensors, and interfaces with custody transfer metering systems. Solves the challenge of coordinating legacy RTUs with modern SCADA networks while maintaining regulatory compliance for flow measurement accuracy.

Chemical Batch Manufacturing
Pharmaceutical and specialty chemical plants deploy this controller for recipe-driven batch sequencing, where precise ingredient dosing and reaction temperature profiles are critical. Addresses the pain point of recipe version control and audit trail requirements through integrated data logging and electronic signature support.

Water & Wastewater Treatment
Municipal treatment facilities utilize the NFCP100-S00 to manage filtration backwash cycles, chemical dosing pumps, and effluent quality monitoring. Resolves the complexity of coordinating multiple process stages across geographically distributed sites via cellular or fiber-optic networks.

Power Generation Auxiliary Systems
In combined-cycle power plants, this module controls cooling tower fans, condensate polishing systems, and emissions monitoring equipment. Delivers value by providing deterministic control performance that complements turbine control systems without introducing latency.

Food & Beverage Processing Lines
Breweries and dairy processors implement the NFCP100-S00 for pasteurization temperature control, CIP (clean-in-place) sequencing, and packaging line coordination. Solves sanitation validation challenges through time-stamped event logging and recipe traceability.

Technical Parameters & Selection Guide

Selection Criteria: Choose the NFCP100-S00 when your application requires fewer than 256 I/O points and standard communication protocols. For systems demanding dual-redundant Ethernet or advanced cybersecurity features (firewall, VPN), consider the NFCP501-W05 variant. If your process involves safety-instrumented functions (SIL-rated), pair with Yokogawa's ProSafe-RS safety controller.

Extended Functions

IIoT Gateway Capability: The controller's OPC UA server function enables direct cloud connectivity to platforms like Azure IoT Hub or AWS IoT Core, facilitating predictive maintenance analytics and remote performance monitoring without additional edge devices.

Advanced Alarming & Notification: Configurable alarm prioritization with email/SMS notification via SMTP client ensures rapid response to abnormal conditions. Supports ISA-18.2 alarm management best practices.

Custom Function Blocks: Develop proprietary control algorithms in Structured Text or Function Block Diagram, then encapsulate as reusable libraries for standardized deployment across multiple sites—accelerating project replication and reducing engineering costs.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured units (pre-loaded programs, labeled terminals) require 10-15 business days.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Access to Yokogawa-certified application engineers for configuration assistance, troubleshooting, and performance optimization. Remote support sessions available via secure VPN.

Documentation Package: Includes hardware installation manual, programming reference guide, communication protocol specifications, and CAD drawings (DWG/PDF formats). Sample ladder logic programs provided for common applications.

Frequently Asked Questions

Q: How does the NFCP100-S00 interface with existing Modbus RTU field devices?
A: The controller's RS-485 port supports Modbus RTU master mode, polling up to 32 slave devices at baud rates from 9600 to 115200 bps. Configure device addresses and register maps via the built-in web interface or programming software.

Q: What is the maximum cable distance for I/O module connections?
A: STARDOM bus supports up to 10 meters between modules using shielded twisted-pair cable. For remote I/O beyond this range, deploy Ethernet-based I/O modules communicating via Modbus TCP.

Q: Can this controller reduce energy consumption in HVAC control applications?
A: Yes—implementing variable-frequency drive (VFD) control algorithms for fans and pumps typically achieves 20-40% energy savings compared to fixed-speed operation. The controller's PID loops optimize equipment staging based on real-time demand.

Q: What are the installation requirements for hazardous area deployment?
A: The NFCP100-S00 carries FM approval for Class I Division 2 (Groups A-D) locations when installed in a NEMA-rated enclosure with proper grounding and intrinsic safety barriers for field wiring.

Q: Does the system support remote monitoring via mobile devices?
A: The embedded web server is mobile-responsive, allowing technicians to view real-time process data and alarm status from smartphones or tablets. For advanced mobile apps, integrate via OPC UA to third-party visualization platforms.

Q: How do I migrate programs from legacy Yokogawa controllers?
A: Yokogawa provides conversion utilities for importing programs from older FCN/FCJ series controllers. Our technical team offers migration services including code review, testing, and commissioning support.

Request Your Quote Today

Ready to enhance your control system reliability and performance? Contact our automation specialists for application-specific recommendations, pricing, and delivery timelines. Whether you're upgrading legacy infrastructure or designing new installations, the NFCP100-S00 delivers proven value in demanding industrial environments.
