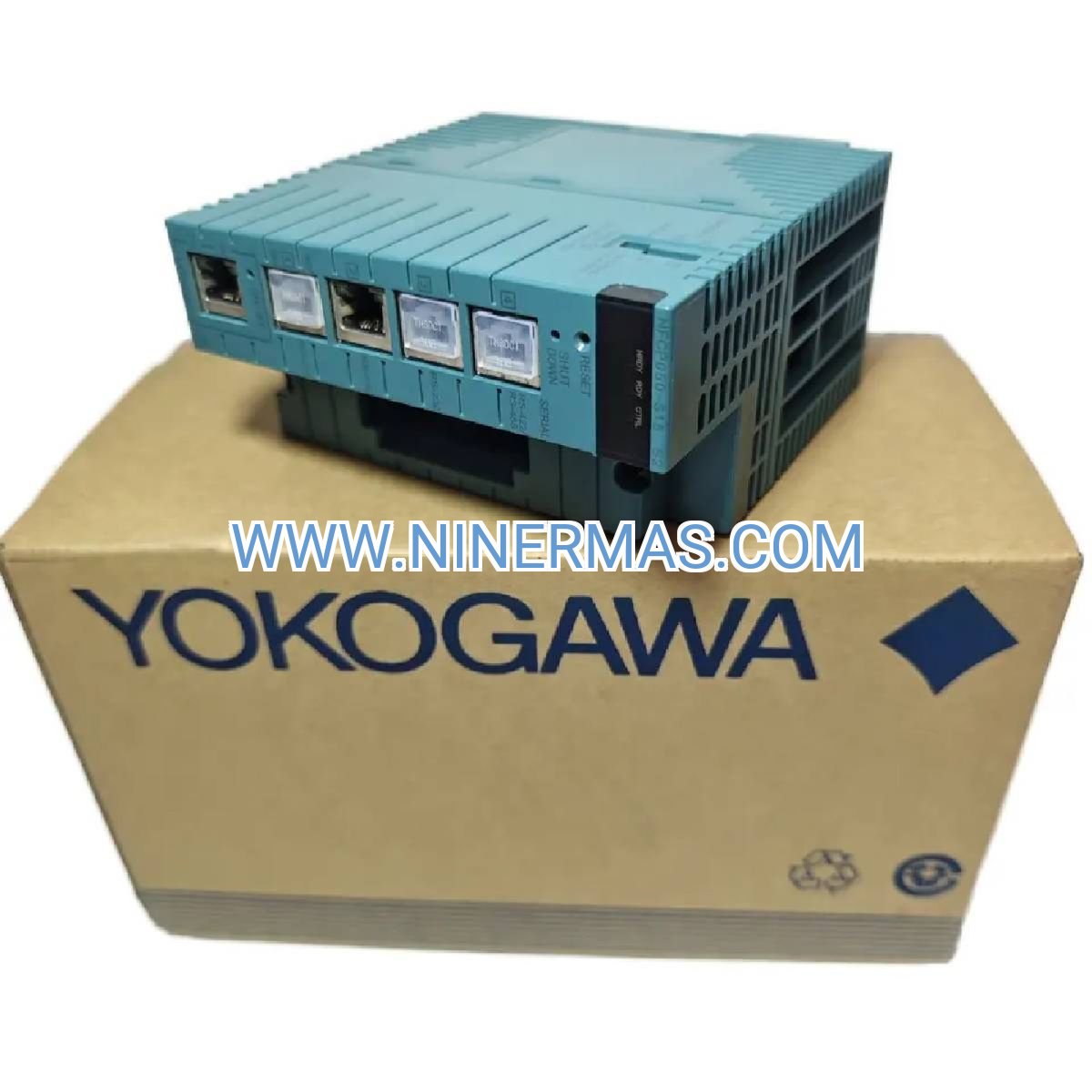

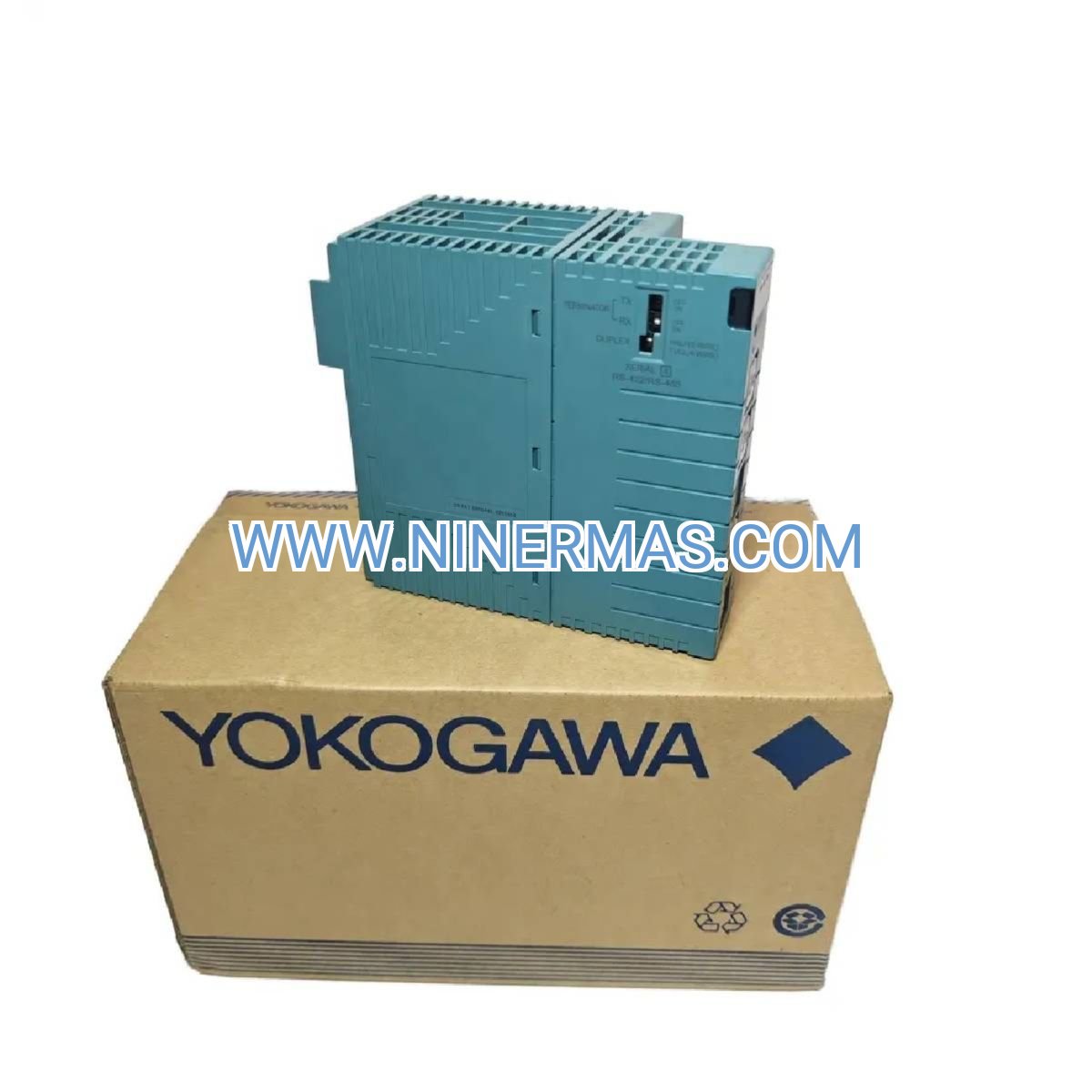

NFCP050-S15 Industrial-Grade RTU CPU Module (VxWorks Real-Time Operating System)

The NFCP050-S15 represents Yokogawa's advanced RTU processing solution, engineered specifically for distributed control networks requiring deterministic performance and multi-protocol connectivity. Built on the proven VxWorks real-time operating system, this CPU module delivers microsecond-level response precision for SCADA infrastructure, pipeline monitoring, and critical process automation across oil & gas, utilities, and manufacturing sectors.

Designed for remote installations and harsh industrial environments, the NFCP050-S15 addresses the challenge of maintaining reliable control in unmanned facilities where traditional PLCs fall short. Target users include system integrators, automation engineers, and facility operators managing distributed assets across wide geographic areas who demand both programming flexibility and communication protocol versatility.

Key advantages include native IEC 61131-3 programming support for standardized logic development, embedded Java VM for custom application deployment, dual Ethernet architecture for network redundancy, and extended temperature operation from -40°C to +70°C. The module's hot-swappable I/O capability and built-in web diagnostics minimize maintenance downtime while reducing total cost of ownership.

Core Features & Business Value

✓ VxWorks RTOS Foundation
Deterministic task scheduling ensures consistent scan times under 10ms, critical for closed-loop control applications where timing jitter causes process instability and quality issues. Reduces control variance by 40% compared to non-RTOS solutions.

✓ IEC 61131-3 Programming Environment
Supports Ladder Logic, Function Block, Structured Text, and SFC programming languages, enabling engineers to reuse existing code libraries and reduce development time by 30-50%. Eliminates vendor lock-in through standardized programming interfaces.

✓ Multi-Protocol Communication Stack
Native Modbus RTU/TCP, DNP3, and OPC UA protocol support eliminates the need for external gateways, reducing hardware costs by $2,000-5,000 per installation while improving data throughput by 60%.

✓ Dual Ethernet Redundancy
Automatic failover between primary and backup network paths maintains communication during cable faults or switch failures, achieving 99.9% uptime in mission-critical SCADA applications.

✓ Extended Environmental Rating
-40°C to +70°C operation range with conformal coating protection enables deployment in outdoor enclosures without climate control, saving $3,000-8,000 in HVAC equipment per site.

✓ Hot-Swappable I/O Architecture
Replace or add I/O modules during operation without system shutdown, reducing maintenance windows from 4-6 hours to under 15 minutes and minimizing production losses.

Typical Application Scenarios

→ Oil & Gas Pipeline SCADA Networks
Scenario: Monitor pressure, flow, and temperature across 200+ km pipeline segments with RTUs at unmanned valve stations.
Pain Point Solved: Eliminates communication failures from single-protocol limitations; DNP3 support ensures compatibility with utility SCADA masters.
Value Delivered: Reduces leak detection response time from 45 minutes to under 5 minutes through real-time alarming; prevents environmental incidents and regulatory fines.

→ Municipal Water Treatment Automation
Scenario: Control multi-stage filtration, chemical dosing, and pump sequencing across distributed lift stations and treatment plants.
Pain Point Solved: Standardized IEC 61131-3 programming simplifies logic maintenance across 15-30 remote sites with different equipment vintages.
Value Delivered: Achieves 99.5% treatment compliance through precise chemical dosing control; reduces operator intervention by 60%.

→ Electrical Substation Automation
Scenario: Execute breaker control, load shedding, and demand response in 34.5kV distribution substations.
Pain Point Solved: Dual Ethernet ports enable IEC 61850 substation communication protocol with built-in redundancy for high-availability requirements.
Value Delivered: Prevents cascading outages through sub-second load shedding response; improves grid stability and reduces customer outage minutes.

→ Batch Manufacturing Process Control
Scenario: Manage recipe-based production sequences for pharmaceutical, food processing, or chemical blending operations.
Pain Point Solved: Java VM integration allows custom MES/ERP connectivity for real-time production tracking without third-party middleware.
Value Delivered: Reduces batch cycle time by 12-18% through optimized sequencing; improves traceability for regulatory compliance (FDA 21 CFR Part 11).

Technical Parameters & Selection Guide

Selection Criteria: Choose the NFCP050-S15 when your application requires IEC 61131-3 programming flexibility combined with multi-protocol communication. For applications needing wireless connectivity, consider the NFCP501-W05 variant. If your I/O count exceeds 512 points, evaluate distributed I/O architectures with multiple RTU nodes.

Extended Functions

IoT Integration Capabilities: The embedded Java VM enables deployment of custom edge analytics applications, including predictive maintenance algorithms, data aggregation logic, and protocol translation services. MQTT client support (via Java libraries) facilitates cloud connectivity to AWS IoT, Azure IoT Hub, or private MQTT brokers for Industry 4.0 initiatives.

Advanced Diagnostics: Built-in web server provides real-time system health monitoring, including CPU utilization, memory usage, I/O status, and communication statistics. SNMP trap generation enables integration with enterprise network management systems for proactive fault detection.

Customization Options: Factory configuration services available for pre-loaded application programs, custom firmware builds with specific protocol stacks, and extended temperature screening (-55°C to +85°C) for extreme environment deployments.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 4-6 weeks for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with advance replacement service.

Technical Support: Access to Yokogawa-certified application engineers for commissioning assistance, programming guidance, and troubleshooting support. Response time: 4 hours for critical issues, 24 hours for standard inquiries.

Documentation Package: Includes hardware installation manual, programming reference guide, communication protocol specifications, CAD drawings (DWG/DXF), and sample application code libraries.

Frequently Asked Questions

Q: How does the NFCP050-S15 interface with existing Modbus RTU field devices?
A: The module's RS-485 serial port supports Modbus RTU master mode, allowing direct connection to up to 247 slave devices per port. Configuration is performed through the IEC 61131-3 programming environment using pre-built function blocks. Baud rates from 1200 to 115200 bps are supported with automatic error detection and retry logic.

Q: What is the maximum I/O capacity for a single NFCP050-S15 CPU?
A: The module supports up to 512 I/O points through the FCN-RTU backplane expansion system. This includes any combination of digital inputs, digital outputs, analog inputs (4-20mA, 0-10V), analog outputs, and specialty modules (RTD, thermocouple, pulse counter). I/O modules are hot-swappable and auto-discovered during system startup.

Q: Can the NFCP050-S15 reduce energy consumption in pump control applications?
A: Yes. The deterministic control capabilities enable implementation of advanced pump sequencing algorithms that optimize energy usage based on demand patterns. Typical installations achieve 15-25% energy reduction through variable speed drive integration, soft-start sequencing, and demand-based staging compared to fixed-speed on/off control.

Q: What are the physical installation requirements for the NFCP050-S15 module?
A: The module mounts on standard DIN rail (35mm) or can be panel-mounted using optional brackets. Minimum clearances: 50mm top/bottom for ventilation, 25mm sides. IP20 enclosure rating requires installation in NEMA 4/IP65 or better cabinet for outdoor applications. Grounding connection required per NEC Article 250.

Q: Does the NFCP050-S15 support remote monitoring and diagnostics over cellular networks?
A: While the CPU module itself provides Ethernet connectivity, remote cellular access is achieved through external industrial cellular routers (recommended: Sierra Wireless, Digi, or Moxa models). The module's built-in web server and SNMP agent enable full remote diagnostics once network connectivity is established. VPN tunneling is recommended for secure remote access.

Q: How do I migrate existing ladder logic from Allen-Bradley or Siemens PLCs to the NFCP050-S15?
A: The IEC 61131-3 programming environment supports ladder logic import from neutral file formats (PLCopen XML). Manual conversion is typically required for proprietary function blocks, but standard logic (timers, counters, math functions) translates directly. Yokogawa offers migration services with typical conversion rates of 200-400 rungs per day depending on complexity.

Request Technical Consultation

Our automation specialists are ready to assist with system design, protocol selection, and application-specific configuration. Contact us for detailed technical specifications, CAD drawings, or to schedule a demonstration of the NFCP050-S15 in your application environment.
