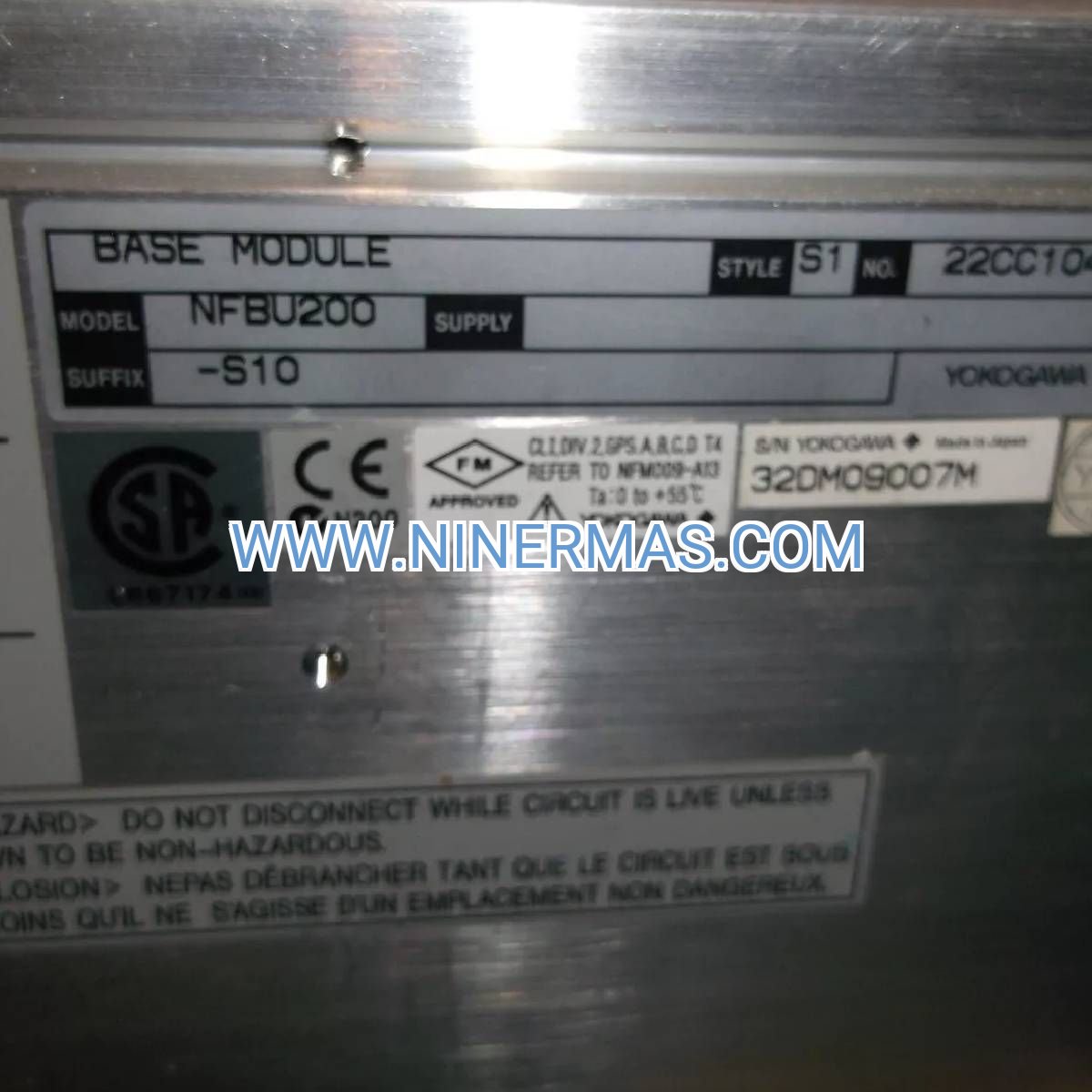

NFBU200-S10 Base Module (Industrial-Grade Modular I/O Platform)

The NFBU200-S10 represents a foundational infrastructure component for industrial control architectures, providing mechanical housing and electrical interconnection for up to eight field I/O modules within STARDOM FCN and FCJ distributed automation frameworks. This DIN rail-mounted base unit combines structural rigidity with intelligent backplane design, enabling rapid deployment of scalable control solutions across manufacturing, utilities, and building management sectors.

Designed for system integrators and plant engineers managing complex process environments, this base module addresses the critical challenge of I/O density optimization while maintaining serviceability. Its dual power supply architecture eliminates single points of failure, while the standardized 35mm DIN rail footprint ensures compatibility with existing panel infrastructure. The unit serves as the backbone for mixed-signal applications requiring analog measurement, discrete control, and specialty function integration within a unified chassis.

Key differentiators include tool-free module installation, integrated cable management channels, and thermal dissipation features that maintain operational stability in ambient temperatures ranging from -10°C to +55°C. The SB (Station Bus) backplane protocol delivers deterministic communication with sub-millisecond latency, critical for time-sensitive control loops and coordinated multi-axis operations.

Core Capabilities & Technical Advantages

→ Eight-Position Module Capacity
Accommodates full-width I/O cards including analog input/output, digital I/O, temperature measurement, and communication interface modules. Supports heterogeneous configurations without slot restrictions, enabling application-specific customization.

✓ Redundant Power Supply Architecture
Dual PSU slots with automatic failover logic ensure continuous operation during power source transitions. Load-sharing capability extends component lifespan while providing 100% backup capacity for mission-critical installations.

→ Hot-Swappable Module Design
Replace or upgrade I/O cards without system shutdown or backplane power cycling. Reduces maintenance windows from hours to minutes, minimizing production interruptions and improving overall equipment effectiveness (OEE).

✓ High-Speed Backplane Communication
SB bus protocol achieves <5ms scan cycles across all installed modules, supporting real-time control applications with demanding response requirements. Deterministic data exchange eliminates timing uncertainties in coordinated control sequences.

→ Industrial Environmental Ratings
Flame-retardant ABS construction meets UL94 V-0 standards, while conformal coating options protect against moisture, dust, and chemical exposure. Vibration resistance to IEC 60068-2-6 ensures reliability in high-shock environments.

✓ Compact Footprint Optimization
440mm width accommodates eight modules plus dual PSUs in less than half a standard 19-inch rack width, maximizing panel space utilization. Vertical stacking capability supports multi-tier installations for high-density I/O requirements.

Industrial Application Scenarios

Discrete Manufacturing Control
In automotive assembly lines and packaging machinery, the NFBU200-S10 consolidates sensor inputs, actuator outputs, and safety interlocks within a single chassis. Integrators leverage the modular architecture to standardize control panel designs across multiple production cells, reducing spare parts inventory and simplifying technician training. Hot-swap capability enables preventive maintenance during scheduled breaks without halting adjacent equipment.

Water & Wastewater Treatment SCADA
Municipal treatment facilities deploy this base module for remote pump station monitoring, combining analog level transmitters, flow meters, and discrete valve position feedback. The dual PSU design ensures continuous telemetry during utility power fluctuations, while the wide temperature range supports outdoor enclosure installations. Modbus TCP/IP connectivity integrates seamlessly with central SCADA platforms.

Building Automation & Energy Management
Commercial HVAC systems utilize the NFBU200-S10 to aggregate temperature sensors, damper actuators, and variable frequency drive interfaces across multiple air handling units. The compact DIN rail format fits within existing electrical rooms, while the SB bus enables coordinated control strategies that optimize energy consumption based on occupancy patterns and outdoor conditions.

Pharmaceutical Batch Processing
Clean room environments benefit from the module's sealed construction and low electromagnetic emissions. Process engineers configure mixed I/O combinations for reactor temperature control, ingredient dosing verification, and environmental monitoring—all within a single validated hardware platform. The unit's traceability features support 21 CFR Part 11 compliance requirements.

Oil & Gas Pipeline Monitoring
Remote metering stations employ this base module for custody transfer measurement, leak detection, and emergency shutdown systems. The industrial temperature rating withstands desert and arctic climates, while the modular design allows field technicians to replace failed cards using standard tools. Redundant power inputs accept solar/battery and grid sources simultaneously.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the NFBU200-S10 when your application requires 8 or fewer I/O modules with standard DIN rail installation. For larger systems exceeding 8 modules, consider the NFBU200-S15 (15-slot variant) or implement multiple base units with network distribution. Verify that your total I/O count, including future expansion, aligns with the eight-slot capacity. Confirm power supply compatibility—standard 24VDC industrial PSUs are required, with each unit capable of supplying sufficient current for fully populated configurations (typically 3-5A depending on module types).

Advanced Integration & Connectivity

The NFBU200-S10 operates as a passive backplane within the STARDOM ecosystem, relying on the FCN or FCJ controller for network connectivity and protocol conversion. Supported industrial protocols include Modbus TCP/IP for SCADA integration, OPC UA for enterprise MES/ERP connectivity, and FOUNDATION Fieldbus for process instrumentation networks. The SB bus architecture isolates module-level communication from network traffic, preventing Ethernet congestion from impacting real-time I/O updates.

For IoT-enabled predictive maintenance, pair the base module with Yokogawa's cloud-ready controllers that support MQTT publish/subscribe messaging. This configuration enables remote diagnostics, firmware updates, and performance analytics without requiring on-site visits. The modular design also accommodates future technology insertions—simply replace legacy I/O cards with next-generation modules featuring enhanced resolution, faster sampling rates, or wireless sensor interfaces.

Cybersecurity considerations include physical tamper detection via optional door switches and logical access control through the host controller's user authentication system. The base module itself contains no firmware or configuration memory, eliminating attack vectors associated with embedded intelligence. All security policies are enforced at the controller level, simplifying compliance with IEC 62443 industrial cybersecurity standards.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders during high-demand periods.
Customization Options: Custom labeling, pre-installed module configurations, and factory acceptance testing available with 6-8 week lead times.
Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended service plans available for critical infrastructure applications.
Technical Support: Lifetime access to application engineering team via email and phone. On-site commissioning assistance and training programs offered through regional service centers.
Documentation Package: Includes installation manual, dimensional drawings, SB bus protocol specifications, and compatibility matrices for all supported I/O modules.

Frequently Asked Questions

How does the NFBU200-S10 integrate with existing Yokogawa STARDOM controllers?
The base module connects directly to FCN or FCJ controllers via the SB (Station Bus) interface, which uses a proprietary high-speed serial protocol. Simply mount the base unit on DIN rail, install your required I/O modules, connect the SB cable to the controller's expansion port, and configure module addresses through the controller's programming software. The system auto-detects installed modules during startup, simplifying commissioning.

What is the maximum I/O point capacity when using this 8-slot base module?
Total I/O capacity depends on the specific modules installed. High-density cards like the NFA1543 provide 16 analog inputs per slot, yielding up to 128 analog points in a fully populated chassis. Digital I/O modules typically offer 32-64 points per card. Mixed configurations are common—for example, four analog input modules (64 points), two analog output modules (32 points), and two digital I/O modules (64 points) for a total of 160 I/O points in one base unit.

Can I replace I/O modules while the system is running without causing downtime?
Yes, the NFBU200-S10 supports hot-swappable module replacement when used with compatible I/O cards. The backplane design isolates each slot electrically, allowing you to remove and insert modules without powering down the entire system. However, you must follow proper procedures: disable the specific module in the controller software, wait for the status LED to indicate safe removal, extract the card, insert the replacement, and re-enable in software. This process typically takes 2-3 minutes per module.

What power supply specifications are required for dual redundant operation?
Each power supply slot accepts 24VDC nominal input (18-30VDC range) with current capacity determined by your installed module complement. A fully populated 8-slot configuration with high-power modules may draw 4-5A total. For redundant operation, install two PSUs each rated for 100% of the maximum load—not 50%. This ensures either supply can handle the full system load independently. Use industrial-grade DIN rail power supplies with overcurrent protection and status relay outputs for alarm integration.

Is the NFBU200-S10 suitable for hazardous area installations or explosive atmospheres?
The standard NFBU200-S10 is designed for general industrial environments and does not carry intrinsic safety (IS) or explosion-proof certifications. For hazardous locations classified as Class I Division 2 or ATEX Zone 2, consult Yokogawa's application engineering team regarding approved installation methods such as purged enclosures or intrinsically safe barrier interfaces. Specialized base modules with ATEX/IECEx certifications are available for Zone 1/Division 1 applications.

How do I determine the correct number of base modules for a distributed control project?
Start by inventorying your total I/O requirements: count all sensors, actuators, and field devices requiring interface points. Group I/O by physical location to minimize field wiring runs—each base module should serve equipment within a 50-100 meter radius. Factor in 20-30% spare capacity for future expansion. For example, a process line with 200 total I/O points might use three NFBU200-S10 units (8 slots each = 24 total slots) with mixed module types, leaving 4-6 slots open for growth. Centralized architectures may use fewer, larger base units, while distributed designs employ multiple smaller units closer to field devices.

Take the Next Step

Ready to optimize your control system architecture with proven modular infrastructure? Contact our industrial automation specialists for application-specific configuration guidance, compatibility verification with your existing STARDOM installation, and volume pricing for multi-unit projects. Our team provides complimentary system design reviews, helping you right-size your I/O platform while planning for future scalability.
