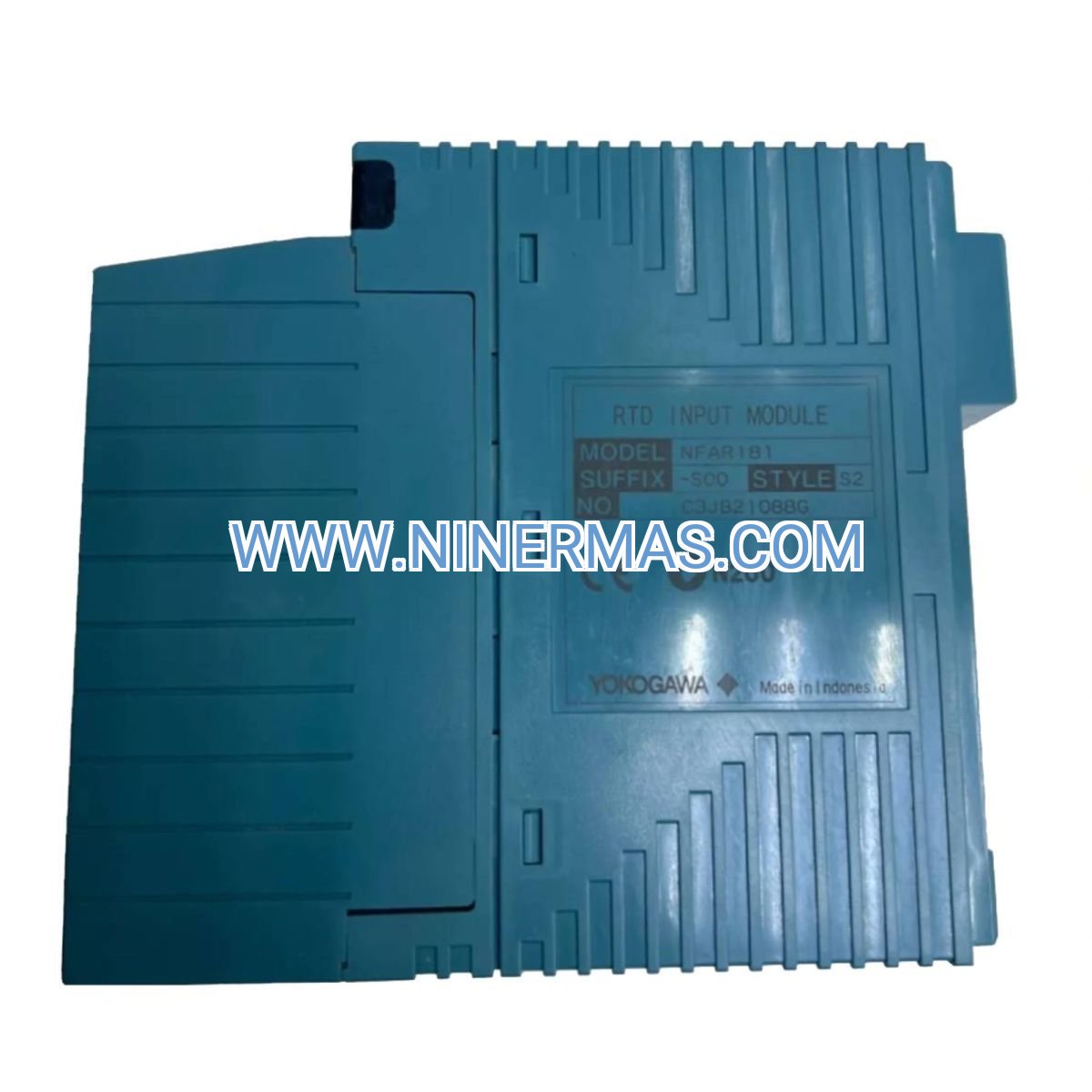

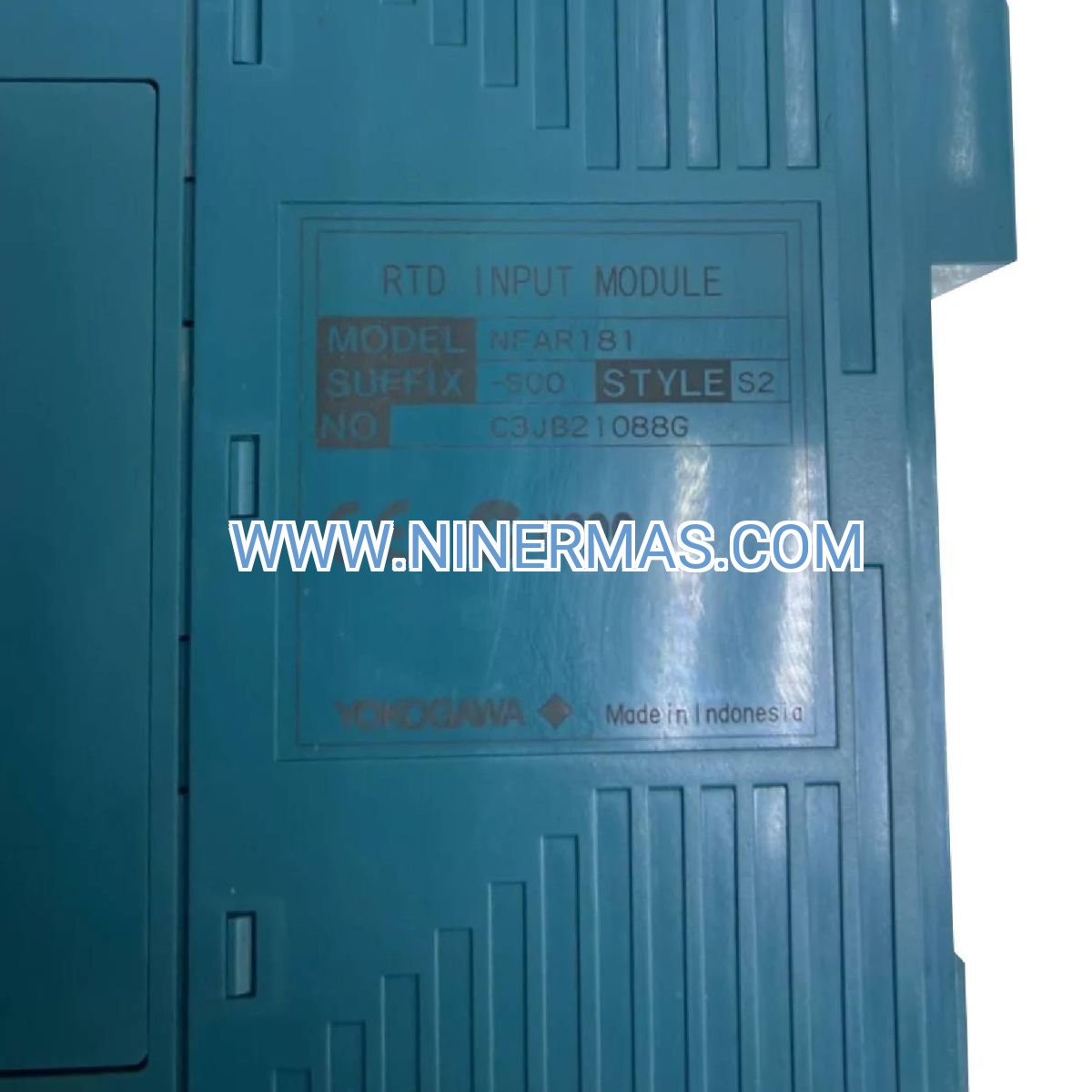

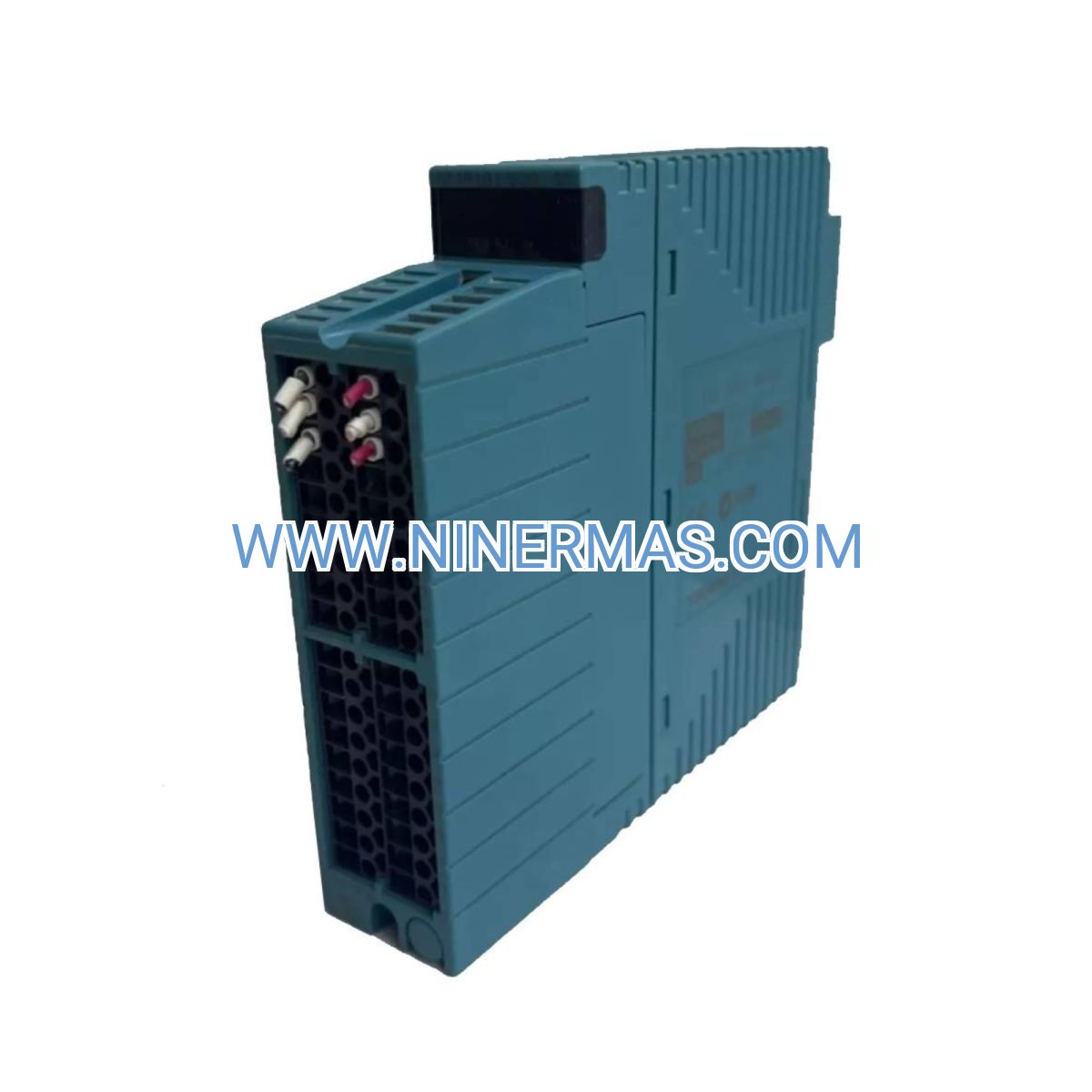

NFAR181-S00 S2 RTD Input Module (Industrial-Grade Multi-Channel Temperature Acquisition)

The Yokogawa NFAR181-S00 S2 represents a professional-grade solution for multi-point temperature monitoring in process control environments. Engineered with 12 independently isolated RTD input channels, this module transforms resistance temperature detector signals into high-fidelity digital data for distributed control systems. Whether you're managing thermal profiles in chemical reactors, monitoring turbine bearing temperatures, or validating pharmaceutical sterilization cycles, the NFAR181-S00 S2 delivers measurement integrity where precision matters most.

Designed for integration with Yokogawa CENTUM VP and STARDOM automation platforms, this module addresses the critical challenge of accurate temperature acquisition in electrically noisy industrial settings. Channel-to-channel isolation eliminates ground loop interference, while universal Pt100/JPt100 compatibility ensures global deployment flexibility. Process engineers gain actionable thermal intelligence through built-in diagnostics that detect sensor failures before they impact production quality.

From oil refineries requiring SIL-rated safety instrumentation to food processing facilities maintaining HACCP compliance, the NFAR181-S00 S2 combines Japanese manufacturing precision with field-proven reliability. Hot-swappable architecture minimizes maintenance downtime, while redundant power options safeguard continuous operation in mission-critical applications.

Core Features & Benefits

→ Galvanic Isolation Architecture
1500V DC isolation between each input channel and system bus prevents electrical crosstalk in multi-sensor installations. This design eliminates measurement errors caused by ground potential differences across distributed sensing points, ensuring data integrity in large-scale process control networks.

✓ Universal RTD Sensor Compatibility
Accepts both European Pt100 and Japanese JPt100 resistance temperature detectors in 3-wire or 4-wire configurations. Automatic lead resistance compensation algorithms correct for voltage drops in extended cable runs up to 300 meters, maintaining ±0.1°C accuracy regardless of wiring distance.

✓ Advanced Diagnostic Intelligence
Real-time sensor health monitoring detects open circuits, short circuits, and out-of-range conditions. Module self-diagnostics track internal calibration drift and power supply anomalies, triggering predictive maintenance alerts before failures disrupt process control.

→ High-Speed Data Acquisition
250ms conversion time per channel enables responsive control loop performance for dynamic thermal processes. Simultaneous sampling across all 12 inputs captures synchronized temperature profiles essential for multi-zone furnace control and batch reactor monitoring.

✓ Field-Serviceable Design
Hot-swappable module replacement without system shutdown reduces mean time to repair (MTTR) in 24/7 production environments. Front-accessible terminal blocks and LED status indicators simplify commissioning and troubleshooting procedures.

→ Extended Environmental Range
-40°C to +70°C operating temperature specification supports installation in non-climate-controlled enclosures. Conformal coating protects circuitry against humidity, dust, and corrosive atmospheres common in heavy industrial settings.

Typical Application Scenarios

Chemical & Petrochemical Processing
Monitor exothermic reaction temperatures across multiple reactor zones to prevent thermal runaway conditions. The module's isolation capability handles sensor grounding variations in large vessel installations, while fast conversion rates support tight PID control of distillation column profiles.

Power Generation & Utilities
Track bearing temperatures on steam turbines, gas turbines, and generator sets to detect lubrication failures before catastrophic damage occurs. SIL 2 certification enables integration into safety instrumented systems for boiler overheat protection and emergency shutdown logic.

Pharmaceutical & Biotechnology
Validate sterilization autoclave temperatures with traceable accuracy for FDA 21 CFR Part 11 compliance. Multi-channel capability supports simultaneous monitoring of fermentation vessel temperatures, clean room environmental conditions, and cold storage facilities from a single I/O module.

Food & Beverage Manufacturing
Ensure pasteurization process compliance by logging product temperatures at critical control points. The module's wide measurement range accommodates both refrigeration monitoring (-200°C) and cooking/baking processes (+850°C) within unified control architecture.

Metal Processing & Heat Treatment
Control annealing furnace temperature profiles with precision required for metallurgical property optimization. Isolated inputs prevent interference from high-current induction heating systems, while rugged construction withstands foundry environmental extremes.

Technical Parameters & Selection Guide

Selection Criteria: Choose the NFAR181-S00 S2 when your application requires channel-to-channel isolation to prevent ground loop errors in multi-sensor installations. For applications with standard grounding and lower isolation requirements, consider the AAR181 series as a cost-effective alternative. If your system demands enhanced diagnostics with HART communication capability, evaluate the NFAR181-S50 variant. Verify compatibility with your DCS platform—this module integrates natively with Yokogawa CENTUM VP, ProSafe-RS, and STARDOM controllers via V-net/IP fieldbus.

Extended Functions

IoT Integration & Remote Monitoring: When paired with Yokogawa's Sushi Sensor gateway, temperature data streams to cloud-based analytics platforms for predictive maintenance modeling and energy optimization algorithms. OPC UA server functionality enables integration with third-party SCADA systems and enterprise MES/ERP databases.

Advanced Filtering & Signal Conditioning: Configurable digital filtering algorithms suppress electrical noise from variable frequency drives and welding equipment. User-selectable time constants (0.5s to 100s) balance response speed against measurement stability for specific process dynamics.

Customization Options: Factory configuration services available for pre-programmed scaling, alarm setpoints, and tag naming conventions. Custom cable assemblies with pre-terminated RTD connectors reduce installation time and wiring errors in large-scale projects.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for critical outage situations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with annual calibration verification services.

Technical Support: Application engineering assistance for system design, loop tuning, and troubleshooting. Phone and email support available during business hours, with emergency hotline for production-critical issues.

Documentation Package: Each module includes installation manual, wiring diagrams, FieldMate configuration software, calibration certificate, and compliance declarations (CE, UL, SIL). CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

Q: What communication protocols does the NFAR181-S00 S2 support for integration with non-Yokogawa control systems?
A: The module communicates via Yokogawa's proprietary V-net/IP fieldbus, designed for seamless integration with CENTUM VP and STARDOM platforms. For third-party DCS integration, use a Yokogawa gateway module (e.g., ALR121) that converts V-net/IP to Modbus TCP, PROFIBUS DP, or OPC UA protocols. Direct integration without a gateway is not supported.

Q: Can this module handle both 3-wire and 4-wire RTD configurations simultaneously on different channels?
A: Yes, each of the 12 input channels can be independently configured for either 3-wire or 4-wire RTD connection through FieldMate software. This flexibility allows mixed sensor types within a single module—for example, using 4-wire connections for critical measurements requiring maximum accuracy and 3-wire for less critical monitoring points.

Q: What energy efficiency improvements can I expect compared to older analog RTD input cards?
A: The NFAR181-S00 S2 consumes maximum 5.5W versus 8-12W typical for legacy analog modules, representing up to 54% power reduction. In a 100-module installation, this translates to approximately 650W continuous savings—equivalent to $570 annual energy cost reduction at $0.10/kWh industrial rates, plus reduced cooling load on control room HVAC systems.

Q: Are there specific installation requirements for maintaining the 1500V isolation rating?
A: Maintain minimum 6mm creepage distance between RTD sensor wiring and power supply/communication cables. Use shielded twisted-pair cable for RTD connections with shield grounded at the module end only. Avoid routing sensor cables parallel to high-voltage motor feeders or VFD output cables. Follow IEC 61010-1 installation practices for reinforced insulation systems.

Q: Does the module support remote diagnostics and firmware updates over the network?
A: Yes, when connected to a CENTUM VP system with network connectivity, authorized users can access module diagnostics, view real-time channel status, and download event logs remotely via secure VPN connection. Firmware updates are performed through FieldMate software connected to the V-net/IP bus—remote firmware updates require Yokogawa's Remote Service Gateway for secure access.

Q: What is the recommended calibration interval for maintaining ±0.1°C accuracy specification?
A: Yokogawa recommends annual calibration verification for applications requiring documented accuracy compliance (pharmaceutical, aerospace). For general industrial use, calibration intervals of 24-36 months are typical based on environmental conditions. The module's self-diagnostic functions continuously monitor internal reference stability—any drift beyond specification triggers maintenance alerts before accuracy degrades.

Take the Next Step

Ready to enhance your temperature measurement infrastructure with proven Yokogawa reliability? Contact our application engineering team for system design consultation, compatibility verification with your existing DCS platform, and project-specific pricing. Request a technical datasheet with detailed wiring diagrams, or schedule a live demonstration of FieldMate configuration software.

Order now to secure inventory allocation for your next maintenance shutdown or expansion project. Volume discounts available for multi-module purchases. Expedited shipping options ensure on-time delivery for critical path installations.
