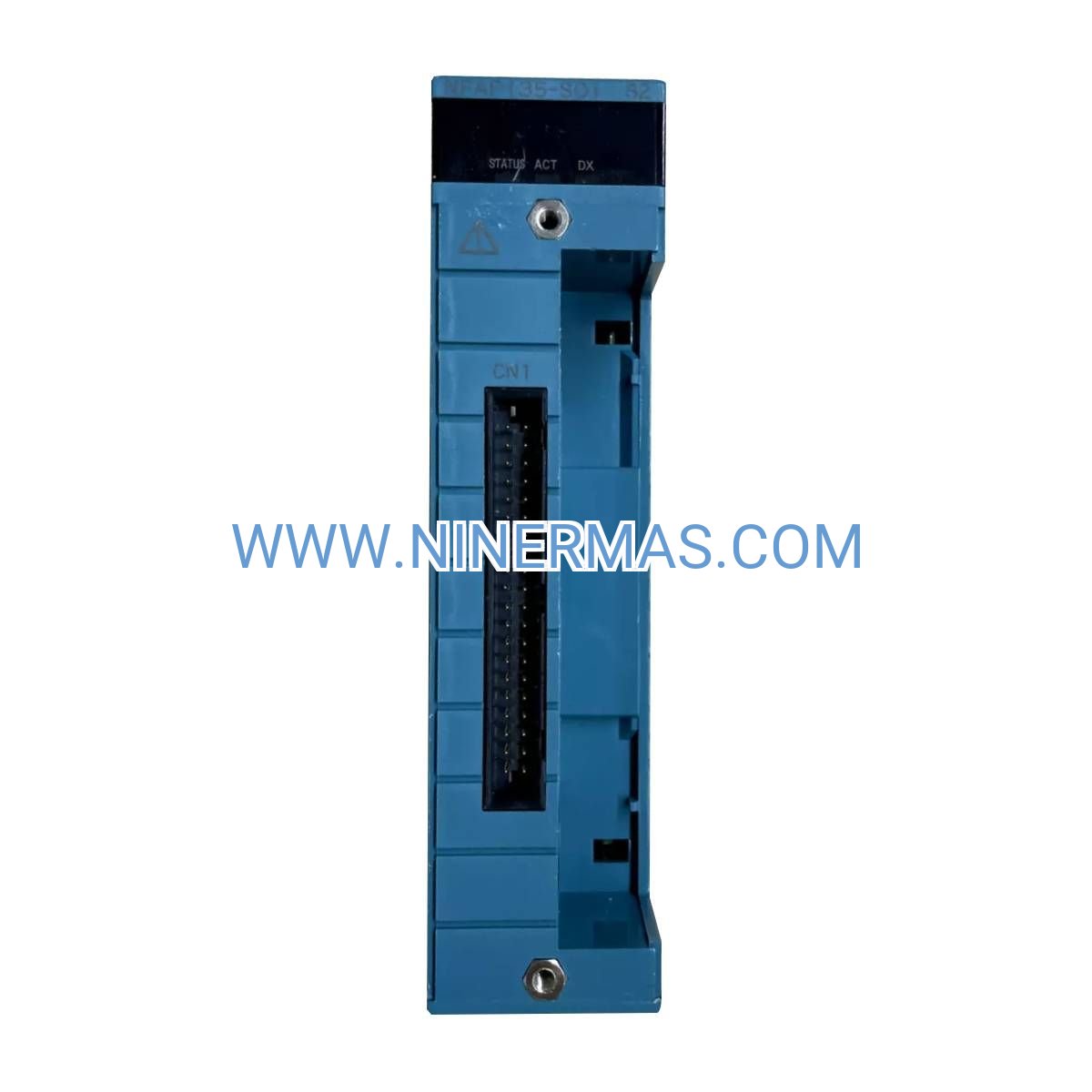

NFAP135-S01 Pulse Input Module (Industrial-Grade Multi-Channel Signal Processor)

The NFAP135-S01 represents Yokogawa's advanced approach to pulse signal acquisition, delivering eight electrically isolated input channels designed for critical measurement applications in process industries. This module transforms pulse signals from flow meters, utility meters, and production sensors into actionable data for distributed control systems, enabling precise monitoring of consumption, throughput, and operational efficiency.

Built for engineers managing complex automation infrastructures, the NFAP135-S01 addresses the challenge of integrating diverse pulse-generating devices into unified control platforms. Whether you're tracking steam flow in pharmaceutical manufacturing, monitoring electricity consumption across production zones, or counting finished goods on packaging lines, this module provides the reliability and flexibility demanded by mission-critical applications.

With channel-to-channel isolation, wide input compatibility, and seamless integration with Yokogawa CENTUM VP and STARDOM systems, the NFAP135-S01 eliminates common pain points: ground loop interference, signal incompatibility, and system downtime during maintenance. Request technical specifications or place your order today.

Core Capabilities & Business Value

✓ Eight Isolated Pulse Channels – Process contact closure, voltage (5-30 VDC), and current pulse signals simultaneously without cross-interference, reducing wiring complexity and installation costs by up to 40% compared to single-channel solutions.

✓ High-Speed Pulse Capture (10 kHz) – Accurately count rapid pulse trains from turbine flow meters and high-speed production equipment, ensuring zero data loss even during peak operational cycles.

✓ Electrical Isolation Architecture – Channel-to-channel and channel-to-system isolation prevents ground loops and voltage transients, extending mean time between failures (MTBF) beyond 100,000 hours in harsh industrial environments.

✓ Universal Input Compatibility – Accept dry contact, wet contact, NPN/PNP transistor outputs, and voltage pulse signals without external signal conditioning, minimizing spare parts inventory and simplifying procurement.

✓ Hot-Swappable Design – Replace modules during operation without system shutdown, reducing unplanned downtime costs and enabling predictive maintenance strategies.

✓ Diagnostic LED Indicators – Real-time visual feedback for each channel accelerates troubleshooting, cutting commissioning time by 30% and reducing service call frequency.

Industry Applications & Problem Solving

→ Water & Wastewater Treatment
Integrate turbine and electromagnetic flow meter pulse outputs to monitor influent/effluent volumes, chemical dosing rates, and pump station performance. The NFAP135-S01's isolation prevents electrical noise from variable frequency drives (VFDs) from corrupting flow totalizer data, ensuring regulatory compliance and accurate billing.

→ Oil & Gas Custody Transfer
Capture pulse signals from Coriolis and ultrasonic flow meters in fiscal metering applications where accuracy directly impacts revenue. Channel isolation meets API MPMS standards for measurement integrity, while high-frequency capability handles condensate and natural gas liquid (NGL) metering.

→ Food & Beverage Production
Count bottle fills, can seals, and carton formations on high-speed packaging lines running up to 600 units/minute. Pulse data feeds into overall equipment effectiveness (OEE) calculations, identifying bottlenecks and optimizing changeover procedures.

→ Energy Management Systems
Aggregate pulse outputs from electricity, natural gas, compressed air, and steam meters across manufacturing facilities. Real-time energy consumption data enables demand response participation, identifies energy waste, and supports ISO 50001 certification efforts.

→ Chemical Processing
Monitor batch reactor ingredient additions via positive displacement meter pulses, ensuring recipe accuracy within ±0.5% tolerance. Integration with CENTUM VP batch management provides full traceability for FDA 21 CFR Part 11 compliance.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the NFAP135-S01 when you need to consolidate 4-8 pulse inputs in a single module location. For applications requiring analog signal processing alongside pulse counting, consider pairing with Yokogawa NFAI141-S01 analog input modules. Verify that your DCS supports the module's communication protocol (typically Modbus RTU or proprietary Yokogawa Vnet/IP).

Advanced Integration Features

CENTUM VP DCS Compatibility – Pre-configured function blocks for pulse totalizing, flow rate calculation, and alarm management reduce engineering time by 50% compared to generic I/O modules. Supports redundant controller configurations for SIL 2 safety applications.

STARDOM Network Integration – Seamless connectivity to STARDOM FCN/FCJ autonomous controllers via high-speed field control network, enabling distributed pulse counting in remote pump stations and tank farms up to 10 km from the control room.

Modbus RTU/TCP Gateway – Optional communication modules allow third-party SCADA systems (Wonderware, Ignition, FactoryTalk) to access pulse count data, facilitating brownfield automation upgrades without replacing existing infrastructure.

Customization Options – Factory configuration services available for pre-scaled pulse-to-engineering unit conversion (e.g., pulses/gallon to GPM), custom alarm setpoints, and application-specific firmware for specialized metering requirements.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 10-15 business days for factory-programmed modules with customer-specific parameters and extended testing protocols.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Advanced replacement available for critical applications with 4-hour response commitment.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system integration planning. Remote diagnostic support via secure VPN connection.

Documentation Package: Includes installation manual, wiring diagrams, DCS configuration examples, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

How do I interface the NFAP135-S01 with non-Yokogawa control systems?
The module supports industry-standard Modbus RTU communication protocol (RS-485 interface) for integration with Allen-Bradley, Siemens, Schneider Electric, and other third-party PLCs/DCS. A Modbus register map is provided in the technical manual for custom driver development.

What is the maximum cable distance between pulse sources and the module?
For contact closure inputs, up to 300 meters using shielded twisted-pair cable (20 AWG minimum). Voltage pulse inputs support 100 meters maximum to maintain signal integrity. For longer distances, consider local signal repeaters or 4-20 mA pulse transmitters.

Can this module handle bidirectional pulse counting for reversible flow applications?
No, the NFAP135-S01 is designed for unidirectional pulse accumulation. For bidirectional flow measurement (e.g., pump recirculation loops), use two channels with forward/reverse pulse discrimination logic in the DCS, or specify Yokogawa's quadrature encoder input modules.

Does the module require external power supplies for pulse signal conditioning?
Internal pull-up resistors are provided for dry contact inputs (no external power needed). Wet contact and active voltage pulse inputs require field-supplied power (typically 12-24 VDC from the pulse-generating device). Current pulse inputs need a 250Ω termination resistor (not included).

Is the NFAP135-S01 suitable for hazardous area installations?
The standard module is rated for general-purpose (non-classified) areas. For Class I Division 2 or ATEX Zone 2 applications, specify the intrinsically safe barrier version (NFAP135-S01/IS) with approved Zener barriers for each input channel.

What diagnostic capabilities are available for troubleshooting pulse input failures?
Each channel features a bi-color LED (green = active pulse detected, red = fault condition). The DCS interface reports channel-specific diagnostics including pulse rate, accumulated count, wire-off detection, and over-frequency alarms. Built-in self-test routines verify module health during startup.

Order Your NFAP135-S01 Module Today

Enhance your process control system with proven pulse input technology trusted by Fortune 500 manufacturers worldwide. Contact our application specialists at sale@ninermas.com or +0086 187 5021 5667 for technical consultation, volume pricing, and integration support. Same-day quotations available for urgent projects.
