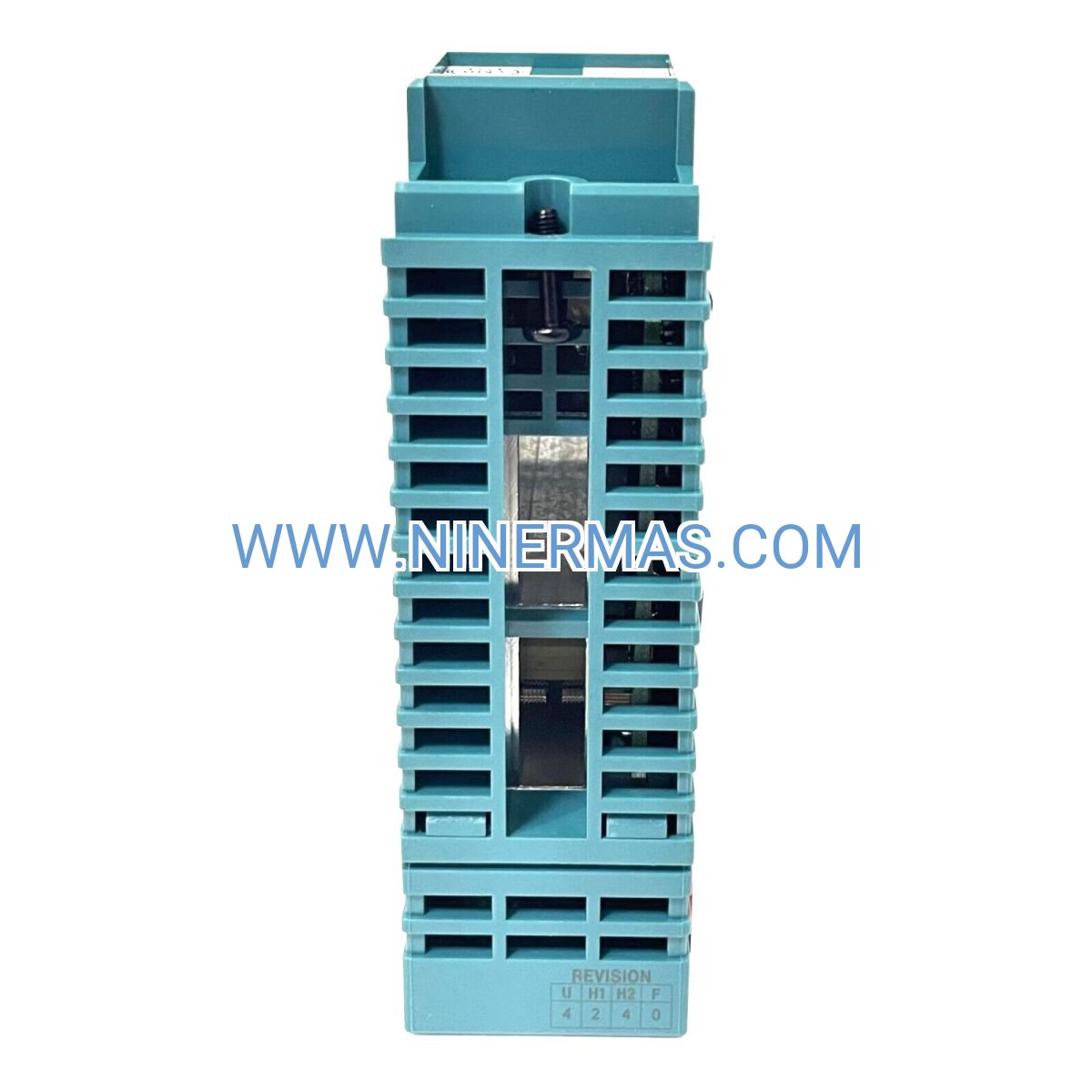

NFAI143-H50/A4S00 Analog Input Module (Industrial-Grade Multi-Channel Acquisition)

The NFAI143-H50/A4S00 delivers enterprise-class signal acquisition for process automation systems requiring simultaneous monitoring of multiple 4-20mA transmitters. Engineered with channel-to-channel isolation and integrated HART communication, this 16-input module serves as the critical interface between field instrumentation and distributed control systems in manufacturing, energy, and infrastructure applications.

Designed for environments where measurement integrity cannot be compromised, each input channel features galvanic isolation up to 1500V AC, eliminating ground loop interference common in multi-building facilities or electrically noisy industrial settings. The pressure-clamp terminal design (A4S00 configuration) accelerates commissioning while ensuring vibration-resistant connections throughout the module's operational lifespan.

Beyond basic signal conversion, the H50 variant embeds HART protocol capability, enabling bidirectional digital communication with smart transmitters without disrupting the analog measurement path. This dual-channel architecture supports remote diagnostics, calibration verification, and asset health monitoring—reducing unplanned downtime and optimizing maintenance schedules across distributed process units.

Engineering Advantages & Performance Metrics

✓ High-Density Isolated Architecture
16 independent channels with 1500V AC isolation barrier protect control systems from field-side electrical faults while maintaining ±0.1% measurement accuracy. Input resistance of 250Ω during operation ensures proper transmitter loading across 2-wire and 4-wire configurations, with >500kΩ off-state resistance preventing signal degradation during hot-swap maintenance.

✓ Dual-Protocol Communication Framework
Simultaneous analog (4-20mA) and digital (HART) signal processing enables real-time process control alongside advanced diagnostics. Access transmitter configuration parameters, calibration data, and health status without field visits—critical for offshore platforms, hazardous areas, or geographically dispersed installations.

✓ Precision Measurement Under Variable Conditions
Temperature coefficient of ±0.01%/°C maintains accuracy across -40°C to +70°C ambient range. 10ms data refresh rate with 100ms step response supports fast-loop control applications including flow ratio control, cascade loops, and feedforward compensation strategies.

✓ Simplified Installation & Commissioning
Tool-free pressure-clamp terminals accept 14-22 AWG conductors, reducing installation time by 40% compared to screw-terminal alternatives. Field-selectable transmitter type configuration (2-wire/4-wire) and integrated 24V power supply (25mA per channel) eliminate external barriers and simplify panel wiring.

✓ Built-In Transmitter Power & Protection
Integrated 24VDC supply powers 2-wire transmitters directly from the module, reducing external power distribution requirements. Overcurrent protection to 24mA safeguards against transmitter faults, while LED diagnostics provide instant visual indication of channel status and communication activity.

✓ Hot-Swappable Redundancy Support
0.3kg lightweight design with DIN rail mounting enables high-density I/O configurations and field-replaceable operation in redundant system architectures. Module replacement during operation minimizes process disruption in continuous manufacturing environments.

Industry-Specific Deployment Scenarios

→ Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and flow transmitters across multi-unit complexes where electrical isolation prevents ground potential differences between process areas from corrupting measurements. HART diagnostics identify transmitter drift before product quality is affected, supporting Six Sigma quality initiatives.

→ Upstream Oil & Gas Production
Track wellhead pressures, separator levels, and pipeline flows in remote production facilities. The module's wide temperature range and robust isolation withstand harsh environmental conditions, while HART communication reduces helicopter visits for transmitter maintenance in offshore installations.

→ Power Generation & Cogeneration
Integrate with boiler control systems, turbine monitoring, and emissions compliance applications where high channel density and measurement precision directly impact thermal efficiency and regulatory reporting. Isolated inputs prevent electrical noise from switchgear and motor drives from affecting critical safety measurements.

→ Pharmaceutical Manufacturing
Implement in clean-in-place (CIP) systems, fermentation monitoring, and batch reactor control where FDA 21 CFR Part 11 compliance requires audit trails of process parameters. HART communication provides electronic records of transmitter calibration dates and configuration changes without manual documentation.

→ Water & Wastewater Treatment
Deploy across municipal treatment plants for pH control, chlorine residual monitoring, and flow totalizing applications. Isolated inputs accommodate long cable runs between remote lift stations and central SCADA systems, maintaining measurement accuracy despite varying ground potentials.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose NFAI143-H50 variants when HART communication is required for smart transmitter diagnostics and asset management. For applications using conventional 4-20mA transmitters without digital communication needs, consider NFAI143-S50 models to optimize cost. Evaluate terminal type based on installation preferences: A4S00 pressure-clamp for rapid commissioning, S1 screw terminals for maximum connection security, or MIL connector options for pre-fabricated cable assemblies.

Advanced Integration Capabilities

Native DCS Compatibility: Seamlessly integrates with Yokogawa CENTUM VP, ProSafe-RS, and STARDOM platforms via ESB (Enhanced System Bus) or FCN (Field Control Network) interfaces. Configuration data imports directly from engineering databases, reducing commissioning time and eliminating manual data entry errors.

Third-Party System Support: Standard 4-20mA interface ensures compatibility with PLCs, RTUs, and SCADA systems from all major automation vendors. HART communication follows universal protocol specifications, enabling integration with asset management software including Emerson AMS, Honeywell Experion PKS, and vendor-neutral FDT/DTM frameworks.

Redundancy Architectures: Supports dual-redundant controller configurations with automatic failover, ensuring continuous operation during controller maintenance or failure events. Hot-swap capability allows module replacement without process interruption when deployed in redundant I/O configurations.

Cybersecurity Considerations: Isolated input architecture provides inherent protection against electrical-based cyber-physical attacks. When integrated with Yokogawa's secure system architecture, the module operates within defense-in-depth strategies compliant with IEC 62443 industrial cybersecurity standards.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock modules with factory-sealed packaging and full traceability documentation. Express shipping available for critical project deadlines and emergency replacement scenarios.

Custom Configuration: 2-3 weeks for factory-configured modules with pre-loaded HART device descriptors, custom terminal options, or special testing requirements. Consult with our engineering team for application-specific configurations.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring long-term asset protection.

Technical Support: Pre-sales application engineering assistance for system design, I/O sizing, and integration planning. Post-installation support includes configuration guidance, troubleshooting assistance, and access to technical documentation libraries including wiring diagrams, HART device descriptors, and software configuration tools.

Documentation Package: Each module ships with installation manual, technical datasheet, wiring diagrams, and safety certifications. Digital resources include HART DD files, CAD drawings for panel layout, and configuration examples for common applications.

Frequently Asked Questions

Q: How does HART communication integrate with existing 4-20mA control loops?
A: HART protocol uses frequency-shift keying (FSK) to superimpose digital signals onto the 4-20mA analog current without affecting the primary process variable transmission. The analog signal continues to provide real-time control, while HART communication accesses secondary variables, diagnostics, and configuration parameters. No additional wiring is required—both signals share the same two-wire connection.

Q: What isolation voltage is required for multi-building industrial facilities?
A: The NFAI143-H50/A4S00 provides 1500V AC isolation (1-minute withstand) between input channels and system ground, as well as channel-to-channel isolation. This specification exceeds requirements for most industrial applications, including facilities with separate building grounds, motor control centers, and high-voltage switchgear in proximity to control systems. For applications requiring higher isolation (e.g., traction power systems), consult factory specifications.

Q: Can this module power 2-wire transmitters directly, or is external power required?
A: The module includes integrated 24VDC transmitter power supplies capable of sourcing up to 25mA per channel—sufficient for most 2-wire transmitters including temperature, pressure, and flow devices. This eliminates the need for external transmitter power distribution and simplifies panel wiring. For transmitters requiring >25mA (uncommon), external power supplies with current-limiting resistors can be used in 4-wire configurations.

Q: What is the maximum cable length between transmitters and the input module?
A: Maximum cable length depends on cable resistance and transmitter compliance voltage. For typical 18 AWG shielded cable (6.4Ω per 1000ft) and transmitters with 10V compliance, distances up to 3000 feet are achievable while maintaining measurement accuracy. HART communication range is typically limited to 1500 feet due to capacitance effects on FSK signals. For longer distances, consider HART repeaters or 4-wire transmitter configurations.

Q: How does the pressure-clamp terminal compare to screw terminals for vibration resistance?
A: Pressure-clamp terminals (A4S00 option) provide equivalent or superior vibration resistance compared to screw terminals while offering tool-free installation. The spring-loaded clamp mechanism maintains constant contact pressure across temperature cycles and mechanical vibration, meeting IEC 61131-2 vibration specifications. Screw terminals (S1 option) may be preferred in applications requiring periodic wire removal for testing or where installation standards mandate specific terminal types.

Q: Is the module compatible with intrinsically safe (IS) transmitters in hazardous areas?
A: Yes, when used with appropriate intrinsic safety barriers or isolators between the module and field devices. The NFAI143-H50/A4S00 itself is designed for installation in safe areas (control rooms, marshalling cabinets). For hazardous area installations, deploy certified IS barriers rated for the specific zone classification, ensuring barrier voltage and current limits match transmitter requirements and module input specifications.

Request Technical Consultation

Our automation specialists provide complimentary application engineering support for system design, I/O architecture planning, and integration strategies. Contact us with your project requirements for module selection guidance, wiring diagrams, and configuration assistance tailored to your specific process control application.

Ready to integrate precision analog acquisition into your control system? Request a quotation with delivery timeline, technical documentation package, and volume pricing for multi-module projects.
