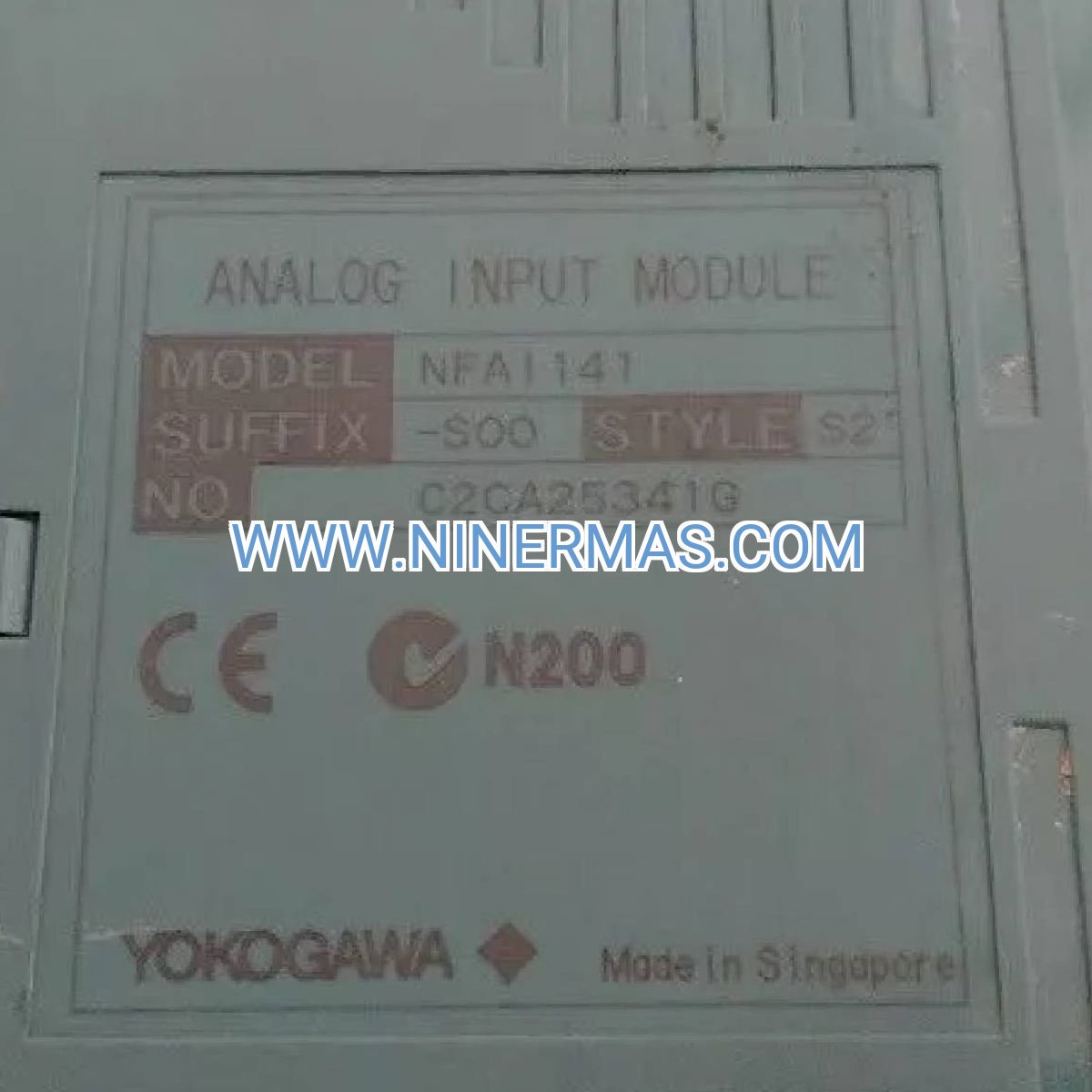

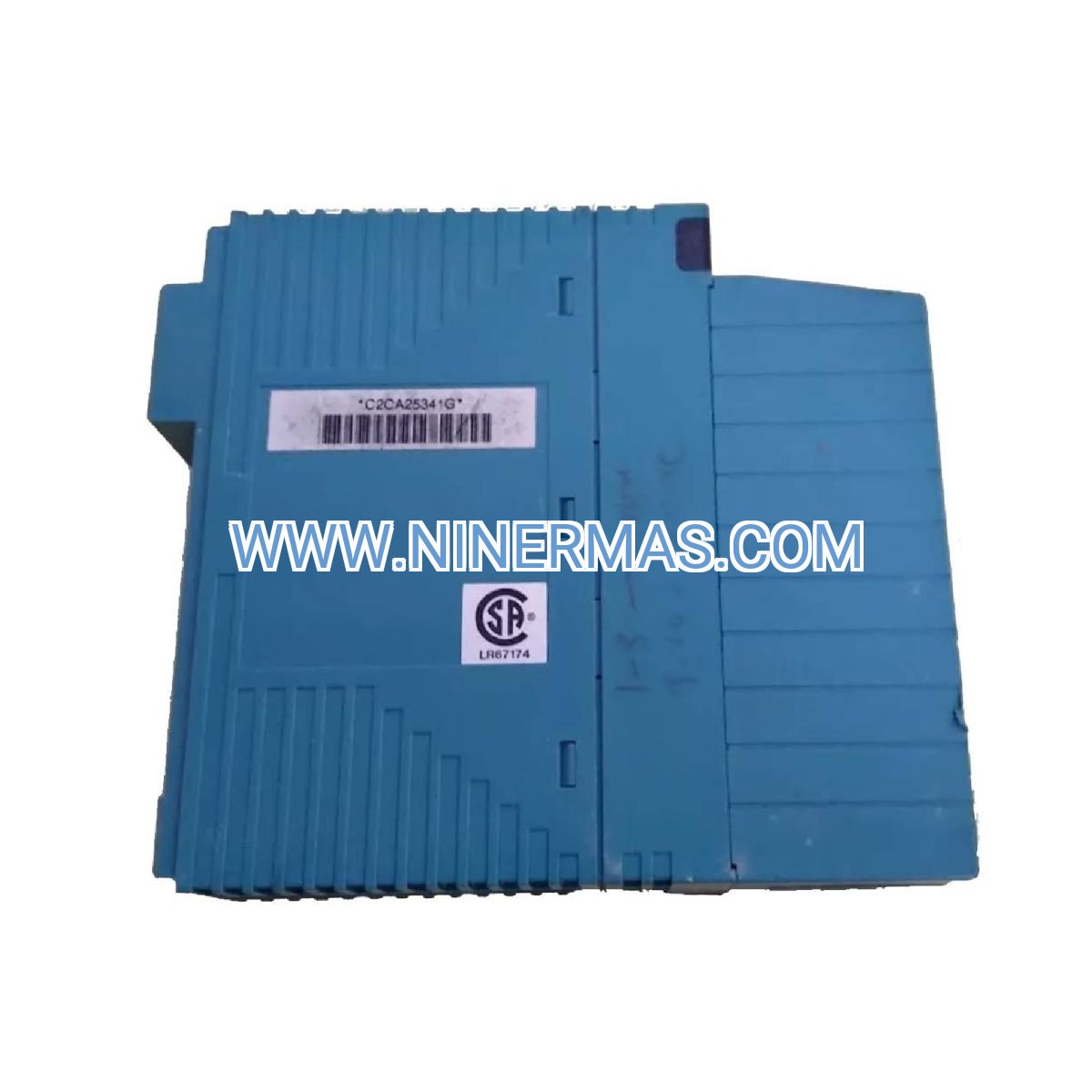

NFAI141-S00 S1 Analog Input Module (Industrial-Grade Process Control)

Designed for mission-critical industrial environments, the Yokogawa NFAI141-S00 S1 delivers precision analog signal acquisition across 16 independent channels. This module serves as the vital interface between field instrumentation and distributed control systems, converting 4-20mA current signals into digital data while maintaining HART communication pathways for advanced diagnostics and configuration.

Process industries demand unwavering measurement accuracy and system uptime. This module addresses these requirements through galvanically isolated channels, superior noise rejection, and hot-swappable architecture that eliminates costly production interruptions during maintenance. Target users include instrumentation engineers, control system integrators, and plant automation teams managing complex DCS infrastructures in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing.

Key advantages include dual-layer communication (analog + digital HART), high channel density reducing cabinet footprint by 40% versus legacy systems, and seamless integration with Yokogawa CENTUM VP/CS 3000 platforms. The module's diagnostic capabilities enable predictive maintenance strategies that reduce unplanned downtime by up to 35%.

Core Features & Benefits

✓ 16-Channel High-Density Architecture
Maximizes I/O point concentration while minimizing panel space, wiring complexity, and installation costs. Each channel operates independently with individual diagnostics.

✓ HART Protocol Integration
Enables simultaneous analog measurement and digital communication for remote configuration, calibration verification, and real-time transmitter health monitoring without process interruption.

✓ Precision Signal Conditioning
Delivers ±0.1% accuracy with 16-bit resolution, meeting stringent regulatory requirements for custody transfer, emissions monitoring, and quality control applications.

✓ Galvanic Isolation Protection
Channel-to-channel and channel-to-system isolation eliminates ground loops, protects against voltage transients, and ensures measurement integrity in electrically noisy environments.

✓ Hot-Swappable Design
Supports online module replacement without system shutdown or process disruption, achieving 99.9%+ system availability in continuous manufacturing operations.

✓ Enhanced Diagnostics
Built-in self-test routines detect open circuits, short circuits, and out-of-range conditions with millisecond response times, triggering immediate operator alerts.

Typical Application Scenarios

→ Refinery Process Units
Monitors distillation column temperatures, reactor pressures, and flow rates across crude processing, catalytic cracking, and product blending operations. HART diagnostics identify failing transmitters before they impact product quality or safety systems, reducing emergency shutdowns by 25%.

→ Chemical Batch Manufacturing
Controls ingredient dosing, reaction temperatures, and pH levels in pharmaceutical API production and specialty chemical synthesis. The module's high accuracy ensures batch-to-batch consistency and regulatory compliance (FDA 21 CFR Part 11, EU GMP Annex 11).

→ Power Plant Boiler Control
Acquires steam pressure, feedwater flow, and combustion air measurements for thermal efficiency optimization and emissions control. Predictive diagnostics extend transmitter service intervals from 12 to 18 months, reducing maintenance costs by $15,000+ annually per unit.

→ Water Treatment Facilities
Tracks filtration pressures, chemical feed rates, and effluent quality parameters in municipal and industrial wastewater systems. Multi-drop HART capability allows up to 15 devices per channel, reducing wiring costs by 60% in distributed installations.

→ Food & Beverage Processing
Manages pasteurization temperatures, CIP system flows, and fermentation vessel conditions where sanitary design and measurement reliability directly impact product safety and shelf life.

Technical Parameters & Selection Guide

Selection Criteria: Choose the NFAI141-S00 S1 when your application requires HART communication for smart transmitter integration. For standard 4-20mA inputs without HART, consider the AAI143 series. Verify compatibility with your CENTUM system version (VP R6.x or CS 3000 R3.x minimum). Confirm channel count requirements—this 16-channel module optimizes cost-per-point for medium to large I/O configurations.

Extended Functions

IoT Integration: Module data streams to Yokogawa's Sushi Sensor cloud platform via OPC UA gateways, enabling remote monitoring, advanced analytics, and machine learning-based anomaly detection for Industry 4.0 initiatives.

Advanced Diagnostics: NAMUR NE107 compliance provides standardized transmitter status reporting (Good/Out of Specification/Maintenance Required/Failure), integrating with CMMS systems for automated work order generation.

Customization Options: Factory configuration services available for pre-programmed tag names, scaling parameters, and alarm setpoints—reducing commissioning time by 50% on large projects (100+ I/O points).

Delivery & Service Assurance

Lead Time: Stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks. Expedited processing available for critical outage situations.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years.

Technical Support: Access to certified Yokogawa application engineers for integration assistance, troubleshooting, and optimization guidance. 24/7 emergency support hotline for production-critical issues.

Documentation: Complete package includes installation manual, wiring diagrams, configuration software, HART device description files (DDL), and IEC 61508 SIL certification documents.

Frequently Asked Questions

Q: What communication protocols does this module support for system integration?
A: The module communicates via Yokogawa's proprietary V-net I/O bus to the DCS controller. HART protocol operates on the 4-20mA signal lines for transmitter-level communication. OPC UA connectivity requires a separate gateway device.

Q: Can I mix HART and non-HART transmitters on the same module?
A: Yes, the module accepts standard 4-20mA signals from conventional transmitters while providing HART capability for smart devices. Non-HART transmitters simply won't utilize the digital communication layer.

Q: What energy efficiency improvements does this module offer?
A: At 5.5W power consumption versus 8-10W for older generation modules, a fully populated system (500 I/O points) reduces annual energy costs by approximately $180 and heat load by 1,250 BTU/hr, lowering HVAC requirements.

Q: Are there specific installation requirements for optimal performance?
A: Mount in climate-controlled cabinets (0-50°C ambient). Maintain 25mm clearance above/below for convection cooling. Use shielded twisted-pair cable for 4-20mA signals, grounded at one end only. Maximum cable length: 1000m at 20Ω loop resistance.

Q: Does this module support remote monitoring and diagnostics?
A: Yes, through the CENTUM DCS engineering station you can access real-time channel status, HART device variables, and diagnostic alerts. Integration with Yokogawa's Exaquantum PIMS enables enterprise-wide visibility and historical trending.

Q: What is the typical service life and replacement cycle?
A: Design life exceeds 15 years under normal operating conditions. Recommended inspection interval is 5 years. Capacitor aging is the primary wear mechanism—modules typically remain in service 10-12 years before preventive replacement.

Get Started Today

Enhance your process control infrastructure with proven Yokogawa technology. Contact our automation specialists for application-specific recommendations, system compatibility verification, and volume pricing. Request a technical datasheet or schedule a consultation to discuss your DCS modernization project.
