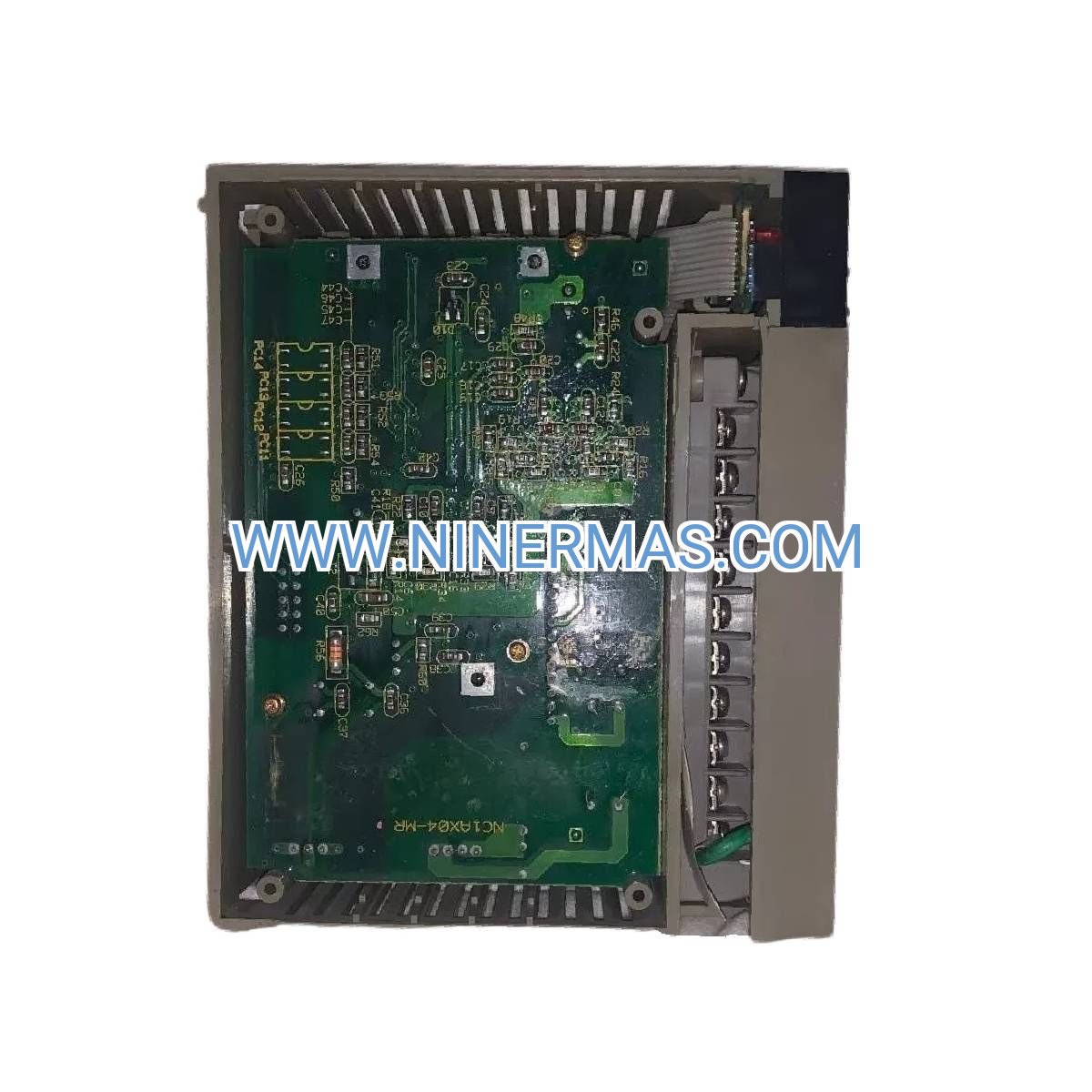

NC1AX04-MR Industrial Analog Input Module (4-Channel High-Precision I/O)

The NC1AX04-MR represents Yokogawa's commitment to precision signal acquisition in demanding industrial environments. Engineered as a native I/O expansion module for STARDOM FCN and FCJ autonomous controllers, this 4-channel analog input interface transforms field transmitter signals into actionable process data with 16-bit resolution accuracy. Whether monitoring pressure transducers in chemical reactors, temperature sensors in heat exchangers, or flow meters in pipeline networks, the NC1AX04-MR delivers consistent, reliable analog signal conditioning for mission-critical automation systems.

Designed for process engineers and system integrators who demand both performance and reliability, this module addresses the fundamental challenge of accurate analog data acquisition in electrically noisy industrial settings. Its channel-to-channel isolation architecture prevents ground loop interference, while wide operating temperature tolerance (-20°C to +60°C) ensures stable operation in uncontrolled environments. The result: trustworthy process measurements that form the foundation of effective control strategies and operational decision-making.

From pharmaceutical batch processing to power generation monitoring, the NC1AX04-MR serves as the critical interface between your physical process and digital control logic. Its proven track record in thousands of installations worldwide makes it the go-to choice for automation professionals seeking dependable analog input solutions.

Core Capabilities & Technical Advantages

→ Dual Signal Compatibility: Accepts both industry-standard 4-20 mA current loops and 1-5 VDC voltage signals, providing flexibility to interface with diverse transmitter types without external signal conditioning. Eliminates the need for separate modules for different sensor outputs.

→ Superior Measurement Resolution: 16-bit analog-to-digital conversion delivers 65,536 discrete measurement steps across the input range, enabling detection of subtle process variations that 12-bit systems miss. Critical for applications requiring tight process control tolerances.

✓ Electrical Isolation Protection: Galvanic isolation between input channels and between channels and system bus prevents electrical noise propagation, protecting both the module and connected field devices from voltage spikes and ground potential differences common in industrial installations.

✓ Hot-Swap Serviceability: Field-replaceable design allows module removal and installation without powering down the entire controller system, minimizing production interruptions during maintenance activities and reducing mean time to repair (MTTR).

• Compact DIN-Rail Mounting: Space-efficient form factor optimizes control panel real estate, allowing higher I/O density in confined enclosures. Standard 35mm DIN-rail compatibility simplifies mechanical installation and cabinet layout planning.

• Fast Scan Cycle Performance: Rapid input update rates ensure real-time process visibility, supporting responsive control loops and timely alarm detection. Particularly valuable in dynamic processes where delayed measurements compromise control effectiveness.

Industrial Application Scenarios

Chemical & Petrochemical Processing: Monitor reactor temperatures, distillation column pressures, and feed flow rates with the precision required for safe, efficient batch and continuous processes. The module's isolation capabilities protect against the electrical noise generated by variable frequency drives and large motor starters common in chemical plants.

Water & Wastewater Treatment: Acquire pH, turbidity, dissolved oxygen, and flow measurements from distributed treatment stages. The wide operating temperature range accommodates outdoor installations and unheated pump stations, while the 4-20 mA current loop compatibility ensures signal integrity over long cable runs between remote lift stations and central control rooms.

Oil & Gas Production Facilities: Interface with wellhead pressure transmitters, separator level sensors, and pipeline flow computers in upstream production environments. Robust construction withstands the vibration and temperature extremes of offshore platforms and desert field installations.

Manufacturing & Assembly Lines: Track process variables such as hydraulic pressures, pneumatic system flows, and temperature profiles in automated production equipment. Fast scan rates support quality control applications where rapid detection of out-of-specification conditions prevents defect propagation.

Power Generation & Distribution: Monitor bearing temperatures, lube oil pressures, and cooling water flows in turbine-generator sets. The module's reliability contributes to overall plant availability by providing dependable input data for protective relay systems and performance optimization algorithms.

Technical Parameters & Selection Guide

Selection Criteria: Choose the NC1AX04-MR when your application requires four or fewer analog inputs per controller location. For higher channel counts, consider combining multiple modules or evaluating Yokogawa's 8-channel alternatives. Verify that your field transmitters output either 4-20 mA or 1-5 VDC signals; sensors with other output ranges (0-10V, 0-5V, etc.) may require external signal conditioning. Confirm compatibility with your specific STARDOM controller model (FCN or FCJ series) before ordering.

Extended Functions

Engineering Software Integration: Full configuration support through Yokogawa's Resource Configurator tool enables offline programming, parameter backup, and rapid commissioning. Diagnostic functions provide real-time channel health monitoring and fault detection.

Redundancy Support: Compatible with STARDOM redundant controller configurations for high-availability applications where process continuity is essential. Automatic failover ensures uninterrupted data acquisition during controller switchover events.

Customization Options: Factory configuration services available for large projects requiring pre-programmed modules with customer-specific parameters, reducing on-site commissioning time and minimizing configuration errors.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited shipping available for urgent project requirements.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to application engineers with STARDOM system expertise for pre-sales consultation, installation guidance, and troubleshooting assistance. Remote diagnostic support available during commissioning phases.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration examples, and dimensional drawings. Complete technical specifications and compliance certificates available for download.

Frequently Asked Questions

Q: How do I connect 2-wire transmitters to the NC1AX04-MR current inputs?
A: The module provides loop power for 2-wire 4-20 mA transmitters directly from the input terminals. Simply connect the transmitter across the input channel terminals observing correct polarity. No external power supply is required for the transmitter loop.

Q: What is the maximum cable length between field transmitters and the module?
A: For 4-20 mA current signals, cable runs up to 1000 meters are supported with standard instrumentation cable. Voltage inputs (1-5 VDC) should be limited to 100 meters to minimize signal degradation from cable resistance. Use shielded twisted-pair cable for optimal noise immunity.

Q: Can this module achieve energy savings compared to older I/O systems?
A: Yes, the NC1AX04-MR's efficient design consumes approximately 40% less power than legacy analog input modules, reducing heat generation in control panels and lowering cooling requirements. Over a typical 10-year service life, energy savings can offset a significant portion of the initial investment.

Q: What are the physical installation requirements for this module?
A: The module requires a STARDOM FCN or FCJ controller base with available I/O slot. Minimum clearances: 50mm above and below for ventilation, 25mm on sides for wiring access. Ambient temperature must remain within -20°C to +60°C range. Vibration isolation recommended for mobile equipment installations.

Q: Does the NC1AX04-MR support remote monitoring and diagnostics?
A: When integrated with a STARDOM controller connected to a network, all input channel data and diagnostic status are accessible via standard industrial protocols (Modbus TCP, OPC UA). This enables remote monitoring through SCADA systems, cloud platforms, or mobile applications.

Q: How does the module handle sensor failures or wiring faults?
A: Built-in diagnostics detect open circuits, short circuits, and out-of-range signals on each input channel. Configurable alarm thresholds trigger notifications when measurements exceed normal operating bounds. Diagnostic LEDs on the module provide at-a-glance status indication for rapid troubleshooting.

Get Started with Your Automation Project

Ready to enhance your process control system with proven analog input technology? Contact our automation specialists for application-specific recommendations, system architecture consultation, and competitive project pricing. We maintain ready stock of NC1AX04-MR modules and complementary STARDOM components to support your timeline.

Request a technical datasheet, discuss your specific requirements, or place your order today.
