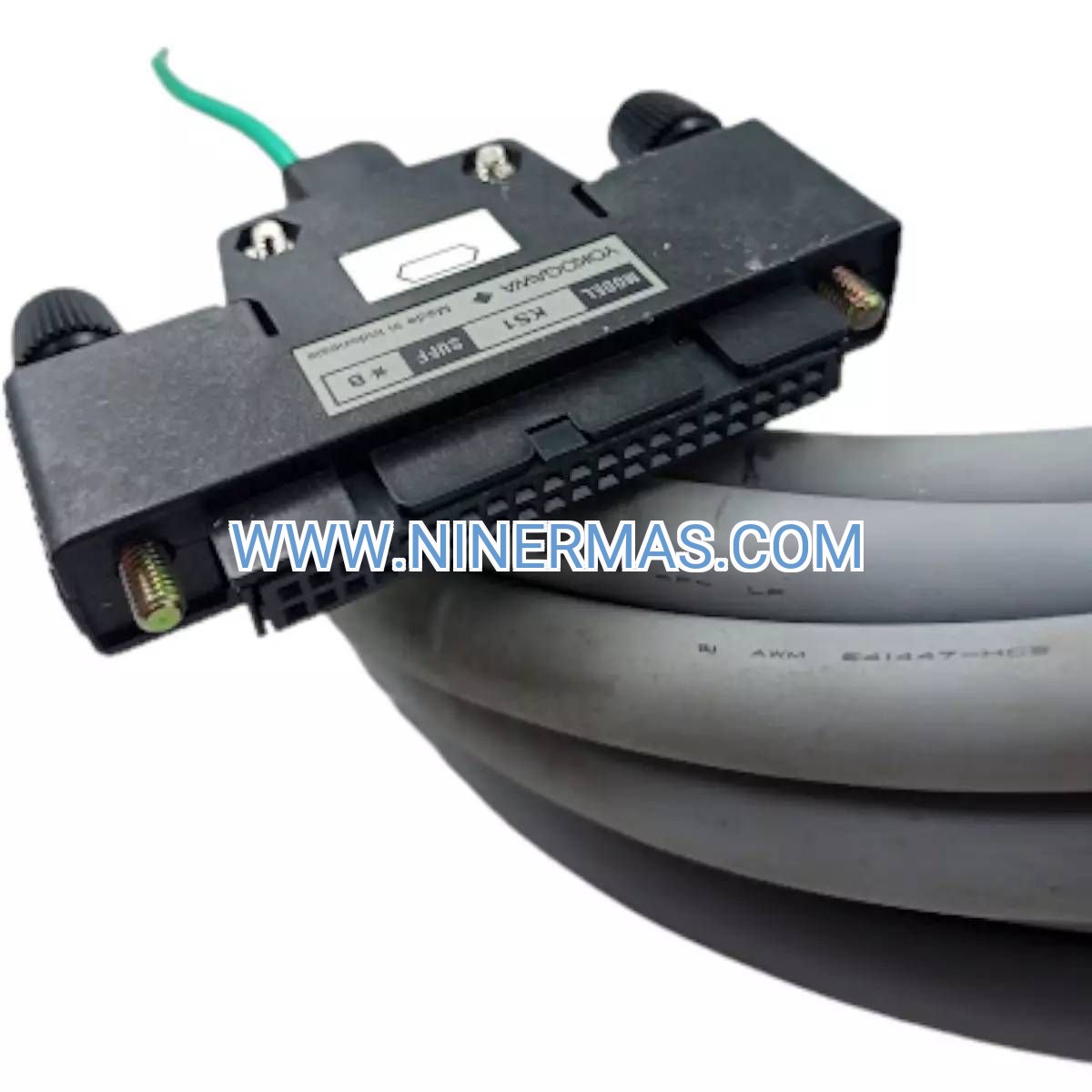

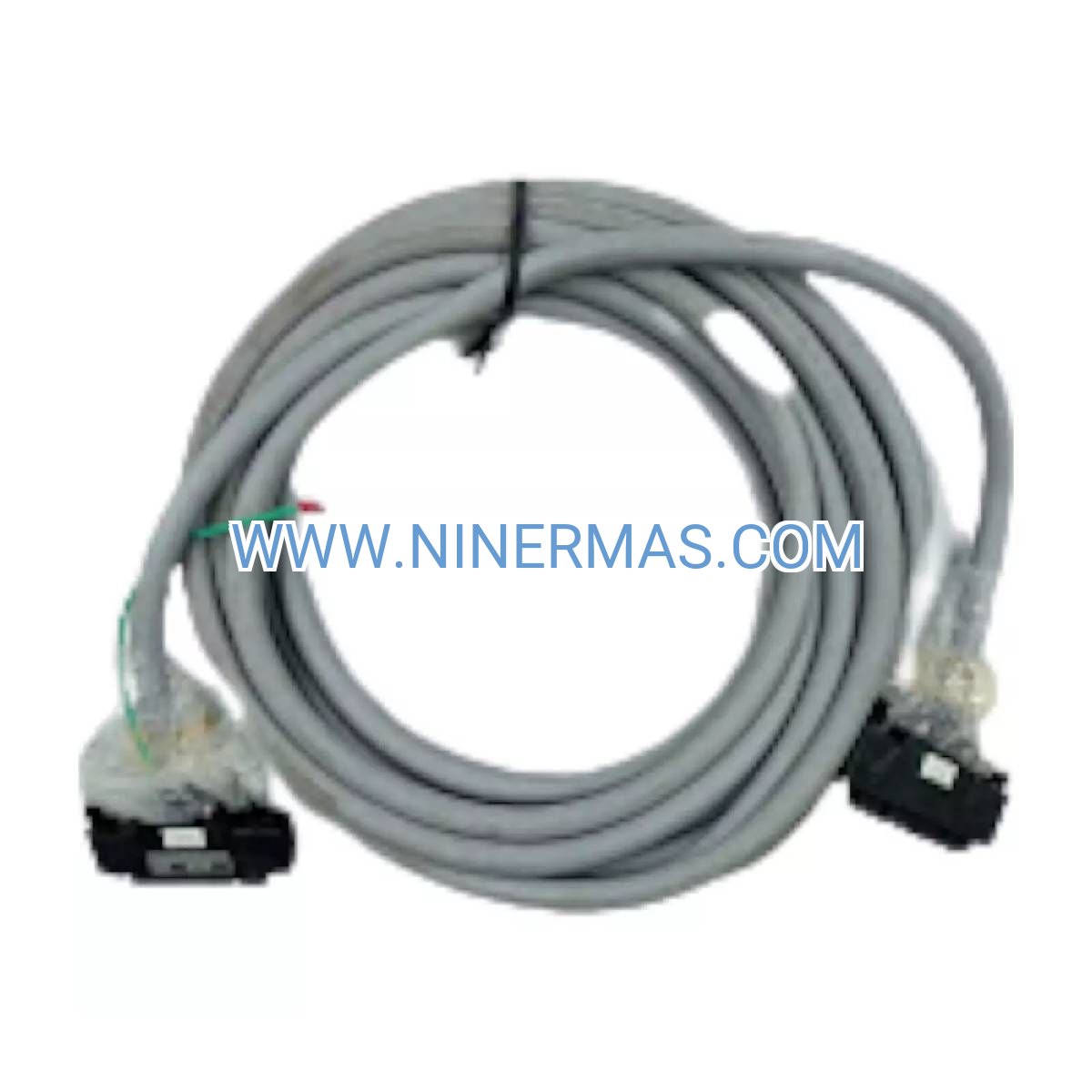

Yokogawa KS1-10-B 40-Pin Signal Cable (Industrial-Grade DCS Interconnect)

The Yokogawa KS1-10-B represents a critical infrastructure component for distributed control system architectures, delivering deterministic signal transmission between field control units and I/O subsystems. Engineered with 10 meters of shielded cable and precision-machined 40-pin connectors, this interconnect solution addresses the demanding requirements of process industries where signal integrity directly impacts operational safety and production efficiency.

Designed for integration within Yokogawa CENTUM VP, CS 3000, and ProSafe-RS platforms, this cable serves automation engineers managing complex control loops across refineries, chemical plants, and power generation facilities. The dual-connector configuration eliminates custom termination work, reducing installation time by up to 60% compared to field-wired alternatives while maintaining compliance with international EMC standards.

With multi-layer EMI/RFI shielding and gold-plated contact surfaces, the KS1-10-B ensures stable data exchange in electrically hostile environments where motor drives, VFDs, and high-voltage switchgear generate significant electromagnetic noise. This cable is the proven choice for mission-critical applications demanding 99.99% uptime and zero signal degradation over extended service life.

Core Features & Technical Advantages

✓ Pre-Terminated 40-Pin Connectors
Factory-assembled male-to-male connectors eliminate field termination errors and reduce commissioning labor costs by 40-50%. Each pin features gold-plated contacts rated for 10,000+ mating cycles, ensuring long-term connection stability in high-vibration industrial environments.

✓ Multi-Layer EMI/RFI Shielding
Triple-layer shield construction (aluminum foil + braided copper + drain wire) provides >90dB noise rejection at frequencies up to 1GHz. This design maintains signal-to-noise ratios exceeding 60dB in proximity to 480VAC motor circuits and 50kW VFD installations.

✓ Extended Temperature Range (-20°C to +60°C)
Military-grade insulation materials maintain dielectric strength and flexibility across extreme ambient conditions, from Arctic outdoor installations to tropical process areas with elevated heat loads.

✓ 10-Meter Optimized Length
Pre-engineered cable length balances signal propagation delay (≤50ns) with installation flexibility, supporting typical cabinet-to-field-junction-box distances while minimizing voltage drop to <0.1V at 20mA signal levels.

✓ CE/UL/RoHS Certified
Full compliance with IEC 61326-1, UL 2238, and RoHS 3 directives ensures global regulatory acceptance and environmental responsibility across multinational project deployments.

→ Flexible Jacket Design
PVC outer sheath with 4x cable diameter minimum bend radius allows routing through congested cable trays and tight conduit bends without compromising shield effectiveness or conductor integrity.

Industrial Application Scenarios

Oil & Gas Upstream Production
Connects wellhead control panels to remote I/O racks monitoring pressure transmitters, flow meters, and safety shutdown valves. The cable's corrosion-resistant jacket withstands H2S exposure and salt-fog environments common in offshore platforms, while maintaining signal accuracy for custody transfer metering applications requiring ±0.1% measurement uncertainty.

Chemical Batch Processing
Links reactor control systems to analog input modules handling 4-20mA signals from pH sensors, temperature RTDs, and level transmitters. EMI shielding prevents interference from nearby agitator motors and heating elements, ensuring recipe precision in pharmaceutical API manufacturing where batch deviations can result in $500K+ product losses.

Power Generation HRSG Systems
Interconnects turbine control cabinets with distributed I/O monitoring steam temperature, drum level, and emissions parameters. The cable's -20°C cold-start rating supports outdoor installations in northern climates, while 60°C continuous operation handles proximity to heat recovery steam generators.

Water Treatment SCADA Networks
Provides reliable communication between PLC racks and remote pump stations controlling chlorine dosing, filtration backwash, and effluent discharge. Low-capacitance design (<150pF/m) preserves fast-response analog signals critical for real-time pH control in municipal drinking water systems.

Food & Beverage Pasteurization Lines
Supports hygienic area I/O connections in CIP-compatible control panels, with jacket materials resistant to caustic cleaning agents and high-pressure washdown procedures. Maintains signal integrity during thermal cycling between refrigeration zones and pasteurization tunnels.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KS1-10-B when your CENTUM DCS architecture requires pre-terminated I/O interconnects spanning 8-12 meters between control cabinets and field junction boxes. For distances exceeding 15 meters, consider fiber-optic alternatives to avoid signal attenuation. Verify connector pinout compatibility with your specific I/O module series (AAI, ADV, ALE) before ordering. In hazardous area applications (Zone 1/Div 1), pair with appropriate intrinsic safety barriers such as the Yokogawa SAI143 series.

Extended Functionality & System Integration

Hot-Swap Capability: When used with redundant I/O configurations, the cable supports online replacement without process interruption, enabling maintenance during production runs and reducing planned downtime by 30-40 hours annually.

Diagnostic Compatibility: Integrates with Yokogawa's PRM (Plant Resource Manager) asset management software for cable health monitoring via loop resistance measurements and insulation degradation trending, supporting predictive maintenance strategies.

Multi-Protocol Support: While optimized for analog 4-20mA and discrete 24VDC signals, the cable's bandwidth (>10MHz) accommodates HART digital communication overlays and Foundation Fieldbus H1 segments when used with appropriate interface modules.

Customization Options: For non-standard installations, Yokogawa offers custom cable lengths (5m, 15m, 20m variants) and armored jacket versions for direct burial or rodent-prone environments. Consult factory for lead times on special configurations.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock items via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configurations: 4-6 weeks for factory-special cable lengths or connector modifications. Expedited production available for critical path projects (additional fees apply).

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship failures. Warranty excludes damage from improper installation, chemical exposure, or mechanical abuse.

Technical Support: Lifetime access to application engineering assistance for cable routing design, EMC troubleshooting, and system integration questions. Response time: <4 hours for critical issues, <24 hours for general inquiries.

Documentation Package: Each cable ships with Certificate of Conformity, dimensional drawings, pinout diagrams, and installation guidelines. CAD models (STEP/IGES) available upon request for 3D cabinet layout design.

Frequently Asked Questions

Q: How do I verify compatibility between the KS1-10-B cable and my existing Yokogawa I/O modules?
A: The cable uses standard 40-pin connectors compatible with all CENTUM VP and CS 3000 I/O series (AAI, ADV, ALE, AAT modules). Check your module's rear panel for the 40-pin receptacle—if present, the KS1-10-B will mate directly. For legacy CENTUM-V systems, verify connector type before ordering.

Q: What is the maximum recommended cable run length for maintaining signal integrity in noisy industrial environments?
A: For 4-20mA analog signals, the 10-meter KS1-10-B maintains <0.1% accuracy degradation in environments with up to 10V/m radiated field strength. For runs exceeding 15 meters or areas with extreme EMI (arc welders, induction heaters), consider fiber-optic I/O extenders or additional shielded conduit.

Q: Can this cable support redundant I/O configurations for SIL-rated safety systems?
A: Yes, the KS1-10-B is approved for use in ProSafe-RS redundant architectures up to SIL 3 per IEC 61508. Each redundant channel requires a separate cable. Ensure proper cable segregation (>300mm spacing) to prevent common-cause failures from physical damage.

Q: Does the cable require special grounding or shielding termination procedures during installation?
A: The cable's shield is factory-terminated at both connectors and automatically grounds when mated to Yokogawa I/O modules. No additional grounding straps are required. Avoid cutting or stripping the cable, as this compromises shield continuity and voids warranty.

Q: What environmental factors affect the cable's 24-month warranty coverage?
A: Warranty excludes failures caused by exposure to corrosive chemicals (strong acids/bases), mechanical crushing (>50kg point loads), or operation outside the -20°C to +60°C temperature range. UV degradation from direct sunlight exposure is covered for indoor installations only.

Q: How does the KS1-10-B compare to generic 40-pin ribbon cables in terms of industrial reliability?
A: Unlike commercial ribbon cables, the KS1-10-B features triple-layer shielding (vs. unshielded), gold-plated contacts (vs. tin), and industrial-grade PVC jacketing rated for oil/chemical resistance. MTBF testing shows 15-year service life in typical DCS applications versus 3-5 years for generic alternatives.

Take the Next Step

Ensure uninterrupted signal integrity in your Yokogawa CENTUM DCS deployment. Contact our automation specialists today for technical consultation, volume pricing, or same-day quotation on the KS1-10-B and complementary I/O infrastructure components. Our team provides application-specific cable routing recommendations and system integration support to optimize your control system reliability.

Request a Quote: Email your project specifications to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
