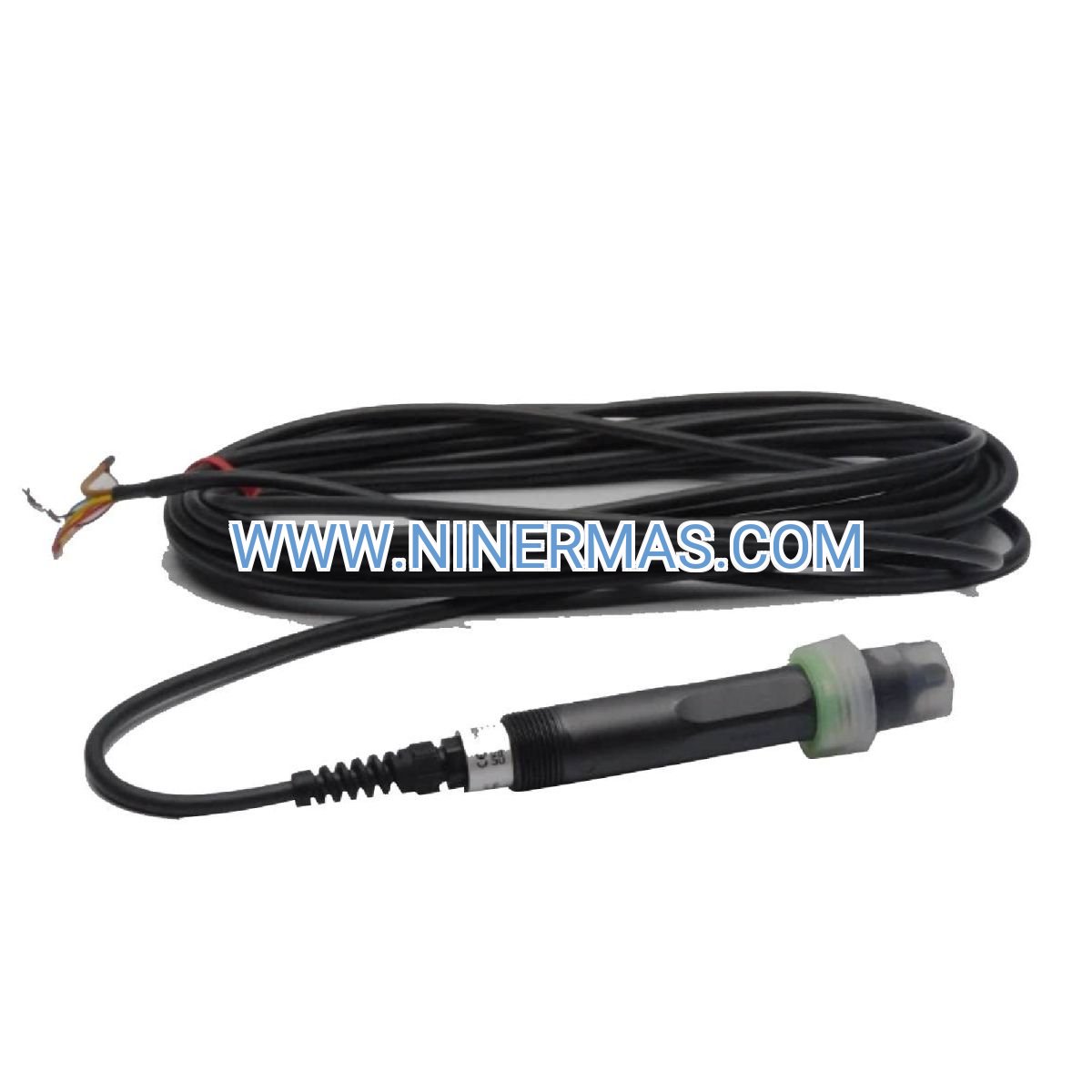

FU20-10-T1-NPT Industrial-Grade pH Measurement Electrode

The FU20-10-T1-NPT represents Yokogawa's advanced solution for continuous pH monitoring in harsh industrial environments. This combination electrode integrates a glass pH sensor with a Pt1000 RTD temperature detector, enabling automatic temperature compensation that ensures measurement accuracy across fluctuating thermal conditions. Built with a reinforced PPS GF40 body and gel-filled Ag/AgCl reference system, this sensor delivers reliable performance in water treatment, chemical manufacturing, and process control applications where precision pH measurement is mission-critical.

Designed for process engineers and plant operators managing complex water chemistry, the FU20-10-T1-NPT addresses the challenge of maintaining accurate pH readings in dynamic industrial processes. Whether you're controlling neutralization reactions, monitoring effluent discharge compliance, or optimizing chemical dosing systems, this electrode provides the measurement stability and durability required for 24/7 operation.

With NPT threaded connection for universal compatibility, extended service intervals through gel electrolyte technology, and seamless integration with Yokogawa analyzers, the FU20-10-T1-NPT reduces total cost of ownership while improving process control accuracy. Request technical specifications and application guidance today.

Core Features & Business Value

✓ Integrated Pt1000 RTD Temperature Sensor
Automatic temperature compensation eliminates manual correction factors, reducing operator workload and preventing measurement errors caused by thermal drift. Maintains ±0.02 pH accuracy across 0-100°C range.

✓ Gel-Filled Ag/AgCl Reference Electrode
Minimizes electrolyte leakage and contamination risks compared to liquid-filled designs. Extends calibration intervals by 40-60%, lowering maintenance costs and reducing process downtime for sensor servicing.

✓ PPS GF40 Reinforced Body Construction
Polyphenylene sulfide with 40% glass fiber reinforcement provides exceptional chemical resistance to acids, alkalis, and organic solvents. Withstands mechanical stress in high-vibration installations and pressure surges up to 0.3 MPa.

→ NPT Threaded Process Connection
Standard NPT threading enables drop-in replacement for existing pH sensors without custom adapters or process modifications. Reduces installation time by 50% compared to flanged or tri-clamp designs.

→ Wide pH & Temperature Operating Range
Measures pH 0-14 across 0-100°C (32-212°F), covering 95% of industrial process applications. Single sensor handles both acidic and alkaline environments, reducing spare parts inventory requirements.

→ Fast Response Time & Low Impedance
Quick equilibration (T90 < 30 seconds) supports dynamic process control and rapid batch transitions. Low-impedance glass membrane maintains signal stability in high-purity water and low-conductivity applications.

Typical Application Scenarios

Municipal Water Treatment Plants
Continuous pH monitoring in coagulation basins, filtration systems, and chlorination stages ensures drinking water quality compliance with EPA/WHO standards. The sensor's gel reference prevents contamination in clean water applications, while Pt1000 RTD compensates for seasonal temperature variations in outdoor installations.

Chemical Manufacturing & Neutralization Systems
Real-time pH control in acid-base neutralization reactors prevents hazardous discharge violations and optimizes chemical consumption. Fast response time enables tight pH control (±0.1 pH) during batch reactions, reducing raw material waste by 8-15% through precise endpoint detection.

Pharmaceutical Production & CIP Systems
Validated pH measurement in API synthesis, fermentation vessels, and clean-in-place circuits meets FDA 21 CFR Part 11 requirements. Chemical-resistant construction withstands aggressive cleaning agents (2% NaOH, 2% HNO₃) without sensor degradation, extending service life to 18-24 months.

Food & Beverage Processing
Quality assurance in brewing, dairy pasteurization, and soft drink production maintains product consistency and shelf stability. Sanitary NPT connection simplifies installation in hygienic process lines, while gel electrolyte eliminates silver ion contamination risks in food-contact applications.

Power Plant Boiler Water Chemistry
Boiler feedwater pH control (8.5-9.5) prevents corrosion and scaling in high-pressure steam systems. Temperature compensation up to 100°C ensures accurate readings in deaerator outlets and economizer circuits, protecting multi-million dollar boiler assets from chemistry-related failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FU20-10-T1-NPT when your application requires automatic temperature compensation in processes with thermal variations exceeding ±10°C. The NPT connection is ideal for North American installations with existing NPT-threaded process fittings. For applications with process temperatures consistently below 60°C and stable thermal conditions, consider standard pH electrodes without integrated RTD to reduce initial cost. For high-pressure applications (>0.3 MPa), specify flanged electrode designs with reinforced pressure seals.

Extended Functions

IoT Integration & Remote Monitoring: When paired with Yokogawa FLXA21 or FLXA202 transmitters featuring Modbus RTU/TCP or HART communication protocols, the FU20-10-T1-NPT enables remote pH monitoring through SCADA systems and cloud-based analytics platforms. Real-time data logging supports predictive maintenance strategies and regulatory compliance documentation.

Advanced Diagnostics: Compatible analyzers provide electrode impedance monitoring, reference junction diagnostics, and temperature sensor validation. Early warning alerts for electrode aging, coating buildup, or reference depletion prevent measurement drift before process upsets occur.

Customization Options: Available with extended cable lengths (10m, 15m), alternative process connections (G3/4", 1" NPT), and specialized glass formulations for high-sodium or HF-containing applications. Contact our technical team for application-specific configurations.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom cable lengths or specialized glass types require 2-3 weeks manufacturing lead time.

Warranty: 18-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical process applications.

Technical Support: Application engineering assistance for sensor selection, installation guidance, and troubleshooting. Calibration protocols and maintenance procedures provided with each sensor.

Documentation: Complete package includes installation manual, calibration certificate, material compatibility chart, and dimensional drawings. IQ/OQ protocols available for pharmaceutical/biotech installations.

Frequently Asked Questions

What analyzer models are compatible with the FU20-10-T1-NPT pH sensor?
The sensor works with all Yokogawa pH/ORP analyzers including FLXA21, FLXA202, FLXA402, and legacy PH8 series transmitters. The Pt1000 RTD output connects to dedicated temperature input terminals for automatic compensation. Verify your analyzer supports 3-wire Pt1000 configuration before ordering.

How often does this combination pH electrode require calibration?
Calibration frequency depends on application severity. Water treatment applications typically require monthly 2-point calibration (pH 7.00, 10.01). Chemical processing with aggressive media may need weekly verification. The gel reference extends calibration stability 40-60% versus liquid-filled electrodes, reducing maintenance frequency.

Can the FU20-10-T1-NPT measure pH in high-purity water or deionized water?
Yes, the low-impedance glass membrane maintains stable readings in low-conductivity water (>0.1 μS/cm). For ultra-pure water (<0.1 μS/cm), consider specialized high-impedance electrodes designed for resistivity >10 MΩ·cm applications. The gel reference prevents contamination in clean water systems.

What is the maximum process pressure rating for this pH sensor?
The FU20-10-T1-NPT is rated for 0.3 MPa (43.5 psi, 3 bar) continuous operating pressure. For higher-pressure applications up to 1.0 MPa, specify Yokogawa's flanged electrode series with reinforced pressure seals and thicker glass membranes.

Does the sensor support remote monitoring and data logging capabilities?
When connected to compatible Yokogawa transmitters with Modbus, HART, or Ethernet communication, the sensor enables remote pH monitoring through SCADA, DCS, or cloud platforms. The Pt1000 RTD provides simultaneous temperature data for comprehensive process analytics and predictive maintenance algorithms.

How do I install the NPT threaded connection without damaging the glass electrode?
Use a strap wrench on the PPS body (never the glass bulb) and apply thread sealant rated for your process chemistry. Torque to 20-25 Nm (15-18 ft-lb) maximum. Avoid over-tightening which can crack the glass membrane. Install with the electrode oriented downward or horizontal to prevent air bubble entrapment in the reference junction.

Get Expert Application Support

Our process instrumentation specialists provide complimentary application consultations to ensure optimal sensor selection for your specific water chemistry and process conditions. Contact us with your pH range, temperature profile, chemical composition, and pressure requirements for personalized recommendations and competitive quotations.
