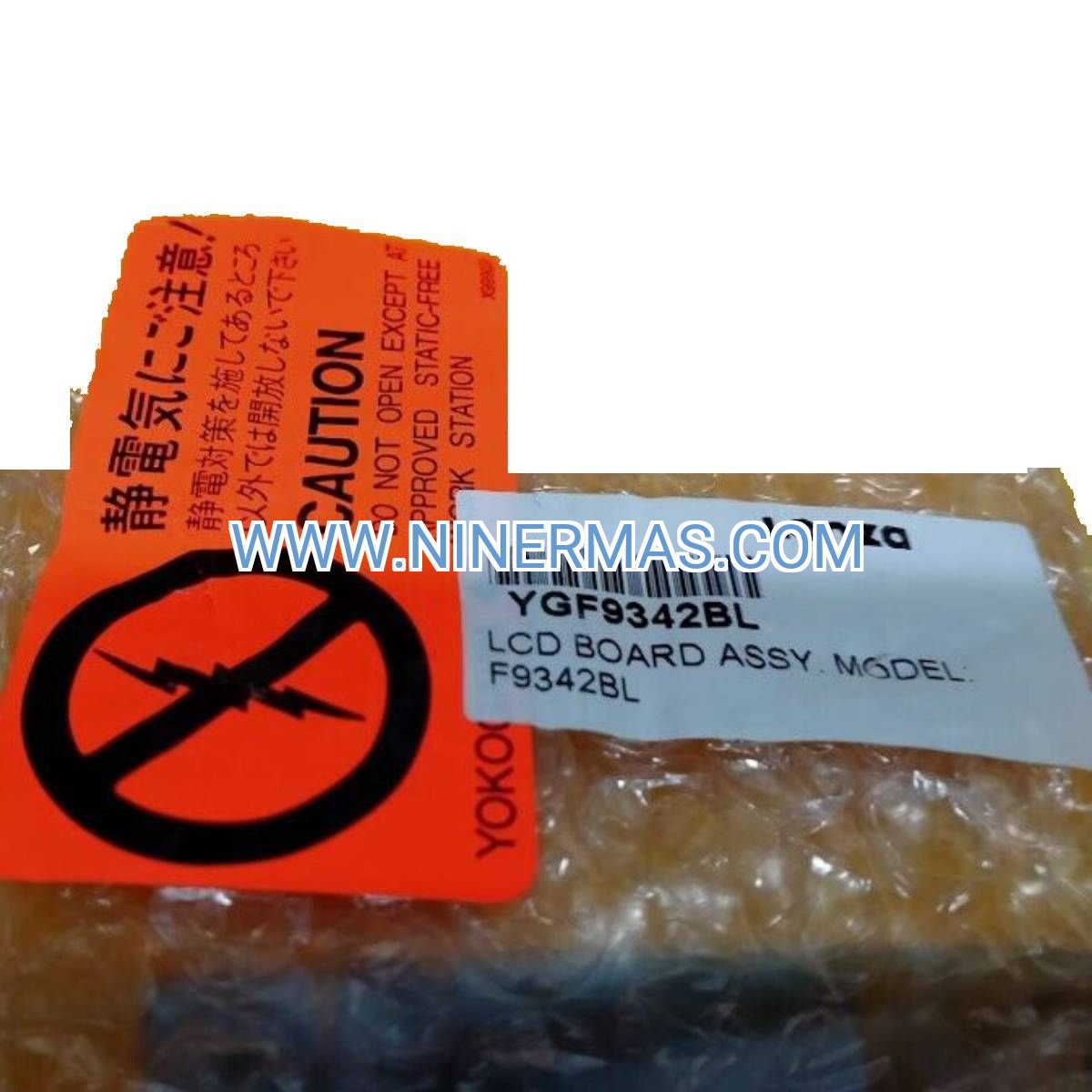

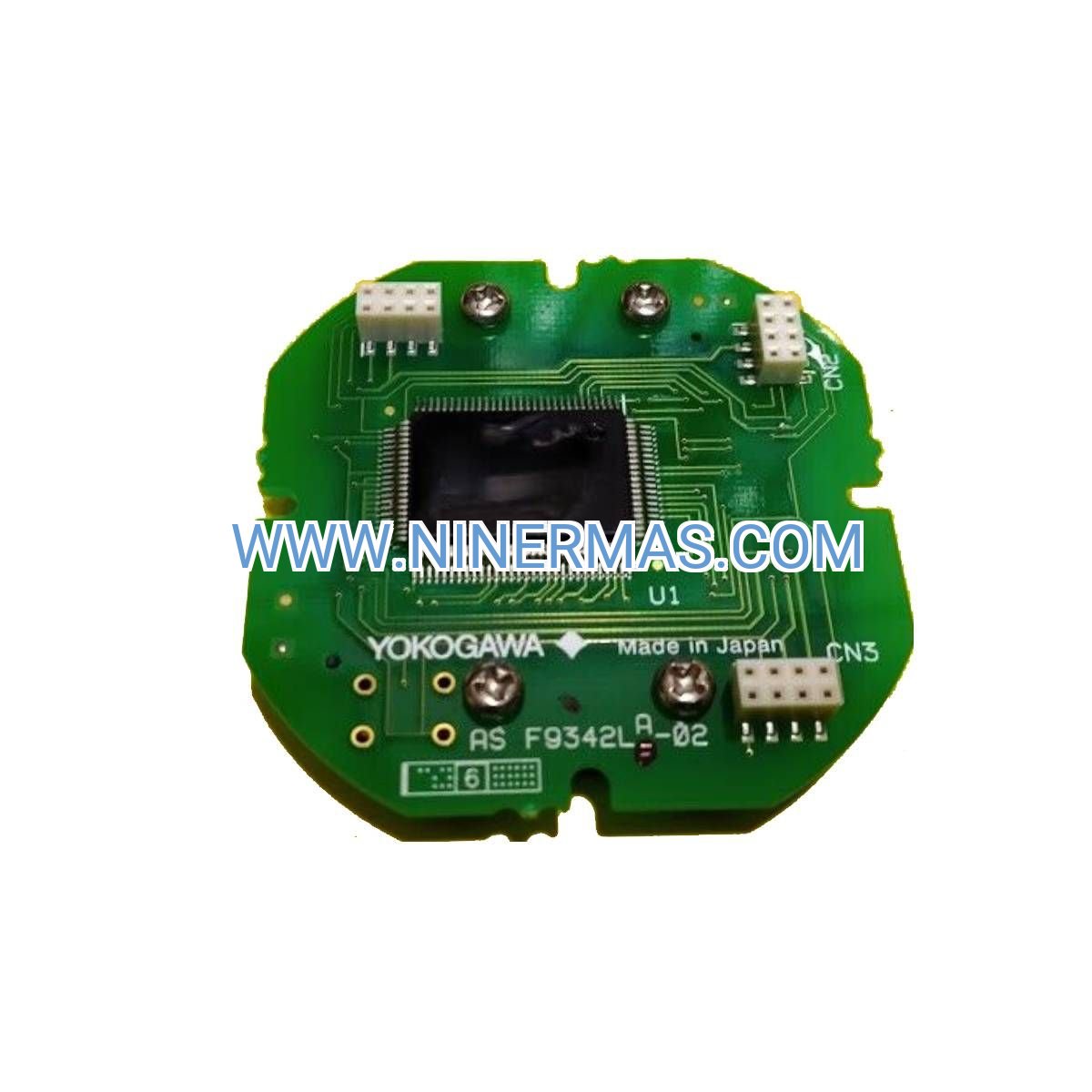

F9342BL LCD Display Assembly (Industrial-Grade Replacement Module)

The F9342BL represents Yokogawa's engineered solution for maintaining visual interface integrity in YTA-series temperature transmitters operating across refining, chemical processing, and pharmaceutical manufacturing environments. This factory-certified LCD assembly restores full display functionality to YTA110, YTA310, YTA320, and YTA610 units experiencing screen degradation or failure—eliminating costly transmitter replacement while preserving calibration data and HART configuration.

Designed for instrumentation technicians managing critical temperature loops, the F9342BL addresses the primary failure mode in field-mounted transmitters: display deterioration from UV exposure, thermal cycling, and moisture ingress. Unlike generic aftermarket alternatives, this OEM module maintains the precise contrast ratios and segment geometry required for accurate parameter visualization during commissioning, troubleshooting, and routine verification activities.

Immediate deployment capability through snap-fit installation architecture—no specialized tooling or recalibration procedures required. The assembly integrates seamlessly with existing YTA transmitter housings, preserving IP67 environmental protection and hazardous area certifications.

Core Capabilities & Technical Advantages

→ Extended Temperature Performance: Operates reliably from -40°C to +85°C, maintaining readability in Arctic pipeline installations and desert refinery applications where ambient extremes exceed standard commercial display specifications.

→ Enhanced Optical Clarity: Factory-calibrated backlight system delivers consistent illumination across 0-100% intensity range, enabling parameter verification in direct sunlight or during nighttime maintenance operations without auxiliary lighting.

→ Sealed Construction Architecture: Multi-layer gasket design prevents condensation accumulation and particulate infiltration—critical for coastal facilities and high-humidity process areas where moisture-induced failures compromise display longevity.

→ Drop-In Compatibility: Precision-matched connector interface and mounting geometry ensure first-time-fit installation across all YTA transmitter variants, reducing mean-time-to-repair during unplanned maintenance events.

✓ HART Protocol Visibility: Full-resolution display of device tags, process variables, diagnostic codes, and configuration parameters—essential for loop commissioning and troubleshooting without handheld communicator dependency.

✓ Wide Viewing Angle: 160° horizontal visibility enables multi-technician observation during calibration procedures and facilitates parameter verification from non-optimal access positions in congested pipe racks.

Industrial Application Scenarios

Refinery Temperature Monitoring Systems: Maintenance teams deploy F9342BL assemblies during turnaround activities to restore display functionality in crude distillation, catalytic cracking, and hydrotreating units where transmitter replacement would require hot-work permits and extended downtime. The assembly's thermal resilience ensures continued operation in high-radiant-heat zones near furnaces and reactors.

Chemical Process Control Loops: Instrumentation departments utilize the F9342BL to maintain visual interface capability in batch reactor temperature control systems, where display failure during critical reaction phases compromises operator situational awareness. The sealed construction prevents corrosive vapor ingress in chlor-alkali and acid production environments.

Pharmaceutical Clean Room Instrumentation: Validation engineers specify the F9342BL for GMP-compliant temperature transmitter maintenance, preserving equipment qualification status through like-for-like component replacement. The assembly's contamination-resistant design supports cleaning protocol compliance in aseptic processing areas.

Offshore Platform Field Devices: Reliability engineers stock F9342BL assemblies for rapid display restoration in subsea pipeline monitoring and separator temperature control applications, where salt-fog exposure accelerates LCD degradation. The module's moisture barrier extends service intervals in marine atmospheres.

Power Generation Thermal Monitoring: Plant maintenance crews replace degraded displays in boiler feedwater, steam temperature, and condenser monitoring loops—maintaining operator visibility into critical thermal parameters without disrupting generation capacity during peak demand periods.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify transmitter model designation before ordering—YTA series identification appears on the nameplate adjacent to the display window. For transmitters operating in extreme UV environments (>8 hours direct sunlight daily), consider implementing sunshade accessories to maximize display service life. Installations in Zone 1/Division 1 hazardous areas require verification that transmitter certification remains valid after component replacement.

Advanced Integration Features

The F9342BL assembly supports full HART communication visualization, enabling technicians to verify device configuration, diagnostic status, and process variable scaling without connecting external communicators. This capability accelerates commissioning workflows in multi-transmitter installations and facilitates rapid troubleshooting during process upsets.

For facilities implementing predictive maintenance programs, the display provides real-time access to transmitter health metrics including sensor drift indicators, electronics temperature, and power supply status—enabling condition-based replacement strategies that optimize spare parts inventory.

Custom display configurations are available for OEM integrators requiring specialized parameter layouts or multi-language character sets in international project deployments.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for stock items; expedited same-day shipping available for critical maintenance situations
Warranty Coverage: 24-month manufacturer defect protection with advance replacement option
Technical Support: Application engineering assistance for compatibility verification and installation guidance
Documentation Package: Installation instructions, dimensional drawings, and material certifications included with each shipment

Frequently Asked Questions

Q: Does the F9342BL LCD assembly require recalibration of the YTA transmitter after installation?
A: No recalibration is necessary. The F9342BL is a display-only component that does not affect sensor accuracy or transmitter calibration. All configuration data, including range settings and HART parameters, are preserved in the transmitter's non-volatile memory during display replacement.

Q: What is the expected service life of the F9342BL in outdoor installations with direct sunlight exposure?
A: Under continuous UV exposure, the F9342BL typically delivers 5-7 years of service before contrast degradation becomes noticeable. Implementing sunshades or relocating transmitters to shaded positions can extend display life beyond 10 years in high-insolation environments.

Q: Can the F9342BL assembly be installed in hazardous area transmitters without affecting area classification certifications?
A: Yes, when installed per manufacturer instructions, the F9342BL maintains the transmitter's original hazardous area certifications (ATEX, IECEx, FM, CSA). The assembly is designed as a certified replacement component that preserves intrinsic safety and flameproof enclosure integrity.

Q: How does the F9342BL backlight intensity compare to the original factory-installed display?
A: The F9342BL utilizes an enhanced LED backlight system that provides 20% greater luminous intensity than earlier production displays, improving readability in high-ambient-light conditions while maintaining the same power consumption profile.

Q: What tools are required for F9342BL installation in field-mounted YTA transmitters?
A: Installation requires only a standard Phillips screwdriver to remove the transmitter cover. The display assembly uses snap-fit connectors and alignment pins that eliminate the need for specialized tooling or torque wrenches.

Q: Is the F9342BL compatible with YTA transmitters configured for FOUNDATION Fieldbus or PROFIBUS PA communication protocols?
A: The F9342BL is hardware-compatible with all YTA communication variants. However, display content and menu structures vary by protocol—verify that the assembly part number matches your transmitter's communication configuration to ensure proper parameter visualization.

Secure Your Replacement Display Today

Restore full operational visibility to your YTA temperature transmitters with factory-certified F9342BL LCD assemblies. Contact our instrumentation specialists for compatibility verification, volume pricing, or technical application support.
