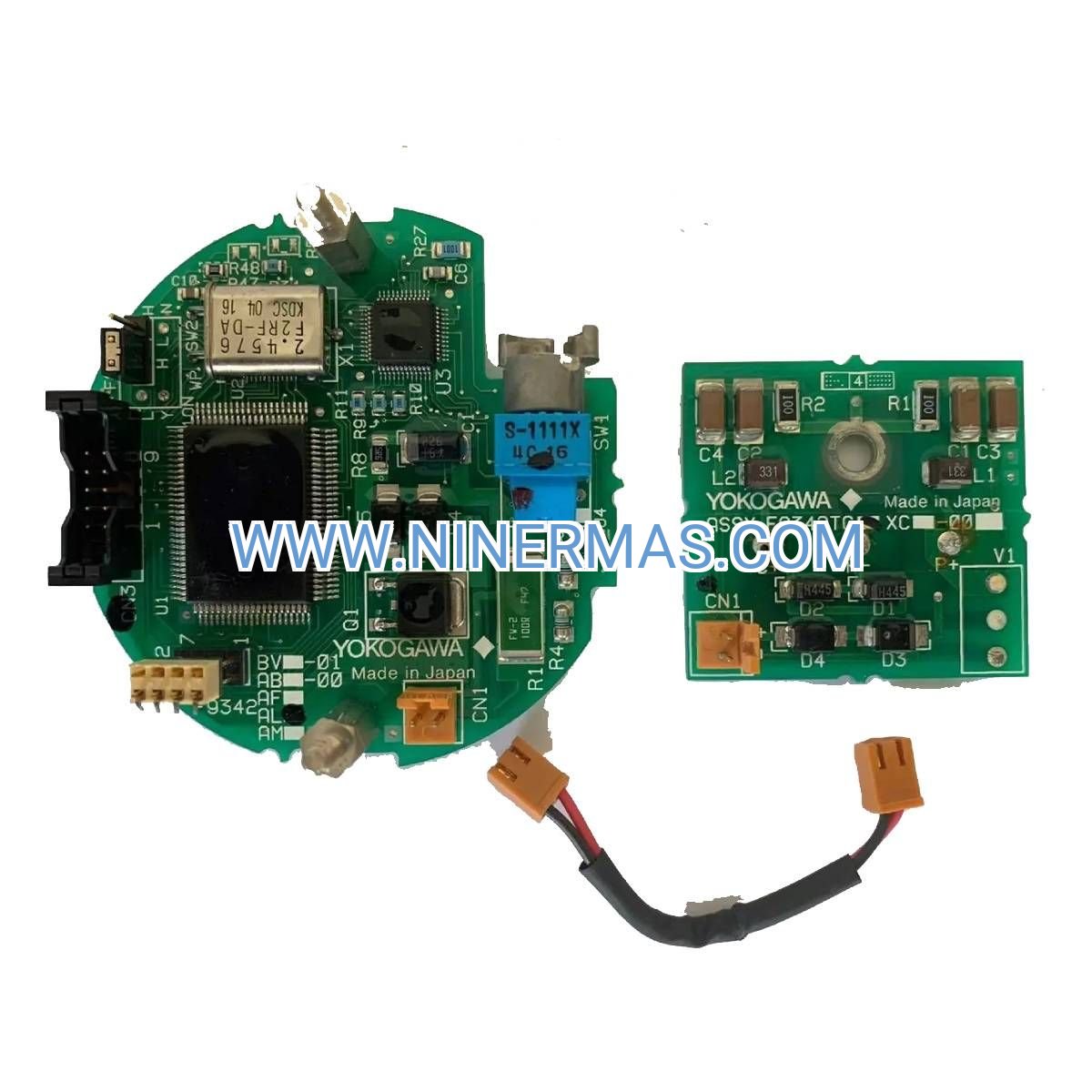

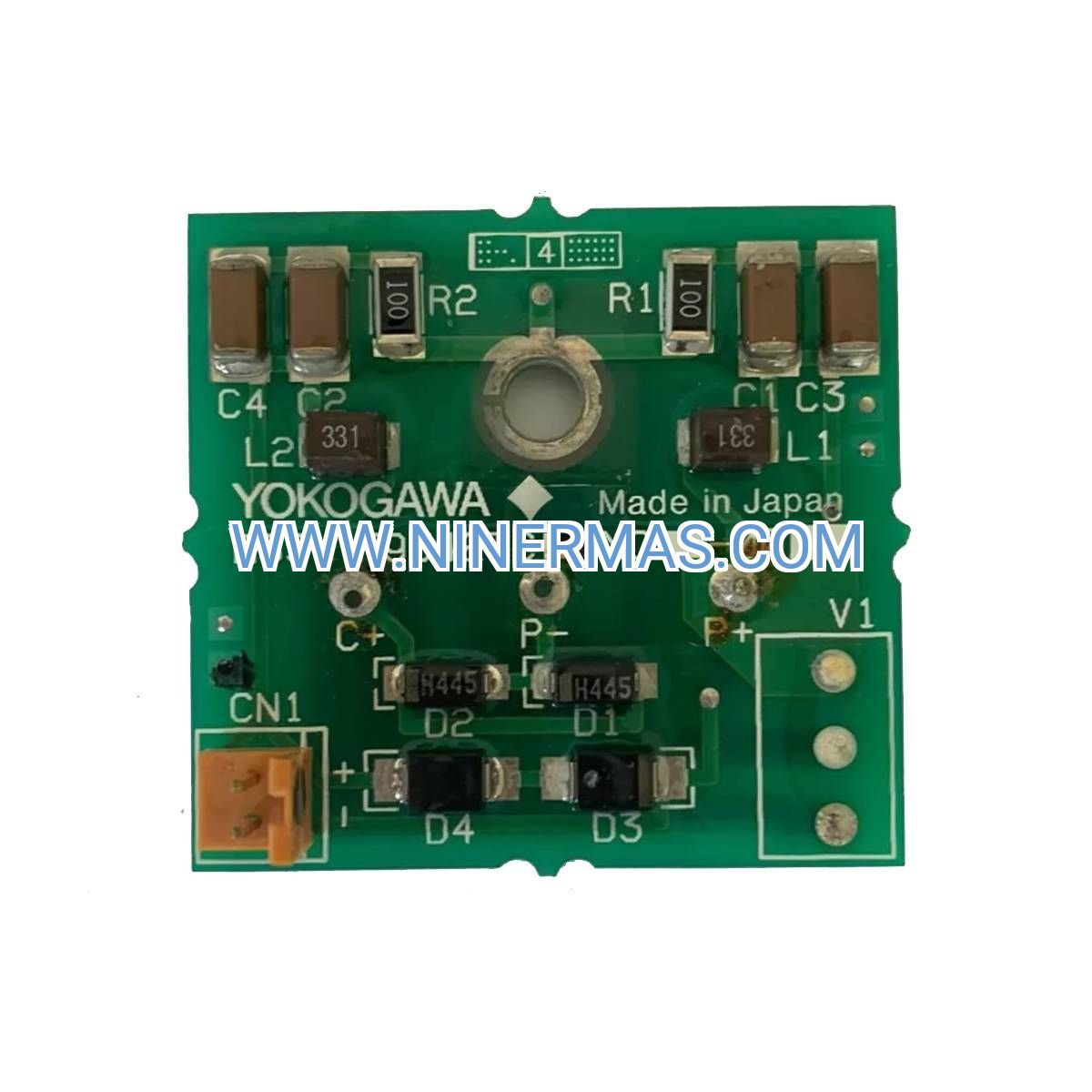

F9342AL HART Protocol Interface Board (Industrial-Grade Communication Module)

The F9342AL represents Yokogawa's advanced solution for integrating HART-enabled field instrumentation into distributed control architectures. Engineered for process industries requiring simultaneous analog control and digital asset management, this communication board assembly delivers bidirectional data exchange without compromising the integrity of 4-20 mA control loops. Designed for chemical processing, oil refining, and pharmaceutical manufacturing environments, the module addresses the critical need for remote device configuration and predictive maintenance capabilities while maintaining backward compatibility with legacy analog infrastructure.

Process engineers and automation specialists deploy the F9342AL to eliminate costly field visits for transmitter calibration, access hidden diagnostic parameters that predict equipment failures, and build comprehensive asset databases for regulatory compliance. The board's multi-channel architecture supports concurrent communication with dozens of field devices, transforming traditional one-way analog signals into intelligent data streams that drive operational excellence.

Core Capabilities & Business Value

→ Dual-Mode Signal Processing
Superimposes 1200 bps FSK digital communication onto existing 4-20 mA current loops without signal interference. Operators maintain real-time process control through analog pathways while simultaneously accessing configuration menus, calibration parameters, and diagnostic registers—reducing commissioning time by 40-60% compared to manual field configuration workflows.

✓ Zero-Downtime Device Management
Remotely adjust transmitter zero/span settings, update measurement ranges, and modify damping constants from the control room. Pharmaceutical facilities leverage this capability to perform GMP-compliant calibration verification without process interruption, maintaining continuous batch operations while ensuring measurement accuracy.

✓ Predictive Health Monitoring
Continuously polls connected devices for 30+ diagnostic parameters including sensor drift rates, electronics temperature, power supply stability, and communication error counters. Refineries use trend analysis of these metrics to schedule maintenance during planned shutdowns rather than responding to unexpected failures—improving asset availability by 15-25%.

→ Multi-Variable Data Extraction
Retrieves secondary process variables beyond the primary measurement: temperature compensation values in pressure transmitters, flow totalizer accumulators, pH sensor impedance readings. This expanded data visibility enables advanced process optimization strategies and reduces the need for additional I/O points.

✓ Plug-and-Play DCS Integration
Installs directly into Yokogawa CENTUM VP, CS 3000, and ProSafe-RS I/O card slots with automatic backplane recognition. Engineering configuration through standard DCS tools requires no specialized HART programming knowledge—automation teams deploy the module using familiar workflows and graphical interfaces.

→ Redundancy-Ready Architecture
Supports bumpless transfer in dual-redundant controller configurations, maintaining uninterrupted HART communication during primary/backup switchover events. Critical control loops in power generation and petrochemical applications benefit from this fault-tolerant design.

Industrial Deployment Scenarios

Chemical Reactor Optimization
A specialty chemicals manufacturer uses the F9342AL to monitor both reactor temperature (primary variable) and RTD sensor health (diagnostic variable) simultaneously. When sensor drift exceeds 0.5°C, the system generates maintenance work orders automatically, preventing batch quality deviations that previously cost $50,000+ per incident.

Pharmaceutical Compliance Automation
FDA-regulated facilities integrate F9342AL boards with Yokogawa PRM asset management software to create auditable calibration records. The system timestamps every configuration change, stores pre/post-calibration values, and generates 21 CFR Part 11 compliant documentation—reducing audit preparation time from weeks to hours.

Refinery Predictive Maintenance
An oil refinery monitors vibration transmitter diagnostics across 200+ rotating equipment assets. By analyzing power supply voltage trends and communication error rates, the maintenance team identifies failing transmitters 30-45 days before complete failure, scheduling replacements during planned turnarounds rather than emergency shutdowns.

Legacy System Modernization
A pulp and paper mill retrofits existing 4-20 mA transmitter networks with HART-capable devices and F9342AL interface boards. Without replacing field wiring or junction boxes, the facility gains access to modern diagnostic capabilities and remote configuration—extending the operational life of a 15-year-old DCS investment by 8-10 years.

Multi-Site Asset Standardization
A global food processing company deploys F9342AL modules across 12 production facilities to create a centralized device database. Corporate engineering teams remotely audit transmitter configurations, identify calibration drift patterns across sites, and implement standardized maintenance procedures that reduce total cost of ownership by 18%.

Technical Specifications & Selection Criteria

Selection Guidelines: Confirm your DCS platform and I/O subsystem model before procurement. The F9342AL requires specific backplane configurations and firmware versions—consult Yokogawa system documentation or contact technical support for compatibility verification. For new installations, consider pairing with HART-capable analog I/O modules (AAI841-H50 series) to maximize diagnostic data availability.

Advanced Integration Features

Asset Management Connectivity: Seamlessly interfaces with Yokogawa PRM (Plant Resource Manager), Emerson AMS, and other FDT/DTM-based asset management platforms. Enables centralized device libraries, automated calibration scheduling, and lifecycle tracking across multi-vendor instrumentation portfolios.

OPC UA Data Publishing: When paired with compatible DCS gateways, HART diagnostic data can be published to OPC UA servers for integration with MES, historian, and cloud analytics platforms—supporting Industry 4.0 digital transformation initiatives.

Custom Diagnostic Mapping: Engineering tools allow mapping of specific HART diagnostic parameters to DCS alarm points, enabling automated responses to device health events (e.g., triggering backup sensor switchover when primary transmitter reports sensor failure).

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or large-volume orders may require 2-4 weeks—contact sales for expedited delivery options.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 5+ year coverage.

Technical Assistance: Access to Yokogawa-certified application engineers for installation guidance, configuration support, and troubleshooting. Remote diagnostic services available for complex integration scenarios.

Documentation Package: Includes installation manual, HART command reference, DCS configuration examples, and dimensional drawings. Firmware update procedures and compatibility matrices provided via online support portal.

Frequently Asked Questions

Can the F9342AL communicate with non-Yokogawa HART devices?
Yes, the board supports universal HART protocol and works with transmitters from Rosemount, Endress+Hauser, ABB, Siemens, and all HART Communication Foundation certified devices. Device-specific features are accessible through standard HART commands.

What is the maximum cable distance for reliable HART communication?
HART protocol supports up to 3,000 meters (10,000 feet) of twisted-pair cable between the F9342AL and field devices, assuming proper cable specifications (shielded, <65 pF/m capacitance). Longer distances may require signal repeaters or barrier isolators.

Does HART communication affect the speed of analog control loops?
No. The 4-20 mA analog signal updates at full speed (typically 100-500 ms response time) independent of HART digital communication. HART data is superimposed at low amplitude and does not interfere with control loop dynamics or stability.

How many HART devices can one F9342AL board manage simultaneously?
Channel capacity depends on the specific I/O module configuration. Typical implementations support 8-16 HART devices per board. The DCS polls devices sequentially, with complete polling cycles ranging from 5-30 seconds depending on the number of parameters requested.

Is specialized training required for HART configuration and troubleshooting?
Basic HART operations (reading device tags, viewing diagnostics) require minimal training for personnel familiar with Yokogawa DCS engineering tools. Advanced functions (custom parameter mapping, DD file integration) benefit from Yokogawa's 2-day HART communication workshop.

Can the F9342AL be installed in hazardous area control rooms?
The board itself is designed for installation in non-hazardous control room environments (Zone 2/Division 2 maximum). Field devices in hazardous areas connect through approved intrinsic safety barriers or explosion-proof junction boxes—consult area classification drawings and barrier specifications.

Take the Next Step

Ready to modernize your field device communication infrastructure? Contact our industrial automation specialists for application-specific guidance, system compatibility verification, and volume pricing. Our team provides complimentary site assessments to identify optimal HART integration strategies for your existing DCS architecture.

Request a technical consultation: Share your DCS platform details, I/O configuration, and field device inventory for a customized implementation plan.
