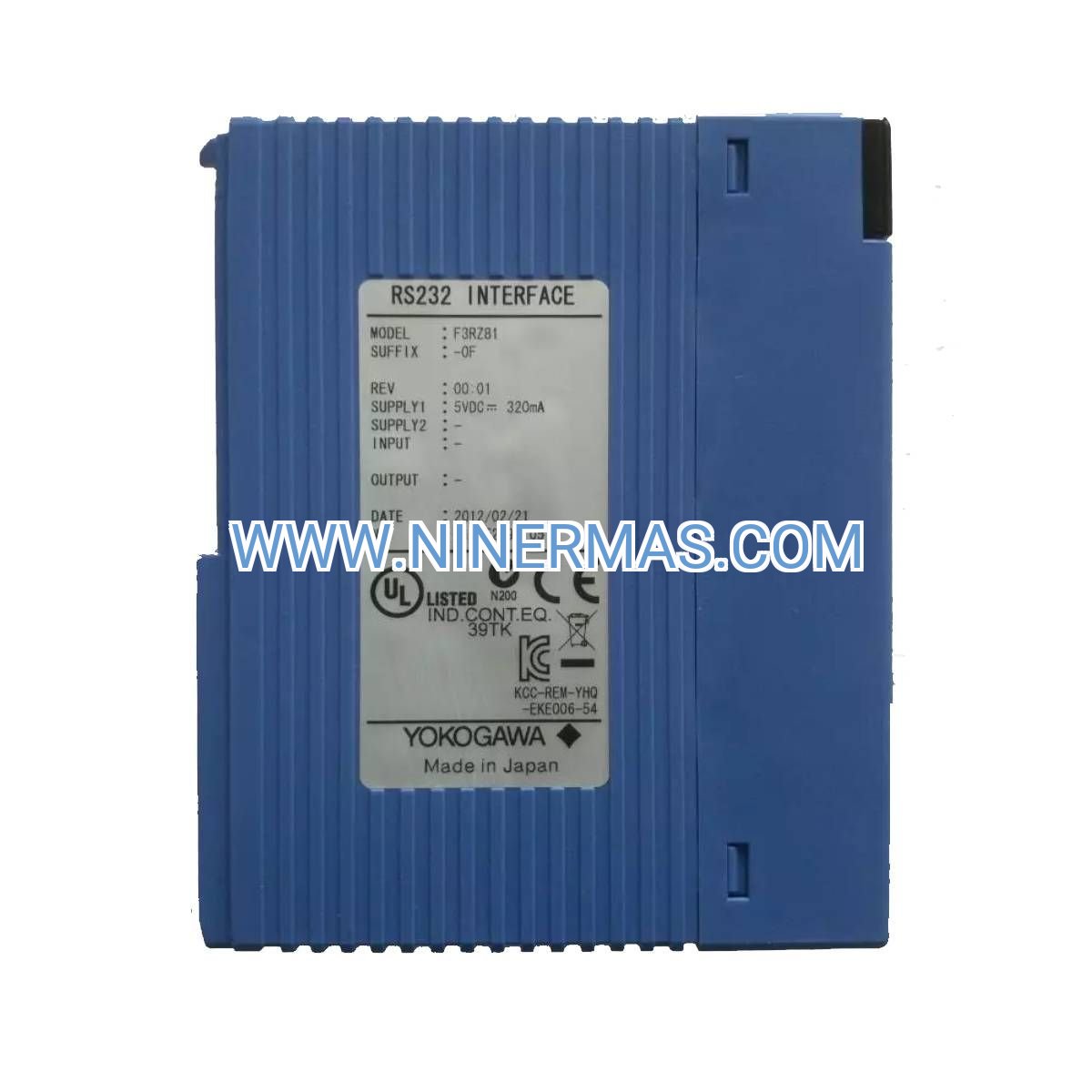

F3RZ81-0F Serial Communication Interface (Industrial-Grade RS-232C Module)

The F3RZ81-0F represents Yokogawa's proven solution for establishing robust serial communication links in process control and factory automation systems. This RS-232C interface module delivers deterministic point-to-point connectivity between programmable controllers, operator terminals, and legacy instrumentation—enabling seamless data exchange across multi-vendor automation architectures.

Designed for engineers managing brownfield upgrades or hybrid control networks, the F3RZ81-0F eliminates the complexity of protocol conversion while maintaining backward compatibility with existing serial infrastructure. Its DIN-rail form factor and wide operating temperature range make it suitable for deployment in control cabinets, remote I/O enclosures, and field junction boxes.

Whether you're integrating vintage analyzers into modern SCADA platforms or establishing direct PLC-to-HMI communication paths, this module provides the reliability and flexibility required for mission-critical industrial applications.

Core Features & Technical Advantages

✓ Full-Duplex Asynchronous Communication
Simultaneous bidirectional data transfer ensures real-time responsiveness for closed-loop control applications and operator command execution.

✓ Configurable Transmission Parameters
Software-selectable baud rates (300 to 19,200 bps), data bits (7/8), stop bits (1/2), and parity options adapt to diverse device requirements without hardware modifications.

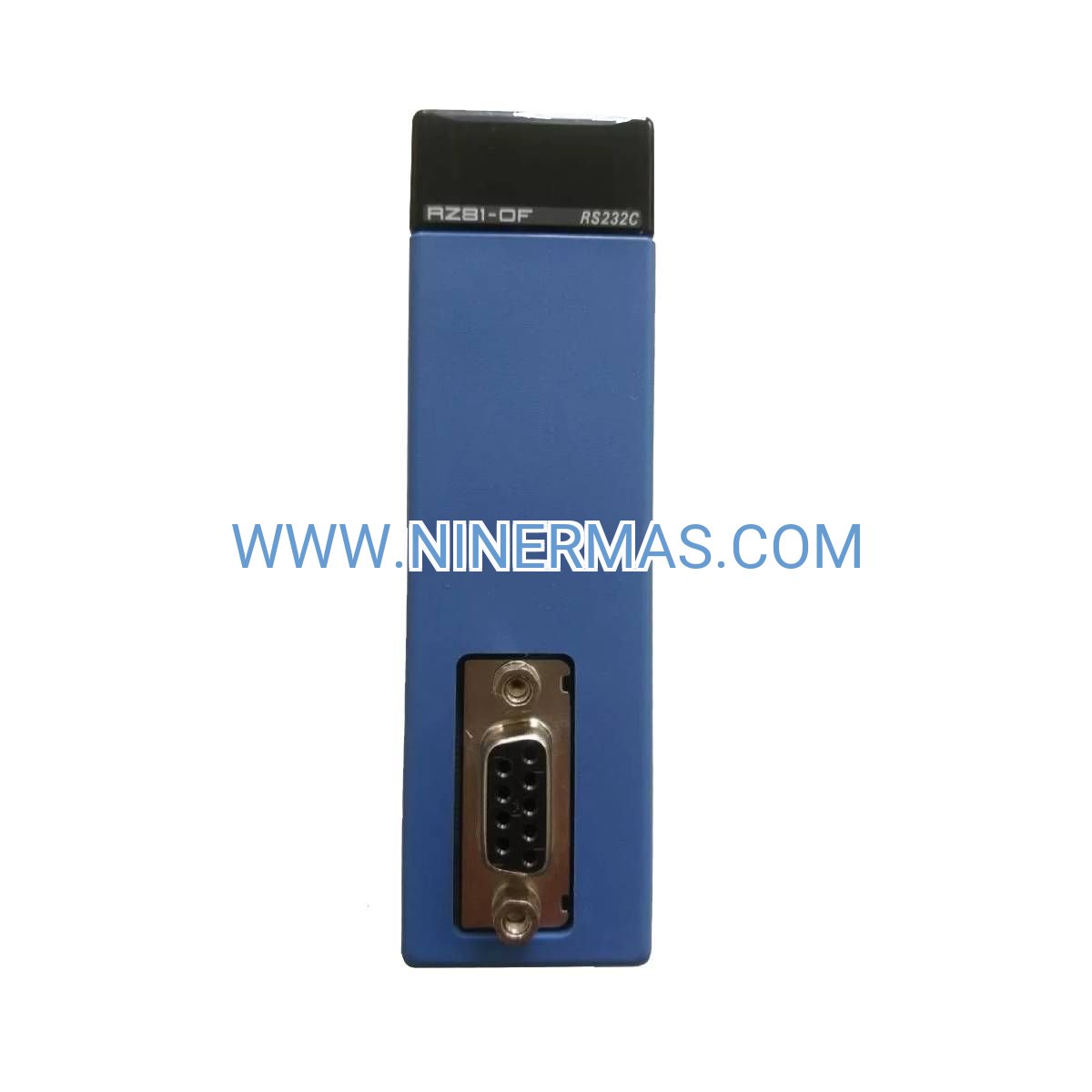

✓ Standard D-Sub 9-Pin Connector
Universal RS-232C pinout simplifies cable procurement and reduces installation errors—compatible with off-the-shelf serial cables and gender changers.

✓ Industrial Temperature Specification
Rated for 0°C to 55°C operation, the module maintains signal integrity in non-climate-controlled environments typical of manufacturing facilities and utility substations.

✓ Low Power Consumption Design
Minimizes heat generation and extends mean time between failures (MTBF) in continuously operating systems.

✓ DIN-Rail Mounting System
Tool-free installation on standard 35mm DIN rails accelerates panel assembly and facilitates future maintenance access.

Industrial Application Scenarios

→ Legacy Instrument Integration
Connect decades-old analyzers, recorders, and transmitters equipped with RS-232C ports to contemporary distributed control systems (DCS). Preserve capital investments in proven field devices while gaining centralized data visibility.

→ PLC Programming & Diagnostics
Establish direct serial links between engineering workstations and Yokogawa controllers for ladder logic uploads, online monitoring, and troubleshooting—eliminating the need for proprietary programming adapters.

→ Multi-Vendor System Bridging
Facilitate data exchange between Yokogawa PLCs and third-party HMIs, chart recorders, or barcode scanners using standard ASCII or Modbus RTU protocols over RS-232C physical layer.

→ Remote Terminal Unit (RTU) Communication
Deploy in oil & gas pipeline monitoring, water treatment telemetry, or power distribution automation where serial communication remains the dominant fieldbus technology.

→ Quality Assurance Data Logging
Stream production metrics from PLCs to dedicated data acquisition systems for regulatory compliance documentation and statistical process control (SPC) analysis.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F3RZ81-0F when your application requires point-to-point serial connectivity over distances under 15 meters. For longer cable runs, consider RS-422/485 alternatives. Verify that connected devices support RS-232C voltage levels (±3V to ±15V) and DTE/DCE pinout compatibility.

Extended Capabilities

Protocol Flexibility: While the module provides physical layer RS-232C connectivity, it supports various application-layer protocols including Modbus RTU, ASCII command sets, and proprietary Yokogawa communication formats—configured through PLC ladder logic or device settings.

Diagnostic Indicators: Onboard LEDs (where applicable) provide visual confirmation of power status and communication activity, accelerating troubleshooting during commissioning and maintenance.

Spare Parts Strategy: As a field-replaceable module, the F3RZ81-0F enables rapid restoration of communication functions without requiring complete controller replacement—minimizing unplanned downtime costs.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules or bulk orders may require 2-3 weeks—contact our team for expedited options.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Extended warranty plans available upon request.

Technical Support: Our applications engineers provide pre-sales consultation on system architecture, wiring diagrams, and protocol configuration. Post-sales support includes troubleshooting assistance and firmware guidance.

Documentation Package: Each module ships with installation manual, pinout diagrams, and configuration examples. Downloadable resources include CAD drawings and sample ladder logic routines.

Frequently Asked Questions

Q: Can this module connect to devices using RS-485 or RS-422 interfaces?
A: No, the F3RZ81-0F is designed exclusively for RS-232C communication. For RS-485/422 connectivity, explore Yokogawa's dedicated multi-drop communication modules or use an external protocol converter.

Q: What is the maximum data throughput achievable at 19200 bps?
A: Theoretical maximum is 1920 bytes per second (assuming 10 bits per character with start/stop bits). Actual throughput depends on protocol overhead, handshaking requirements, and PLC scan time.

Q: Does the module require external power supply or draw power from the PLC backplane?
A: The F3RZ81-0F typically draws power from the host PLC or controller backplane. Verify power budget compatibility with your specific Yokogawa platform—consult system integration manual for current consumption specifications.

Q: How do I troubleshoot "no communication" errors after installation?
A: Verify cable pinout (null modem vs. straight-through), confirm matching baud rate and data format on both devices, check DTE/DCE configuration, and ensure proper grounding. Use a breakout box or serial analyzer to monitor signal levels.

Q: Is this module compatible with USB-to-serial adapters for laptop programming?
A: Yes, quality USB-to-RS232 adapters with FTDI or Prolific chipsets generally work well. Ensure adapter drivers are current and configure virtual COM port settings to match module parameters.

Q: Can I use this module for Modbus RTU communication over RS-232C?
A: Absolutely. The F3RZ81-0F supports Modbus RTU protocol when configured appropriately in your PLC program. Note that RS-232C limits you to point-to-point topology (one master, one slave).

Get Expert Assistance Today

Our industrial automation specialists are ready to help you specify the right communication solution for your control system upgrade or expansion project. Contact us for application-specific recommendations, volume pricing, or technical documentation.

Request a quote now or reach out with your system integration questions—we respond to all inquiries within 24 hours.
