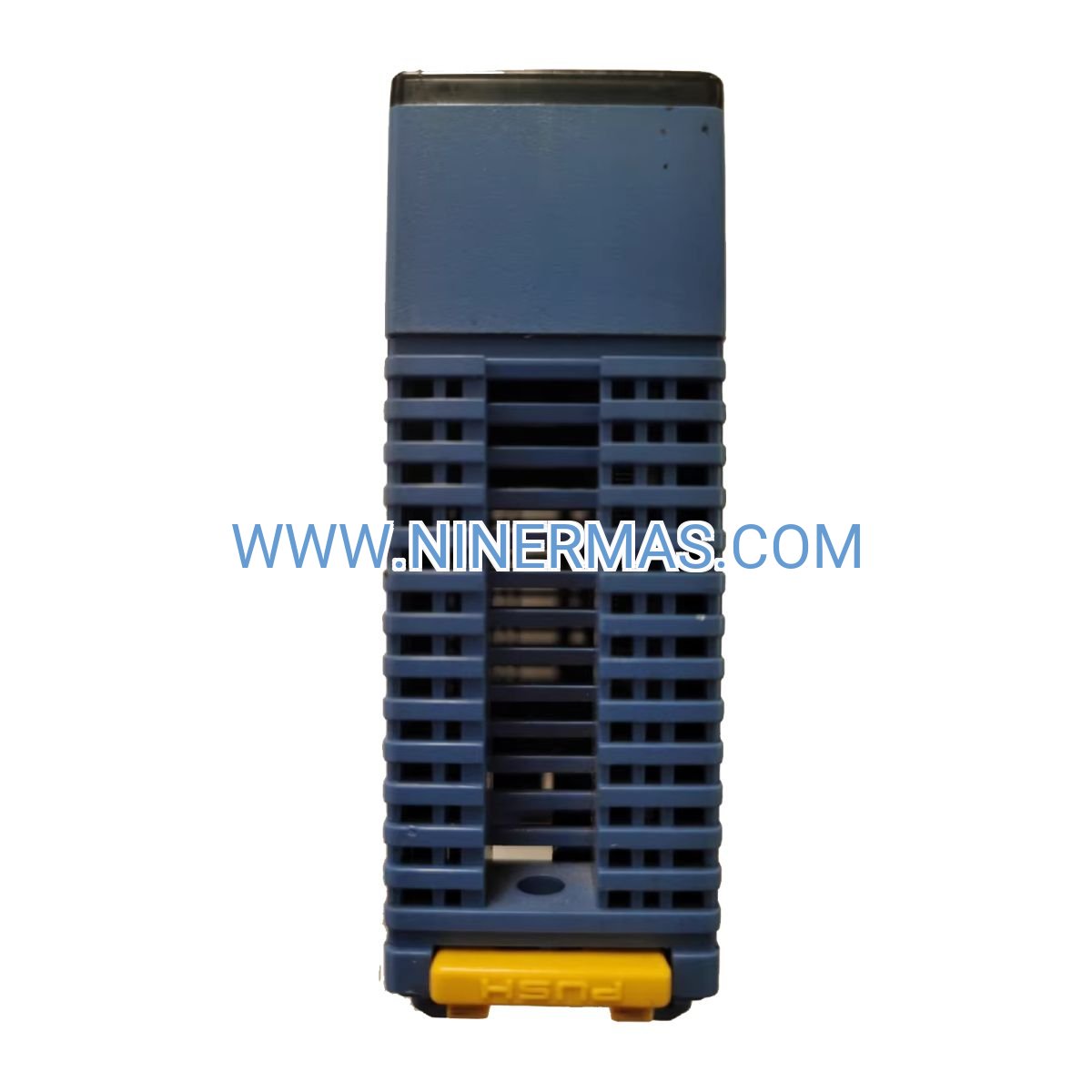

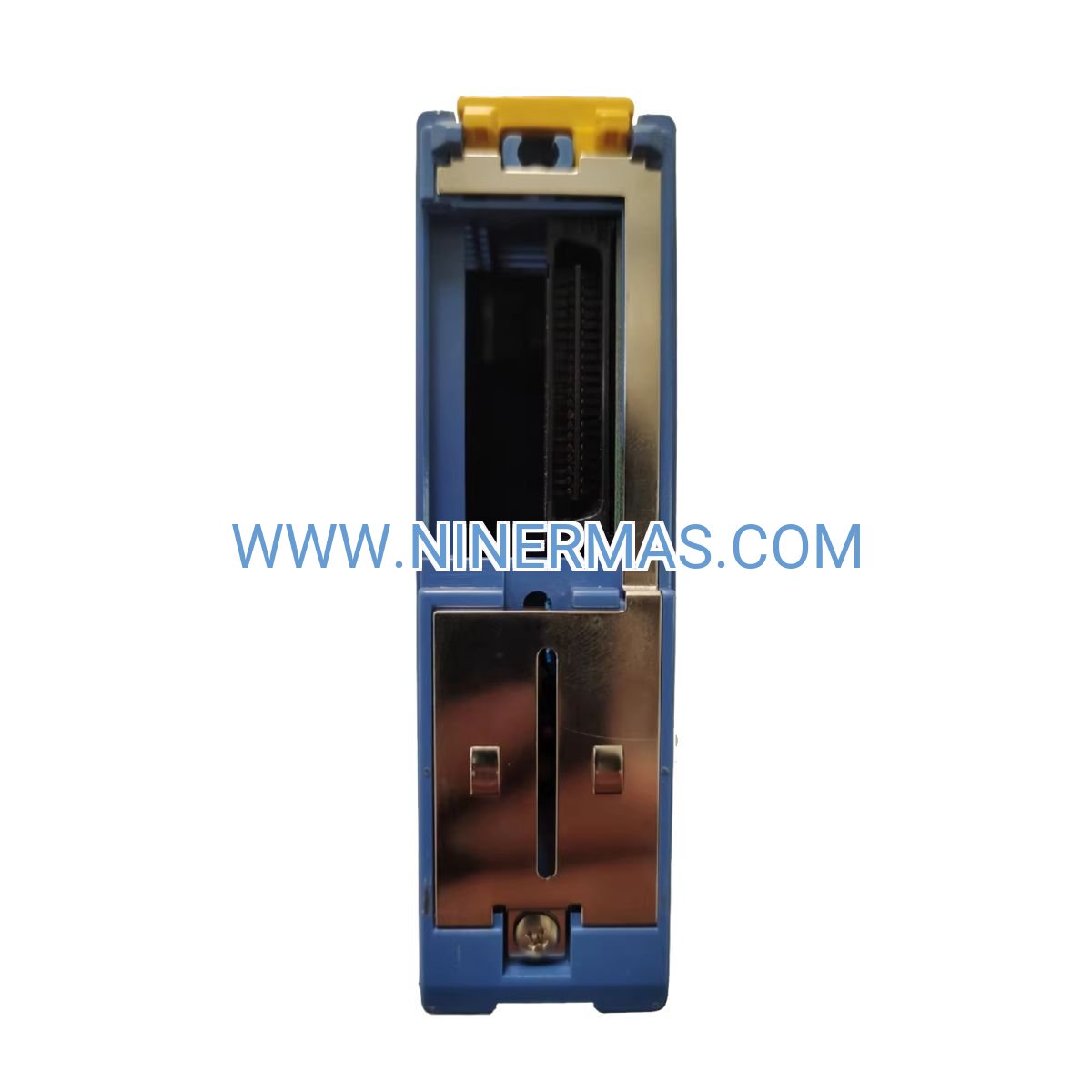

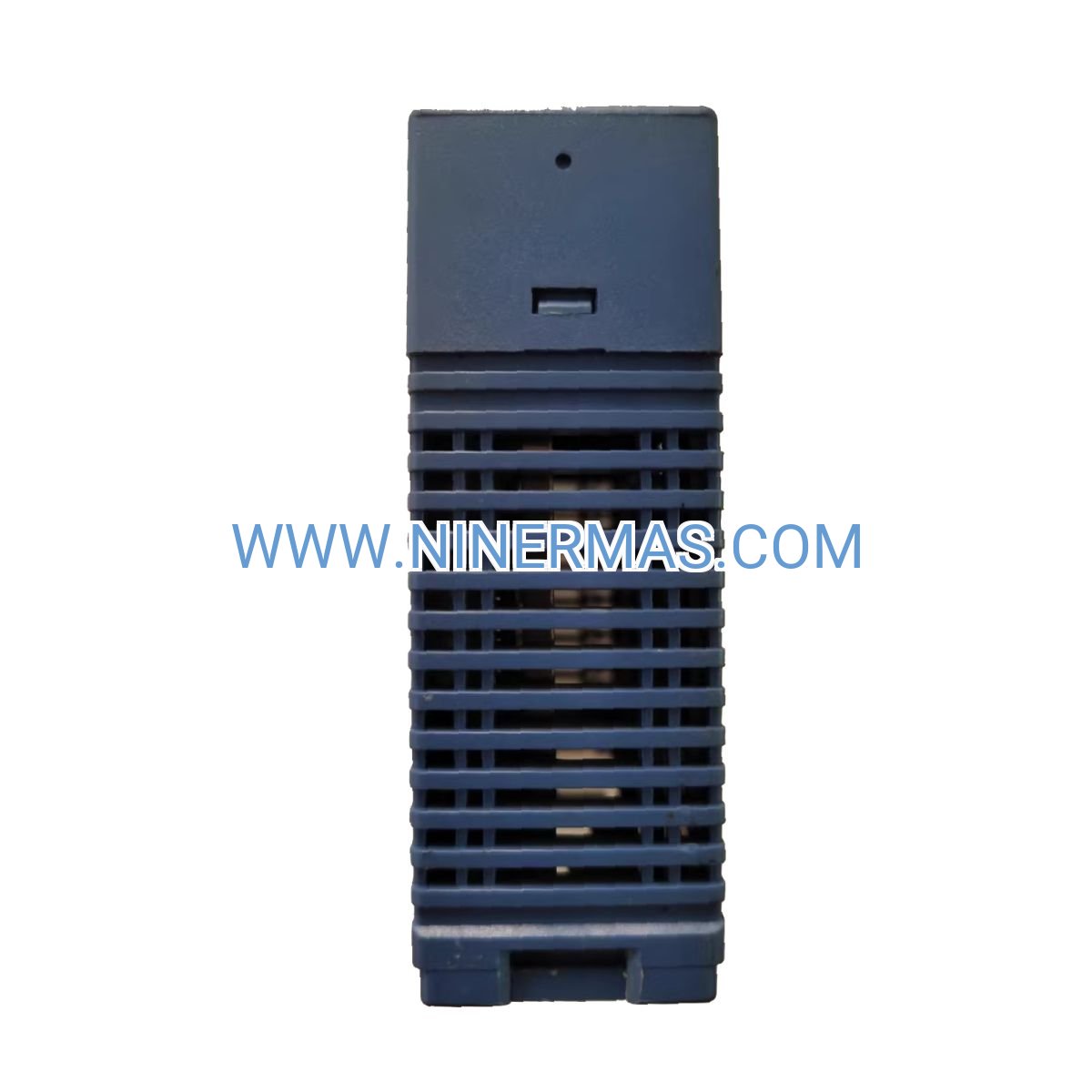

F3LC31-2F Industrial-Grade Modbus Communication Module

The F3LC31-2F represents Yokogawa's commitment to reliable industrial connectivity, delivering enterprise-class Modbus RTU and ASCII protocol handling through hardened RS-422/485 differential signaling. This communication module bridges legacy field devices with modern supervisory control systems, enabling seamless data acquisition across multi-vendor automation architectures.

Engineered for process industries where communication integrity directly impacts operational safety and efficiency, the F3LC31-2F addresses the critical challenge of maintaining deterministic data exchange in electrically noisy environments. Whether you're integrating distributed I/O networks, connecting remote terminal units, or establishing SCADA backbones, this module provides the foundation for dependable industrial communication.

With support for network distances up to 1,200 meters and configurable baud rates from 300 to 38,400 bps, the F3LC31-2F adapts to diverse installation requirements while maintaining protocol timing precision. Diagnostic indicators and simplified parameter configuration accelerate commissioning and reduce troubleshooting time during maintenance operations.

Core Features & Technical Advantages

→ Dual-Protocol Flexibility
Native support for both Modbus RTU binary encoding and Modbus ASCII character-based transmission enables compatibility with legacy equipment and modern controllers without protocol conversion overhead.

→ Extended Network Reach
RS-485 differential signaling architecture supports cable runs up to 1,200 meters (3,937 feet), eliminating the need for expensive repeaters in distributed installations while maintaining signal integrity.

→ Electrical Noise Immunity
Differential voltage transmission inherently rejects common-mode interference from VFDs, welding equipment, and high-voltage switchgear—critical for maintaining data accuracy in harsh industrial environments.

✓ Wide Baud Rate Spectrum
Configurable data rates from 300 to 38,400 bps accommodate both slow-polling legacy devices and high-throughput modern systems within the same network topology.

✓ Flexible Data Framing
7-bit or 8-bit character length with selectable parity (None/Even/Odd) ensures compatibility with diverse equipment manufacturers' implementation standards.

✓ Industrial Temperature Rating
0°C to 55°C operational range with passive thermal management supports installation in non-climate-controlled enclosures and field-mounted junction boxes.

Industry Application Scenarios

Chemical Process Automation
Connect reactor temperature controllers, flow transmitters, and analytical instruments to DCS systems. The F3LC31-2F's noise immunity prevents false readings in facilities with large motor loads and frequency converters, ensuring accurate batch control and regulatory compliance documentation.

Water & Wastewater Treatment
Establish communication between remote lift stations, clarifier controls, and central SCADA systems across extended campus layouts. The 1,200-meter range capability reduces infrastructure costs while maintaining real-time visibility into treatment processes.

Power Generation & Distribution
Integrate protective relays, generator controllers, and substation automation equipment into unified monitoring platforms. Deterministic Modbus RTU timing supports critical alarm propagation and sequence-of-events recording requirements.

Manufacturing Execution Systems
Link production line PLCs with MES databases for real-time OEE tracking and quality data collection. The module's low-latency design supports high-frequency polling intervals necessary for statistical process control applications.

Building Automation Integration
Bridge HVAC controllers, energy meters, and access control systems to facility management platforms. Multi-drop RS-485 topology reduces wiring complexity in retrofit installations while supporting up to 32 devices per segment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the F3LC31-2F when your application requires proven Modbus protocol implementation with extended cable distance capability. For installations exceeding 1,200 meters, consider network segmentation with repeaters or migration to Ethernet-based protocols. Verify that connected devices support matching baud rates and data framing parameters to ensure interoperability.

Extended Capabilities & Integration Options

Multi-Master Network Support
The module's protocol stack accommodates token-passing schemes and master arbitration, enabling redundant SCADA server configurations for high-availability applications.

Protocol Gateway Compatibility
Seamlessly interfaces with Modbus-to-Ethernet converters, enabling cloud connectivity and remote diagnostics without firmware modifications to existing field equipment.

Custom Parameter Sets
Factory configuration services available for volume deployments requiring standardized communication settings, reducing field commissioning labor and configuration errors.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for stock items; custom-configured modules ship within 10-12 business days after order confirmation.

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship. Extended service agreements available for critical infrastructure applications.

Technical Support: Direct access to application engineers for pre-sales system design consultation and post-installation troubleshooting assistance via email and phone.

Documentation Package: Each module ships with installation manual, wiring diagrams, Modbus register mapping tables, and configuration software utilities on USB media.

Frequently Asked Questions

How do I connect the F3LC31-2F to existing RS-485 networks?

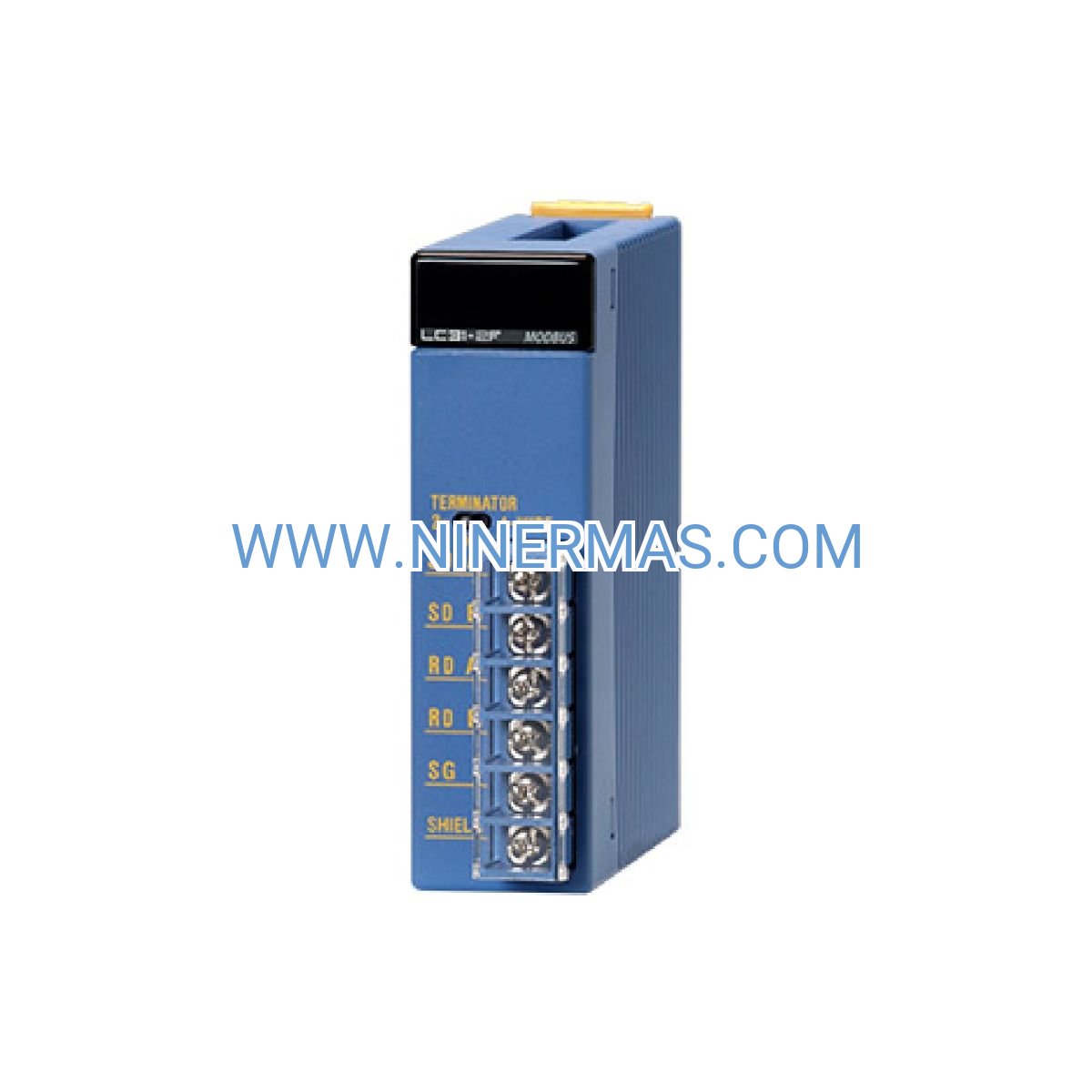

The module provides screw-terminal connections for differential A/B signal pairs and common ground. For 2-wire RS-485, connect A(+) and B(-) terminals with 120-ohm termination resistors at network endpoints. 4-wire RS-422 applications use separate transmit and receive pairs. Consult the wiring diagram in the installation manual for pin assignments and shield grounding recommendations.

What is the maximum number of devices supported on a single RS-485 segment?
Standard RS-485 electrical specifications support up to 32 unit loads per segment. Using high-impedance transceivers or repeaters can extend this to 256 devices. Practical limits depend on baud rate, cable quality, and electrical noise levels—we recommend network analysis for installations exceeding 16 devices.

Can the F3LC31-2F reduce energy consumption in my control system?
The module's low-power design minimizes heat dissipation within control panels, potentially reducing cooling requirements. While individual module savings are modest, system-wide deployment in large installations can yield measurable reductions in HVAC loads and improve overall panel reliability through lower ambient temperatures.

What installation requirements must be met for reliable operation?
Mount the module in a grounded enclosure with adequate ventilation to maintain ambient temperatures within the 0-55°C range. Use shielded twisted-pair cable (Belden 3105A or equivalent) for RS-485 wiring, grounding shields at one end only to prevent ground loops. Maintain separation from high-voltage AC wiring and observe proper termination resistor placement.

Does this module support remote monitoring and diagnostics?
The F3LC31-2F provides local diagnostic LEDs for TX/RX activity and error conditions. For remote visibility, integrate with SCADA systems that poll Modbus diagnostic registers, or deploy alongside protocol gateways that expose communication statistics via web interfaces or SNMP.

How does the F3LC31-2F compare to Ethernet-based communication modules?
Modbus RTU over RS-485 offers deterministic timing, simpler network infrastructure, and lower per-node costs for applications with moderate data throughput requirements. Ethernet modules provide higher bandwidth and easier IT integration but require managed switches and IP address planning. Choose based on your existing infrastructure and data velocity needs.

Request Technical Consultation

Our application engineering team is ready to assist with system architecture design, protocol selection, and integration planning. Contact us for detailed specification sheets, CAD drawings, and compatibility verification with your existing automation platform.
