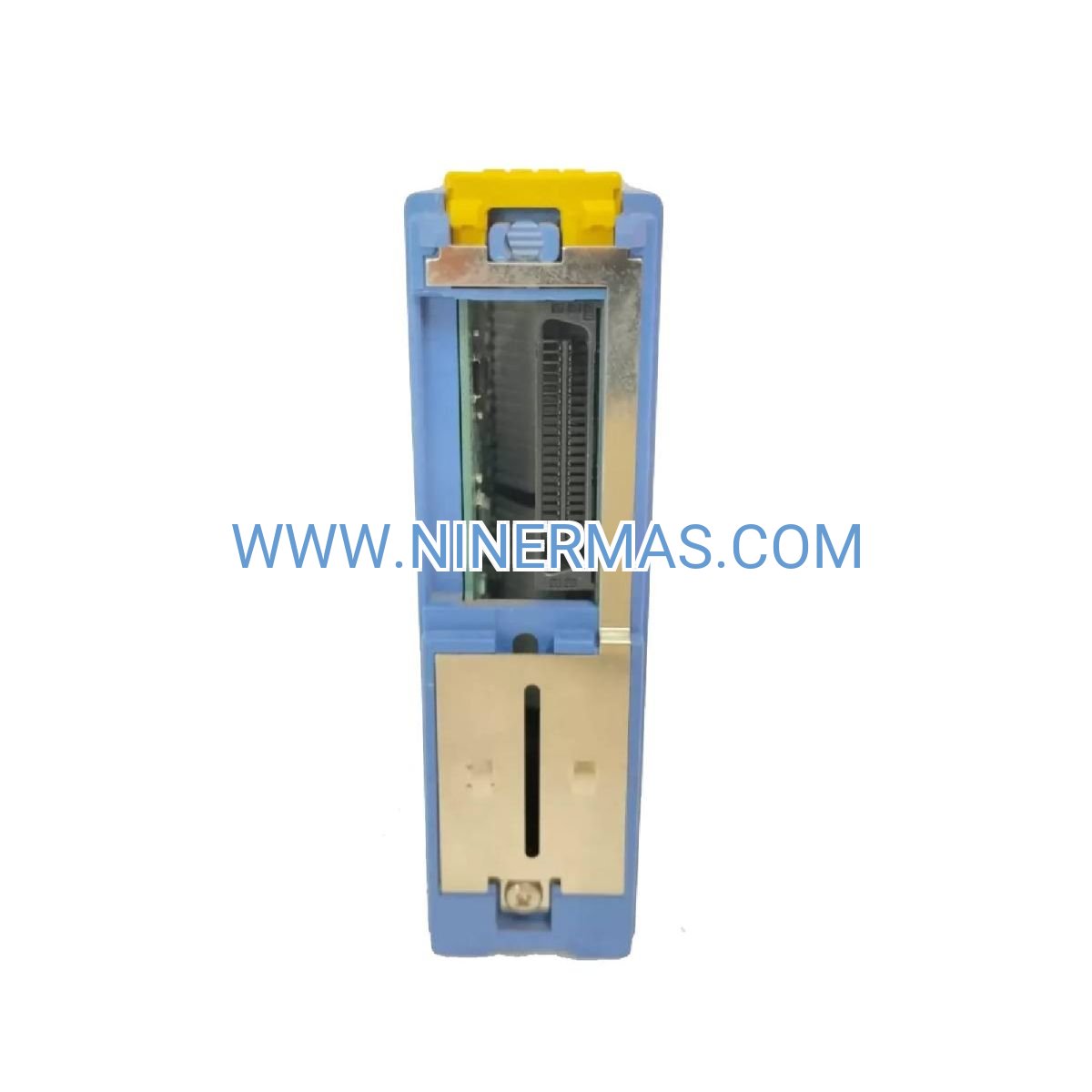

F3AD08-5V Industrial Voltage Acquisition Module (FA-M3 Compatible)

The F3AD08-5V represents a professional-grade analog input solution engineered specifically for Yokogawa FA-M3 programmable logic controller environments. This compact module transforms up to eight independent voltage signals into precise digital values, providing the critical data foundation for automated process control, quality monitoring, and predictive maintenance strategies across manufacturing and industrial facilities.

Designed for system integrators and automation engineers who demand reliable performance in electrically challenging environments, this module addresses the persistent challenge of accurate multi-point signal acquisition without sacrificing speed or introducing measurement drift. Whether you're retrofitting legacy equipment or designing greenfield automation systems, the F3AD08-5V delivers consistent, repeatable measurements that form the backbone of data-driven decision making.

With channel-to-bus isolation, selectable input ranges, and millisecond-level conversion cycles, this module eliminates the need for external signal conditioners while maintaining measurement integrity even in the presence of electromagnetic interference—reducing both installation complexity and long-term maintenance overhead.

Core Capabilities & Technical Advantages

→ Eight Independent Voltage Channels
Simultaneously monitor multiple sensor outputs, transmitter signals, or analog control references without channel crosstalk or mutual interference, enabling comprehensive system visibility from a single module footprint.

→ Dual-Range Flexibility (0-5V / 0-10V)
Each channel supports independent range selection, allowing direct connection to diverse sensor types—from 0-5V pressure transmitters to 0-10V temperature controllers—without external scaling circuits or additional hardware.

→ 12-Bit Resolution (4096 Discrete Steps)
Capture subtle process variations with 0.024% granularity across the full measurement span, providing the precision necessary for tight tolerance control and early anomaly detection in critical applications.

✓ 1-Millisecond Per-Channel Conversion
Complete full 8-channel scans in just 8ms, supporting fast-response control loops and high-frequency data logging requirements without introducing measurement lag that could compromise process stability.

✓ Electrical Isolation Architecture
Channel-to-backplane isolation protects sensitive measurement circuits from ground loops, voltage spikes, and common-mode noise—ensuring measurement accuracy even when sensors are located hundreds of meters from the control cabinet.

✓ Hot-Swappable Design
Replace modules during scheduled maintenance windows without powering down the entire FA-M3 system, minimizing production interruptions and supporting continuous operation requirements in 24/7 manufacturing environments.

Industrial Application Scenarios

Chemical Process Monitoring
Track reactor temperatures, column pressures, and flow rates across batch production cycles. The module's fast scan rate enables real-time detection of exothermic reactions or pressure excursions, triggering automated safety interlocks before conditions reach critical thresholds.

HVAC System Optimization
Monitor supply air temperatures, chilled water pressures, and damper position feedback across building automation networks. Multi-channel capability reduces wiring costs while the 12-bit resolution supports precise setpoint control for energy efficiency optimization.

Water Treatment & Environmental Control
Interface with pH sensors, turbidity meters, chlorine analyzers, and flow transmitters in municipal water facilities. Isolated inputs prevent ground-loop-induced measurement errors common in distributed sensor networks spanning large treatment plants.

Machine Tool Feedback Systems
Capture position encoder outputs, spindle load signals, and hydraulic pressure readings in CNC machining centers. The 1ms conversion speed supports servo control algorithms requiring sub-10ms update rates for dimensional accuracy maintenance.

Energy Management & Power Quality
Log voltage levels across distribution panels, transformer secondary outputs, and UPS battery banks. Historical trending data supports predictive maintenance programs and helps identify power quality issues before they cause equipment failures.

Technical Specifications & Selection Guide

Selection Criteria: Choose the F3AD08-5V when your application requires standard-speed voltage measurement (1ms/channel) with 12-bit precision. For applications demanding higher resolution (0.0015% granularity), consider the F3AD08-5R variant with 16-bit conversion. If your sensors output current signals (4-20mA), select the F3AD08-6N current input module instead.

Extended Integration Features

Programmable Scaling & Offset
Implement engineering unit conversions directly in FA-M3 ladder logic—transform raw counts into °C, PSI, GPM, or custom units without external calculation tools, simplifying HMI display configuration and alarm threshold programming.

Diagnostic Status Reporting
Module self-diagnostics continuously monitor power supply integrity, A/D converter health, and channel wiring status, reporting faults to the FA-M3 CPU for proactive maintenance scheduling and troubleshooting efficiency.

Distributed I/O Compatibility
Deploy modules in remote FA-M3 base units connected via high-speed backplane networks, enabling sensor consolidation near process equipment while maintaining centralized control logic execution—reducing field wiring costs by up to 40%.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct procurement
Warranty Coverage: 12-month manufacturer defect warranty with advance replacement option
Technical Support: English-language application engineering assistance via email and phone during business hours
Documentation Package: Installation manual, wiring diagrams, FA-M3 configuration examples, and dimensional drawings included

Frequently Asked Questions

Q: Can this module interface with 4-20mA current loop transmitters?
A: No, the F3AD08-5V is designed exclusively for voltage inputs (0-5V/0-10V). For current loop sensors, use the F3AD08-6N current input module or add external 250Ω precision resistors to convert 4-20mA signals to 1-5V voltage equivalents.

Q: What is the maximum cable distance between sensors and the module?
A: With proper shielded twisted-pair cabling, distances up to 300 meters are achievable for 0-10V signals. For 0-5V ranges or electrically noisy environments, limit runs to 100 meters to maintain ±0.3% accuracy specification.

Q: Does the module require external power supplies or signal conditioners?
A: No external power is needed—the module draws 2.5W from the FA-M3 backplane. Signal conditioning is also unnecessary for standard voltage transmitters; the module's 1MΩ input impedance and selectable ranges accommodate most industrial sensors directly.

Q: How do I configure individual channel input ranges?
A: Range selection is performed via FA-M3 programming software during module configuration. Each of the eight channels can be independently set to 0-5V or 0-10V mode through software parameters—no physical jumpers or DIP switches required.

Q: Is the module compatible with FA-M3R redundant controller systems?
A: Yes, the F3AD08-5V operates seamlessly in FA-M3R redundant configurations. Both primary and backup CPUs can access module data, with automatic failover maintaining continuous measurement during controller switchovers.

Q: What environmental protections are included for harsh industrial settings?
A: The module features conformal coating on circuit boards for humidity resistance, channel-to-bus isolation for electrical noise immunity, and 0-55°C operating range. For extreme environments (corrosive atmospheres, vibration), install the FA-M3 system in a NEMA-rated enclosure with climate control.

Ready to Enhance Your FA-M3 System?

Contact our automation specialists to discuss your analog input requirements, receive application-specific wiring diagrams, or request a formal quotation. We provide technical pre-sales consultation to ensure proper module selection and system integration planning.
