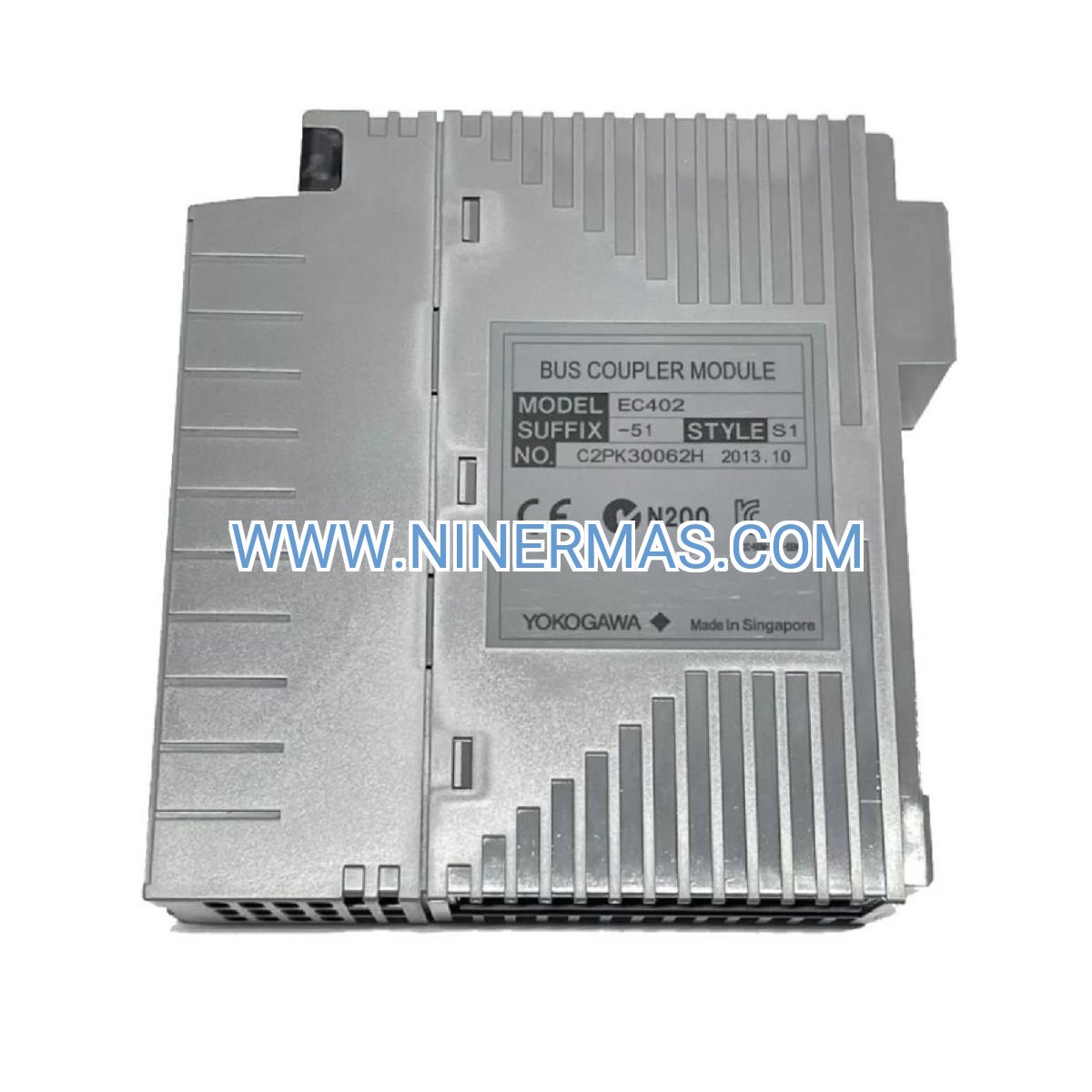

EC402-50 ESB Bus Coupler Module (Industrial-Grade DCS Communication Interface)

The EC402-50 represents Yokogawa's engineered solution for high-reliability data exchange in distributed control architectures. Designed for process industries demanding deterministic communication, this ESB (Extended System Bus) coupler module bridges field control units with supervisory layers while maintaining microsecond-level synchronization across multi-zone installations.

Process engineers face persistent challenges in scaling legacy DCS networks without sacrificing uptime or data integrity. The EC402-50 addresses these pain points through hot-swappable architecture, redundant bus support, and backward compatibility with earlier CENTUM generations—enabling phased modernization without full system replacement.

With 128Mbps throughput capacity and support for up to 32 nodes per segment, this module serves as the communication backbone for refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing lines where control loop latency directly impacts product quality and operational safety.

Core Features & Business Value

→ 128Mbps Data Throughput
Handles simultaneous I/O updates, alarm propagation, and historian data streams without bandwidth congestion. Supports expansion to 10,000+ I/O points per control domain while maintaining sub-10ms scan cycles critical for fast-response processes like batch reactors and turbine governors.

✓ Hot-Swap Maintenance Capability
Replace failed modules during live operation without halting production. Self-diagnostic LEDs provide immediate fault indication, reducing mean time to repair (MTTR) by 60% compared to non-redundant architectures. Eliminates costly scheduled downtime for preventive maintenance.

✓ 20-Meter Node Spacing
Flexible cabinet layout accommodates distributed I/O racks across control rooms and field junction boxes. Reduces copper wiring costs by 40% versus star-topology designs while simplifying cable tray routing in retrofit projects.

→ Redundant Bus Configuration
Dual-channel operation ensures 99.99% uptime for safety instrumented systems (SIS) and emergency shutdown (ESD) applications. Automatic failover occurs within 50ms—transparent to control logic execution and operator interfaces.

✓ DIN Rail Mounting
Tool-free installation with spring-loaded terminal blocks accelerates commissioning schedules. Standard Eurocard form factor (100mm height) optimizes cabinet space utilization—critical for brownfield upgrades with limited panel real estate.

→ Wide Operating Temperature Range (0-55°C)
Proven reliability in non-climate-controlled environments including offshore platforms, desert facilities, and tropical processing plants. Conformal coating protects against humidity, salt spray, and chemical vapors per IEC 60068 environmental testing standards.

Application Scenarios & Problem-Solving

Oil & Gas Upstream Production
Challenge: Remote wellhead monitoring across 50+ production sites with unreliable cellular connectivity.
Solution: EC402-50 enables local SCADA networks with edge computing capabilities, reducing cloud dependency by 80%. Real-time flow rate adjustments prevent pipeline overpressure events while optimizing separator efficiency.

Chemical Batch Manufacturing
Challenge: Recipe management for 200+ product SKUs requiring precise ingredient sequencing and temperature profiling.
Solution: High-speed bus communication synchronizes dosing pumps, agitator speeds, and heat exchanger valves within ±0.5% setpoint accuracy. Audit trail functionality meets FDA 21 CFR Part 11 compliance for pharmaceutical-grade chemical production.

Power Plant Turbine Control
Challenge: Coordinating steam admission valves, generator excitation, and grid synchronization during load-following operations.
Solution: Deterministic 10ms control cycles maintain frequency regulation within ±0.02Hz during rapid load swings. Redundant bus architecture prevents single-point failures that could trigger emergency shutdowns costing $500K+ per event.

Water Treatment SCADA Integration
Challenge: Integrating 15-year-old PLC systems with modern HMI platforms for municipal utility consolidation.
Solution: Protocol conversion capabilities bridge Modbus RTU field devices to Ethernet/IP supervisory networks. Reduces integration engineering costs by 50% versus complete system replacement while extending asset lifecycle by 10+ years.

Food & Beverage CIP Systems
Challenge: Validating clean-in-place cycles with time-stamped conductivity, temperature, and flow rate data for regulatory audits.
Solution: Millisecond-resolution data logging captures transient events during caustic rinse phases. Automated report generation reduces compliance documentation labor from 8 hours to 15 minutes per batch.

Technical Parameters & Selection Guide

Selection Criteria: Choose EC402-50 for new CENTUM VP/CS 3000 installations requiring standard ESB connectivity. For systems with existing V-net/IP infrastructure, consider the AIP521 Control Bus Coupler as an alternative. Consult Yokogawa's network topology planning guide (TI 33M02A20-01E) to calculate maximum node distances based on cable type and electromagnetic interference levels.

Extended Capabilities

IoT Gateway Integration: Third-party protocol converters enable MQTT publishing to cloud historians and analytics platforms. Stream real-time process data to Azure IoT Hub or AWS Greengrass for machine learning model training without modifying existing control logic.

Cybersecurity Hardening: Supports VLAN segmentation and MAC address filtering when deployed with Yokogawa's ProSafe-RS safety controllers. Firmware updates delivered via encrypted channels prevent unauthorized code injection—critical for IEC 62443 compliance in critical infrastructure sectors.

Custom Firmware Options: OEM partners can request specialized communication profiles for non-standard fieldbus protocols. Minimum order quantities apply—contact Yokogawa's regional application engineering team for feasibility assessment.

Delivery & Service Assurance

Lead Time: Standard units ship within 5-7 business days from regional distribution centers. Custom-configured modules (e.g., extended temperature variants) require 4-6 weeks factory lead time from Japan manufacturing facility.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended service agreements available with 4-hour response SLAs for mission-critical installations.

Technical Support: Access to Yokogawa's global support network includes 24/7 phone assistance, remote diagnostics via secure VPN, and on-site commissioning services. Annual maintenance contracts include firmware updates and obsolescence management planning.

Documentation Package: Each module ships with installation manual (IM 33M12A10-02E), dimensional drawings in AutoCAD DXF format, and HART device description files for asset management software integration.

Frequently Asked Questions

Q: How does the EC402-50 interface with third-party PLCs like Allen-Bradley or Siemens?
A: Direct PLC integration requires a protocol gateway such as the Yokogawa YFGW410 or third-party converters supporting ESB-to-Ethernet/IP translation. The module itself operates exclusively on Yokogawa's proprietary ESB protocol—consult our integration engineering team for multi-vendor system architectures.

Q: What is the maximum I/O capacity supported per EC402-50 module?
A: Each coupler handles up to 2,048 I/O points when paired with Yokogawa AFV10/AFV30 I/O modules. Actual capacity depends on scan rate requirements—high-speed analog inputs (1ms sampling) reduce total point count compared to discrete I/O (10ms typical).

Q: Can this module reduce energy consumption in existing DCS installations?
A: The EC402-50's 4.5W power draw represents a 30% reduction versus legacy SB401 bus couplers. In a 500-node system, this translates to 225W savings—equivalent to $180/year in electricity costs at industrial rates. Additional savings accrue from reduced cooling loads in climate-controlled control rooms.

Q: What are the installation requirements for hazardous area deployments?
A: For ATEX Zone 2 / Class I Division 2 locations, mount the EC402-50 in a purged enclosure rated IP54 minimum. Intrinsic safety barriers are NOT required for the ESB communication cables themselves, but field wiring to I/O modules must follow entity certification guidelines per IEC 60079-11.

Q: Does the hot-swap feature support online firmware updates?
A: Firmware updates require a brief module reset (approximately 15 seconds). While the physical swap is hot-pluggable, the update process temporarily interrupts communication on that bus segment. For zero-downtime updates, deploy redundant bus configurations and perform rolling upgrades across primary/secondary channels.

Q: How do I monitor bus health and diagnose communication errors?
A: The module provides LED indicators for power, communication activity, and fault status. Advanced diagnostics are accessible through Yokogawa's Resource Configurator software, which displays real-time metrics including packet error rates, retry counts, and node response times. Set up SNMP traps to alert maintenance teams when error thresholds exceed 0.01%.

Request Technical Consultation

Our application engineers provide complimentary system design reviews for projects involving 10+ modules. Submit your P&ID drawings and I/O schedules to receive optimized network topology recommendations, cable length calculations, and budget pricing within 48 hours. For immediate assistance with compatibility questions or retrofit planning, contact our technical sales team using the information below.
