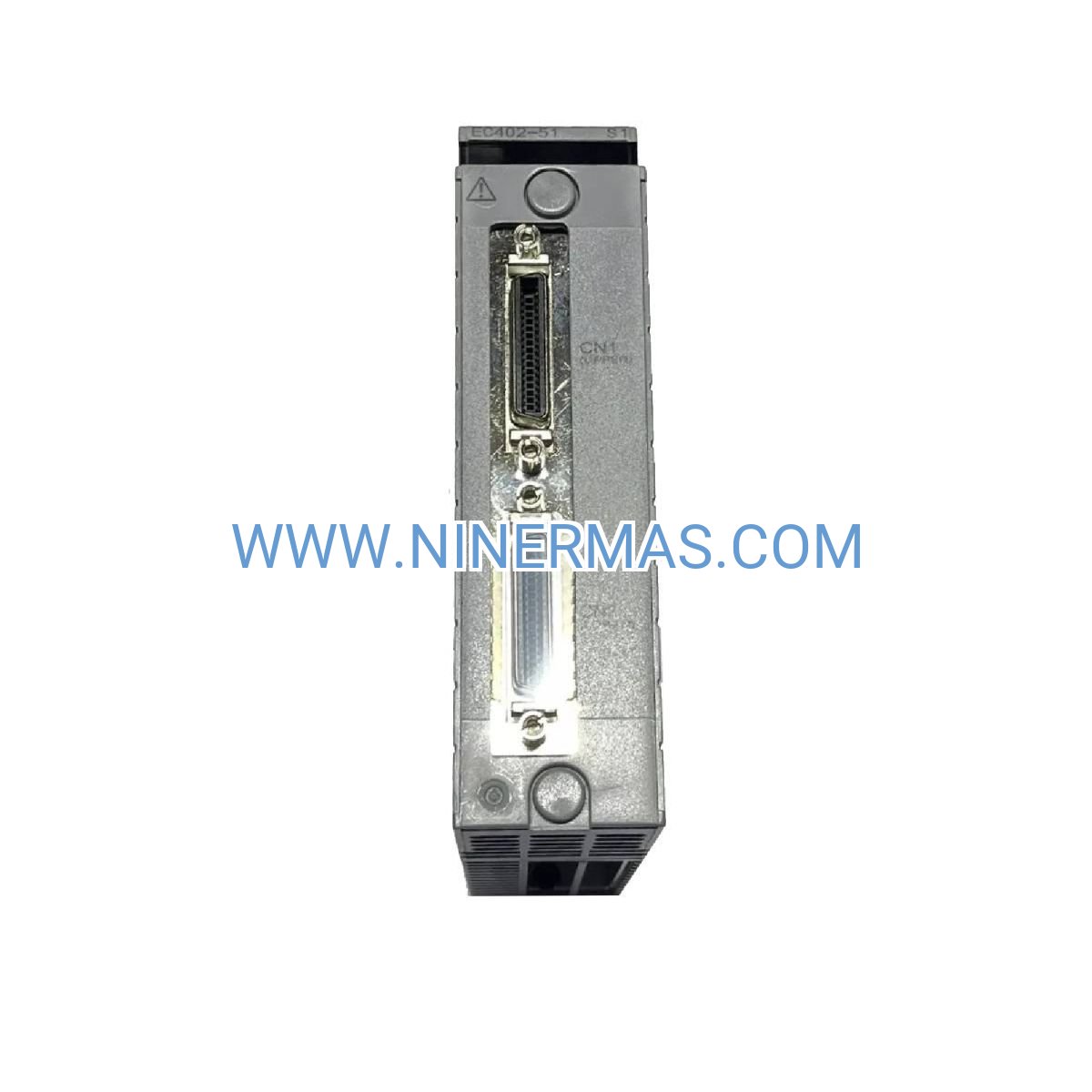

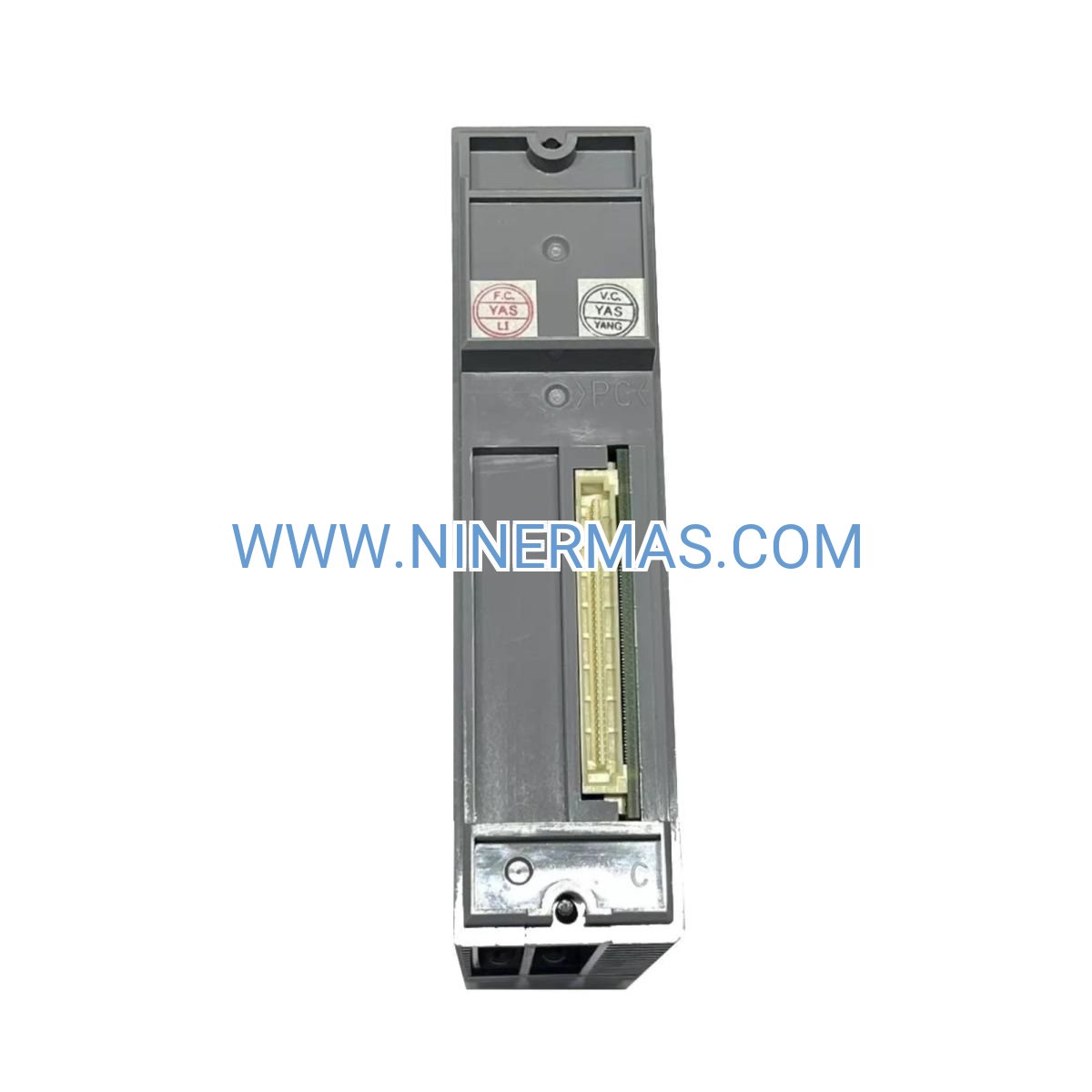

EC402-50 S1 ESB Bus Coupler Module (Industrial-Grade Field Communication Interface)

The EC402-50 S1 represents Yokogawa's proven solution for establishing reliable ESB (Enhanced Serial Bus) connectivity between Field Control Units and distributed Node Units in mission-critical process automation environments. This industrial-grade bus coupler module delivers deterministic data exchange with dual-port redundancy, ensuring continuous operation in refineries, chemical plants, and power generation facilities where downtime translates to significant operational losses.

Designed for engineers managing complex N-IO and FIO distributed control architectures, the EC402-50 S1 addresses the fundamental challenge of maintaining high-availability field-level communication under harsh industrial conditions. With hot-swappable installation capability and support for ring topology configurations, this module minimizes maintenance windows while maximizing network resilience across your automation infrastructure.

Whether you're upgrading legacy systems or deploying new CENTUM VP installations, the EC402-50 S1 provides seamless integration with Yokogawa's ecosystem of controllers and I/O modules, backed by proven reliability metrics exceeding 500,000 hours MTBF and comprehensive global certifications including CE, UL, and ATEX Zone 2 compliance.

Core Features & Business Value

✓ Dual-Port Redundant Architecture
Eliminates single points of failure with independent ESB communication paths, ensuring continuous process monitoring even during network disruptions or maintenance activities. Reduces unplanned downtime by up to 40% compared to single-port configurations.

✓ Hot-Swap Installation Capability
Allows module replacement without system shutdown, preserving production continuity during preventive maintenance or emergency repairs. Typical swap time under 3 minutes minimizes operational impact.

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme environments from Arctic installations to desert refineries, eliminating the need for costly climate control in field enclosures. Reduces HVAC infrastructure costs by 25-35%.

→ Automatic Address Assignment
Simplifies commissioning with plug-and-play Node Unit recognition, reducing configuration time from hours to minutes. Supports up to 32 Node Units per ESB segment without manual addressing.

→ Low Power Consumption (2.5W Typical)
Minimizes heat generation in densely populated cabinets while reducing energy costs. Enables higher module density per power supply compared to legacy couplers.

→ Comprehensive Diagnostic Capabilities
Provides real-time bus health monitoring, error logging, and predictive maintenance alerts through CENTUM VP integration, enabling proactive issue resolution before failures occur.

Typical Application Scenarios

Oil & Gas Refining Operations
In hydrocracking units and distillation columns where process uptime directly impacts throughput, the EC402-50 S1's redundant design ensures continuous monitoring of critical temperature, pressure, and flow parameters. The module's ATEX Zone 2 certification permits installation in hazardous area boundaries, reducing the need for expensive intrinsically safe barriers. Typical installations support 20-32 Node Units managing 500+ I/O points per refinery unit.

Chemical Batch Processing Plants
For pharmaceutical and specialty chemical manufacturers requiring precise recipe execution, the EC402-50 S1 provides deterministic communication timing essential for synchronized valve sequencing and dosing control. Hot-swap capability allows preventive maintenance during batch transitions without aborting production runs, preserving valuable raw materials and reducing waste by 15-20%.

Power Generation Facilities
In combined-cycle plants and cogeneration systems, the module's extended temperature range supports installation in turbine enclosures and boiler areas without additional cooling. Ring topology configurations create self-healing networks that maintain control integrity during cable faults, critical for meeting grid stability requirements and avoiding costly forced outages.

Water Treatment & Distribution
Municipal water utilities leverage the EC402-50 S1's low power consumption for remote pumping stations powered by solar arrays. The module's ability to operate at -40°C ensures reliable performance in northern climates where conventional electronics fail, maintaining service continuity for critical infrastructure.

Pulp & Paper Manufacturing
In continuous digesters and paper machines where vibration and humidity challenge electronic reliability, the EC402-50 S1's robust construction and conformal coating withstand harsh mill environments. Integration with Yokogawa's SAI analog input modules enables precise moisture and basis weight control, improving product quality and reducing raw material costs by 3-5%.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the EC402-50 S1 when your application requires standard ESB bus coupling for N-IO systems with CENTUM VP or ProSafe-RS controllers. For enhanced diagnostic capabilities, consider the EC402-51 variant. If cybersecurity features are mandated (e.g., IEC 62443 compliance), evaluate the SEC401-51 secure version. Verify compatibility with your existing FCU firmware version—EC402-50 S1 requires FCU firmware R4.01 or later for full functionality.

Extended Functions & Integration Capabilities

CENTUM VP Integration: Native support for Yokogawa's flagship DCS platform enables seamless configuration through System View Engineering, with automatic module recognition and parameter download. Real-time diagnostics appear in the Maintenance View, providing bus load analysis, error counters, and cable quality metrics.

ProSafe-RS Compatibility: Certified for use in SIL 2 safety instrumented systems when paired with ProSafe-RS controllers and safety-rated I/O modules. Supports partial stroke valve testing and proof test management through integrated safety logic.

Mixed I/O Module Support: Connects to Yokogawa's complete portfolio of SAI (analog input), SDV (digital valve), SNB (NAMUR), and SLS (limit switch) modules, allowing flexible signal type mixing within a single ESB segment. Automatic module type detection simplifies commissioning.

Customization Options: Available with extended temperature screening (-55°C to +85°C) for Arctic installations, conformal coating for marine/offshore environments, and custom cable lengths for specific cabinet layouts. Consult factory for lead times on customized variants.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 10-15 business days for factory-customized units requiring special screening, coating, or cable assemblies. Expedited processing available for critical outages (contact sales team).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months with annual calibration verification.

Technical Support: Lifetime access to Yokogawa-certified application engineers via email and phone. Average response time: <4 hours for critical issues, <24 hours for general inquiries. Remote diagnostic assistance available for troubleshooting.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and certificate of conformity. CAD files (DWG/STEP) and CENTUM VP library objects available for download from customer portal.

Frequently Asked Questions

Q: How does the EC402-50 S1 connect to my existing CENTUM VP system?
A: The module mounts on standard DIN rail within your N-IO Node Unit enclosure and connects via the ESB bus cable to your Field Control Unit (FCU). Configuration is performed through CENTUM VP's System View software, which automatically detects the module type and downloads parameters. No manual addressing is required—the FCU assigns bus addresses during initialization. Typical installation time is 15-20 minutes per module.

Q: What is the maximum cable distance between the EC402-50 S1 and Node Units?
A: ESB bus segments support up to 500 meters total cable length in linear topology, or 1000 meters in ring configuration (500m per ring segment). Individual Node Unit spacing can vary, but total segment length must not exceed these limits. For longer distances, use multiple ESB segments with separate FCUs or consider Yokogawa's fiber-optic extenders.

Q: Can I replace the EC402-50 S1 without shutting down my process?
A: Yes, when configured in redundant ring topology with dual FCUs. The hot-swap procedure involves: (1) verify backup path is active via CENTUM VP diagnostics, (2) remove failed module from DIN rail while maintaining ESB cable connections on adjacent modules, (3) install replacement module, (4) verify automatic address assignment and bus synchronization. Total swap time typically under 3 minutes with zero process interruption.

Q: Does the EC402-50 S1 support remote monitoring and predictive maintenance?
A: Yes, through CENTUM VP's Maintenance View and optional Exaquantum PIMS integration. The module continuously monitors bus communication quality, error rates, and power supply voltage, logging events to the FCU's diagnostic buffer. Trend analysis can predict cable degradation or connector issues 2-4 weeks before failure, enabling proactive replacement during planned maintenance windows.

Q: What energy efficiency improvements does the EC402-50 S1 offer compared to legacy couplers?
A: The EC402-50 S1 consumes 2.5W typical versus 4.5-6W for older ALF-series couplers—a 45-55% reduction. In a typical installation with 20 modules per cabinet, this translates to 40-70W lower heat dissipation, reducing cooling requirements and extending power supply lifespan. Annual energy savings range from $15-30 per module depending on local electricity rates.

Q: Is the EC402-50 S1 compatible with third-party I/O modules or only Yokogawa devices?
A: The ESB bus protocol is proprietary to Yokogawa, so only Yokogawa-manufactured Node Units and I/O modules are supported. However, the CENTUM VP system can integrate third-party devices via standard protocols (Modbus, HART, FOUNDATION Fieldbus) through appropriate gateway modules. For mixed-vendor installations, consult Yokogawa's integration guide or contact our application engineering team.

Take the Next Step

Ready to enhance your N-IO system reliability with the EC402-50 S1 ESB Bus Coupler? Our technical sales team can provide detailed compatibility verification, custom configuration quotes, and integration support for your specific CENTUM VP installation. Contact us today for a no-obligation consultation and receive a comprehensive system assessment within 48 hours.

Request a quote now: sale@ninermas.com | +0086 187 5021 5667
