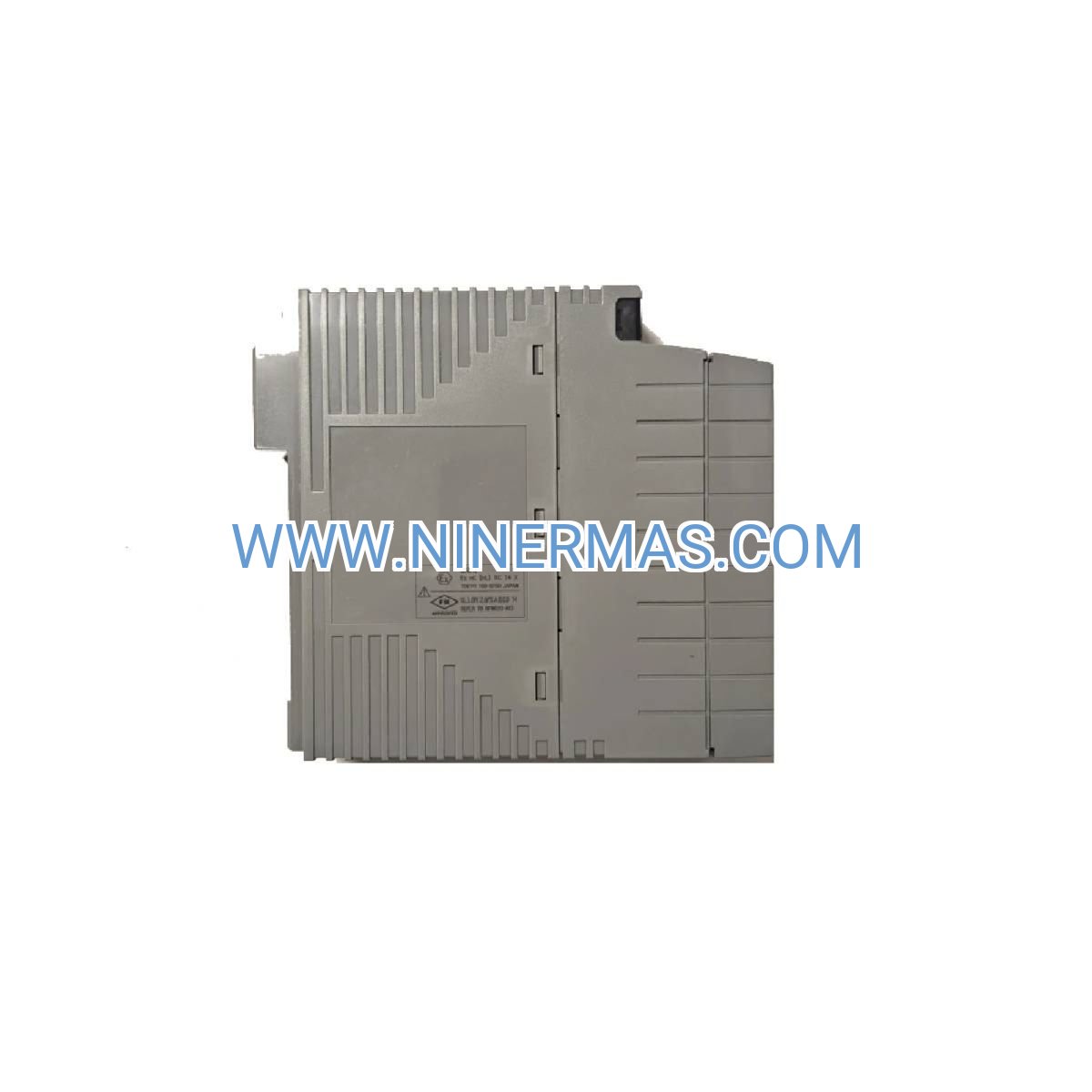

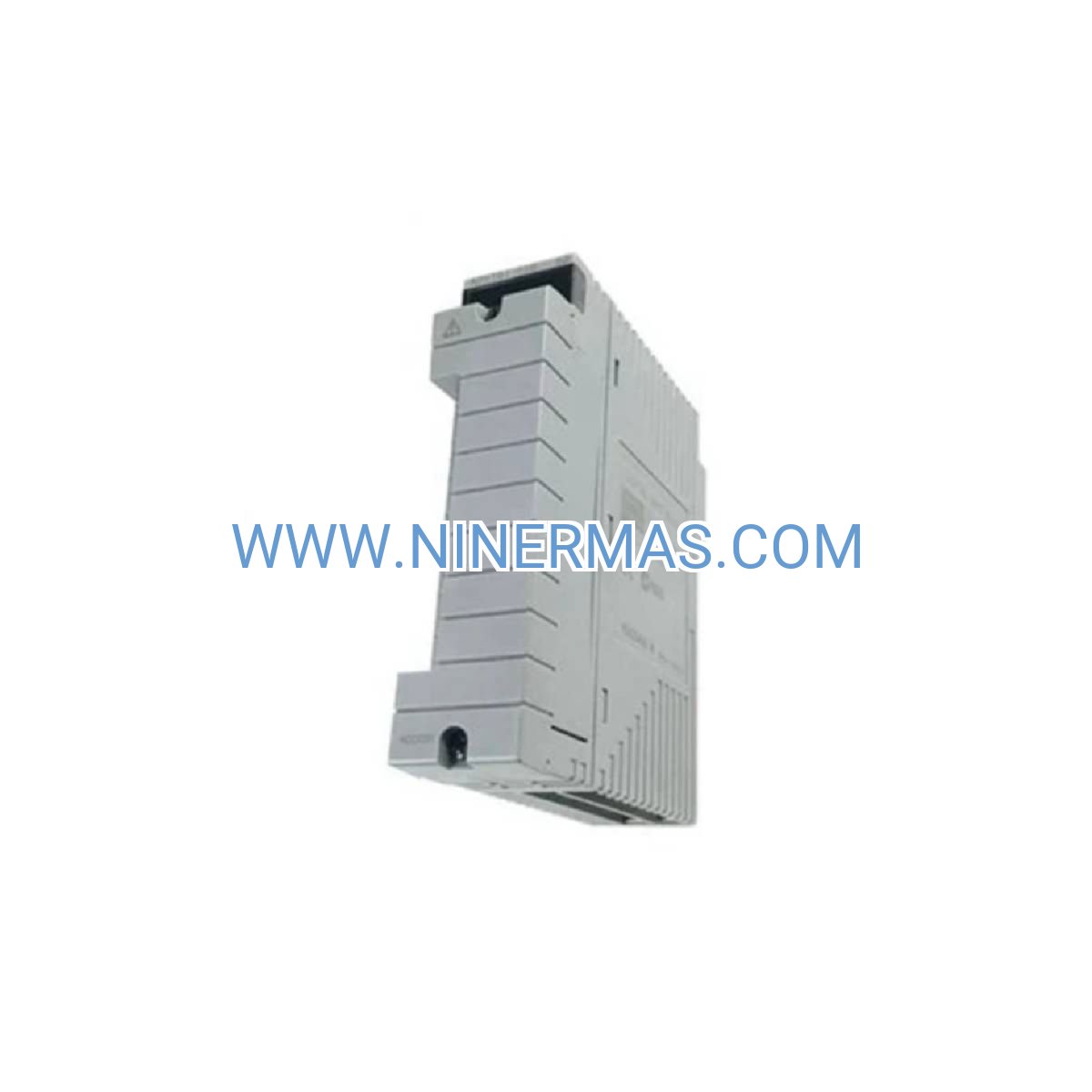

EB402-50 ER Bus Master Module (Industrial-Grade DCS Communication Hub)

The EB402-50 represents Yokogawa's proven solution for mission-critical process control communication. As the central coordinator in Extended Remote (ER) bus networks, this master module establishes the communication foundation for distributed control architectures across oil & gas, chemical processing, and power generation facilities. Designed for environments where downtime translates to significant operational losses, the EB402-50 delivers deterministic data exchange with built-in fault tolerance.

Process engineers and automation specialists deploy this module to solve complex integration challenges in multi-vendor control environments. Whether coordinating real-time data between field controllers and SCADA systems or maintaining synchronization across geographically distributed control nodes, the EB402-50 provides the reliability backbone that modern industrial operations demand.

With dual-redundant bus architecture and millisecond-level failover capabilities, this master module ensures continuous operation even during maintenance windows or unexpected component failures. The result: uninterrupted process visibility, reduced mean time to recovery (MTTR), and compliance with safety instrumented system (SIS) requirements in regulated industries.

Core Capabilities & Technical Advantages

→ Deterministic 10 Mbps Communication
Propriety ER bus protocol guarantees predictable message delivery timing, essential for closed-loop control applications where latency variations can destabilize process variables. Supports cycle times down to 100 milliseconds for time-critical control sequences.

→ Dual-Redundant Bus Architecture
Automatic switchover between primary and secondary bus segments occurs within 50 milliseconds of fault detection. Eliminates single points of failure in communication infrastructure, achieving 99.99% uptime in properly configured systems.

→ Multi-Node Scalability
Accommodates up to 32 slave modules per bus segment, enabling flexible system expansion as production capacity grows. Supports mixed configurations of I/O modules, controller nodes, and operator interface stations on a single network.

→ Real-Time Diagnostic Intelligence
Continuous monitoring of signal integrity, transmission error rates, and node responsiveness. Front-panel LEDs provide instant visual confirmation of bus status, while detailed error logs enable predictive maintenance strategies.

✓ Hot-Swappable Design
Replace failed modules without system shutdown or process interruption. Automatic configuration restoration from redundant partner ensures seamless service continuity during maintenance activities.

✓ Environmental Hardening
Operates reliably in industrial temperature ranges (0°C to 55°C) with conformal coating protection against humidity, dust, and chemical exposure common in process environments.

Industry Applications & Use Cases

Petrochemical Refining Operations
In crude distillation units, the EB402-50 synchronizes temperature, pressure, and flow data from column controllers to central optimization systems. Enables real-time adjustment of reflux ratios and heat input based on feedstock variations, improving yield by 2-4% while maintaining product specifications.

Pharmaceutical Batch Manufacturing
Coordinates recipe execution across multiple batch reactors, ensuring precise sequencing of ingredient additions, temperature ramps, and hold times. Maintains complete audit trails of all process communications for FDA 21 CFR Part 11 compliance validation.

Power Generation Load Balancing
Links turbine control systems with grid demand forecasting platforms, enabling rapid response to frequency deviations. Redundant bus configuration ensures continuous monitoring during scheduled maintenance of primary communication paths.

Water Treatment SCADA Networks
Integrates remote pumping stations with central treatment facilities across distributed municipal infrastructure. Supports long-distance communication requirements while maintaining data integrity in electrically noisy environments.

Food & Beverage Process Control
Manages communication between pasteurization controllers, CIP (clean-in-place) systems, and quality monitoring stations. Deterministic timing ensures proper sequencing of sanitation cycles and product changeovers.

Technical Specifications & Selection Criteria

Selection Guidelines: Deploy EB402-50 in applications requiring master-level bus control with redundancy. For slave node connectivity, pair with EB501-50 modules. Verify compatibility with your CENTUM system version (VP, CS 3000, or legacy platforms) before ordering. Consider network topology—star configurations require additional master modules compared to linear bus arrangements.

Advanced Integration Features

OPC UA Gateway Compatibility: Interfaces with modern IIoT platforms through Yokogawa's OPC UA server modules, enabling cloud-based analytics and remote monitoring without compromising real-time control performance.

Cybersecurity Hardening: Supports network segmentation strategies with VLAN tagging and MAC address filtering when deployed with compatible Yokogawa Ethernet switches. Firmware includes protection against common industrial protocol exploits.

Custom Configuration Profiles: Engineering teams can define application-specific communication parameters including message prioritization, timeout values, and retry logic to optimize performance for unique process requirements.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via expedited shipping to major industrial regions. All modules ship with factory calibration certificates and configuration documentation.

Custom Configuration: 7-10 business days for pre-configured modules with customer-specific parameter sets loaded and tested prior to shipment.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical sparing applications.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and system optimization recommendations. Phone and email support available during business hours (GMT+8).

Documentation Package: Includes installation manual, wiring diagrams, configuration software utilities, and integration examples for common CENTUM system architectures.

Frequently Asked Questions

How does the EB402-50 integrate with existing CENTUM CS 3000 systems?
The module installs directly into standard Yokogawa DCS chassis and auto-discovers connected slave modules during power-up. Configuration is managed through the same engineering software (System View or FieldMate) used for other system components, requiring no additional tools or training.

What is the maximum cable distance between master and slave modules?
ER bus supports up to 500 meters (1,640 feet) between nodes using standard Cat5e shielded twisted pair cabling. For longer distances, deploy fiber optic media converters or additional master modules to segment the network.

Can this module reduce communication bottlenecks in high-I/O-count applications?
Yes—the 10 Mbps data rate provides 5-10x higher throughput compared to legacy 1 Mbps bus systems. In applications with 300+ I/O points per controller, upgrading to EB402-50 typically reduces scan cycle times by 40-60%, improving control loop response.

What installation requirements must be met for redundant operation?
Redundancy requires dual EB402-50 modules installed in separate chassis slots, each connected to independent bus segments. Both modules must share identical configuration files, and slave modules require dual-port connectivity. Consult Yokogawa's redundancy planning guide for detailed wiring schematics.

Does the EB402-50 support remote diagnostics and monitoring?
Yes—when integrated with Yokogawa's Exaquantum or FAST/TOOLS SCADA platforms, the module exposes detailed bus statistics including error counters, node status, and bandwidth utilization. These metrics can be trended and alarmed for predictive maintenance programs.

Is firmware upgradable in the field without specialized equipment?
Firmware updates are performed through the DCS engineering station using standard configuration software. The process takes approximately 15 minutes per module and can be executed during scheduled maintenance windows without process shutdown when redundant modules are deployed.

Next Steps: Optimize Your DCS Communication Infrastructure

Ready to eliminate communication bottlenecks and enhance system reliability? Our application engineers will review your current CENTUM architecture and recommend the optimal EB402-50 deployment strategy for your facility. Contact us today for a complimentary network assessment and detailed ROI analysis.

Request a Quote: Provide your system configuration details and receive a customized proposal within 24 hours, including module pricing, recommended spares, and integration support options.

Technical Consultation: Schedule a call with our Yokogawa-certified specialists to discuss redundancy strategies, network topology optimization, and migration planning from legacy bus systems.
