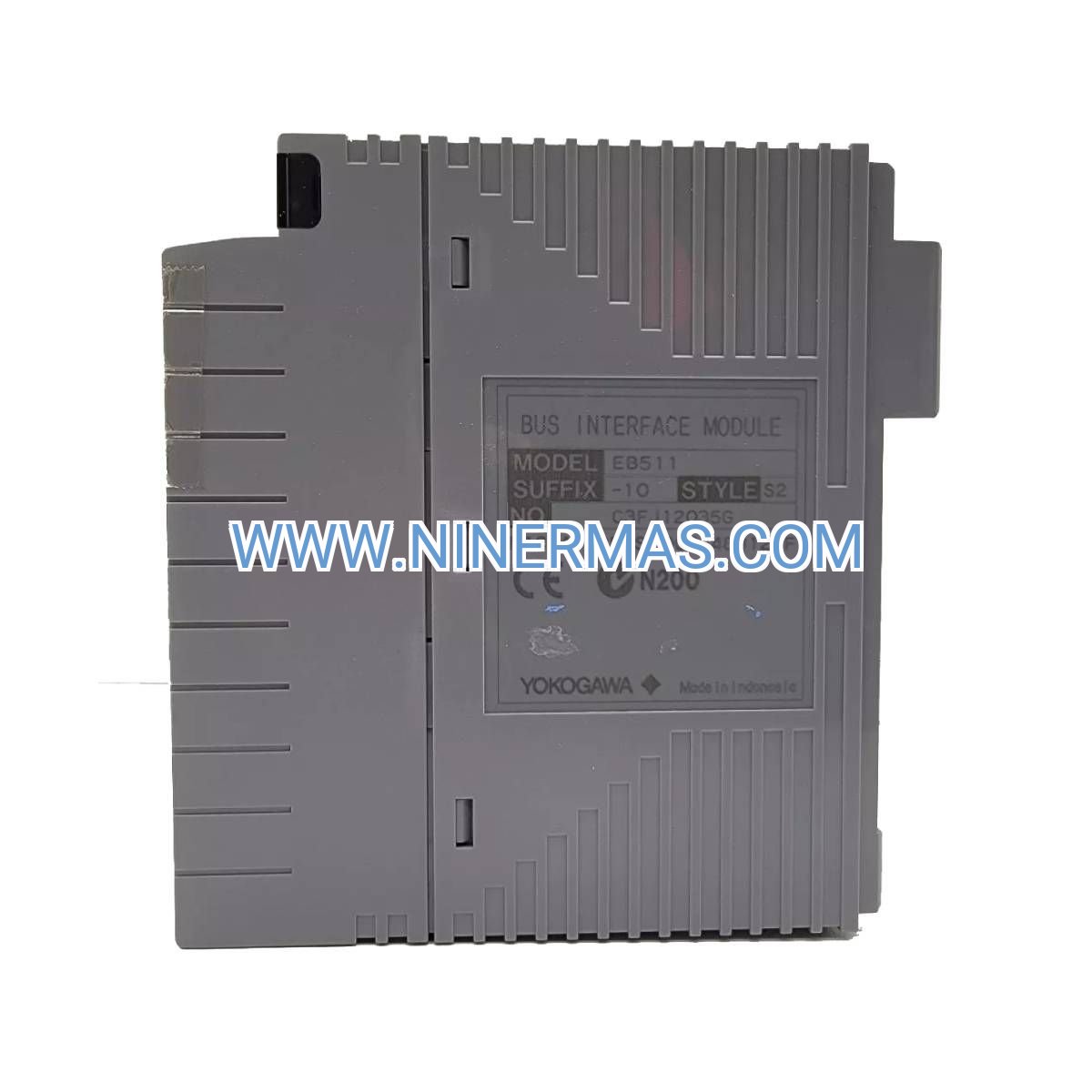

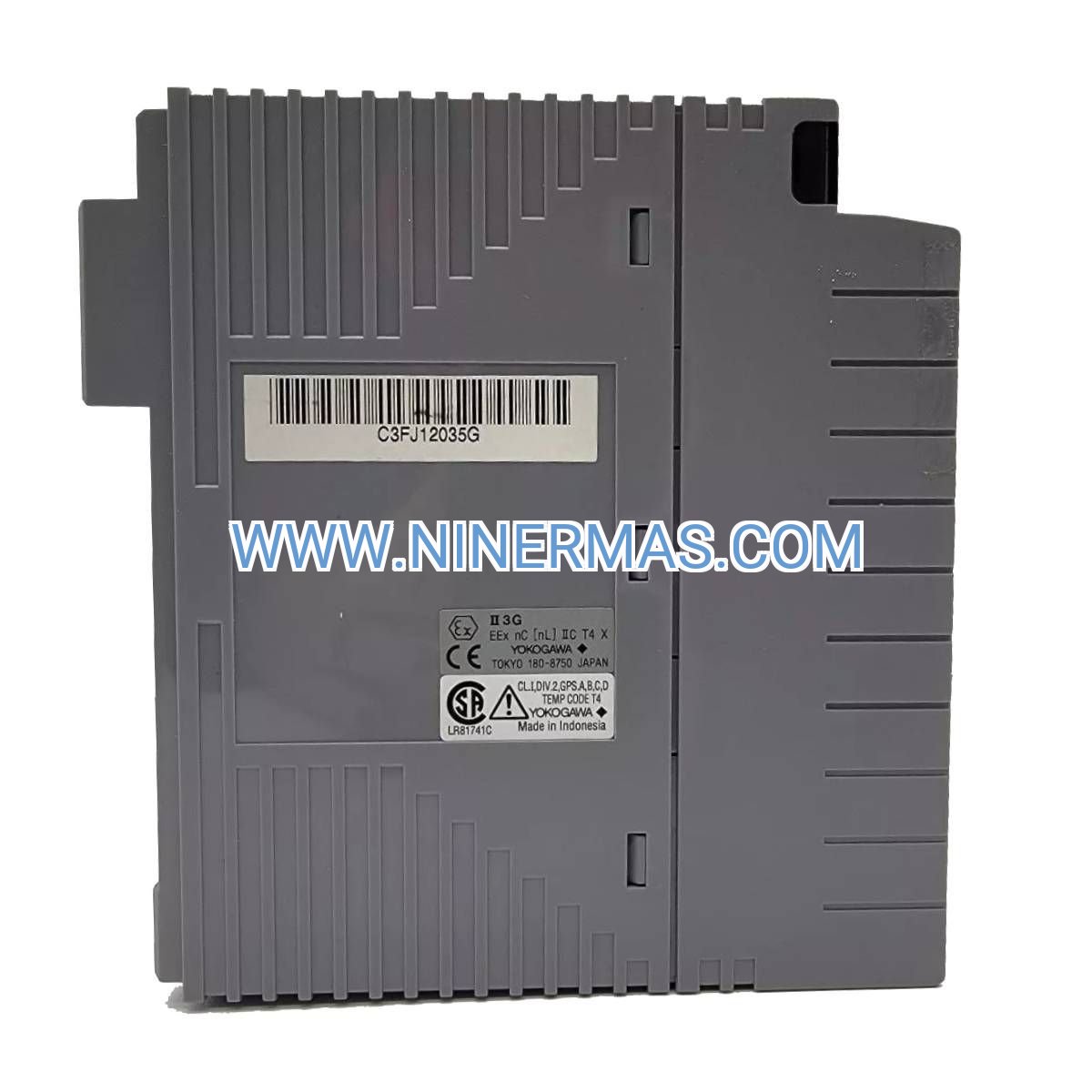

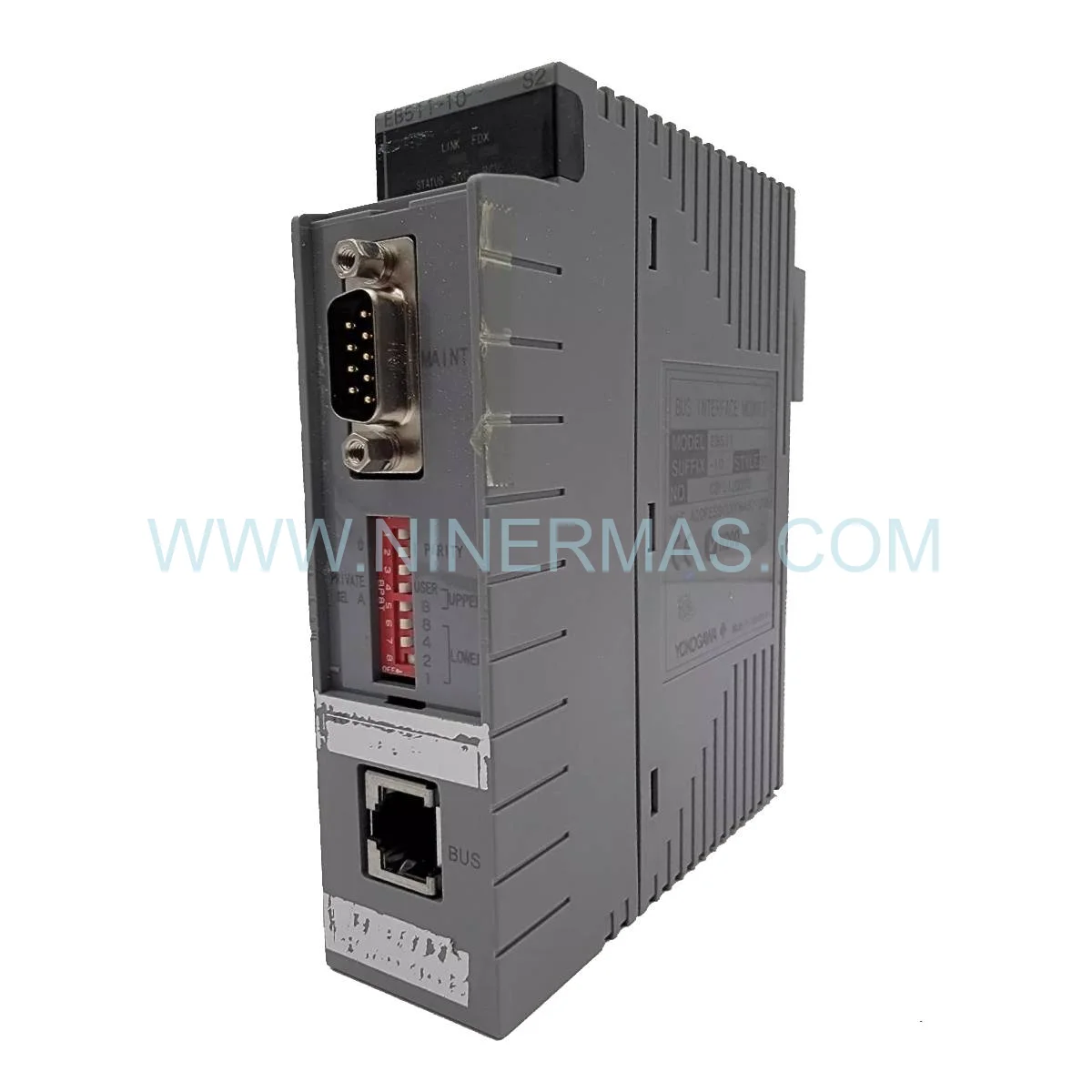

EB511-10 Bus Interface Module – Industrial-Grade DCS Communication Gateway

The EB511-10 represents Yokogawa's proven solution for establishing robust, high-throughput communication links between field instrumentation and CENTUM series controllers. This bus interface module transforms complex multi-point I/O networks into streamlined data highways, delivering microsecond-level response times critical for closed-loop process control in refineries, chemical plants, and power stations.

Designed for engineers managing distributed automation architectures, the EB511-10 eliminates communication bottlenecks while maintaining protocol integrity across hundreds of field devices. Its dual-redundant capability and self-healing network topology ensure 99.99% uptime in mission-critical applications where unplanned downtime translates to six-figure losses per hour.

From brownfield retrofits to greenfield installations, this module integrates seamlessly with legacy CENTUM CS systems and next-generation CS 3000 platforms, protecting your automation investment while enabling scalable expansion as production demands evolve.

Core Capabilities & Business Value

→ Deterministic Data Exchange: Proprietary V-net/IP protocol guarantees sub-10ms scan cycles for time-sensitive control loops, preventing cascade failures in batch processes and continuous operations.

→ Hot-Swappable Redundancy: Dual-module configurations enable online replacement without process interruption, reducing maintenance windows by 75% compared to single-path architectures.

✓ Zero-Configuration Deployment: Auto-discovery of network topology and device parameters cuts commissioning time from days to hours, with plug-and-play terminal blocks accepting 12-24 AWG wiring.

✓ Diagnostic Intelligence: Real-time health monitoring tracks signal integrity, packet loss, and module temperature, triggering predictive alerts before faults impact production.

✓ Certified Safety Integration: SIL 2 compliance enables deployment in safety instrumented systems (SIS) for emergency shutdown and fire & gas detection networks.

✓ Energy-Optimized Design: Low-power circuitry reduces panel heat load by 40% versus competing modules, extending component lifespan and lowering HVAC costs in control rooms.

Industry-Specific Applications

Upstream Oil & Gas: Coordinates wellhead pressure transmitters, separator level controls, and pipeline flow computers across offshore platforms where communication reliability directly impacts HSE performance and regulatory compliance.

Petrochemical Complexes: Manages reactor temperature cascades, distillation column reflux ratios, and compressor anti-surge controls in environments with explosive atmospheres (ATEX Zone 1/2 rated enclosures).

Thermal Power Plants: Synchronizes boiler drum level, turbine governor signals, and flue gas analyzers, maintaining steam parameters within ±2% setpoint tolerance for optimal thermal efficiency.

Municipal Water Treatment: Orchestrates chlorine dosing pumps, UV disinfection systems, and SCADA telemetry across multi-site facilities, ensuring drinking water quality meets EPA/WHO standards.

Pharmaceutical Manufacturing: Provides 21 CFR Part 11 compliant data logging for clean room HVAC, autoclave cycles, and fermentation bioreactors, with audit trails for FDA validation packages.

Technical Specifications & Selection Criteria

Selection Guidance: For systems exceeding 300 I/O points, implement dual-redundant EB511-10 pairs with automatic failover. In hazardous areas, house modules in purged/pressurized enclosures rated for Zone 1 (IEC) or Class I Division 1 (NEC).

Advanced Integration Features

OPC UA Connectivity: Optional gateway firmware enables direct integration with MES/ERP systems, eliminating middleware servers and reducing IT infrastructure costs by 30-50%.

Cybersecurity Hardening: Built-in firewall rules and encrypted tunneling protect against industrial network threats, meeting IEC 62443 security level 2 requirements for defense-in-depth strategies.

Cloud Analytics Bridge: Export process data to Azure IoT Hub or AWS Greengrass for machine learning-based predictive maintenance, identifying bearing failures 2-4 weeks before catastrophic breakdown.

Custom Protocol Translation: Field-configurable to interface with Modbus RTU, HART, and Foundation Fieldbus devices, consolidating mixed-vendor installations onto a unified communication backbone.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-configured redundant pairs with custom firmware.

Warranty Coverage: 24-month manufacturer defect warranty with advance replacement service (RMA processed within 48 hours).

Technical Resources: Comprehensive package includes CAD drawings (AutoCAD DWG), loop wiring diagrams, configuration software (Windows 10/11), and 200+ page engineering manual with troubleshooting flowcharts.

Application Support: Pre-sales consultation for system sizing, post-sales commissioning assistance via remote desktop, and 24/7 emergency hotline for production-down scenarios.

Frequently Asked Questions

Q: How does the EB511-10 interface with third-party PLCs like Allen-Bradley or Siemens?
A: The module natively communicates only with Yokogawa CENTUM controllers via V-net/IP. For multi-vendor integration, deploy an OPC UA gateway or Modbus TCP converter as an intermediary bridge.

Q: What is the maximum cable distance between the EB511-10 and field devices?
A: Standard twisted-pair wiring supports up to 1,200 meters (4,000 feet) at 9600 baud. For longer runs, use fiber optic media converters to extend range to 15 km without signal degradation.

Q: Can this module reduce energy consumption in my control system?
A: Yes—the EB511-10's low-power design (8W vs. 15W for legacy modules) cuts panel heat generation by 47%, reducing cooling loads and extending capacitor lifespan by 3-5 years in high-temperature environments.

Q: What are the installation requirements for hazardous area deployment?
A: Mount the module inside a purged/pressurized enclosure rated NEMA 4X or IP66, with positive pressure maintained at 0.1-0.5 inches of water column. Ensure all cable glands are certified Ex d or Ex e.

Q: Does the EB511-10 support remote monitoring and diagnostics?
A: Absolutely—when paired with Yokogawa's Exaquantum PIMS or third-party SCADA platforms, you can monitor module status, communication errors, and signal quality from any web browser or mobile device.

Q: How do I size the number of modules needed for my application?
A: Calculate total I/O count (analog + digital), divide by 400 points per module (leaving 20% headroom), then add 1-2 spare modules for future expansion. For redundant systems, double the quantity.

Next Steps: Optimize Your DCS Architecture

Ready to eliminate communication bottlenecks and future-proof your control infrastructure? Our application engineers will analyze your system topology, recommend optimal module quantities, and provide detailed ROI calculations showing payback periods of 12-18 months through reduced downtime and maintenance costs.

Request a technical consultation: Share your P&ID drawings and I/O lists for a customized integration proposal within 48 hours.
