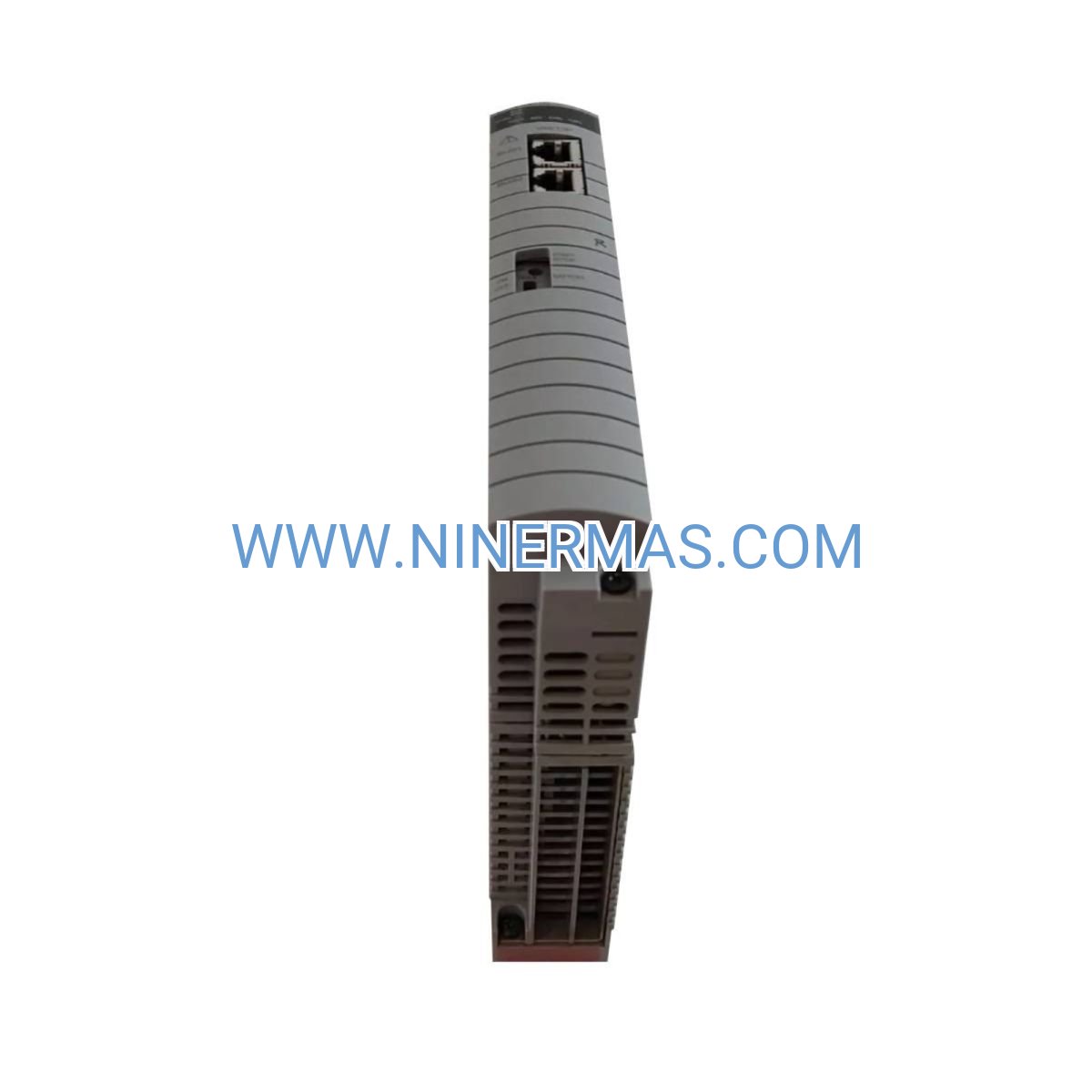

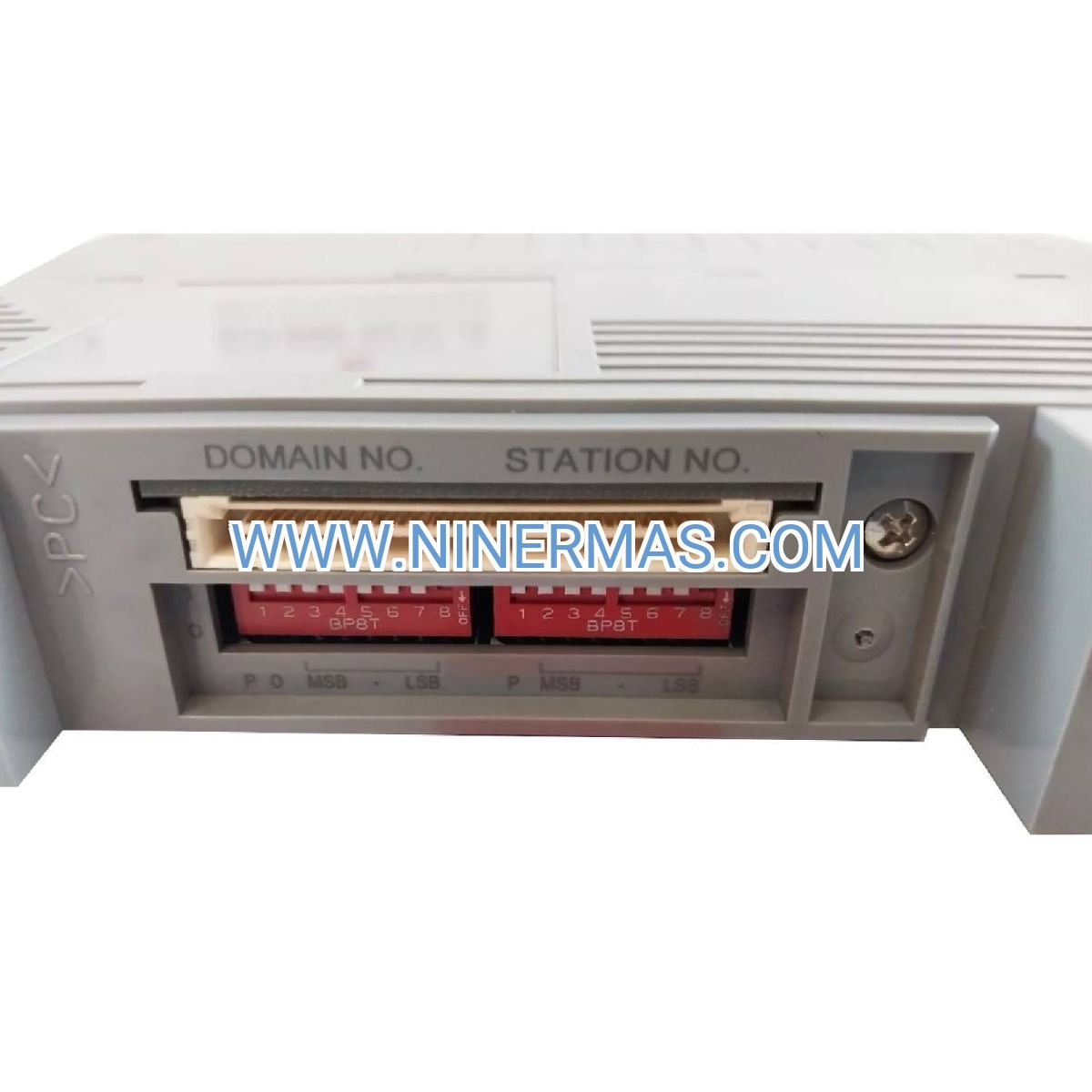

NFCP050-S00 FCN-RTU CPU Module (Industrial-Grade Real-Time Processor)

The Yokogawa NFCP050-S00 represents a breakthrough in distributed control technology—a compact, field-deployable CPU module purpose-built for Remote Terminal Unit (RTU) applications where reliability, real-time performance, and environmental resilience are non-negotiable. Engineered for unmanned installations across oil & gas, water infrastructure, and power distribution networks, this processor combines deterministic task execution with flexible programming environments to deliver autonomous control at the network edge.

Designed for system integrators and automation engineers managing geographically dispersed assets, the NFCP050-S00 eliminates the latency and bandwidth constraints of centralized control architectures. Its dual programming framework—supporting both IEC 61131-3 industrial standards and Java-based custom applications—enables rapid deployment of proven control logic while maintaining the flexibility to implement advanced analytics, predictive maintenance algorithms, and protocol translation routines directly at the field level.

Whether you're retrofitting legacy RTU infrastructure or architecting next-generation SCADA networks, the NFCP050-S00 provides the computational foundation for intelligent edge control that reduces operational costs, enhances system resilience, and accelerates response times to critical process events.

Core Capabilities & Technical Advantages

✓ Deterministic Real-Time Operating System
Guarantees predictable task execution with microsecond-level precision, essential for safety-instrumented systems and time-critical process control applications where timing jitter can compromise product quality or operational safety.

✓ Dual Programming Environment
IEC 61131-3 compliance (Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart) ensures compatibility with existing automation standards, while integrated Java Virtual Machine enables custom application development for specialized data processing and communication protocols.

✓ Multi-Protocol Communication Stack
Native support for Modbus RTU/TCP, DNP3, OPC UA, and proprietary SCADA protocols facilitates seamless integration with heterogeneous control systems, eliminating the need for external protocol converters and reducing system complexity.

✓ Extended Environmental Specifications
Operating temperature range of -20°C to +60°C with conformal coating protection against humidity, dust, and corrosive atmospheres—engineered for deployment in uncontrolled environments including offshore platforms, desert installations, and arctic facilities.

✓ Low-Power Architecture
Optimized power consumption profile enables solar-powered or battery-backed installations in remote locations where grid power is unavailable or unreliable, reducing infrastructure costs and environmental impact.

✓ Cybersecurity Hardening
Built-in security features including encrypted communications, role-based access control, and audit logging protect critical infrastructure against unauthorized access and cyber threats in accordance with IEC 62443 industrial cybersecurity standards.

Industry Applications & Use Cases

→ Oil & Gas Pipeline Networks
Deploy NFCP050-S00 modules at remote pump stations and metering points to execute autonomous control strategies for flow regulation, pressure management, and leak detection. Real-time data aggregation and edge analytics reduce SCADA bandwidth requirements by up to 70% while enabling sub-second response to abnormal operating conditions.

→ Municipal Water & Wastewater Systems
Implement distributed control logic across treatment plants, lift stations, and reservoir sites for automated chemical dosing, filtration sequencing, and effluent quality monitoring. Programmable alarm management and event-driven reporting ensure regulatory compliance while minimizing operator intervention.

→ Electrical Substation Automation
Execute intelligent electronic device (IED) coordination, breaker control sequences, and load shedding algorithms with deterministic timing guarantees. Support for IEC 61850 communication standards enables seamless integration with modern substation automation architectures.

→ Manufacturing Process Control
Orchestrate complex batch recipes, continuous process regulation, and material handling sequences in pharmaceutical, chemical, and food processing facilities. High-speed I/O scanning and floating-point arithmetic capabilities support advanced PID control and model predictive control implementations.

→ Renewable Energy Management
Coordinate solar inverter arrays, wind turbine pitch control, and battery energy storage systems with real-time power quality monitoring and grid synchronization protocols. Programmable logic enables dynamic response to fluctuating generation and demand conditions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose NFCP050-S00 for standalone RTU applications requiring moderate I/O counts (up to 128 points) and standard communication protocols. For redundant control architectures or applications exceeding 256 I/O points, consider pairing with NFCP501-W05 S2 modules. Evaluate total system I/O requirements, communication bandwidth needs, and environmental conditions to determine optimal module configuration.

Extended Integration & Scalability Options

The NFCP050-S00 serves as the computational core of Yokogawa's modular FCN-RTU platform, enabling seamless expansion as system requirements evolve. Combine with NFBU200-S15 base modules to add analog input, digital output, and specialty I/O cards without replacing the CPU. For applications requiring enhanced processing power or memory capacity, the architecture supports hot-swappable upgrades to NFCP100-S00 controllers while preserving existing program logic and configuration databases.

Advanced features include support for redundant communication paths, automatic failover to backup SCADA servers, and store-and-forward data buffering during network outages—ensuring continuous operation even when connectivity to central control rooms is temporarily lost. Built-in web server functionality enables remote diagnostics and configuration updates via standard browsers, reducing site visit requirements and accelerating troubleshooting workflows.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured systems with custom I/O assignments or firmware versions.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Assistance: Comprehensive support including application engineering consultation, programming assistance, and system integration guidance. Access to Yokogawa's global network of certified system integrators and training resources.

Documentation Package: Complete technical manuals, programming guides, communication protocol specifications, CAD drawings, and sample code libraries provided with each shipment. Ongoing firmware updates and security patches available through Yokogawa's customer portal.

Frequently Asked Questions

Q: What communication interfaces does the NFCP050-S00 support for SCADA integration?
A: The module includes native support for Modbus RTU/TCP, DNP3 (Level 2), OPC UA, and Yokogawa's proprietary Vnet/IP protocol. Ethernet and serial ports enable simultaneous connections to multiple SCADA hosts, HMI systems, and peer RTUs. Protocol conversion capabilities allow bridging between legacy serial networks and modern Ethernet-based architectures.

Q: Can the NFCP050-S00 handle redundant control configurations?
A: While the NFCP050-S00 is designed for standalone RTU applications, it supports hot-standby redundancy when paired with a second CPU module and appropriate base hardware. For mission-critical applications requiring bumpless transfer and synchronized state machines, consider the NFCP501-W05 S2 series with built-in redundancy management.

Q: What is the maximum I/O capacity supported by a single NFCP050-S00 module?
A: The CPU can manage up to 128 discrete I/O points and 64 analog channels when configured with compatible NFBU-series base modules and I/O cards. For larger systems, multiple NFCP050-S00 units can be networked using Vnet/IP to create distributed control architectures with thousands of I/O points.

Q: Does the module support remote firmware updates and diagnostics?
A: Yes, the integrated web server and FTP server enable secure remote access for firmware updates, program uploads/downloads, and real-time diagnostics. Role-based access control and encrypted communications ensure cybersecurity compliance during remote maintenance operations.

Q: What programming tools are required to develop applications for the NFCP050-S00?
A: Yokogawa's Logic Designer software provides a comprehensive IEC 61131-3 development environment with simulation capabilities, online debugging, and version control integration. For Java-based applications, standard IDEs such as Eclipse can be used with Yokogawa's SDK libraries. Programming licenses are sold separately from hardware.

Q: How does the NFCP050-S00 perform in extreme temperature environments?
A: The module is rated for continuous operation from -20°C to +60°C with automatic thermal management and no performance degradation. For installations in extreme climates (Arctic, desert, tropical), optional conformal coating and extended-temperature components are available to ensure reliable operation across -40°C to +70°C ranges.

Ready to Deploy Intelligent Edge Control?

Transform your distributed automation infrastructure with the NFCP050-S00's proven combination of real-time performance, programming flexibility, and industrial-grade reliability. Contact our application engineering team to discuss your specific RTU requirements, receive customized system architecture recommendations, and obtain detailed quotations for turnkey solutions.

Request a technical consultation today: Our specialists will analyze your I/O requirements, communication protocols, and environmental conditions to design an optimized FCN-RTU configuration that meets your performance objectives and budget constraints.
