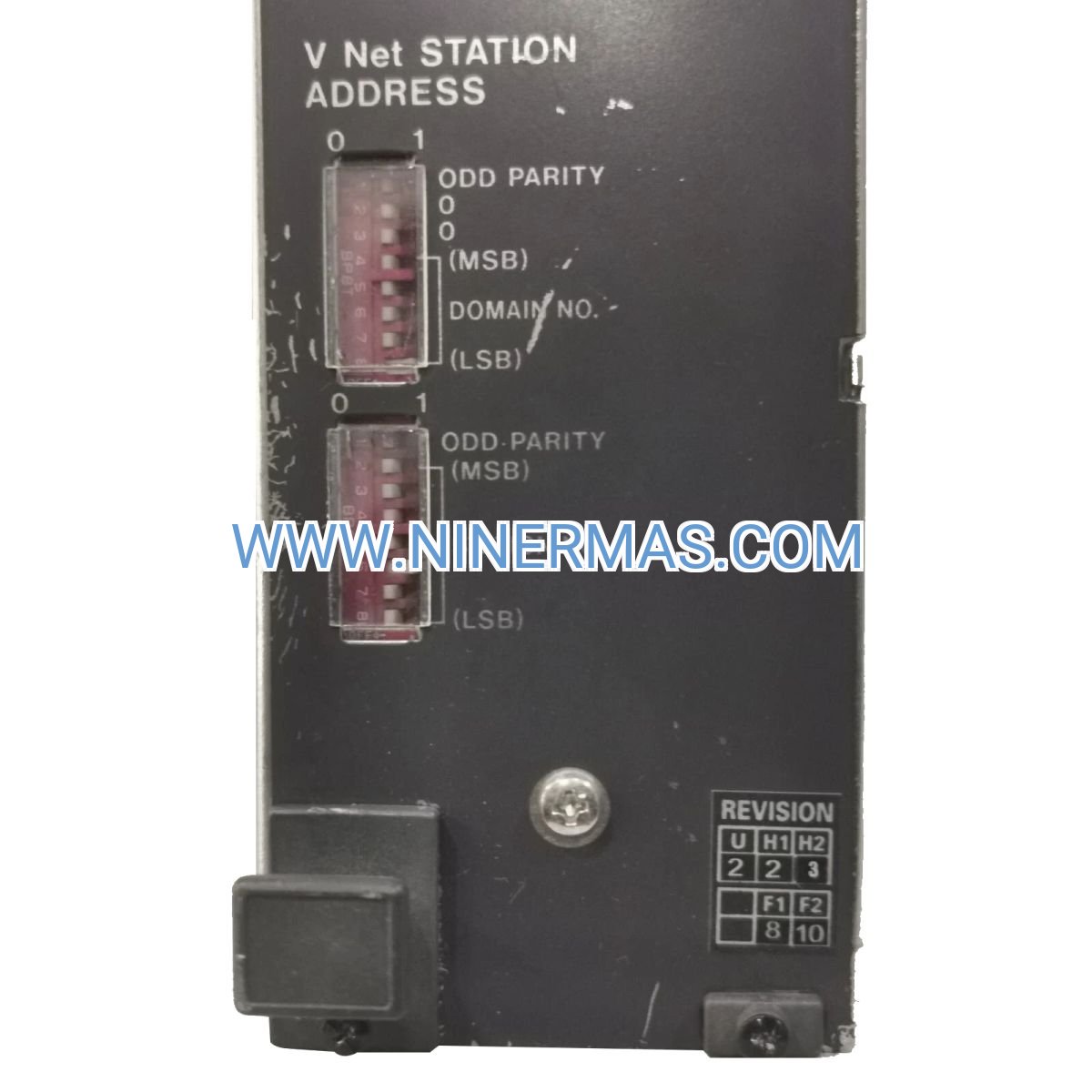

Yokogawa ANB10D-425/CU2T ESB Bus Node Unit (Industrial-Grade Redundant Interface)

The Yokogawa ANB10D-425/CU2T represents a mission-critical communication bridge in distributed control systems, delivering dual-redundant ESB (Extended Serial Bus) connectivity between Field Control Units and I/O modules. Engineered for process industries demanding 99.99% uptime, this bus node unit combines fault-tolerant architecture with intelligent power distribution, ensuring continuous signal integrity across analog and contact I/O channels even during component failures or maintenance operations.

Designed for integration within CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms, the ANB10D-425/CU2T addresses the critical challenge of single-point failures in industrial automation networks. Process engineers and system integrators rely on this module to maintain uninterrupted data flow in refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing where production stoppages translate to significant financial losses.

With hot-swappable design and automatic failover capabilities, the ANB10D-425/CU2T minimizes planned downtime while providing robust protection against unplanned outages. Its standardized ESB protocol ensures seamless compatibility with legacy and next-generation Yokogawa I/O modules, future-proofing your automation infrastructure investment.

Core Features & Technical Advantages

✓ Dual-Redundant Communication Architecture
Two independent ESB bus paths operate simultaneously, with automatic switchover in <50ms during primary path failure. This redundancy eliminates communication bottlenecks and ensures continuous process monitoring without operator intervention.

✓ Hot-Swappable Maintenance Design
Replace failed units during live operation without system shutdown or I/O signal interruption. Reduces maintenance windows by 80% compared to non-redundant architectures, translating to increased production availability and lower operational costs.

✓ Integrated Power Distribution Management
Regulated power supply to downstream I/O modules with built-in overcurrent protection. Monitors power consumption per slot and generates diagnostic alerts before voltage sag conditions affect signal accuracy.

✓ Universal I/O Module Compatibility
Supports analog input/output (AI/AO), digital input/output (DI/DO), and specialized signal cards including RTD, thermocouple, and pulse input modules. Backward-compatible with legacy ANB series modules while supporting high-density next-gen cards.

✓ Diagnostic LED Indicators & SNMP Monitoring
Real-time status visualization through front-panel LEDs (power, communication, fault). Integrates with Yokogawa's Exaquantum or PRM asset management systems for predictive maintenance and remote diagnostics.

✓ Industrial-Hardened Environmental Ratings
Operates reliably in -10°C to +55°C ambient temperatures with conformal coating protection against humidity, dust, and corrosive atmospheres. Meets IEC 61131-2 standards for industrial controller equipment.

Application Scenarios & Industry Solutions

→ Continuous Process Manufacturing
In chemical reactors and distillation columns requiring 24/7 operation, the ANB10D-425/CU2T maintains critical temperature, pressure, and flow measurements during controller maintenance. Dual-redundancy prevents batch losses valued at $50K-$500K per incident in specialty chemical production.

→ Oil & Gas Upstream/Midstream Operations
Offshore platforms and pipeline compressor stations deploy this module for safety-instrumented systems (SIS) where communication failure could trigger emergency shutdowns. Redundant architecture ensures compliance with IEC 61511 functional safety requirements.

→ Power Generation & Utilities
Thermal and combined-cycle power plants utilize the ANB10D-425/CU2T in boiler control and turbine monitoring systems. Hot-swap capability enables preventive maintenance during low-demand periods without unit de-rating or grid disconnection.

→ Pharmaceutical & Biotech Manufacturing
Clean room environments and fermentation processes benefit from the module's ability to maintain validated process parameters during equipment upgrades. Supports FDA 21 CFR Part 11 audit trail requirements through integrated diagnostics.

→ Water & Wastewater Treatment
Municipal treatment facilities use redundant bus nodes to ensure continuous monitoring of chlorination, pH control, and filtration systems. Prevents regulatory violations and protects public health during equipment failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ANB10D-425/CU2T when your application requires SIL 2/3 safety integrity levels, operates in hazardous area classifications (with appropriate barriers), or demands >99.9% communication availability. For non-critical applications with acceptable downtime windows, consider single-bus ANB10S models to reduce initial capital costs.

Extended Functionality & System Integration

SCADA & HMI Connectivity: Integrates seamlessly with Yokogawa's HIS (Human Interface Station) and Exapilot operations management software. Supports OPC UA and Modbus TCP protocols for third-party SCADA integration, enabling unified plant-wide visualization.

Cybersecurity Features: Embedded authentication and encrypted communication options (when paired with compatible FCUs) protect against unauthorized access and man-in-the-middle attacks. Complies with IEC 62443 industrial cybersecurity standards.

Customization Options: Available with extended temperature ratings (-40°C to +70°C) for extreme climate installations. Conformal coating levels can be upgraded for offshore marine or corrosive gas environments. Contact our engineering team for application-specific configurations.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-new units; 1-2 weeks for certified refurbished inventory (subject to availability).

Custom Configuration: 8-10 weeks for extended temperature or special coating variants, including factory acceptance testing (FAT) documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended 36-month service plans available with priority replacement and on-site support options.

Technical Support: Access to Yokogawa-certified engineers for installation guidance, troubleshooting, and system optimization. Remote diagnostics available via secure VPN connection to minimize site visit requirements.

Documentation Package: Includes installation manual, wiring diagrams, ESB configuration guide, and compliance certificates (CE/UL). CAD drawings and 3D STEP files provided upon request for panel design integration.

Frequently Asked Questions

Q: How does the ANB10D-425/CU2T interface with existing CENTUM CS 3000 systems?
A: The module connects directly to the FCU's ESB port using standard Yokogawa ESB cables (typically KFAV or KFCV series). Configuration is performed through the Engineering Station using Control Drawing Builder software. The unit auto-detects connected I/O modules and reports their status to the FCU without manual addressing.

Q: What is the maximum I/O capacity supported per bus node unit?
A: Each ANB10D-425/CU2T supports up to 10 I/O modules, with total current draw not exceeding 5A per bus. High-density modules (32-channel AI cards) may reduce the practical module count to 6-8 units depending on power consumption. Use Yokogawa's I/O Configuration Tool to validate power budgets during system design.

Q: Can this module reduce energy consumption in my control system?
A: While the ANB10D itself consumes approximately 8W, its intelligent power management prevents overprovisioning of I/O power supplies. By monitoring real-time current draw and disabling unused slots, facilities typically achieve 15-20% reduction in control cabinet power consumption compared to legacy fixed-output power supplies.

Q: What are the physical installation requirements for panel mounting?
A: The unit requires 30mm of horizontal DIN rail space with 50mm clearance above and below for cable routing and heat dissipation. Ambient temperature inside the control cabinet should not exceed 50°C; install cooling fans if necessary. Maintain 10mm spacing between adjacent modules to ensure adequate airflow.

Q: Does the ANB10D-425/CU2T support remote monitoring and diagnostics?
A: Yes, when integrated with Yokogawa's PRM (Plant Resource Manager) or Exaquantum systems, the module reports detailed diagnostics including bus utilization, power supply voltage, communication error rates, and module health status. SNMP traps can trigger email/SMS alerts for critical faults, enabling predictive maintenance strategies.

Q: Is this module compatible with third-party I/O systems or only Yokogawa hardware?
A: The ANB10D-425/CU2T uses Yokogawa's proprietary ESB protocol and is designed exclusively for Yokogawa I/O modules (AI, AO, DI, DO, RTD, TC series). For integration with third-party devices, use Yokogawa's communication interface modules (e.g., ALR121 for Modbus RTU or ACR11 for HART protocol) connected to the ESB network.

Take the Next Step Toward Reliable Process Control

Eliminate single-point failures in your critical control systems with the Yokogawa ANB10D-425/CU2T dual-redundant ESB bus node. Our industrial automation specialists are ready to assess your application requirements, provide detailed technical specifications, and deliver competitive quotations with fast-track delivery options.

Contact our team today: Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your project. Request a free system architecture review to optimize your Yokogawa DCS investment.
