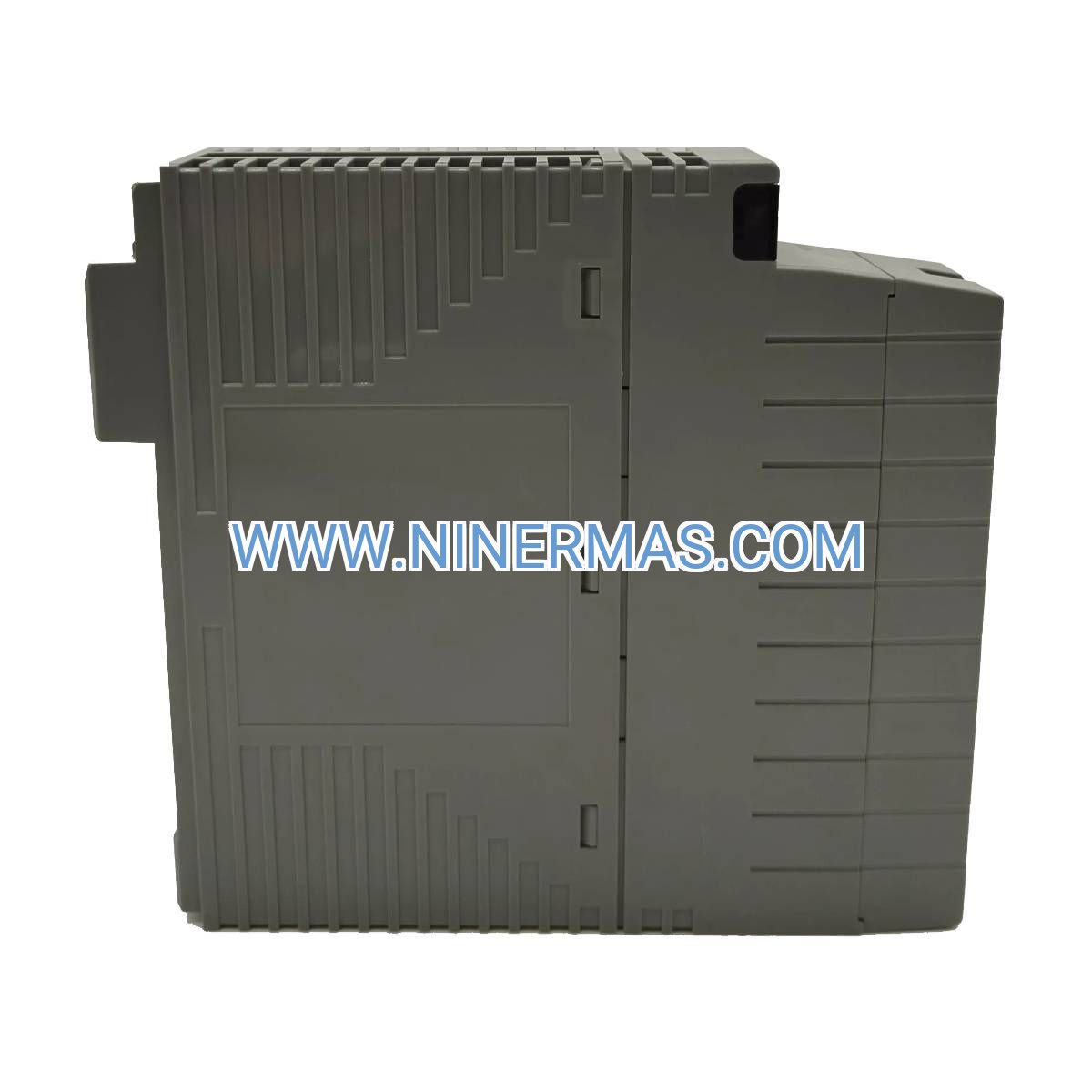

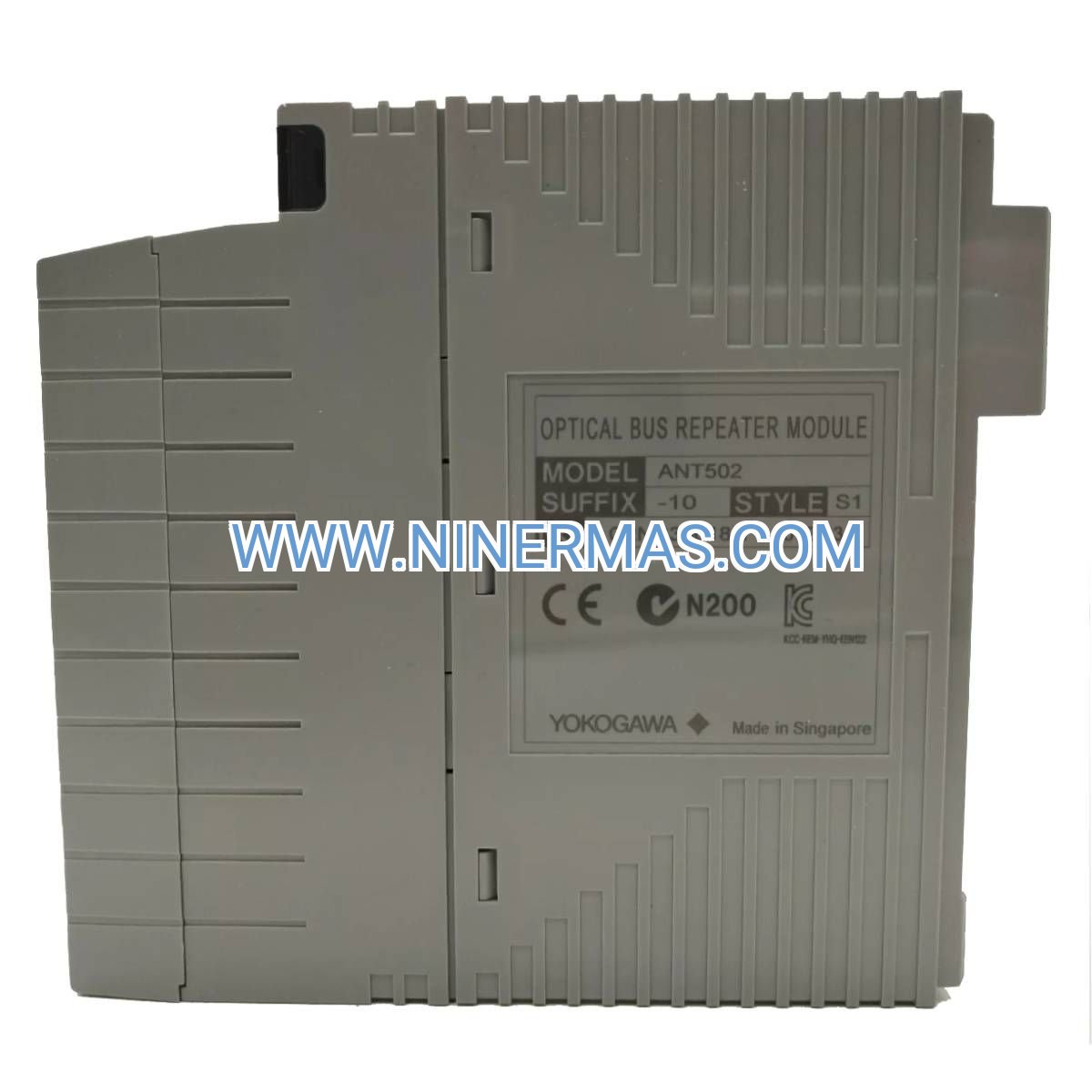

ANT502 Fiber Optic ESB Repeater (Industrial-Grade Long-Distance Communication Module)

The ANT502 represents a specialized optical transmission solution engineered to overcome distance limitations in distributed control architectures. By converting electrical ESB bus signals into optical pulses, this repeater module enables control system expansion across facilities spanning up to 5 kilometers—without signal degradation or electromagnetic vulnerability. Designed for process industries where control rooms and field equipment occupy separate buildings or remote zones, the ANT502 delivers deterministic, high-integrity data exchange critical to real-time automation.

Industrial facilities face a persistent challenge: maintaining reliable communication between centralized controllers and geographically dispersed I/O stations. Traditional copper-based networks suffer from distance constraints, voltage drops, and susceptibility to electrical noise. The ANT502 eliminates these barriers through fiber optic technology, providing complete galvanic isolation while supporting Yokogawa's proprietary ESB protocol at full speed. This makes it indispensable for large-scale plants, offshore installations, and multi-building complexes requiring robust, interference-free connectivity.

Whether you're integrating remote pumping stations in water treatment facilities, linking production units across chemical plants, or connecting offshore platforms to onshore control centers, the ANT502 ensures your DCS network operates with the same reliability as local installations—regardless of physical separation or electrical environment.

Core Features & Benefits

✓ 5-Kilometer Transmission Capability
Optical fiber technology extends ESB bus reach to 5000 meters (3.1 miles), enabling control system deployment across expansive industrial sites, campus-style facilities, and geographically separated process units without intermediate repeaters or signal boosters.

✓ Complete EMI/RFI Immunity
Fiber optic transmission eliminates electromagnetic and radio frequency interference concerns entirely. Deploy communication links through electrically hostile environments—near high-voltage switchgear, VFD rooms, welding areas, or RF transmitters—without signal corruption or data loss.

✓ Galvanic Isolation Between Network Segments
Optical coupling provides absolute electrical separation between ESB bus segments, preventing ground loop currents, protecting equipment from voltage surges, and enabling safe communication across different electrical zones or hazardous area boundaries.

✓ Deterministic Real-Time Performance
Maintains full ESB protocol timing characteristics with predictable latency, ensuring scan cycle integrity for time-critical control loops, safety interlocks, and coordinated multi-unit operations requiring microsecond-level synchronization.

✓ Seamless CENTUM Integration
Plug-and-play compatibility with Yokogawa CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms. No custom programming or protocol conversion required—the ANT502 operates transparently within existing DCS architectures.

✓ Industrial Environmental Resilience
Rated for 0°C to 55°C operation with low power consumption and DIN rail mounting. Ruggedized construction withstands vibration, humidity, and temperature cycling typical of process control environments.

Typical Application Scenarios

→ Multi-Building Manufacturing Complexes
Connect main control rooms to remote production halls, warehouses, or utility buildings across factory campuses. The ANT502 enables centralized monitoring and control of distributed processes without installing multiple control cabinets or running expensive copper trunk cables through underground conduits.

→ Offshore Oil & Gas Platforms
Link topside control systems to subsea equipment interfaces, flare systems, or adjacent wellhead platforms. Fiber optic transmission eliminates lightning strike risks and saltwater corrosion concerns while providing the bandwidth needed for high-density I/O configurations.

→ Power Generation Facilities
Integrate boiler controls, turbine monitoring, cooling tower systems, and switchyard equipment into unified DCS networks. The ANT502's EMI immunity proves essential near generators, transformers, and high-current bus bars where electrical noise would compromise copper-based communications.

→ Water & Wastewater Treatment Plants
Extend control networks from central SCADA rooms to remote lift stations, clarifiers, chemical dosing buildings, and perimeter monitoring points. Optical isolation protects sensitive electronics from ground potential differences common in geographically distributed water infrastructure.

→ Chemical & Petrochemical Processing
Safely communicate across hazardous area classifications without intrinsic safety barriers or purged enclosures. The ANT502's galvanic isolation inherently prevents electrical energy transfer, simplifying compliance with ATEX, IECEx, and NEC 505 requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ANT502 when your application requires ESB bus extension beyond 100 meters, when communication paths traverse electrically noisy environments, or when galvanic isolation between network segments is mandated by safety or regulatory requirements. For shorter distances with lower EMI exposure, consider standard copper ESB repeaters. For distances exceeding 5 km, implement cascaded ANT502 modules or consult Yokogawa for alternative optical networking solutions.

Extended Functions

Redundant Network Topologies: Deploy ANT502 modules in redundant pairs to create fault-tolerant communication links. If one fiber path fails due to cable damage or connector issues, the secondary optical link maintains uninterrupted control system operation.

Hybrid Copper-Fiber Networks: Combine ANT502 optical segments with traditional copper ESB runs to optimize cost and performance. Use fiber for long-distance or high-EMI zones, copper for short local connections—all within the same ESB network.

Multi-Drop Configurations: Integrate ANT502 modules at strategic points in star, ring, or linear ESB topologies to extend reach to multiple remote locations from a single master controller.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders may require 2-4 weeks—contact our team for expedited options.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available upon request.

Technical Support: Pre-sales application engineering assistance, post-sales integration guidance, and troubleshooting support via email, phone, and remote diagnostics. Our team includes certified Yokogawa specialists with hands-on DCS experience.

Documentation Package: Each ANT502 ships with installation manual, fiber optic connection guidelines, ESB network configuration examples, and dimensional drawings. Full technical datasheets and CAD models available for download.

Frequently Asked Questions

Q: What fiber optic cable types are compatible with the ANT502 repeater module?
A: The ANT502 supports both single-mode and multi-mode optical fiber. Single-mode fiber is recommended for maximum distance (up to 5 km), while multi-mode fiber works well for shorter runs (typically under 2 km). Consult the installation manual for specific connector types (LC, SC, or ST) and fiber core diameters (50/125 µm or 62.5/125 µm for multi-mode, 9/125 µm for single-mode).

Q: Can I use ANT502 modules to connect different Yokogawa DCS generations?
A: Yes, the ANT502 operates at the ESB protocol level and is compatible across CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms. However, verify firmware compatibility and ESB bus speed settings to ensure proper interoperability between different system generations.

Q: How much latency does the ANT502 add to ESB bus communication cycles?
A: Optical conversion introduces minimal latency—typically in the microsecond range. For most process control applications with scan cycles of 100-500 milliseconds, this delay is negligible. Critical high-speed applications should consult Yokogawa documentation for precise timing specifications.

Q: Does the ANT502 require external power supplies or can it draw power from the ESB bus?
A: The ANT502 requires external power supply connection (typically 24 VDC). It does not draw power from the ESB bus itself. Ensure adequate power distribution in remote equipment cabinets where ANT502 modules are installed.

Q: What diagnostic indicators does the ANT502 provide for troubleshooting fiber optic link issues?
A: The module features LED status indicators for power, transmit signal, receive signal, and fault conditions. These visual diagnostics help quickly identify fiber breaks, connector contamination, or configuration errors during commissioning and maintenance.

Q: Can ANT502 modules be hot-swapped without shutting down the entire ESB network?
A: Hot-swap capability depends on your overall DCS configuration and redundancy design. In redundant ESB networks, you can typically replace one ANT502 module while the backup path maintains communication. For non-redundant installations, ESB bus shutdown is required. Always follow Yokogawa's maintenance procedures to prevent data loss or controller faults.

Ready to Extend Your DCS Network?

The ANT502 optical repeater eliminates distance and EMI barriers in industrial control systems. Whether you're expanding an existing CENTUM installation or designing a new multi-site facility, our team provides expert guidance on fiber optic network architecture, cable selection, and integration best practices.

Contact our automation specialists today: Share your site layout, communication distance requirements, and environmental conditions—we'll recommend the optimal optical networking solution and provide detailed quotations with lead times.
