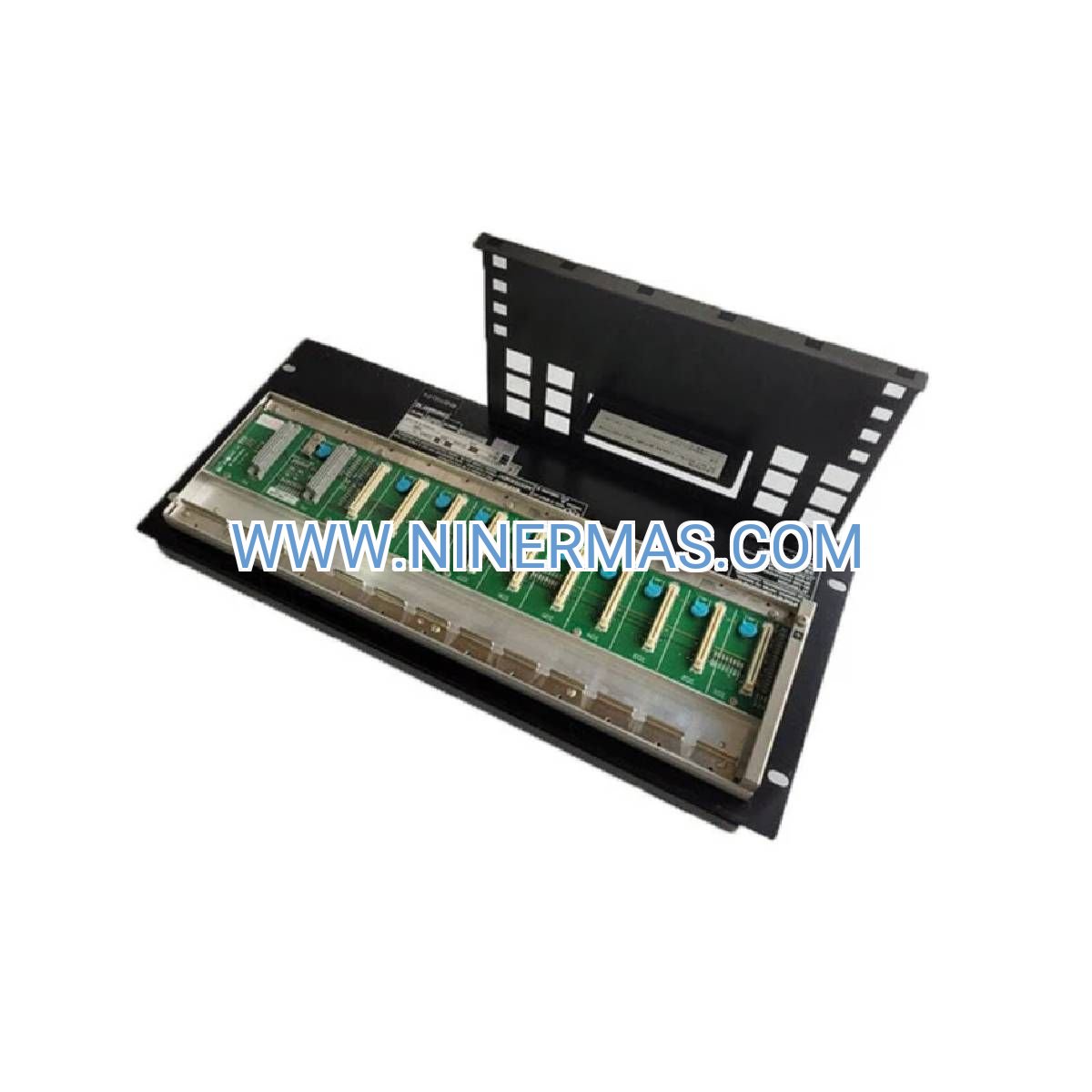

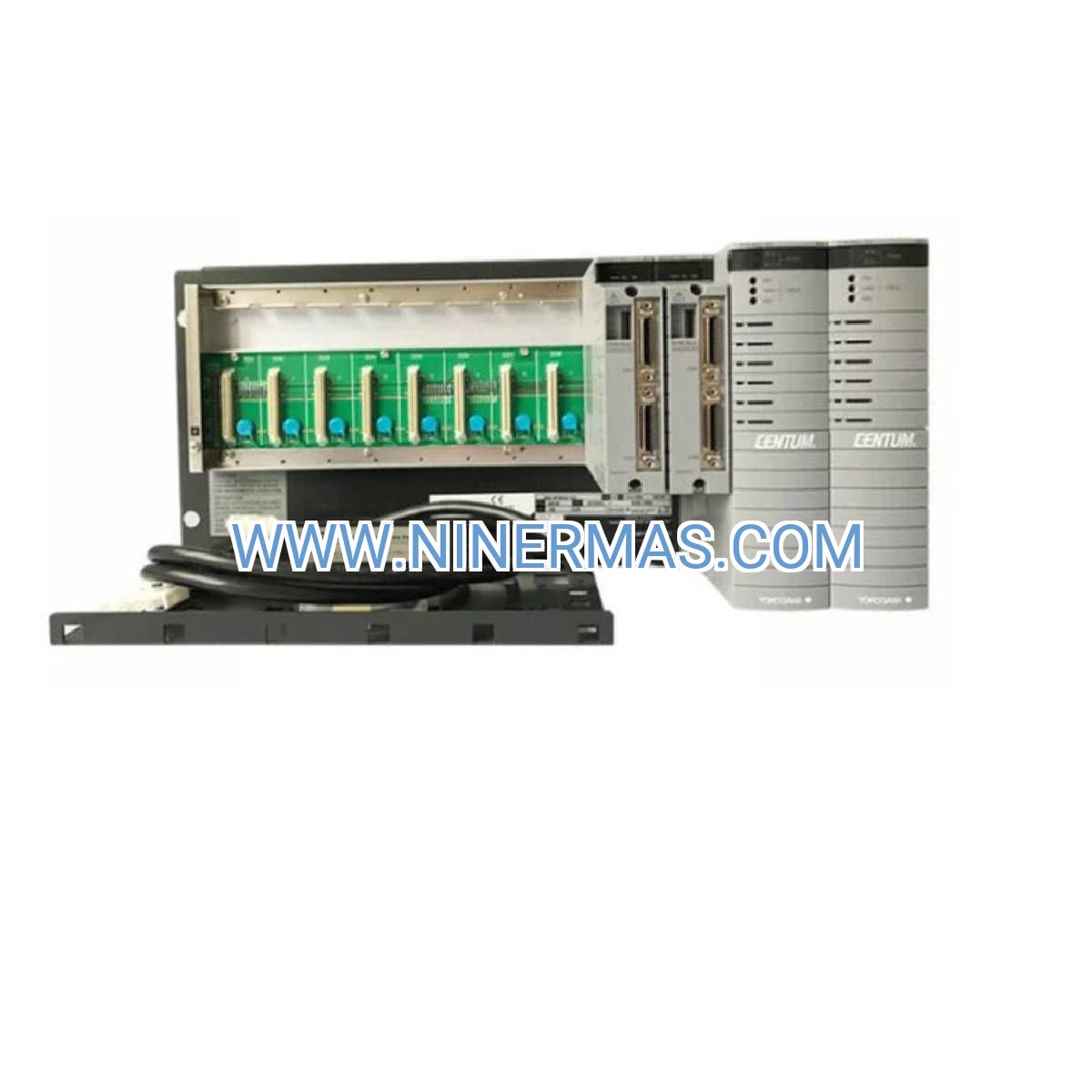

ANR10D-423 Industrial ER Bus Node Unit (Dual-Redundant Architecture)

The ANR10D-423 serves as a fault-tolerant communication gateway between Yokogawa Field Control Units and distributed I/O infrastructure in process automation systems. This dual-redundant ER bus node eliminates single points of failure through parallel power feeds and redundant signal paths, maintaining continuous operation during component failures or maintenance events. Engineered for CENTUM VP and ProSafe-RS platforms, it supports up to 8 hot-swappable I/O modules per chassis with deterministic scan cycles under 10ms.

Process industries requiring 99.9%+ uptime—including petrochemical refineries, pharmaceutical batch systems, and power generation facilities—deploy this node unit to bridge field instrumentation with supervisory control layers. The unit accommodates analog sensors (4-20mA, RTD, thermocouple), discrete actuators (solenoid valves, motor contactors), and specialty modules for pulse counting or high-speed digital I/O.

Key differentiators include triple power supply options (24VDC/100-120VAC/220-240VAC), 19-inch rack compatibility for standard control cabinets, and backward compatibility with legacy CENTUM generations—reducing retrofit costs while modernizing I/O infrastructure.

Technical Advantages & Business Value

→ Fault-Tolerant Design: Dual-redundant ER bus architecture automatically switches to backup communication path within 50ms of primary failure, preventing process shutdowns that cost $50,000-$500,000 per hour in lost production.

✓ Hot-Swap Capability: Replace failed I/O cards without de-energizing control loops—technicians perform maintenance during normal operations instead of costly planned outages.

✓ Multi-Voltage Flexibility: Single SKU supports global installations with 24VDC (battery-backed UPS systems), 100-120VAC (North America), or 220-240VAC (Europe/Asia) power sources—simplifying spare parts inventory.

✓ Scalable I/O Density: Each node accommodates 8 modules with 16-32 channels per card, delivering 128-256 I/O points in a compact 10kg chassis—ideal for space-constrained control rooms.

✓ Deterministic Performance: ER bus protocol guarantees <10ms scan cycles for time-critical applications like burner management, emergency shutdown systems, and high-speed packaging lines.

✓ SIL-Rated Integration: When paired with ProSafe-RS safety controllers, supports SIL 2/3 configurations per IEC 61508 for fire & gas detection, overpressure protection, and turbine trip systems.

Industrial Application Scenarios

Refinery Distillation Control: Monitor 200+ temperature/pressure points across fractionation columns using redundant analog input modules. Dual power feeds ensure continuous data acquisition during utility power fluctuations—preventing off-spec product batches worth millions in revenue.

Pharmaceutical Clean Room Automation: Interface with sterile valve manifolds, HEPA filter differential pressure transmitters, and environmental monitoring sensors. Hot-swap I/O replacement maintains FDA 21 CFR Part 11 compliance by avoiding unplanned system downtime during GMP production campaigns.

Power Plant Boiler Management: Coordinate feedwater control valves, combustion air dampers, and flame scanners through high-speed digital I/O. Redundant node architecture meets NFPA 85 reliability requirements for critical boiler interlocks.

Water Treatment SCADA Expansion: Extend I/O capacity across multi-acre facilities using ER bus long-distance communication (up to 500m cable runs). Connect remote lift stations, clarifier controls, and chemical dosing skids without intermediate marshalling panels.

Legacy System Modernization: Replace obsolete CENTUM CS/XL node units while reusing existing field wiring and terminal blocks. Backward-compatible ER bus protocol preserves $200,000+ investments in installed cable infrastructure.

Technical Specifications & Selection Guide

Selection Criteria: Choose ANR10D-423 when your application requires (1) redundant I/O communication for critical processes, (2) compatibility with existing Yokogawa CENTUM infrastructure, (3) hot-swap maintenance capability, or (4) SIL-rated safety system integration. For non-redundant applications, consider standard ANB10D series node units to reduce capital costs by 30-40%.

Advanced Integration Features

IoT Connectivity: ER bus data streams integrate with Yokogawa Sushi Sensor cloud platform via OPC UA gateways, enabling predictive maintenance analytics and remote diagnostics without compromising control system security.

Cybersecurity Hardening: Supports IEC 62443 zone/conduit architecture when deployed behind industrial firewalls. Firmware updates via secure USB interface prevent unauthorized network-based modifications.

Custom I/O Configurations: Factory pre-configuration service available for complex module arrangements—modules arrive pre-addressed and tested, reducing commissioning time by 50%.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (ships from Hong Kong/Singapore hubs)
Custom Configurations: 10-15 business days for factory-programmed assemblies
Warranty Period: 12 months from delivery date (covers manufacturing defects)
Technical Support: Email/phone assistance for wiring diagrams, ER bus topology design, and troubleshooting
Documentation Package: Installation manual, configuration software, AutoCAD panel drawings, and spare parts list included

Frequently Asked Questions

Q: How does the ANR10D-423 interface with existing CENTUM VP systems?
A: The node requires an EB401 ER Bus Interface Master Module installed in the odd-numbered slot of your ESB Bus Node Unit or FCU. The EB401 establishes the communication link between the FCU processor and the ANR10D-423's I/O modules. Wiring uses standard shielded twisted-pair cable (Belden 9842 or equivalent) with RJ45 connectors.

Q: What is the maximum I/O capacity per ANR10D-423 node?
A: Each node supports 8 I/O modules. Depending on module type, this translates to 128-256 I/O points (e.g., 8x AAI143 analog input modules = 128 channels, or 8x ADV151 digital input modules = 256 points). For larger systems, deploy multiple nodes on the same ER bus.

Q: Can I mix 24VDC and AC power supplies in a redundant configuration?
A: No—both power supplies must use the same voltage type (either both DC or both AC). However, you can mix 100-120VAC with 220-240VAC supplies if your facility has dual-voltage distribution. The unit auto-detects voltage range.

Q: What energy efficiency improvements does this node offer versus legacy models?
A: The ANR10D-423 consumes 120W maximum (versus 180W for older ANR10C series), reducing heat dissipation by 33%. This lowers cooling requirements in control cabinets and cuts annual energy costs by approximately $50-$80 per node in 24/7 operations.

Q: Does the unit support remote diagnostics and monitoring?
A: Yes—when connected to a CENTUM VP HIS (Human Interface Station), operators can view real-time node status, I/O module health, power supply voltages, and communication error counters. Alarm notifications trigger on redundancy loss or module faults.

Q: What installation requirements must be met for proper operation?
A: Mount in a climate-controlled environment (0-55°C), maintain 50mm clearance on sides for airflow, use M5 screws for 19-inch rack installation, and ground the chassis to facility earth via the provided lug. Ensure ER bus cable runs avoid high-voltage AC conduits to prevent EMI interference.

Order Your ANR10D-423 Node Unit Today

Upgrade your Yokogawa DCS infrastructure with proven dual-redundant technology. Contact our automation specialists for system design consultation, bulk pricing on multi-node projects, or technical compatibility verification with your existing CENTUM installation.
