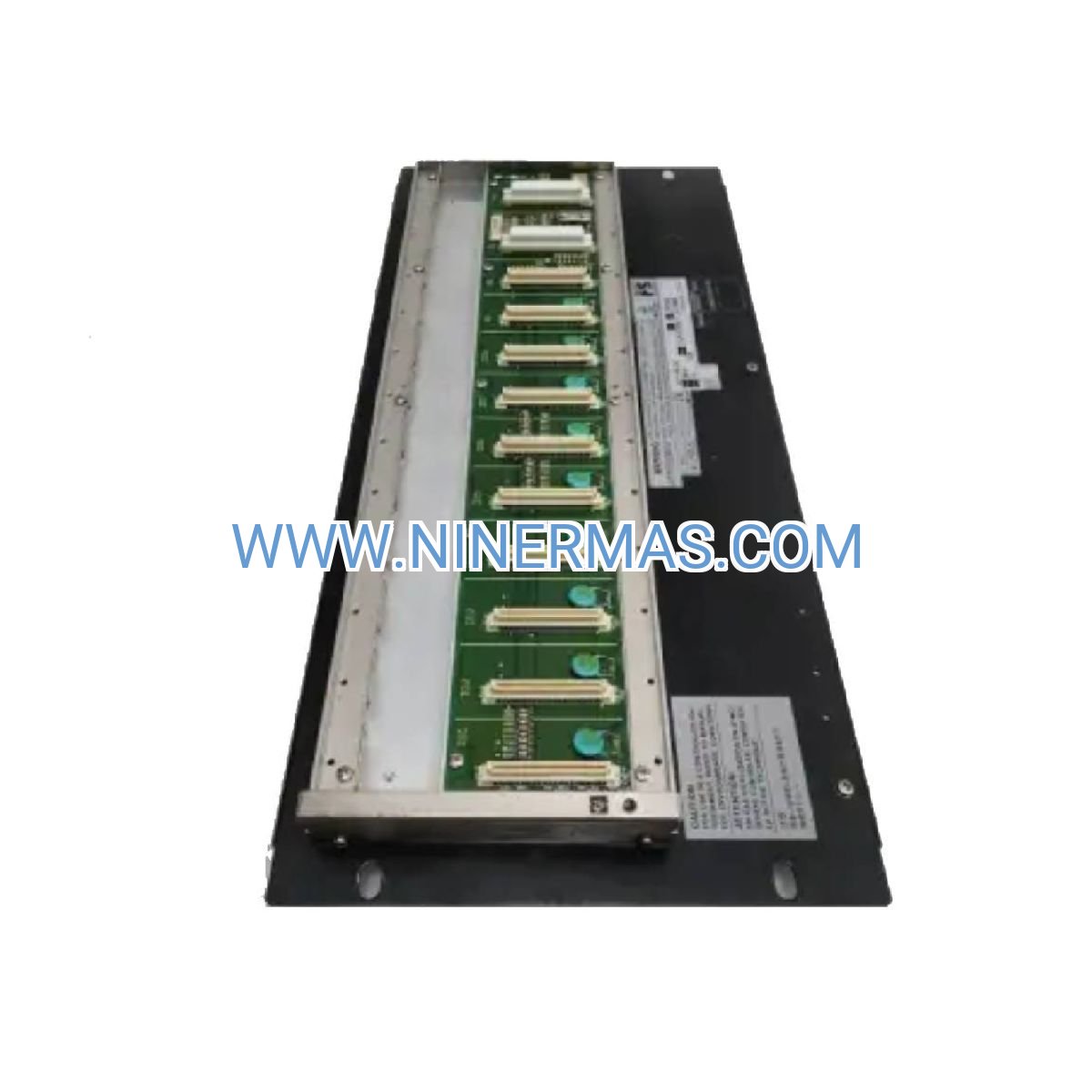

Industrial-Grade ESB Bus Connector ANB10D-425/CU2T S2 (Yokogawa ProSafe-RS Compatible)

The Yokogawa ANB10D-425/CU2T S2 is a dual-redundant Enhanced Serial Bus (ESB) connector unit engineered for mission-critical distributed control systems. This industrial-grade component establishes reliable communication pathways between field I/O modules and control processors in ProSafe-RS and CENTUM VP platforms, while delivering integrated termination and power distribution capabilities that eliminate external wiring complexity.

Designed for process industries requiring uninterrupted operation, this connector unit addresses the fundamental challenge of maintaining system availability during component failures. Plant engineers and automation specialists rely on this solution to build fault-tolerant architectures in refineries, chemical plants, and power generation facilities where downtime translates to significant operational losses.

With built-in CU2T terminator resistors and SIL 2/3 safety certification, the ANB10D-425/CU2T S2 delivers plug-and-play installation that reduces commissioning time by up to 40% compared to traditional connector assemblies. Its DIN rail mounting and -20°C to +60°C operating range ensure deployment flexibility across diverse industrial environments.

Core Features & Business Value

✓ Dual-Redundant Architecture
Maintains continuous operation during single-point failures, ensuring 99.9%+ system uptime for critical process control loops and emergency shutdown systems.

→ Integrated CU2T Terminator
Eliminates external termination components and associated wiring errors, reducing installation time by 30-50% while improving signal integrity across the ESB network.

✓ SIL 2/3 Safety Certification
Meets IEC 61508 functional safety standards for safety instrumented systems, enabling deployment in high-consequence applications without additional certification overhead.

→ Universal DCS Compatibility
Seamlessly interfaces with Yokogawa ProSafe-RS and CENTUM VP platforms, supporting both legacy system upgrades and new installations without protocol conversion.

✓ Industrial Temperature Range
Operates reliably from -20°C to +60°C, accommodating outdoor enclosures, non-climate-controlled facilities, and extreme ambient conditions without performance degradation.

→ Simplified Power Distribution
Supplies regulated power to connected I/O modules through the ESB backbone, reducing cabinet wiring density and eliminating multiple power supply requirements.

Application Scenarios

Oil & Gas Refineries – Emergency Shutdown Systems
In hydrocarbon processing facilities, the ANB10D-425/CU2T S2 connects safety-critical sensors and final control elements to ProSafe-RS logic solvers. The dual-redundant design ensures that fire detection, gas monitoring, and emergency valve control remain operational even during maintenance activities or component failures, meeting API 2350 and IEC 61511 requirements.

Chemical Manufacturing – Batch Process Control
Chemical plants utilize this connector unit to link reactor temperature sensors, flow transmitters, and dosing pump controllers to CENTUM VP batch management systems. The integrated terminator prevents signal reflections that could cause measurement errors in precision dosing applications, while the SIL 2 rating supports hazardous material handling protocols.

Power Generation – Turbine Control Networks
Combined-cycle power plants deploy the ANB10D-425/CU2T S2 in gas turbine control systems where vibration sensors, flame detectors, and fuel valve actuators require deterministic communication. The -20°C to +60°C operating range accommodates outdoor turbine enclosures, while redundancy ensures continuous operation during grid frequency events.

Pharmaceutical Production – Clean Room Automation
Biopharmaceutical facilities integrate this connector into sterile processing environments where HVAC control, pressure differential monitoring, and automated material handling systems demand validated, traceable communication infrastructure. The DIN rail mounting simplifies installation in space-constrained clean room panels.

Water Treatment – SCADA Integration
Municipal water treatment plants use the ANB10D-425/CU2T S2 to connect remote pump stations and filtration systems to central SCADA networks. The dual-redundant architecture maintains telemetry and control during communication path failures, preventing service interruptions and regulatory compliance issues.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the ANB10D-425/CU2T S2 when your application requires dual-redundant ESB connectivity with integrated termination. For single-channel architectures, consider the ANB10S variant. If your system uses Vnet/IP protocol instead of ESB, select the appropriate ALR or NLR series connector units. Verify that your I/O module count and communication distance fall within ESB network limits (typically 32 modules per segment, 500m maximum cable length).

Extended Functions

Diagnostic LED Indicators
Front-panel LEDs provide real-time status for power, communication activity, and fault conditions, enabling rapid troubleshooting without diagnostic tools.

Hot-Swap Capability
Supports online replacement during system operation when configured in redundant mode, minimizing maintenance windows and eliminating planned downtime.

Network Topology Flexibility
Accommodates linear, star, and ring ESB topologies, allowing optimization for cabinet layout constraints and cable routing requirements.

Remote Monitoring Integration
Exports diagnostic data to Yokogawa's Plant Resource Manager (PRM) and FieldMate software for predictive maintenance and asset health monitoring.

Customization Options
Available with factory-configured termination settings, extended temperature ratings (-40°C to +70°C), and conformal coating for harsh chemical environments upon request.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured or extended-spec variants

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended 60-month warranty available for critical applications

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system integration guidance via phone, email, and remote desktop support

Documentation Package: Includes installation manual, wiring diagrams, ESB network configuration guide, SIL certification documents, and CAD drawings (DXF/STEP formats)

Compliance Certificates: CE Declaration of Conformity, UL certification letter, ATEX/IECEx certificates, and material traceability reports provided with each shipment

Frequently Asked Questions

How does the ANB10D-425/CU2T S2 integrate with existing Yokogawa DCS networks?
The connector unit mounts on standard DIN rail and connects to the ESB backbone via shielded twisted-pair cables. Configuration is performed through the CENTUM VP engineering station or ProSafe-RS configurator software, with automatic node address assignment. No special programming or protocol conversion is required for integration with existing I/O modules.

What is the maximum I/O module capacity per ANB10D-425/CU2T S2 connector?
Each connector unit supports up to 32 I/O modules per ESB segment, with total network capacity determined by the control processor model. For larger systems, multiple connector units can be deployed in cascaded or parallel configurations to expand I/O density while maintaining redundancy.

Can this connector unit reduce energy consumption in my control system?
Yes. The integrated power distribution eliminates the need for individual I/O module power supplies, reducing overall cabinet power consumption by 15-25%. The low-power ESB protocol (≤8W per connector) further minimizes heat generation, potentially reducing cooling requirements in enclosed panels.

What are the installation requirements for dual-redundant operation?
Dual-redundant configuration requires two ANB10D-425/CU2T S2 units, redundant ESB cables (A and B channels), and compatible redundant I/O modules. Physical installation involves DIN rail mounting, cable termination at screw terminals, and configuration of redundancy parameters in the DCS engineering software. Total installation time is typically 2-4 hours per cabinet.

Does the ANB10D-425/CU2T S2 support remote diagnostics and monitoring?
Yes. When connected to Yokogawa's Plant Resource Manager (PRM) or FieldMate software, the connector unit provides real-time diagnostic data including communication errors, power supply status, and termination resistance measurements. This enables predictive maintenance and remote troubleshooting without site visits.

Is the integrated terminator suitable for all ESB network topologies?
The built-in CU2T terminator is designed for end-of-line applications in linear ESB topologies. For mid-segment installations or ring configurations, external termination may be required. Consult the ESB network planning guide or contact technical support for topology-specific recommendations.

Get Your Yokogawa ESB Connector Today

Ready to enhance your DCS reliability with dual-redundant connectivity? Contact our automation specialists for application-specific configuration guidance, volume pricing, and expedited delivery options. Request a detailed quotation with your system specifications, or schedule a technical consultation to discuss integration with your existing Yokogawa infrastructure.
