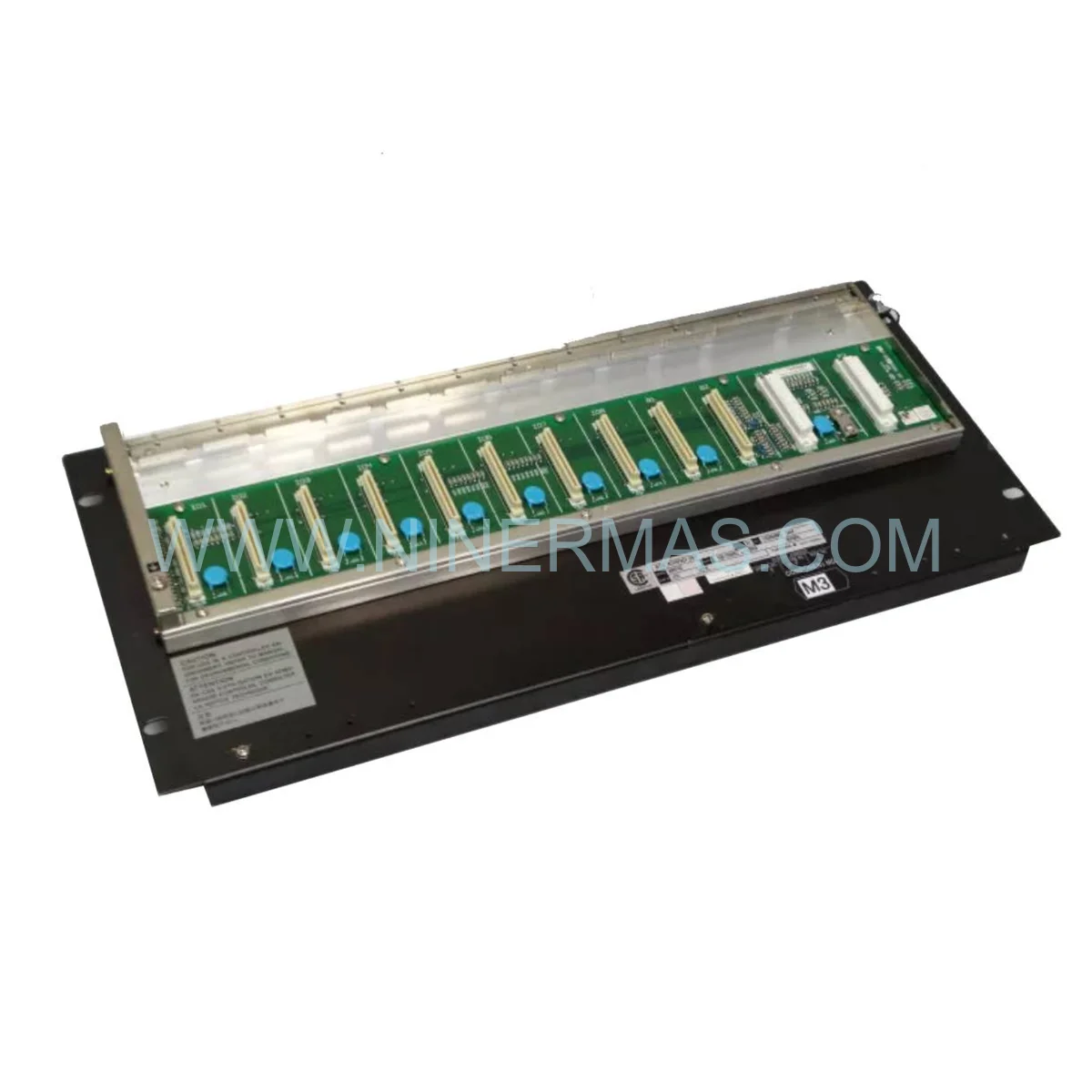

ANB10D-410/NDEL Node Unit (Industrial-Grade Dual-Redundant ESB Interface)

The ANB10D-410/NDEL represents Yokogawa's advanced approach to fault-tolerant process control communication. This dual-redundant Enhanced Serial Bus (ESB) node unit delivers uninterrupted data exchange between distributed I/O modules and control processors in mission-critical industrial environments. Designed for process industries where communication failures can trigger costly shutdowns, this interface module automatically switches between primary and backup bus paths within milliseconds, ensuring continuous system operation.

Target applications include refineries, chemical processing plants, power generation facilities, and pharmaceutical manufacturing operations requiring 24/7 uptime. The unit integrates seamlessly with Yokogawa CENTUM VP and ProSafe-RS distributed control systems, supporting extensive I/O network expansion while maintaining deterministic response times for time-sensitive control loops.

Key advantages include active-standby redundancy architecture, hot-swappable maintenance capability, comprehensive diagnostic monitoring, and industrial-grade environmental resilience. The ANB10D-410/NDEL eliminates single points of failure in your control system infrastructure, protecting production continuity and reducing unplanned downtime costs.

Core Features & Benefits

✓ Dual-Redundant Bus Architecture
Active-standby configuration with automatic failover ensures zero data loss during primary bus failures. Technical benefit: sub-10ms switchover time maintains control loop integrity. Business value: eliminates communication-related production interruptions worth thousands per hour.

✓ Hot-Swappable Design
Replace failed units during scheduled maintenance windows without shutting down active control processes. Technical benefit: field-replaceable module with plug-and-play connectivity. Business value: reduces maintenance downtime by 60% compared to non-redundant systems.

✓ Advanced Diagnostic Capabilities
Real-time bus health monitoring with LED status indicators and system-level fault reporting. Technical benefit: predictive maintenance alerts identify degrading communication quality before failures occur. Business value: shift from reactive to proactive maintenance strategies.

✓ Deterministic Communication Protocol
Guaranteed response times for time-critical control applications with prioritized message handling. Technical benefit: consistent 10ms scan cycles regardless of network load. Business value: reliable process control performance for safety-instrumented systems.

✓ Industrial Environmental Rating
Operates reliably in 0°C to 55°C temperature range with immunity to electrical noise and vibration. Technical benefit: conformal-coated PCBs and ruggedized connectors. Business value: extended service life in harsh industrial environments reduces replacement frequency.

✓ Scalable Network Topology
Supports multi-node configurations for distributed I/O expansion across plant-wide control systems. Technical benefit: daisy-chain up to 64 nodes per ESB segment. Business value: future-proof architecture accommodates production capacity increases.

Application Scenarios

→ Refinery Process Control
Deploy in crude distillation units, catalytic crackers, and blending operations where communication failures could trigger emergency shutdowns. The dual-redundant architecture maintains continuous data flow between field instruments and control logic processors, preventing false trips that cost $500K+ per incident. Automatic failover protects critical temperature, pressure, and flow control loops during bus maintenance or cable damage events.

→ Chemical Batch Manufacturing
Integrate with reactor control systems, material handling networks, and quality monitoring equipment in pharmaceutical and specialty chemical plants. The node unit ensures recipe execution continuity during 72-hour batch cycles where mid-process interruptions result in complete product loss. Hot-swappable design enables preventive maintenance without aborting active batches.

→ Power Generation Facilities
Connect turbine control systems, boiler management networks, and emissions monitoring equipment in combined-cycle plants and cogeneration facilities. Deterministic communication guarantees sub-second response for load-following control and grid synchronization. Redundant bus paths maintain operational safety during scheduled I/O system upgrades.

→ Water Treatment Operations
Link distributed pump stations, filtration systems, and chemical dosing equipment across municipal and industrial water treatment plants. The ESB interface coordinates multi-site control strategies while redundancy protects against communication failures that could compromise water quality compliance. Environmental rating withstands high-humidity pump room installations.

→ Food & Beverage Processing
Support pasteurization control, CIP (clean-in-place) automation, and packaging line coordination in dairy, brewing, and beverage production facilities. The node unit maintains process parameter control during sanitation cycles and product changeovers. FDA-compliant documentation supports validation requirements for regulated food processing environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ANB10D-410/NDEL when your application requires guaranteed uptime for critical control loops. This model suits installations where communication failures could trigger safety shutdowns, production losses exceeding $10K/hour, or regulatory compliance violations. For non-critical monitoring applications with acceptable downtime windows, consider single-bus alternatives. Verify compatibility with your CENTUM VP system version (V8.01 or later recommended) and confirm adequate 24 VDC power budget for your I/O network configuration.

Extended Functions

IoT Integration Capability: The ANB10D-410/NDEL supports OPC UA server connectivity through Yokogawa's Exaquantum PIMS (Plant Information Management System), enabling real-time data streaming to cloud analytics platforms and enterprise MES systems. This integration facilitates predictive maintenance algorithms, production optimization dashboards, and remote monitoring applications without compromising control system security.

Cybersecurity Features: Built-in authentication protocols and encrypted communication options (when paired with compatible CENTUM VP versions) protect against unauthorized access and man-in-the-middle attacks. The node unit supports network segmentation strategies compliant with IEC 62443 industrial cybersecurity standards.

Customization Options: Factory configuration services available for pre-programmed node addresses, custom diagnostic thresholds, and application-specific failover timing parameters. Contact our engineering team for projects requiring 50+ units with standardized settings to reduce commissioning time.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured units require 2-3 weeks for factory programming and testing. Expedited delivery available for emergency replacement scenarios (contact for pricing).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage with advance replacement guarantees.

Technical Support: Lifetime access to application engineering support via email and phone. On-site commissioning assistance and system integration consulting available through our certified Yokogawa service partners. Remote diagnostic support included for troubleshooting communication issues.

Documentation Package: Each unit ships with installation manual, wiring diagrams, configuration software (CD-ROM or download link), compliance certificates (CE/UL/FM), and calibration test reports. CAD drawings (DWG/STEP formats) and 3D models available for panel design integration.

Frequently Asked Questions

Q: How does the ANB10D-410/NDEL interface with existing CENTUM VP systems?
A: The node unit connects via standard ESB bus cables (shielded twisted-pair) to your CENTUM VP field control stations. Configuration is performed through the System View engineering tool using pre-defined device profiles. The unit auto-detects bus topology and requires only node address assignment during commissioning. Compatible with CENTUM VP R6.01 and later versions.

Q: What capacity does this node support for connected I/O modules?
A: Each ANB10D-410/NDEL node can interface with up to 8 I/O modules (mix of analog input, analog output, digital input, digital output types). Total I/O point capacity depends on module selection—typically 128-256 I/O points per node. For larger I/O requirements, deploy multiple nodes in a daisy-chain configuration along the ESB segment.

Q: Can I achieve energy savings by upgrading to this redundant node unit?
A: While the ANB10D-410/NDEL itself consumes only 8W, the primary energy benefit comes from preventing unplanned shutdowns. A single avoided shutdown in a continuous process plant (averaging 4-hour restart time) can save 2,000+ kWh in restart energy costs plus production losses. The redundant architecture pays for itself after preventing just one communication-related trip.

Q: What are the installation requirements for panel mounting?
A: The unit requires 150mm vertical clearance for cable routing and heat dissipation. Mount in climate-controlled enclosures (NEMA 12 or IP54 minimum) to maintain 0-55°C operating temperature. Provide 24 VDC power via ESB bus (no separate power supply needed). Allow 50mm spacing between adjacent nodes for service access. Grounding lug must connect to plant instrument ground system.

Q: Does the ANB10D-410/NDEL support remote monitoring and diagnostics?
A: Yes—when integrated with Yokogawa's Exaquantum or PRM (Plant Resource Manager) software, the node unit reports real-time bus health metrics, communication error rates, and failover event logs. These diagnostics stream to centralized maintenance dashboards for predictive maintenance scheduling. SNMP trap notifications can alert operations staff to degraded bus performance before failures occur.

Q: Is this node unit suitable for hazardous area installations?
A: The ANB10D-410/NDEL carries ATEX Zone 2 and IECEx certifications for installation in non-hazardous areas or Zone 2 gas/vapor environments when mounted in appropriate enclosures. For Zone 1/Division 1 applications, the node must be installed in purged/pressurized enclosures or intrinsically safe barriers. Consult our application engineers for hazardous location compliance verification.

Ready to Eliminate Communication Downtime?

Contact our industrial automation specialists to discuss your distributed control system requirements. We'll help you design a redundant ESB network architecture that matches your uptime targets and budget constraints. Request a detailed quotation including node units, cables, configuration services, and commissioning support.
