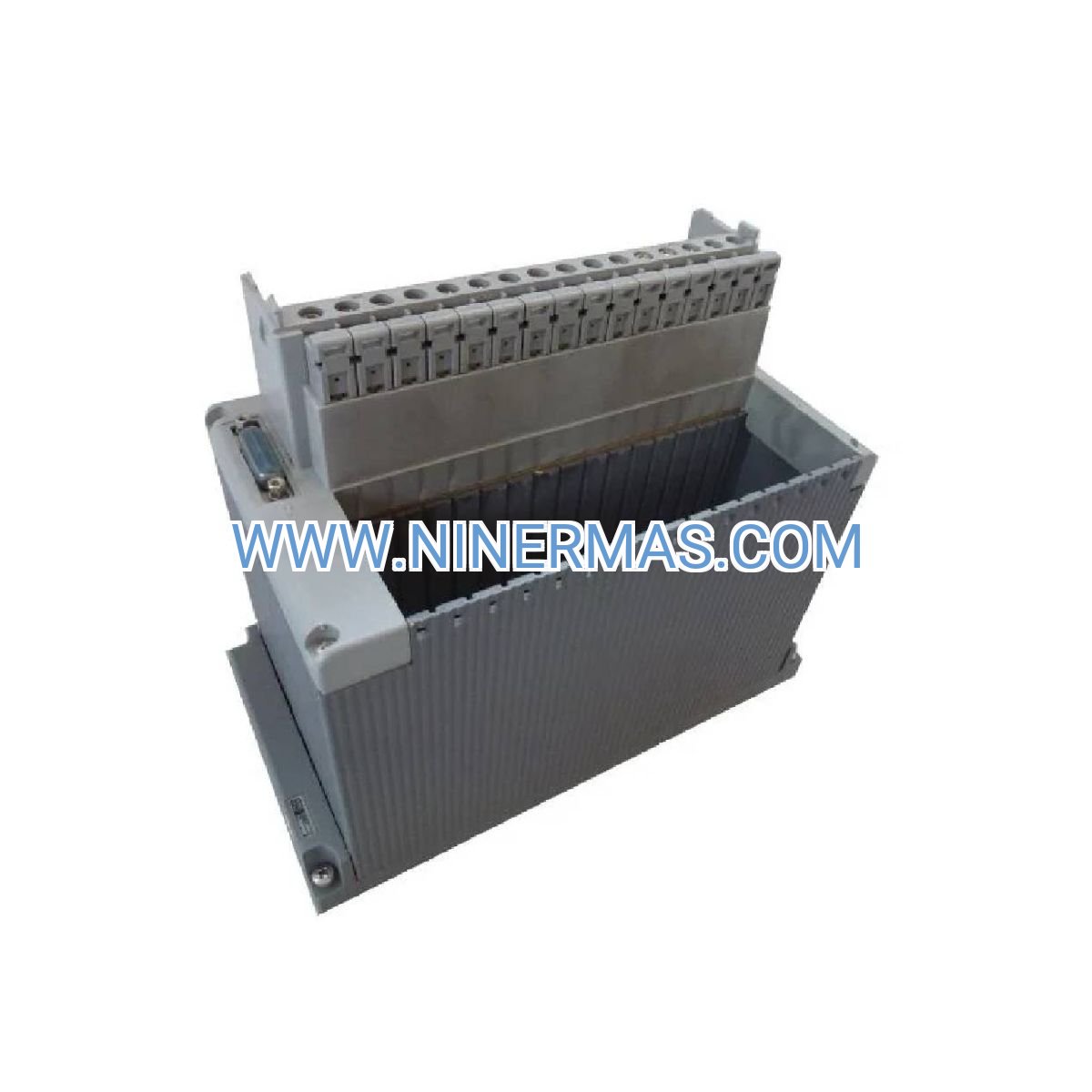

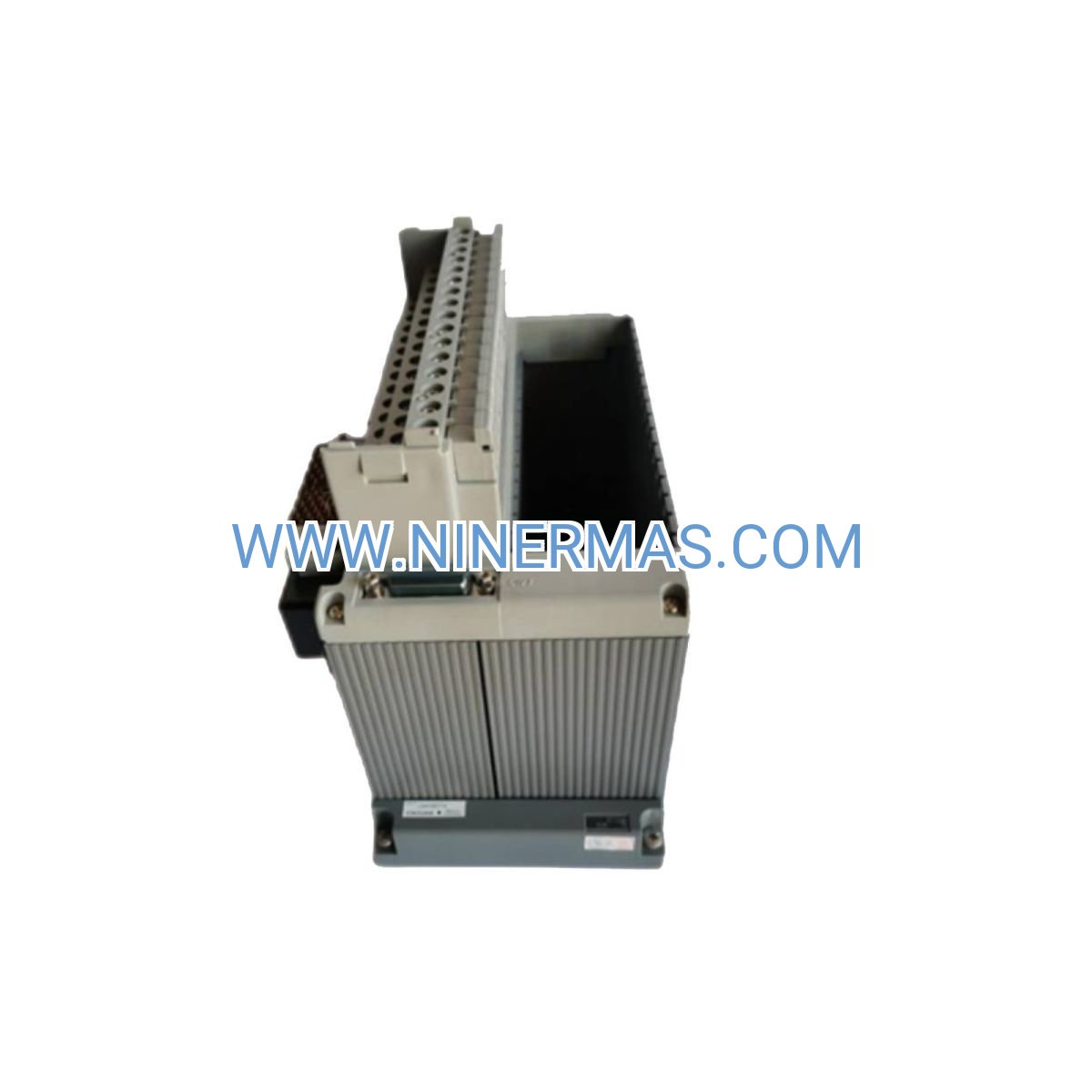

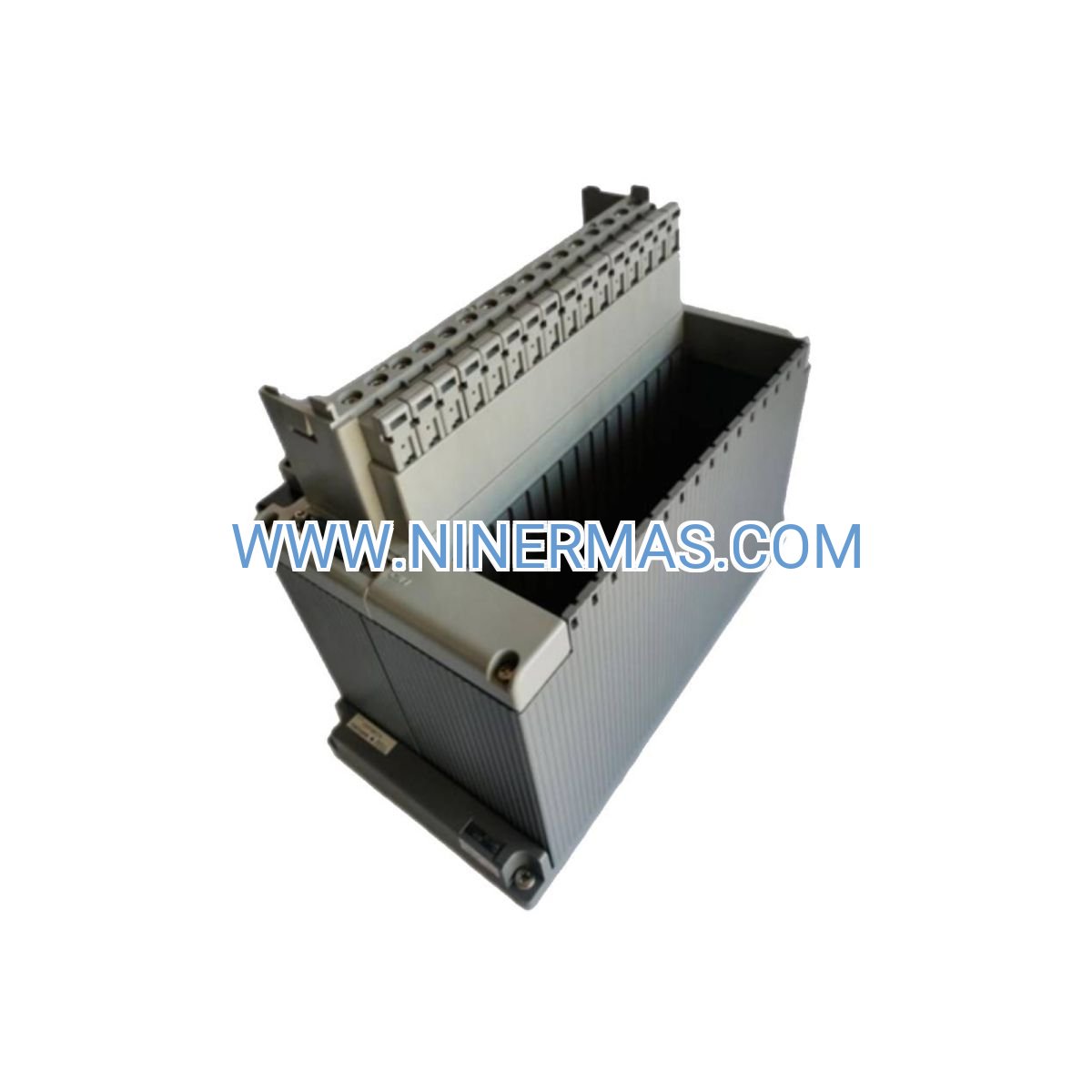

AMN12T S2 Analog I/O Module Nest (Industrial-Grade DCS Mounting Platform)

The AMN12T S2 represents Yokogawa's second-generation analog I/O module nest, engineered to deliver hot-swappable mounting infrastructure for high-speed analog signal processing in CENTUM VP and CENTUM CS 3000 distributed control systems. This industrial-grade base unit combines regulated 5.0V DC power distribution with high-speed serial backplane communication, enabling real-time process control in mission-critical manufacturing environments where downtime translates directly to production losses.

Designed for process engineers and automation specialists managing complex DCS installations, the AMN12T S2 addresses three fundamental challenges: minimizing maintenance-related process interruptions through hot-swap capability, ensuring signal integrity via regulated power isolation, and accelerating troubleshooting with integrated diagnostic feedback. Whether you're expanding existing CENTUM infrastructure or modernizing legacy control systems, this nest provides the foundation for reliable analog I/O integration.

Key differentiators include S2-generation noise immunity enhancements, sub-millisecond scan time architecture, and proven compatibility across Yokogawa's extensive analog I/O module portfolio—delivering the performance and reliability demanded by refinery, chemical, pharmaceutical, and power generation applications.

Core Features & Benefits

✓ Hot-Swap Architecture for Zero-Downtime Maintenance
Replace analog I/O modules during live operation without controller shutdown or process interruption. Field-proven hot-swap design reduces mean time to repair (MTTR) by up to 60% compared to traditional fixed-mount systems, directly translating to improved overall equipment effectiveness (OEE) and reduced emergency maintenance costs.

✓ Regulated 5.0V DC Power Distribution
Internal voltage regulation isolates module electronics from supply fluctuations, ensuring ±0.1% measurement accuracy and output stability even in electrically noisy industrial environments. Eliminates the need for external power conditioning equipment, reducing installation complexity and cabinet space requirements.

✓ High-Speed Serial Backplane Communication
Propriety high-speed bus architecture delivers sub-millisecond scan times for critical loop control applications. Supports real-time data exchange between analog I/O modules and CENTUM controllers, enabling fast-response process control in applications such as reactor temperature profiling and turbine supervision.

✓ S2 Generation Enhanced Diagnostics
Advanced diagnostic LEDs provide instant visual feedback on power status, communication health, and module recognition. Second-generation improvements include enhanced EMI/RFI immunity and extended temperature range operation (-10°C to +55°C), outperforming legacy first-generation nests in harsh industrial conditions.

✓ Compact DIN Rail / Panel Mount Design
Space-efficient enclosure optimizes cabinet utilization in dense DCS installations. Flexible mounting options support both DIN rail and direct panel installation, accommodating diverse cabinet configurations and retrofit scenarios.

✓ Broad Module Compatibility
Engineered for seamless integration with Yokogawa's complete analog I/O module family, including NFAI, AAI, and legacy series. Single nest design simplifies spare parts inventory and reduces training requirements for maintenance personnel.

Typical Application Scenarios

→ Refinery Unit Monitoring & Control
Deploy AMN12T S2 nests in crude distillation, catalytic cracking, and hydrotreating units where continuous analog signal acquisition from temperature, pressure, and flow transmitters is critical. Hot-swap capability enables module replacement during scheduled turnarounds without extending shutdown windows, while high-speed communication supports cascade control loops with 100ms update rates.

→ Chemical Reactor Temperature Profiling
Utilize in batch and continuous reactor systems requiring multi-point temperature monitoring with ±0.1°C accuracy. Regulated power distribution ensures stable thermocouple signal conditioning, while S2-generation noise immunity maintains measurement integrity in proximity to variable frequency drives and high-power switching equipment.

→ Pharmaceutical Batch Manufacturing
Implement in GMP-compliant batch control systems where process validation requires documented signal integrity and system reliability. Hot-swap functionality supports preventive maintenance schedules without batch interruption, while diagnostic LEDs accelerate FDA audit trail documentation and troubleshooting procedures.

→ Power Plant Turbine Supervision
Install in steam and gas turbine control systems demanding high-speed vibration monitoring and bearing temperature surveillance. Sub-millisecond scan times enable protective relay integration, while extended temperature range operation (-10°C to +55°C) accommodates outdoor equipment enclosures and uncontrolled environments.

→ Water Treatment Chemical Dosing
Apply in municipal and industrial water treatment facilities requiring precise pH, chlorine, and coagulant control. Compact footprint supports retrofit installations in space-constrained control panels, while broad module compatibility simplifies system expansion as treatment capacity increases.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AMN12T S2 when your application requires hot-swap capability for high-availability process control systems. For applications where online module replacement is not critical, consider the standard AMN12 nest for cost optimization. Verify compatibility with your specific analog I/O module model (NFAI, AAI, or legacy series) before ordering. For multi-module installations, calculate total power budget to ensure adequate cabinet power supply capacity (each nest draws approximately 5W from the 24V DC bus).

Extended Functions

IoT Integration Readiness: When paired with Yokogawa's STARDOM or e-RT3 Plus edge controllers, the AMN12T S2 nest enables secure cloud connectivity for remote monitoring and predictive maintenance applications. Analog I/O data can be streamed to OpreX Asset Operations and Optimization platforms for advanced analytics, anomaly detection, and digital twin modeling.

Redundancy Configuration: Deploy in redundant pairs with automatic failover capability when used with dual-redundant CENTUM VP controllers. Redundant nest configuration ensures continuous process control even during single-point hardware failures, meeting SIL 2 safety integrity requirements for critical control loops.

Customization Options: Available with factory-configured conformal coating for corrosive atmosphere protection in offshore, pulp & paper, and mining applications. Custom labeling and asset tagging services support plant-specific documentation and maintenance management system integration.

Delivery & Service Assurance

Lead Time: Standard delivery 3-5 business days for in-stock units. Custom configurations (conformal coating, special labeling) require 10-15 business days. Expedited shipping available for emergency replacement scenarios.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Access to Yokogawa-certified application engineers for integration assistance, troubleshooting, and system optimization. Support includes configuration file review, wiring diagram verification, and startup commissioning guidance.

Documentation Package: Each unit ships with installation manual, dimensional drawings, wiring diagrams, and compatibility matrix. Digital resources include 3D CAD models (STEP format), configuration software, and video installation guides.

Frequently Asked Questions

Q: How does the AMN12T S2 hot-swap capability integrate with existing CENTUM VP systems?
A: The AMN12T S2 nest supports online module replacement without controller reboot or configuration download. Simply remove the existing analog I/O module, insert the replacement module, and the CENTUM controller automatically recognizes the new hardware within 2-3 seconds. No special software commands or operator intervention required—the system maintains process control throughout the replacement procedure.

Q: What is the maximum cable distance between the AMN12T S2 nest and field transmitters?
A: Maximum cable distance depends on the specific analog I/O module installed in the nest. For 4-20mA current loop signals (most common), typical maximum distance is 1000 meters using shielded twisted-pair cable. For thermocouple and RTD inputs, consult the specific module datasheet as distance limitations vary by sensor type and accuracy requirements.

Q: Can the AMN12T S2 reduce energy consumption compared to legacy analog I/O systems?
A: Yes. The S2 generation incorporates low-power CMOS circuitry that reduces nest power consumption by approximately 30% compared to first-generation AMN12 units. In large DCS installations with 100+ nests, this translates to measurable cabinet cooling load reduction and lower HVAC operating costs over the system lifecycle.

Q: What installation requirements must be met for proper AMN12T S2 operation?
A: The nest requires a clean 24V DC power supply (±10% tolerance, <100mV ripple), DIN rail or panel mounting surface, and connection to the CENTUM backplane communication bus. Minimum clearance of 50mm above and below the nest is recommended for adequate convection cooling. Installation in NEMA 12 or IP54-rated enclosures is recommended for industrial environments.

Q: Does the AMN12T S2 support remote monitoring and diagnostics?
A: Yes, when integrated with CENTUM VP R6.0 or later. The nest communicates diagnostic status (power health, communication errors, module recognition) to the CENTUM controller, which can forward alarms to operator HMI stations, email notification systems, or mobile alert platforms. Advanced diagnostics include power supply voltage monitoring and backplane communication quality metrics.

Q: How does the S2 generation improve upon the original AMN12T design?
A: S2 enhancements include improved EMI/RFI immunity (tested to IEC 61326 Level 4), extended operating temperature range (now -10°C to +55°C vs. 0°C to +50°C), enhanced diagnostic LED visibility, and 30% lower power consumption. Internal circuit board layout optimizations reduce crosstalk between adjacent signal channels, improving measurement accuracy in high-density installations.

Take the Next Step

Ready to enhance your CENTUM DCS infrastructure with hot-swap analog I/O capability? Contact our application engineering team for system compatibility verification, configuration assistance, and volume pricing. We provide technical consultation to ensure the AMN12T S2 nest meets your specific process control requirements and integrates seamlessly with your existing Yokogawa automation platform.

Request a quote today: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with a DCS specialist.
