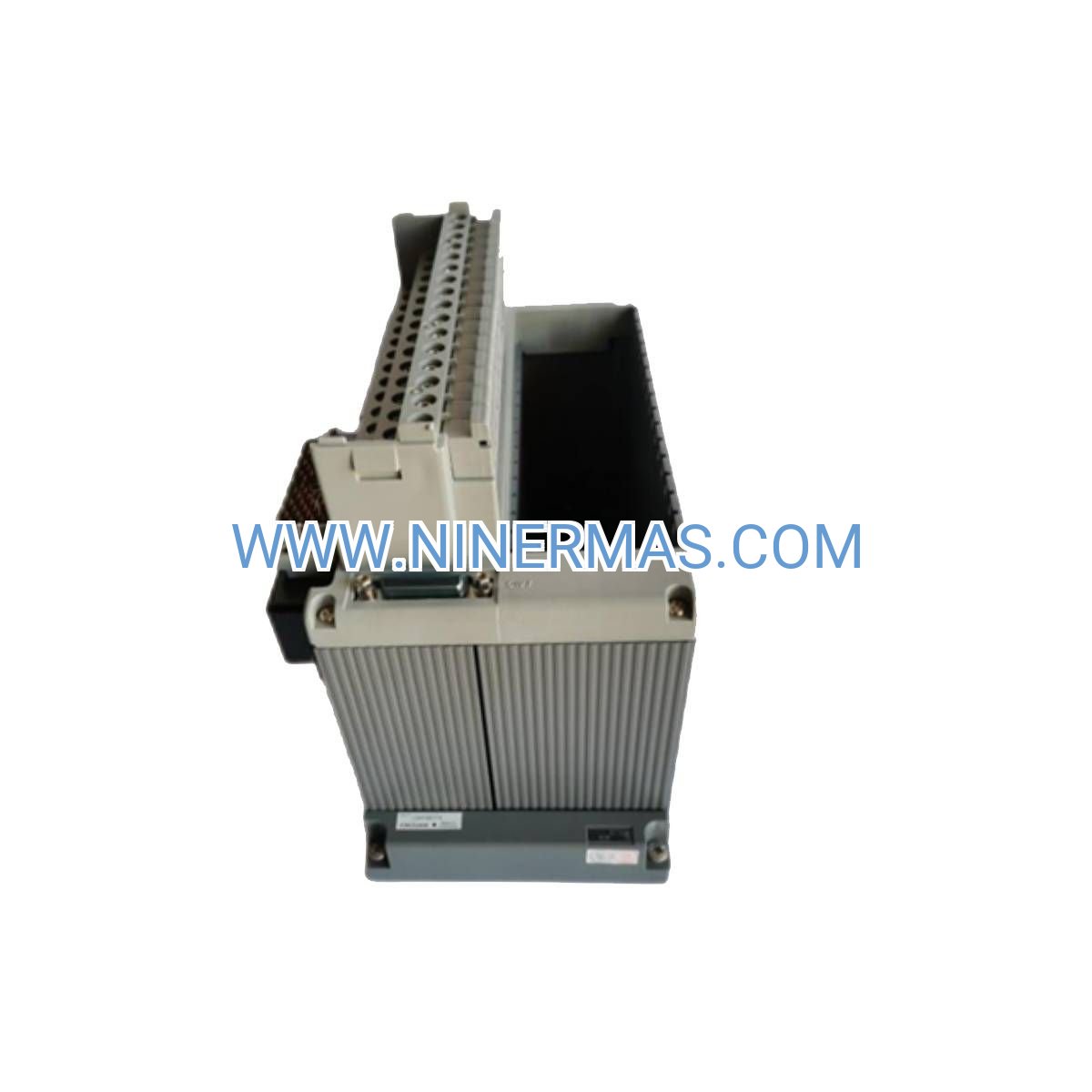

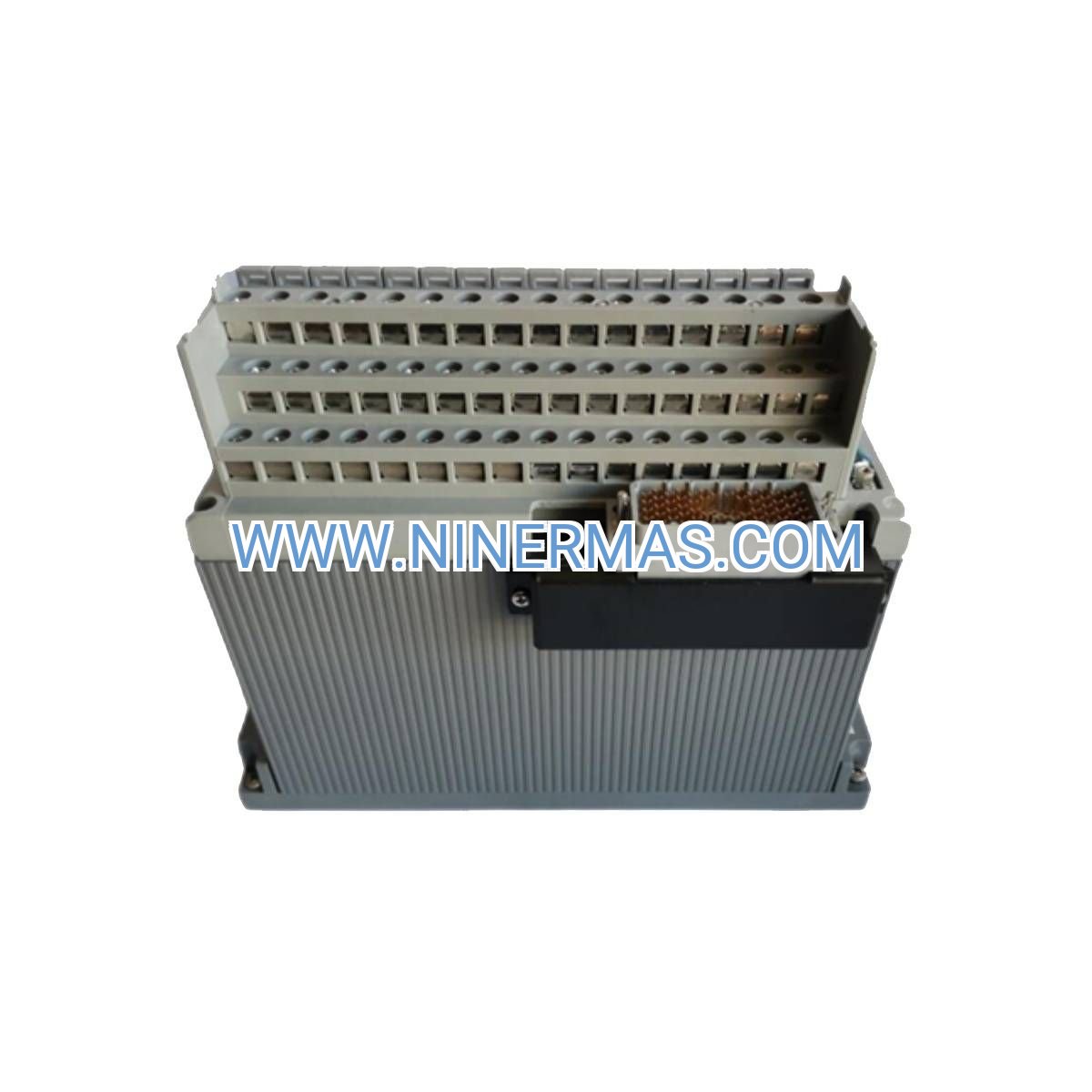

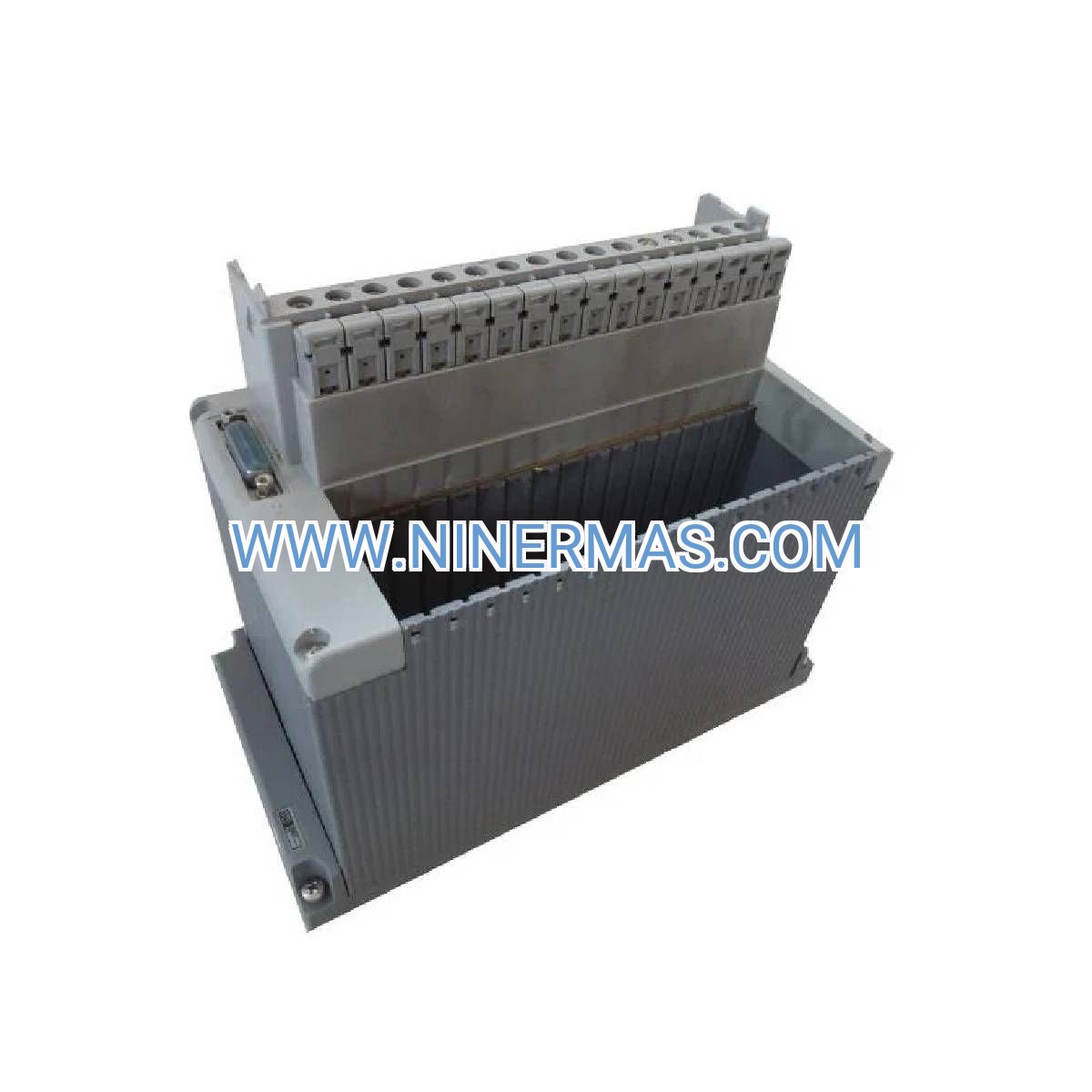

AMN12 Analog I/O Mounting Nest (Industrial-Grade 12-Slot Infrastructure)

The AMN12 is a precision-engineered mounting nest designed to house up to 12 analog input/output modules within Yokogawa CENTUM VP distributed control architectures. Built for continuous operation in demanding industrial environments, this DIN-rail compatible base unit integrates V-net high-speed backplane communication, redundant power distribution, and hot-swap maintenance capabilities into a compact, electromagnetically shielded chassis. Process engineers rely on the AMN12 to consolidate field signals, reduce wiring complexity, and maintain system uptime in mission-critical applications spanning oil & gas, chemical processing, and power generation facilities.

Designed for plant operators managing large-scale instrumentation networks, the AMN12 addresses the challenge of distributed signal aggregation while preserving deterministic scan cycles and fault-tolerant operation. Its modular slot architecture supports mixed analog I/O configurations, enabling flexible channel allocation without sacrificing backplane bandwidth or diagnostic visibility. Whether deployed in marshalling cabinets, remote I/O enclosures, or offshore platform control rooms, the AMN12 delivers the mechanical robustness and electrical performance required for 24/7 process automation.

Key advantages include tool-free module insertion with keyed connectors to prevent misconfigurations, integrated LED diagnostics for rapid troubleshooting, and compliance with international safety standards (CE, UL508, FM Class I Div 2). The nest's thermal management system eliminates forced-air cooling requirements, reducing energy consumption and maintenance overhead while extending component lifespan in high-temperature environments.

Core Features & Benefits

→ 12-Slot Universal Compatibility
Accommodates any combination of Yokogawa AAI-series analog input, output, and I/O modules (AAI143, AAI835, AAI841, AAI543) within a single nest, optimizing channel density and reducing cabinet footprint by up to 40% compared to standalone module mounting.

→ V-net Deterministic Backplane
High-speed 10 Mbps bus architecture guarantees sub-10ms communication latency between modules and field control units (FCUs), essential for cascade loops, ratio control, and fast-acting safety interlocks in batch processing and continuous manufacturing.

→ Redundant Power Distribution
Dual +24V DC inputs with automatic failover and per-slot current limiting protect against power supply failures, ensuring uninterrupted operation during maintenance or grid disturbances. Base consumption: 15W (excluding modules).

→ Hot-Swap Serviceability
Replace faulty modules or terminal blocks during live operation without disrupting adjacent channels or halting production, reducing mean time to repair (MTTR) by 60% and supporting FDA 21 CFR Part 11 continuous data logging requirements.

→ Extended Environmental Ratings
Operates reliably across -20°C to +60°C temperature range with 5-55 Hz vibration resistance (0.5G continuous per IEC 60068-2-6), making it suitable for offshore platforms, desert installations, and arctic processing facilities.

✓ Integrated EMI Shielding
Metal chassis with grounding plane and conformal coating meets IEC 61326 EMC standards, preventing signal degradation in high-noise environments with variable frequency drives (VFDs), welding equipment, or radio transmitters.

Application Scenarios

Scenario 1: Refinery Distillation Column Control
In crude oil refineries, AMN12 nests consolidate temperature, pressure, and flow signals from 50+ field transmitters across distillation towers. The V-net backplane enables real-time data exchange with advanced process control (APC) algorithms, optimizing product yields while maintaining safety instrumented system (SIS) integrity. Hot-swap capability allows technicians to replace modules during turnarounds without depressurizing columns.

Scenario 2: Pharmaceutical Batch Reactor Monitoring
Biopharmaceutical manufacturers deploy AMN12 nests in cleanroom-adjacent control panels to monitor critical process parameters (pH, dissolved oxygen, temperature) during fermentation cycles. The nest's sealed construction prevents particulate ingress, while its audit-trail-compatible diagnostics support FDA validation protocols and electronic batch record (EBR) systems.

Scenario 3: Offshore Platform Gas Compression
On floating production storage and offloading (FPSO) vessels, AMN12 nests withstand continuous vibration from compressor skids and wave motion while maintaining signal accuracy for anti-surge control loops. Redundant power inputs ensure operation during generator switchovers, and corrosion-resistant coatings extend service life in salt-spray environments.

Scenario 4: Pulp & Paper Stock Preparation
Paper mills use AMN12 nests to interface with consistency transmitters, flow meters, and level sensors across stock chests and blend tanks. The nest's 100ms scan cycle supports tight control of fiber-to-water ratios, reducing raw material waste by 8-12% while improving sheet formation quality.

Scenario 5: Power Plant Boiler Feedwater Control
Coal-fired and combined-cycle power stations rely on AMN12 nests for boiler drum level control, feedwater flow measurement, and steam temperature regulation. The nest's deterministic communication prevents oscillations in three-element control schemes, protecting boiler tubes from thermal stress and extending inspection intervals.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AMN12 when your application requires centralized analog I/O aggregation with deterministic communication, hot-swap maintenance, and extended environmental ratings. For systems with fewer than 8 modules, consider the AMN32 (8-slot variant) to reduce cabinet space. For hazardous area installations requiring intrinsic safety (IS) barriers, verify barrier compatibility with module input impedance specifications.

Extended Functions

IoT Integration: The AMN12's V-net backplane data is accessible via CENTUM VP's OPC UA server, enabling integration with cloud-based analytics platforms, predictive maintenance systems, and enterprise MES/ERP software. Real-time module health metrics (backplane errors, power supply voltage, slot occupancy) can be streamed to condition monitoring dashboards for proactive intervention.

Advanced Diagnostics: Built-in self-test routines monitor backplane signal integrity, power rail stability, and module communication status. Anomalies trigger configurable alarms in operator workstations, with detailed fault codes logged to system event databases for root cause analysis and compliance audits.

Customization Options: Factory-configured nests are available with pre-installed terminal blocks (screw-clamp or spring-cage types), custom labeling, and protective coatings for extreme environments (tropical, marine, or arctic specifications). Consult factory for lead times on custom configurations.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS). Tracking information provided within 24 hours of order confirmation.

Custom Configurations: 10-15 business days for factory-configured nests with pre-wired terminal blocks or special coatings. Expedited production available for critical outages (contact sales for emergency support).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (36/60 months) available for high-criticality applications.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting assistance, and system integration consulting. Remote diagnostics support available via secure VPN connections.

Documentation Package: Each unit ships with installation manual, dimensional drawings, wiring diagrams, V-net configuration guide, and CE/UL compliance certificates. CAD models (STEP, DXF) available for download from product support portal.

Frequently Asked Questions

Q1: Can the AMN12 nest interface with non-Yokogawa field control units?
The AMN12 is designed exclusively for Yokogawa CENTUM VP/CS 3000 systems using V-net backplane protocol. For third-party DCS integration, consider Yokogawa's Modbus/Profibus gateway modules or contact engineering for protocol conversion solutions.

Q2: What is the maximum cable distance between the AMN12 nest and field transmitters?
Analog input modules support up to 300 meters for 4-20mA signals with 18 AWG shielded twisted-pair cable. For longer distances, use signal isolators or consider FOUNDATION Fieldbus/HART-enabled modules to reduce wiring costs and improve diagnostic capabilities.

Q3: How does the AMN12 improve energy efficiency compared to traditional I/O systems?
The nest's convection-cooled design eliminates forced-air cooling requirements, reducing HVAC loads by 200-400W per cabinet. Consolidated wiring reduces copper consumption by 35%, and the V-net backplane's low power consumption (15W base) minimizes heat dissipation compared to legacy parallel bus architectures.

Q4: Are there specific installation requirements for hazardous area deployments?
For Class I Div 2 installations, mount the AMN12 in purged/pressurized enclosures or general-purpose areas. For Div 1/Zone 1 applications, use intrinsically safe (IS) barriers between field devices and analog input modules, ensuring barrier parameters match module input specifications (consult factory for barrier compatibility matrices).

Q5: Can I mix different generations of Yokogawa analog I/O modules in a single AMN12 nest?
Yes, the AMN12 supports backward compatibility with legacy AFV-series modules (with adapter kits) and current AAI-series modules. However, mixing module types may limit advanced features like HART pass-through or enhanced diagnostics—consult system configuration tools for feature availability.

Q6: What preventive maintenance is recommended for the AMN12 nest?
Inspect DIN rail mounting clips annually for secure engagement, verify power supply voltage levels quarterly (should remain within 22-26V DC), and clean ventilation channels semi-annually to prevent dust accumulation. Backplane connector contacts should be inspected during major turnarounds (typically 3-5 year intervals).
