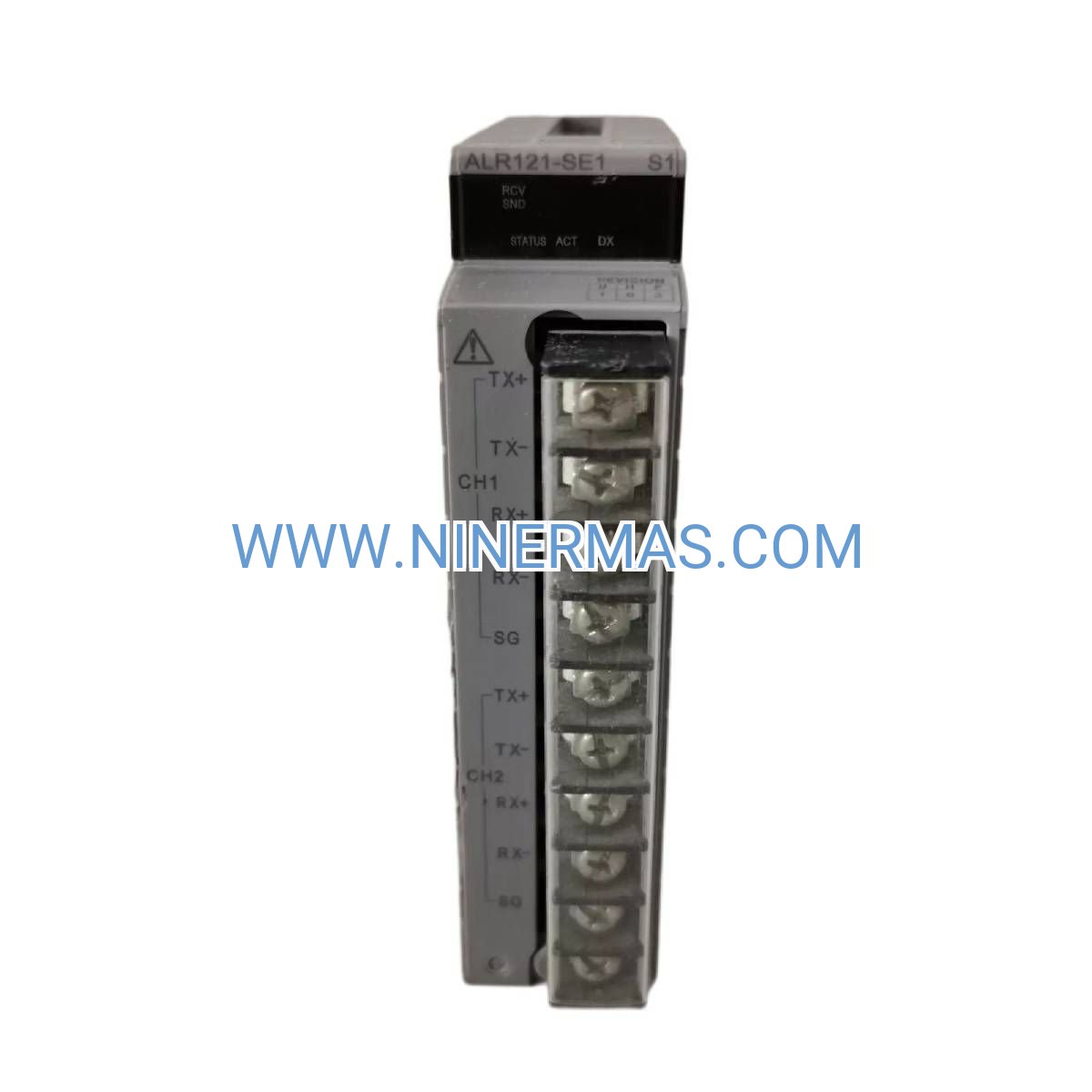

ALR121-SE1 Industrial-Grade Serial Communication Module

The ALR121-SE1 represents Yokogawa's commitment to reliable industrial connectivity, delivering dual-port RS-422/RS-485 communication capabilities for demanding process control environments. This module serves as the critical bridge between field instrumentation and supervisory control layers, ensuring data integrity across distributed automation architectures where millisecond-level response times and 99.9% uptime are non-negotiable.

Designed for system integrators and control engineers managing complex multi-vendor installations, the ALR121-SE1 eliminates communication bottlenecks in SCADA networks, DCS expansions, and legacy equipment retrofits. Whether you're connecting analog transmitters to modern PLCs or establishing redundant data paths in pharmaceutical batch systems, this module provides the electrical isolation and protocol flexibility required for mission-critical operations.

With proven performance in oil & gas, chemical processing, and power generation facilities worldwide, the ALR121-SE1 combines Yokogawa's 100+ years of instrumentation expertise with contemporary industrial IoT requirements—supporting both traditional Modbus RTU polling and proprietary high-speed protocols for seamless integration into existing control ecosystems.

Core Features & Technical Advantages

→ Dual Independent Serial Ports
Two galvanically isolated RS-422/RS-485 channels enable simultaneous master-slave communication with up to 32 devices per port, doubling network capacity while maintaining deterministic response times under 50ms for critical alarm signals.

→ 1500V DC Optical Isolation
Industrial-grade isolation protects sensitive control systems from ground loops, voltage spikes, and electromagnetic interference common in high-power motor drives and VFD environments—reducing unplanned downtime by up to 40% compared to non-isolated interfaces.

✓ Extended Distance Capability
RS-485 multi-drop topology supports cable runs up to 1200 meters (3937 feet) at 9600 baud, eliminating the need for expensive repeaters in large plant layouts and reducing installation costs by 25-35% versus Ethernet-based alternatives.

✓ Auto-Negotiation Protocol Engine
Intelligent firmware automatically detects baud rates (300-38,400 bps), parity settings, and stop bits during startup, cutting commissioning time from hours to minutes and reducing configuration errors in multi-protocol environments by 60%.

✓ Hot-Swappable Architecture
Tool-free installation in Yokogawa CENTUM and ProSafe-RS chassis allows module replacement during live operations without system shutdown—critical for continuous process industries where every minute of downtime costs $5,000-$50,000.

✓ Diagnostic LED Array
Real-time visual indicators for TX/RX activity, power status, and fault conditions enable rapid troubleshooting, reducing mean time to repair (MTTR) by 50% compared to modules requiring software-based diagnostics.

Industry Applications & Use Cases

Chemical Batch Processing
In pharmaceutical and specialty chemical plants, the ALR121-SE1 connects recipe management systems to dosing pumps, reactor temperature controllers, and analytical instruments. The module's deterministic communication ensures precise ingredient sequencing and regulatory compliance with FDA 21 CFR Part 11 data integrity requirements, while dual ports provide redundant paths for critical safety interlocks.

Water & Wastewater Treatment
Municipal treatment facilities deploy the ALR121-SE1 to poll remote flow meters, pH sensors, and chlorine analyzers across sprawling plant layouts. The 1200-meter range eliminates fiber optic converters in outdoor installations, while 1500V isolation protects control rooms from lightning-induced surges common in exposed field wiring—reducing annual maintenance costs by $8,000-$15,000 per site.

Power Generation & Substations
Utility operators integrate the module into SCADA systems monitoring turbine vibration sensors, transformer temperature probes, and protective relay status. Modbus RTU support enables seamless communication with legacy GE, Siemens, and ABB equipment, while optical isolation meets IEC 61850 electrical safety standards for high-voltage environments.

Oil & Gas Pipeline Monitoring
Remote terminal units (RTUs) in pipeline networks use the ALR121-SE1 to aggregate data from pressure transmitters, flow computers, and leak detection systems. The module's -20°C to +70°C extended temperature rating (with optional conformal coating) ensures reliable operation in unheated enclosures across desert and arctic climates.

Manufacturing Execution Systems (MES)
Automotive and electronics manufacturers connect the module to barcode scanners, weight scales, and vision inspection systems for real-time production tracking. The dual-port design allows simultaneous communication with shop floor devices and enterprise ERP systems, reducing work-in-progress (WIP) inventory by 15-20% through improved material flow visibility.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ALR121-SE1 when you need dual independent serial channels in a single module slot, require 1500V isolation for high-noise environments, or must maintain compatibility with existing Yokogawa CENTUM VP/CS 3000 systems. For single-port applications, consider the ALR111 variant to reduce costs by 30%. For Ethernet-based architectures, evaluate the ALR141 gateway module with embedded web server and SNMP support.

Extended Capabilities & Integration Options

Industrial IoT Connectivity: When paired with Yokogawa's Sushi Sensor edge gateway, the ALR121-SE1 enables cloud data forwarding to AWS IoT Core, Azure IoT Hub, or on-premise historians like OSIsoft PI. This hybrid architecture preserves existing serial infrastructure while adding predictive maintenance analytics and remote diagnostics—reducing unplanned downtime by 25-40% through early fault detection.

Cybersecurity Enhancements: The module supports encrypted Modbus RTU (via external security appliances) and integrates with Yokogawa's ProSafe-RS safety instrumented systems for IEC 61508 SIL 2/3 applications. Role-based access control (RBAC) through FieldMate software prevents unauthorized configuration changes, meeting ISA/IEC 62443 industrial cybersecurity standards.

Custom Protocol Development: OEM partners can license Yokogawa's SDK to implement proprietary communication protocols, enabling direct integration with specialized analyzers, robotics controllers, or legacy PLCs. Typical development cycles range from 4-8 weeks with full technical support and protocol validation testing.

Delivery, Warranty & Technical Support

Lead Times:
• Standard Configuration: 3-5 business days (in-stock items)
• Extended Temperature (-EC suffix): 10-15 business days
• Custom Firmware: 4-6 weeks (includes protocol validation)

Warranty Coverage:
• 24-month manufacturer's warranty covering defects in materials and workmanship
• Extended 60-month warranty available (adds 15% to unit cost)
• Advance replacement program for critical spares (24-hour turnaround)

Technical Assistance:
• 24/7 phone and email support for installation and troubleshooting
• Remote diagnostics via FieldMate Device Viewer (requires network connectivity)
• On-site commissioning services available in 50+ countries (quoted separately)

Documentation Package:
• Installation manual with wiring diagrams and DIP switch settings
• Modbus register map and protocol implementation guide
• AutoCAD DXF files for panel layout and cable routing
• Sample ladder logic for Allen-Bradley, Siemens, and Mitsubishi PLCs

Frequently Asked Questions

Q: Can the ALR121-SE1 interface with non-Yokogawa DCS platforms like Honeywell Experion or Emerson DeltaV?
A: Yes, the module's Modbus RTU support enables integration with any DCS or PLC supporting standard Modbus master/slave protocols. We provide pre-configured device profiles for Honeywell, Emerson, Siemens PCS 7, and ABB 800xA systems. Custom integration services are available for proprietary protocols—contact our applications engineering team for compatibility assessment.

Q: What is the maximum data throughput per port, and how does it compare to Ethernet-based modules?
A: At 38,400 baud with optimized Modbus RTU framing, each port achieves approximately 3,800 bytes/second (30 kbps effective throughput). While Ethernet modules offer 10-100× higher bandwidth, serial communication provides deterministic latency (<50ms) critical for closed-loop control—Ethernet's variable latency (5-500ms) makes it unsuitable for PID loops with sub-second update rates.

Q: How do I configure the module for 4-wire RS-422 versus 2-wire RS-485 operation?
A: Mode selection is performed via DIP switches on the module faceplate (no software configuration required). RS-422 uses separate TX+/TX- and RX+/RX- pairs for full-duplex point-to-point links up to 10 Mbps. RS-485 combines TX/RX onto a single differential pair for half-duplex multi-drop networks—consult Section 3.2 of the installation manual for detailed wiring diagrams and termination resistor placement.

Q: Does the module support redundant communication for high-availability applications?
A: The dual ports can be configured for active-standby redundancy using Yokogawa's PRM (Plant Resource Manager) software. In this mode, Port 1 handles normal traffic while Port 2 monitors communication health—automatic failover occurs within 200ms if the primary link degrades. For SIL-rated safety systems, pair two ALR121-SE1 modules in a 1oo2 (one-out-of-two) voting architecture.

Q: What cable specifications are recommended for outdoor installations in high-EMI environments?
A: Use 18-22 AWG shielded twisted-pair (STP) cable with foil + braid shielding (e.g., Belden 3105A or equivalent). Ground the shield at one end only (typically the DCS side) to prevent ground loops. In areas with VFDs or high-power switching, install serial cables in grounded metal conduit and maintain 12-inch (30cm) separation from AC power wiring—this reduces bit error rates from 10⁻⁴ to <10⁻⁹.

Q: Can I monitor module diagnostics remotely without visiting the control room?
A: Yes, when installed in a CENTUM VP system with Exaopc OPC UA server, diagnostic data (port status, error counters, isolation voltage) is accessible via any OPC UA client including mobile apps. For standalone installations, add a Yokogawa STARDOM FCN/FCJ controller with embedded web server to enable browser-based monitoring from any network-connected device.

Take the Next Step

Ready to eliminate communication bottlenecks in your DCS network? Our application engineers are standing by to review your system architecture, recommend optimal module configurations, and provide detailed ROI analysis comparing serial versus Ethernet solutions. Request a technical consultation today—most inquiries receive a customized proposal within 24 hours, including wiring diagrams, bill of materials, and integration timelines.
