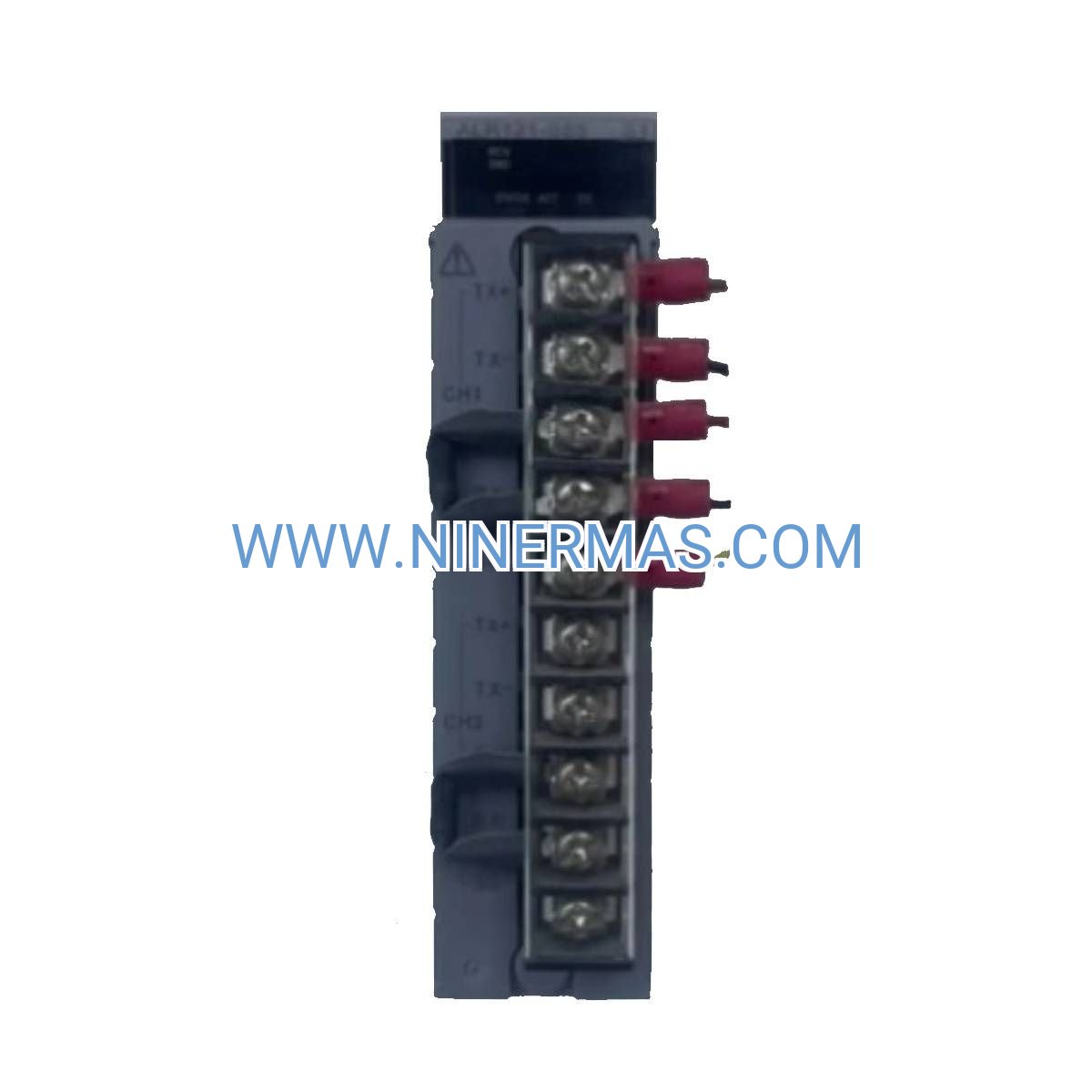

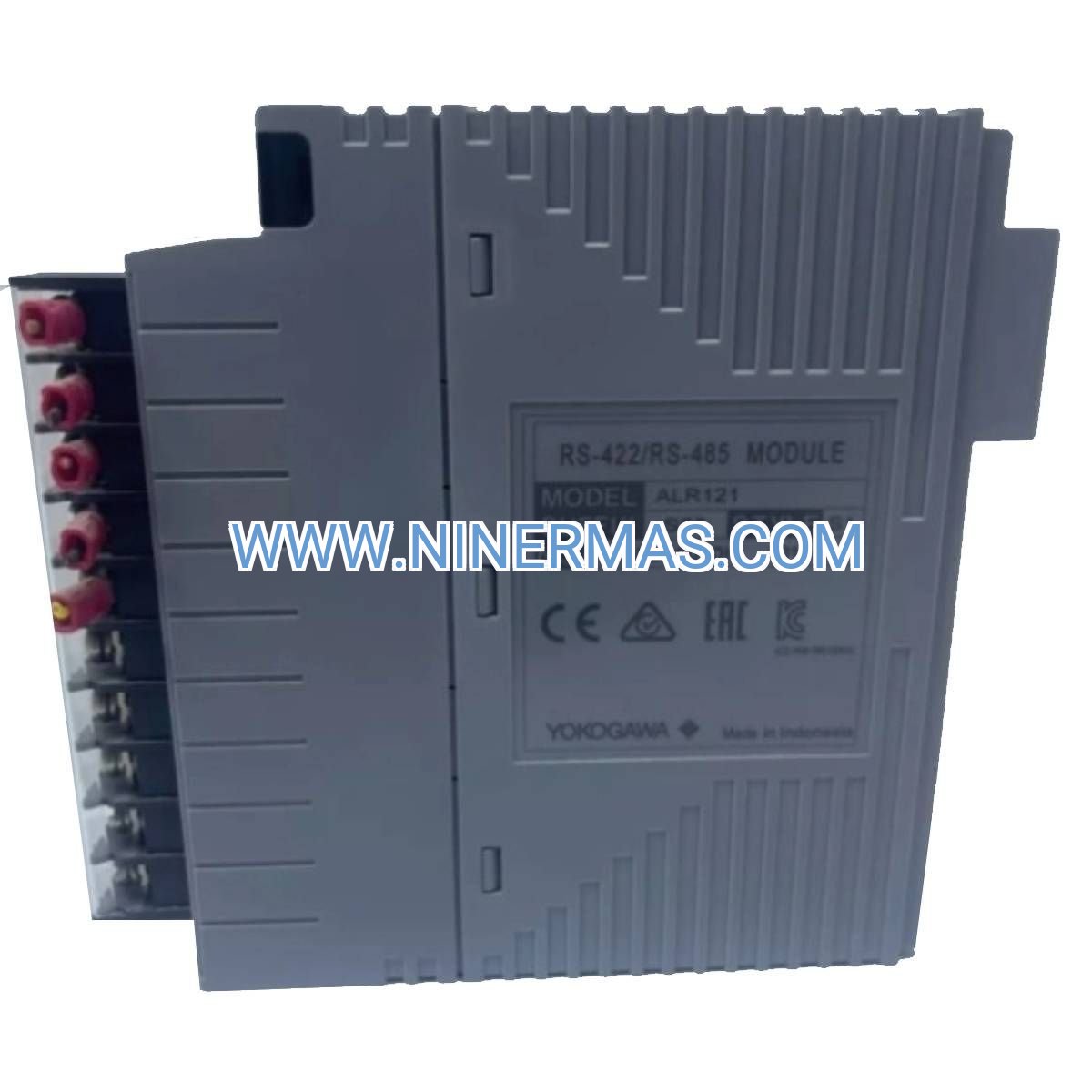

ALR121-S53 S1 Industrial-Grade Serial Communication Interface

The ALR121-S53 S1 represents Yokogawa's commitment to industrial-grade connectivity solutions, providing dual-channel RS-422/RS-485 serial communication for demanding process automation environments. This module bridges the gap between legacy field instrumentation and modern distributed control architectures, enabling seamless data flow across multi-vendor ecosystems while maintaining the signal integrity required for critical process measurements.

Designed for system integrators and plant engineers managing complex automation networks, this communication interface solves the persistent challenge of reliable long-distance serial data transmission in electrically noisy industrial settings. Whether you're retrofitting aging control systems or building new installations, the ALR121-S53 S1 delivers the performance consistency that process industries demand.

With 1500V channel isolation, extended temperature tolerance, and hot-swap capability, this module minimizes unplanned downtime while maximizing network flexibility. Its compatibility with Yokogawa CENTUM and ProSafe platforms ensures rapid deployment with minimal engineering overhead.

Core Features & Technical Advantages

→ Dual Independent Communication Channels
Two isolated RS-422/RS-485 ports enable simultaneous connections to multiple field devices or redundant network paths, increasing system availability and reducing single points of failure.

→ High-Speed Data Transmission (115.2 kbps)
Supports rapid polling cycles for time-sensitive process data, ensuring control loops receive fresh measurements within required update intervals for optimal process stability.

→ 1500V DC Galvanic Isolation
Channel-to-channel and channel-to-ground isolation protects connected equipment from ground loops and voltage transients common in industrial power distribution systems.

→ Extended Operating Range (-20°C to +60°C)
Qualified for both climate-controlled control rooms and harsh field enclosures, eliminating the need for environmental conditioning in many installations.

→ DIN Rail Mounting & Hot-Swap Design
Standardized mechanical interface accelerates installation, while live-replacement capability allows module servicing without system shutdown or process interruption.

→ Built-In Diagnostic LEDs
Real-time visual indicators for power status, transmit/receive activity, and fault conditions reduce troubleshooting time during commissioning and maintenance.

Industrial Application Scenarios

✓ Refinery & Petrochemical Integration
Connect distributed analyzer systems and flow computers to central DCS over distances up to 1200 meters, maintaining data accuracy despite electromagnetic interference from variable frequency drives and high-voltage switchgear. The module's noise immunity ensures custody transfer measurements remain audit-compliant.

✓ Power Generation Monitoring
Link protective relays, turbine controllers, and emissions monitoring equipment to SCADA historians using standardized Modbus RTU protocol. Dual ports support ring topologies for network redundancy, critical for maintaining visibility during grid disturbances.

✓ Water Treatment SCADA Networks
Aggregate data from remote lift stations and treatment basins using multi-drop RS-485 configurations. The module's low power consumption suits solar-powered remote sites, while its temperature rating handles outdoor enclosure installations.

✓ Pharmaceutical Batch Control
Interface recipe management systems with weigh scales, dosing pumps, and reactor controllers in FDA-regulated environments. The module's deterministic communication timing supports 21 CFR Part 11 audit trail requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ALR121-S53 S1 when your application requires dual independent serial channels with high isolation, extended temperature operation, or integration with Yokogawa CENTUM VP/DCS systems. For single-channel applications or Ethernet-based networks, consider alternative communication modules from the Yokogawa portfolio.

Extended Functionality & Integration

Protocol Flexibility: While hardware-compatible with RS-422/RS-485 physical layers, the module supports multiple application protocols through host system configuration, including Modbus RTU, DF1, and proprietary Yokogawa formats. This versatility simplifies integration with third-party equipment.

Redundancy Support: When deployed in pairs within redundant controller configurations, the module automatically synchronizes communication states, ensuring seamless failover without data loss or protocol re-initialization delays.

Cybersecurity Considerations: As a physical-layer device without embedded intelligence, the ALR121-S53 S1 presents minimal attack surface. However, implement network segmentation and protocol filtering at the host controller level to align with IEC 62443 industrial cybersecurity frameworks.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during peak demand periods.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship under normal industrial operating conditions.

Technical Support: Access to Yokogawa-certified application engineers for configuration assistance, troubleshooting guidance, and system integration planning via email and phone channels.

Documentation Package: Includes installation manual, wiring diagrams, protocol specifications, and dimensional drawings in PDF format. CAD models available upon request for panel design integration.

Frequently Asked Questions

Q: How do I connect this serial module to my existing Yokogawa DCS system?
A: The ALR121-S53 S1 mounts directly onto Yokogawa AFV10/AFV30 field control unit backplanes. After physical installation, configure communication parameters (baud rate, parity, stop bits) through the CENTUM VP engineering station using the module's configuration tool. Detailed wiring schematics are provided in the installation manual.

Q: What is the maximum cable length supported for RS-485 networks?
A: The module supports RS-485 networks up to 1200 meters using twisted-pair cable (characteristic impedance 120Ω). For optimal performance, use shielded cable in high-EMI environments and install 120Ω termination resistors at both network ends. Longer distances may require RS-485 repeaters.

Q: Can this module reduce energy consumption in my control system?
A: Yes. With typical power consumption under 3.5W per module, the ALR121-S53 S1 consumes approximately 65% less power than legacy communication cards. In systems with dozens of serial interfaces, this translates to measurable reductions in UPS sizing requirements and cooling loads.

Q: What are the physical installation requirements for this communication interface?
A: The module requires a standard 35mm DIN rail mount and occupies a single slot on compatible Yokogawa backplanes. Ensure adequate ventilation (minimum 50mm clearance above/below) and avoid mounting near high-heat sources. No special tools are required—installation typically completes in under 10 minutes.

Q: Does the ALR121-S53 S1 support remote monitoring and diagnostics?
A: While the module itself doesn't have embedded web interfaces, its operational status and communication statistics are accessible through the host DCS system's diagnostic displays. This includes real-time monitoring of transmit/receive byte counts, error rates, and port configuration status.

Q: Is this serial communication module compatible with non-Yokogawa control systems?
A: The ALR121-S53 S1 is specifically designed for Yokogawa CENTUM and ProSafe platforms and requires compatible backplane infrastructure. For integration with third-party PLCs or DCS systems, consider standalone serial-to-Ethernet gateways or protocol converters that provide vendor-neutral connectivity.

Take the Next Step

Ready to enhance your industrial communication infrastructure? Contact our technical sales team for application-specific guidance, volume pricing, or to request a detailed integration proposal. Our engineers can assess your existing system architecture and recommend the optimal configuration for your connectivity requirements.
