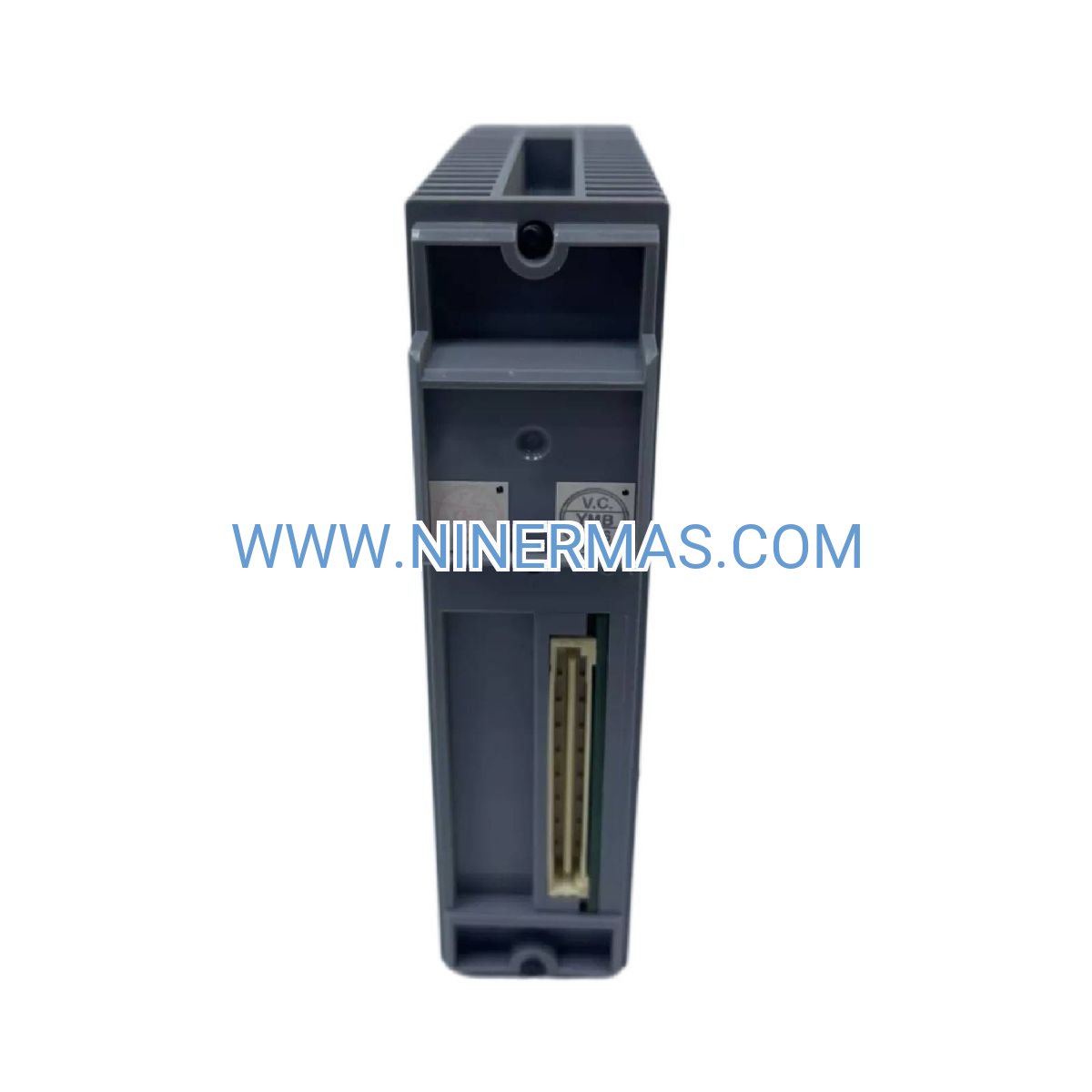

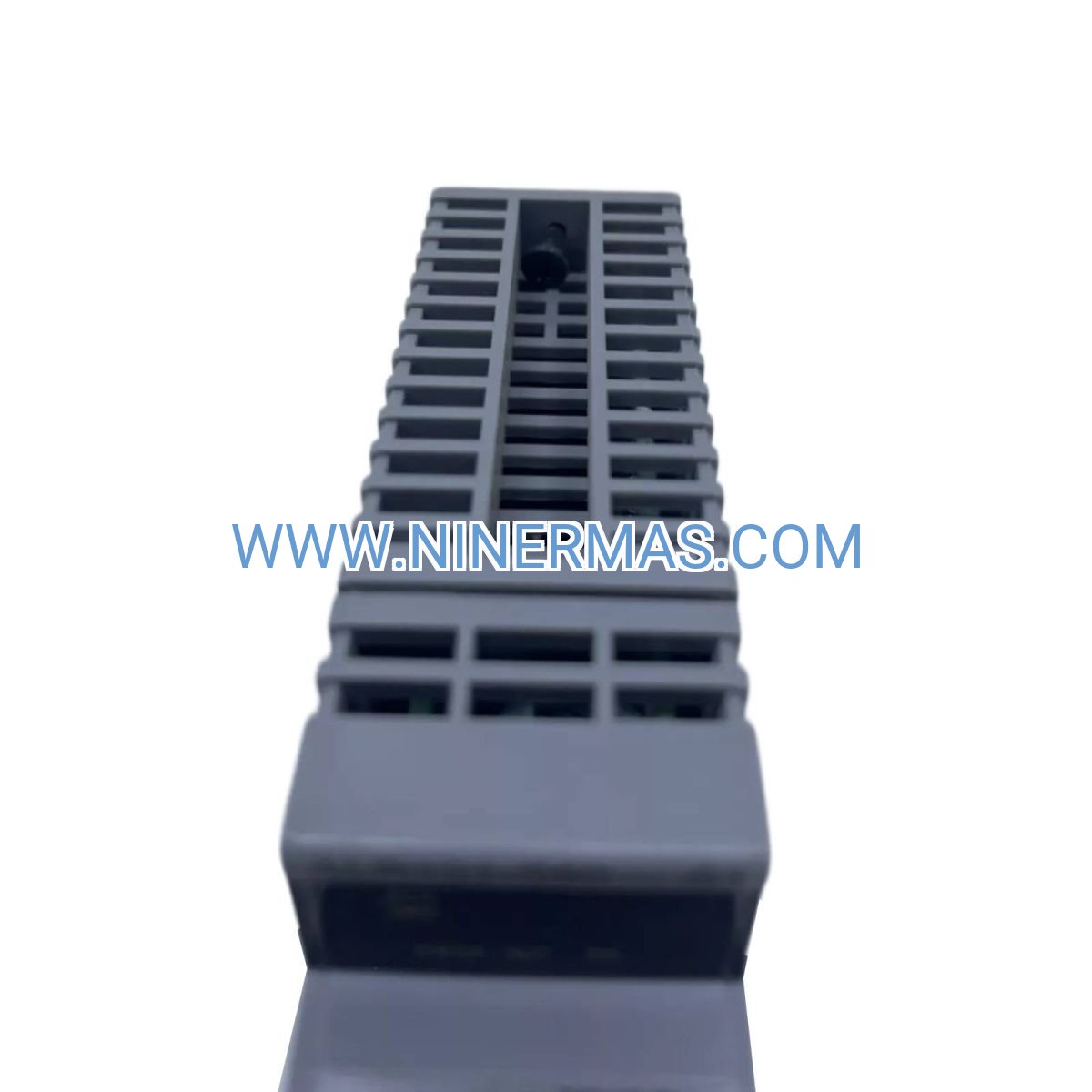

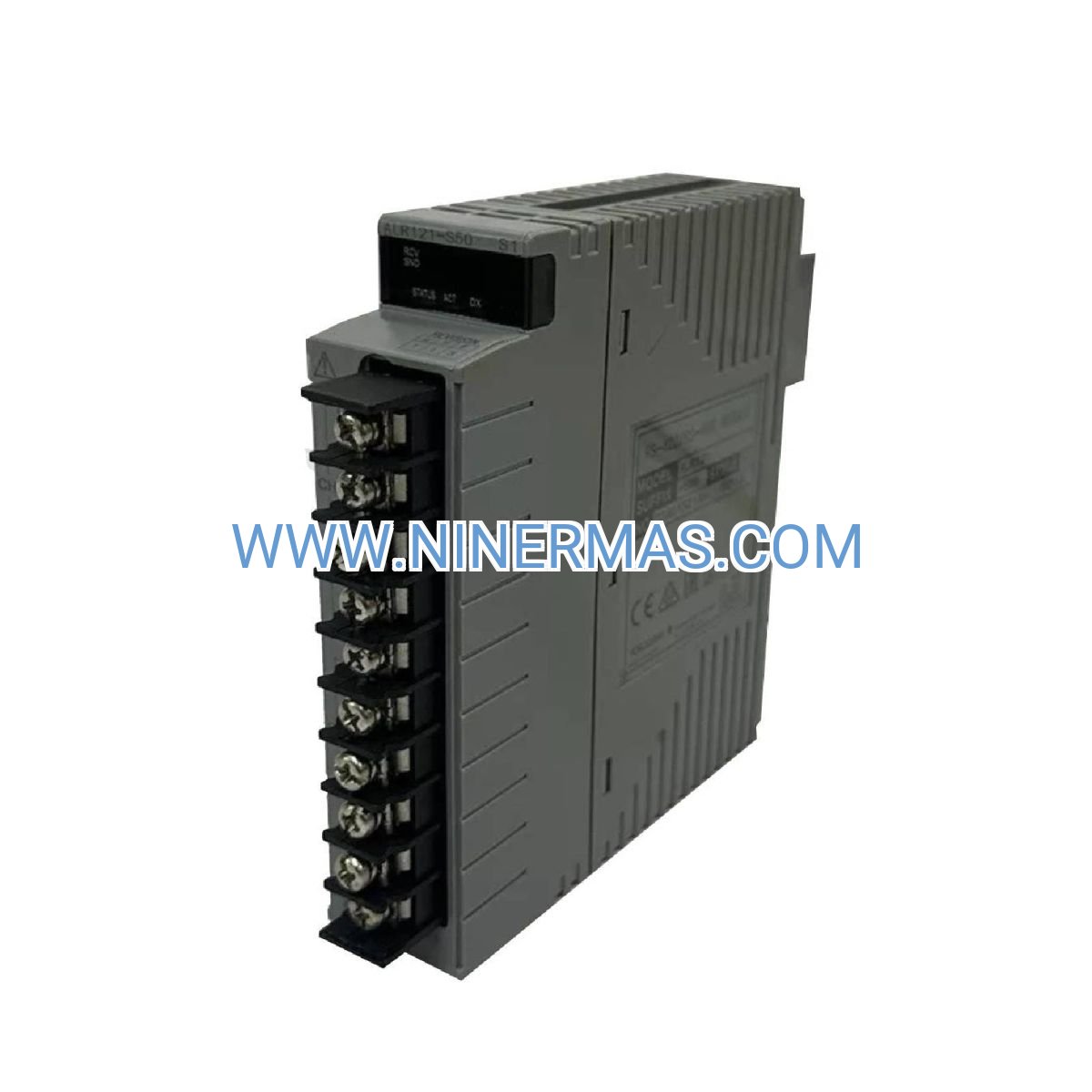

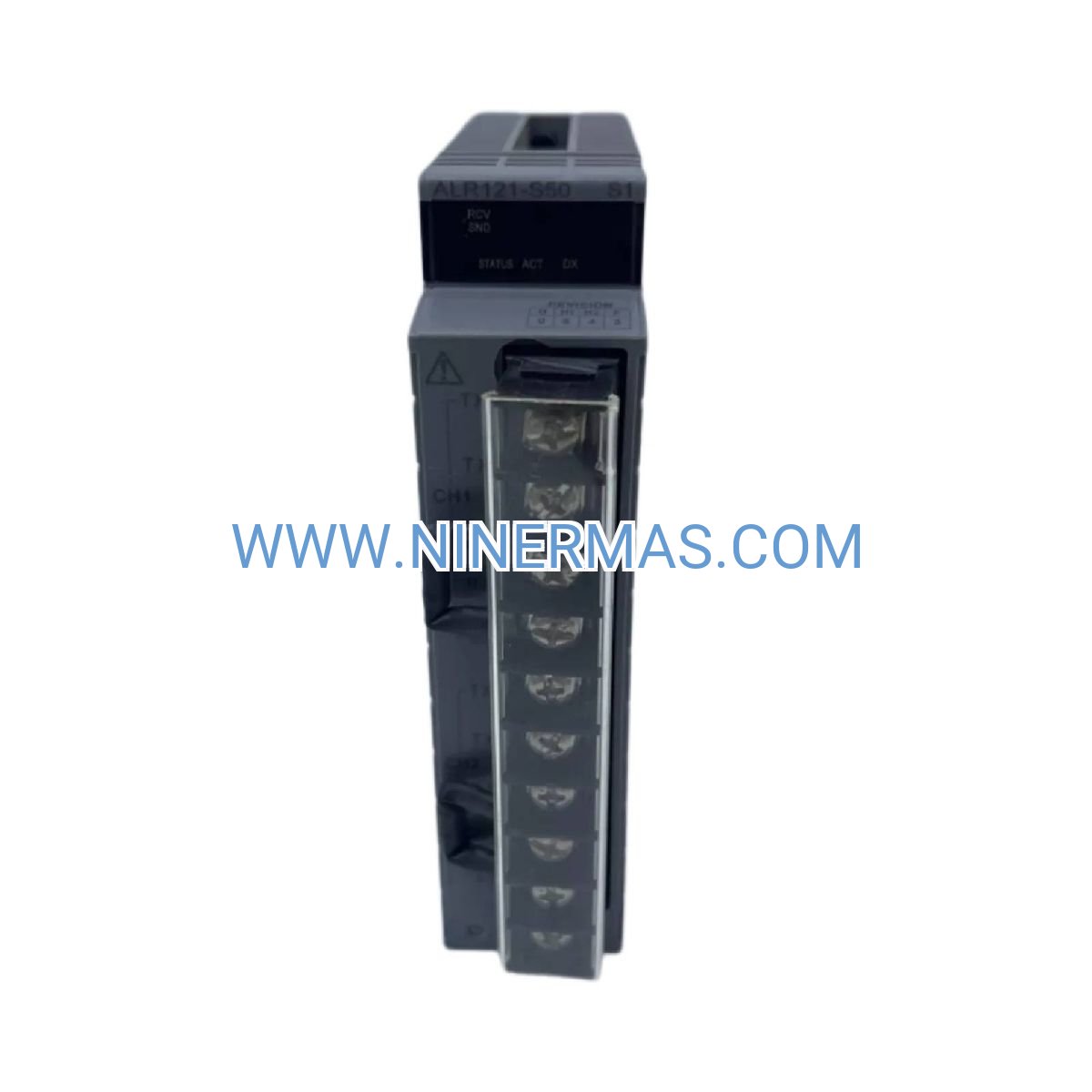

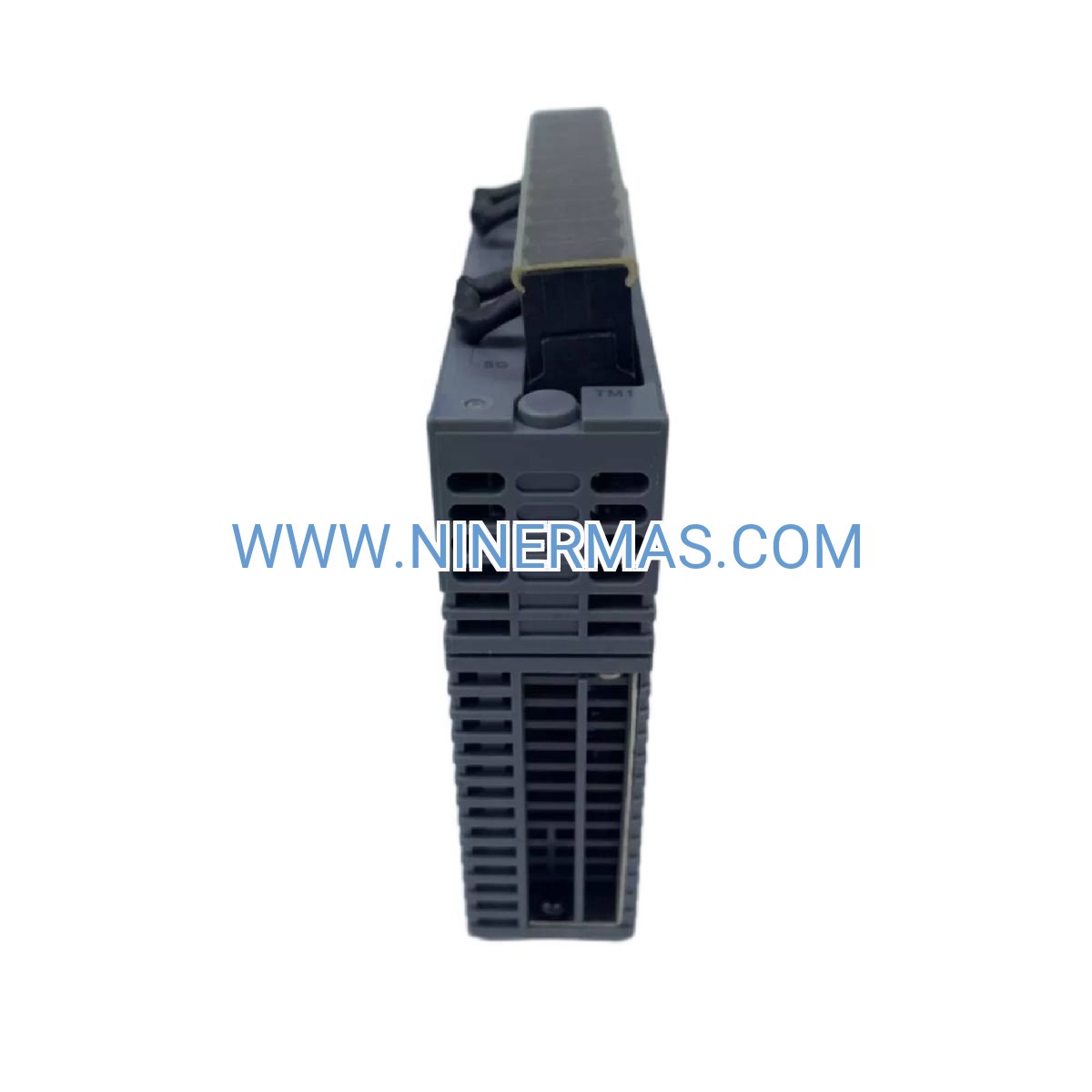

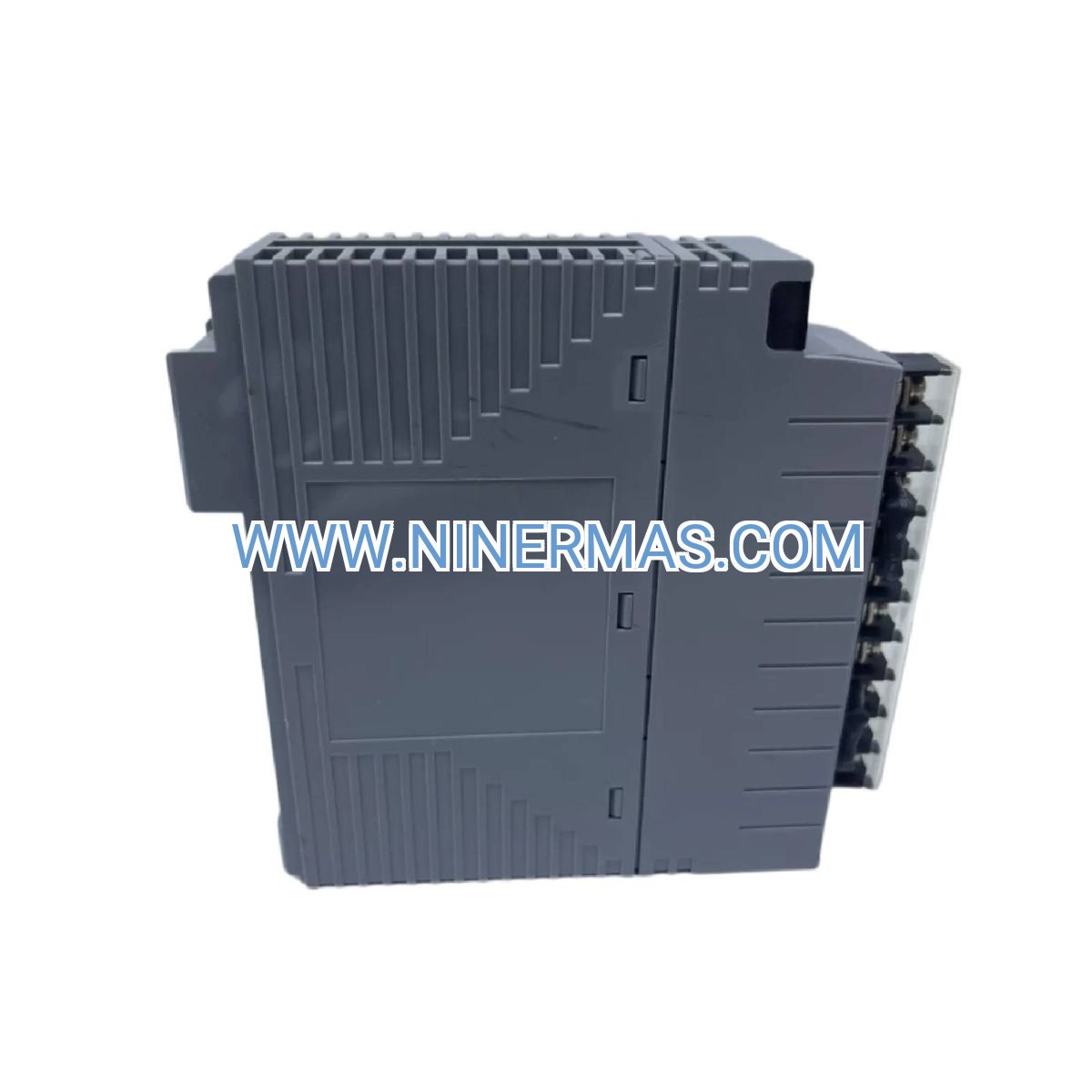

ALR121-S50 Industrial-Grade Dual Serial Communication Gateway

The ALR121-S50 represents Yokogawa's commitment to reliable industrial connectivity, delivering dual independent RS-422/RS-485 serial ports engineered for mission-critical process control environments. This communication gateway bridges legacy field instrumentation with modern distributed control architectures, enabling seamless data flow across multi-vendor automation ecosystems.

Designed for process industries where communication failure translates to production loss, the ALR121-S50 incorporates 1500V galvanic isolation, differential signaling, and hot-swap capability to maintain uptime in electrically noisy environments. Whether integrating SCADA systems with remote telemetry units or connecting PLCs to field analyzers, this module provides the protocol flexibility and signal integrity demanded by oil & gas, chemical processing, and power generation facilities.

With support for Modbus RTU and proprietary Yokogawa protocols, the ALR121-S50 eliminates communication bottlenecks while reducing integration complexity. Each port operates independently at speeds up to 115.2 kbps, supporting multi-drop topologies with up to 32 devices per network segment across cable distances reaching 1200 meters without signal degradation.

Core Features & Business Value

→ Dual Independent Serial Ports
Two isolated RS-422/RS-485 interfaces enable simultaneous communication with separate device networks, reducing hardware costs and cabinet space requirements while improving system modularity.

→ 1500V DC Optical Isolation
Galvanic isolation between ports and system bus protects sensitive control equipment from ground loops, voltage transients, and electromagnetic interference common in industrial power distribution environments.

→ Extended Network Reach
RS-485 differential signaling maintains signal integrity across cable runs up to 1200 meters (4000 feet), eliminating the need for costly repeaters in distributed facility layouts.

→ Multi-Protocol Compatibility
Native support for Modbus RTU and Yokogawa proprietary protocols ensures interoperability with third-party controllers from Siemens, Allen-Bradley, Schneider Electric, and ABB without custom programming.

→ Hot-Swappable Architecture
Field-replaceable design allows module exchange during live operation, minimizing process downtime and maintenance windows in continuous production environments.

✓ Diagnostic LED Indicators
Real-time visual feedback for power status, transmit/receive activity, and fault conditions accelerates troubleshooting and reduces mean time to repair (MTTR) by up to 40%.

Industrial Application Scenarios

Upstream Oil & Gas Production
Connect wellhead controllers and separator instrumentation to central SCADA platforms for real-time monitoring of pressure, temperature, and flow parameters across remote production sites. The module's extended cable reach and noise immunity ensure reliable data acquisition in electrically harsh offshore and desert environments.

Chemical Batch Processing
Interface batch control systems with dosing pumps, pneumatic valves, and inline analyzers via RS-485 networks. Multi-drop capability reduces wiring complexity in reactor skids while maintaining deterministic communication timing for recipe execution.

Power Generation & Distribution
Link turbine protection relays and generator controllers to utility SCADA systems for grid stability management. Galvanic isolation prevents ground potential differences between substations from disrupting critical protective relay communication.

Municipal Water Treatment
Enable master stations to poll distributed RTUs controlling lift pumps, filtration systems, and chemical feed equipment across multi-site treatment facilities. The module's Modbus RTU support simplifies integration with telemetry radios and cellular gateways.

Manufacturing Automation Retrofit
Modernize legacy equipment by bridging serial-based PLCs and drives with Ethernet-based supervisory systems through serial-to-Ethernet converters, extending asset lifespan while maintaining existing field wiring infrastructure.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ALR121-S50 when your application requires dual serial ports for separate device networks or redundant communication paths. For single-port applications, consider the ALR111 variant. When Ethernet connectivity is required alongside serial interfaces, evaluate the ACM12/ZCT multi-protocol module. Verify that your DCS or PLC supports the module's baud rate and protocol configuration before ordering.

Extended Functionality

IoT Integration Pathway: Pair the ALR121-S50 with industrial IoT gateways featuring serial-to-MQTT conversion to stream process data to cloud analytics platforms while maintaining local control system integrity.

Advanced Diagnostics: When integrated with Yokogawa FieldMate software, the module provides detailed communication statistics including frame error rates, buffer overruns, and port utilization metrics for predictive maintenance.

Customization Options: Factory configuration services available for pre-programmed baud rates, parity settings, and protocol parameters to simplify field commissioning in large-scale deployments.

Delivery Timeline & Service Guarantee

Standard Delivery: 5-7 business days for in-stock units via express courier with tracking
Custom Configuration: 10-14 business days for factory-programmed modules
Warranty Period: 12 months from delivery date covering manufacturing defects
Technical Support: Lifetime email/phone consultation for configuration and troubleshooting
Documentation Package: Installation manual, wiring diagrams, protocol specifications, and calibration certificate included

Frequently Asked Questions

What is the maximum number of devices I can connect to each RS-485 port?
Each port supports up to 32 devices in a multi-drop configuration when using standard 120-ohm termination resistors. Actual node count may be limited by network loading and cable capacitance in extended installations.

Can this module interface with non-Yokogawa control systems?
Yes, the ALR121-S50 supports industry-standard Modbus RTU protocol, enabling communication with PLCs and SCADA systems from Siemens, Allen-Bradley, Schneider Electric, ABB, and other major automation vendors.

How much power savings does the module provide compared to older serial interfaces?
With typical consumption under 5W, the ALR121-S50 reduces energy usage by approximately 30-40% compared to legacy serial communication cards while delivering superior noise immunity and diagnostic capabilities.

What are the physical installation requirements for DIN rail mounting?
The module requires 35mm standard DIN rail (EN 50022) with minimum 100mm clearance on each side for cable routing and heat dissipation. Ambient temperature must remain below 55°C for rated performance.

Does the module support remote monitoring and configuration?
When installed in Yokogawa CENTUM VP or CS 3000 systems, the module can be monitored and configured remotely via the DCS engineering station. Standalone installations require local access for parameter changes via DIP switches.

How do I verify proper cable termination for RS-485 networks?
Install 120-ohm termination resistors at both physical ends of the RS-485 bus (not at each device). Use a multimeter to measure 60 ohms between the A and B terminals with power removed to confirm proper termination.

Get Expert Integration Support

Our automation specialists provide complimentary pre-sales consultation to ensure the ALR121-S50 meets your specific communication requirements. Contact us with your system architecture details for customized wiring diagrams and protocol configuration guidance. All modules ship with factory traceability documentation and are backed by our 30-day satisfaction guarantee.
