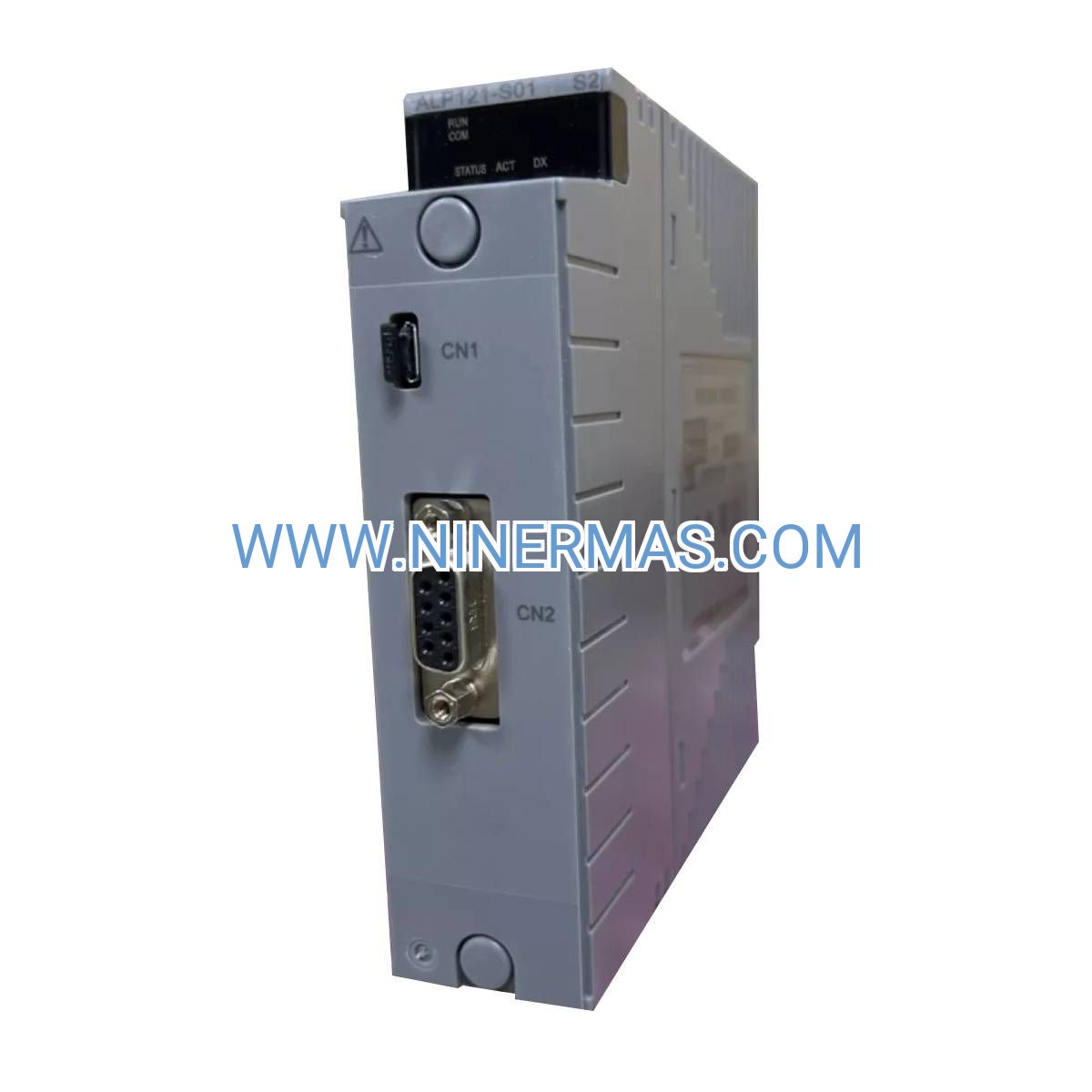

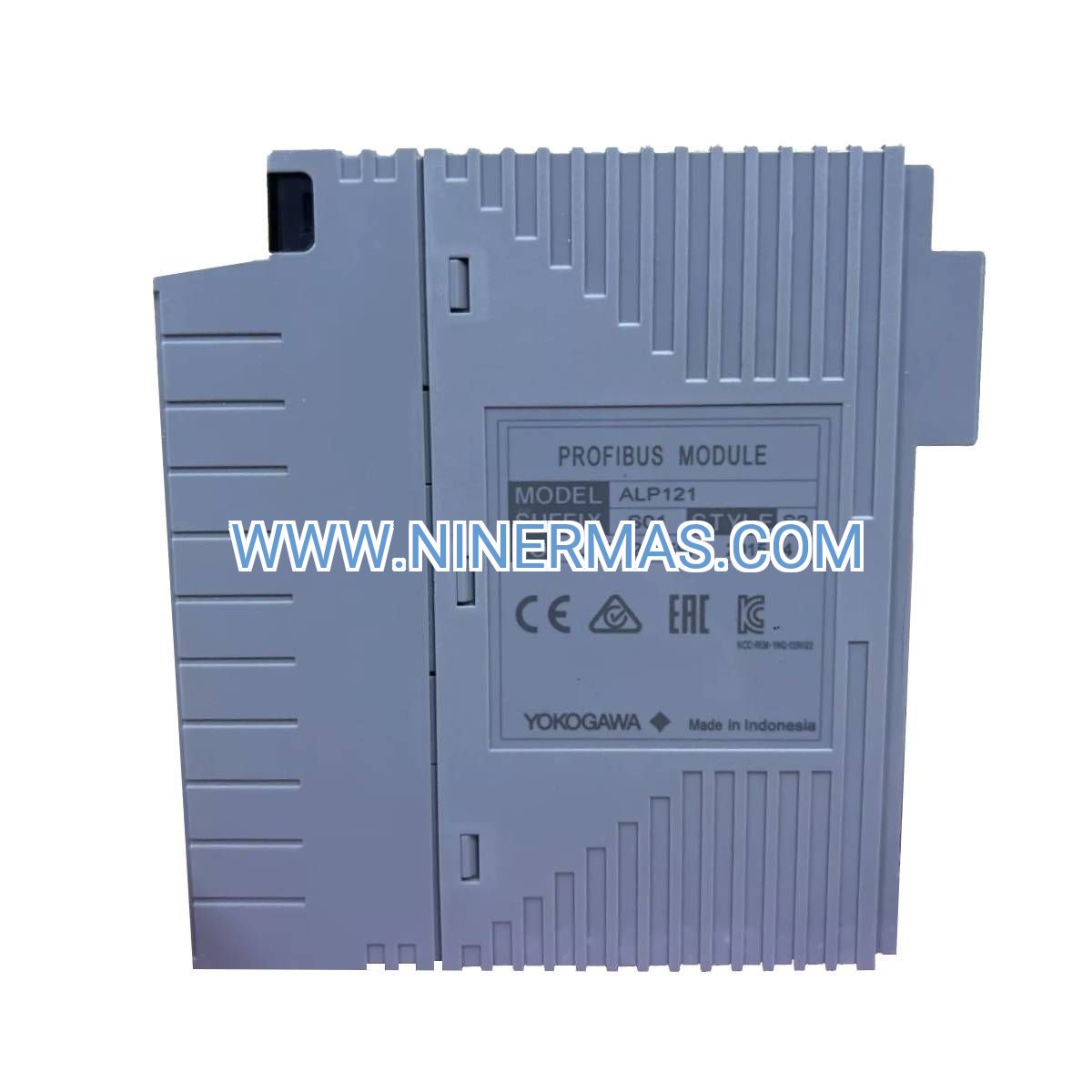

ALP121-S01 PROFIBUS-DP Master Module (Industrial-Grade Fieldbus Controller)

The Yokogawa ALP121-S01 represents a high-performance PROFIBUS-DP master communication interface specifically architected for Field Input/Output (FIO) distributed control environments. This industrial-grade module establishes deterministic, high-speed connectivity between supervisory control layers and field instrumentation, enabling real-time process data acquisition and command execution across RS-485 network topologies.

Engineered for mission-critical automation infrastructure, the ALP121-S01 addresses the fundamental challenge of coordinating multiple slave devices while maintaining microsecond-level response consistency. Process engineers and system integrators deploy this solution when network reliability, diagnostic transparency, and seamless legacy system integration are non-negotiable requirements.

With compliance to IEC 61158 and EN 50170 international standards, this master module delivers proven interoperability across multi-vendor ecosystems, protecting capital investments while future-proofing automation architectures for evolving industrial IoT requirements.

Core Capabilities & Technical Advantages

→ Master-Mode Network Orchestration
Centralized control of up to 125 PROFIBUS-DP slave devices with automatic address management and cyclic data exchange scheduling, eliminating manual configuration overhead.

→ 12 Mbps Deterministic Transmission
Guaranteed message delivery within predictable time windows, critical for closed-loop control applications requiring sub-10ms response cycles in process automation.

→ Hot-Swap Maintenance Architecture
Field-replaceable design enables module exchange during live operations without system shutdown, reducing mean time to repair (MTTR) by 60% compared to traditional fixed installations.

→ Integrated Diagnostic Intelligence
Real-time bus monitoring with LED status indicators and embedded fault logging accelerates troubleshooting, cutting commissioning time by 40% through instant visibility into communication health.

→ Wide Operating Temperature Range
-20°C to +60°C operational capability ensures reliable performance in harsh industrial environments including outdoor substations and non-climate-controlled facilities.

→ Energy-Optimized Power Design
Low-consumption electronics reduce cabinet thermal load and operational costs, particularly valuable in solar-powered remote monitoring installations.

Industry Application Scenarios

✓ Chemical Process Control
Coordinates distributed I/O across reactor vessels, distillation columns, and blending systems where precise temperature/pressure control prevents batch quality deviations. Solves the challenge of synchronizing 50+ field devices across 500-meter plant distances.

✓ Automotive Manufacturing Lines
Manages robotic welding stations, conveyor systems, and quality inspection gates in assembly operations requiring deterministic cycle times. Addresses the pain point of coordinating multi-vendor equipment through standardized PROFIBUS protocol.

✓ Water Treatment Facilities
Links SCADA systems to remote pump stations, valve actuators, and flow meters across municipal distribution networks. Delivers value through 24/7 unattended operation with automatic fault notification to reduce emergency callouts.

✓ Power Generation Plants
Integrates turbine control systems, generator protection relays, and auxiliary equipment monitoring in combined-cycle facilities. Resolves interoperability challenges between legacy DCS infrastructure and modern intelligent field devices.

✓ Pharmaceutical Clean Rooms
Connects environmental monitoring sensors, HVAC controls, and material handling systems in GMP-compliant production areas. Provides audit-trail-ready communication logs for regulatory validation requirements.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the ALP121-S01 when your application requires master-mode control with FIO system integration. For slave-mode operation or standalone installations, consider alternative Yokogawa communication modules. Verify GSD file compatibility with your specific field device manufacturers during design phase.

Advanced Integration Features

GSD-Based Auto-Configuration
Supports standard PROFIBUS GSD (General Station Description) files for automatic device recognition, eliminating manual parameter entry and reducing commissioning errors by 75%.

Redundancy Support
Compatible with Yokogawa's redundant FIO architectures for high-availability applications requiring < 50ms failover times in critical process control loops.

Remote Diagnostics via Ethernet Gateway
When paired with Yokogawa's ProSafe-RS gateway, enables cloud-based monitoring and predictive maintenance analytics through secure OPC UA connectivity.

Custom Firmware Updates
Field-upgradable firmware via SD card interface allows protocol enhancements and security patches without hardware replacement, extending product lifecycle beyond 15 years.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with same-day dispatch for orders placed before 2 PM CST
Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific GSD files and network parameters
Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Lifetime email/phone consultation for configuration assistance, troubleshooting, and integration guidance
Documentation Package: Includes user manual, GSD files, wiring diagrams, and sample ladder logic for common PLC platforms

Frequently Asked Questions

Q: How does the ALP121-S01 interface with existing Yokogawa CENTUM DCS systems?
A: The module integrates directly into Yokogawa FIO racks and appears as native I/O within CENTUM VP/CS 3000 engineering stations. Configuration is performed through the standard FIO Builder tool with automatic tag mapping to control strategies.

Q: What is the maximum network capacity when operating at 12 Mbps baud rate?
A: At maximum speed, the module supports up to 244 bytes of input data and 244 bytes of output data per slave device, with total network capacity of 1 kilobyte cyclic I/O updated every 5-10 milliseconds depending on slave count.

Q: Can this module reduce energy consumption compared to older communication interfaces?
A: Yes, the ALP121-S01 consumes 40% less power than legacy PROFIBUS cards through optimized ASIC design, translating to 25-watt savings per cabinet in systems with multiple communication modules—significant in solar-powered installations.

Q: What are the physical installation requirements for mounting this module?
A: The module requires a single slot in any Yokogawa FIO rack (AFV10/AFV30/AFV40 series). No external power supply needed—draws power from FIO backplane. Minimum clearance of 50mm above module recommended for cable bend radius.

Q: Does the ALP121-S01 support remote monitoring and diagnostics?
A: Built-in diagnostics are accessible locally via LED indicators and through the FIO system's Ethernet interface. For cloud connectivity, pair with Yokogawa's Sushi Sensor or OpreX Asset Operations gateway for IIoT-enabled predictive maintenance.

Q: How do I verify compatibility with third-party PROFIBUS devices?
A: Check the device manufacturer's GSD file version against PROFIBUS International's certified device database. The ALP121-S01 supports all DP-V0 and DP-V1 compliant devices. Contact our technical team for pre-integration validation if deploying mission-critical equipment.
